Mini PC Q190S-CPU Celeron j1900 Quad Core 2.0 GHz/ DDR3 RAM/ MSATA SSD/ Dual LAN/ Fanless

Product Option:Color:8GB RAM 32GB SSD,Bundle:S01 NO WIFI.Contact with us if you need other option.

Mini PC Q190S

Onboard CPU: Celeron J1900 Processor, quad core 2.0 GHz, up to 2.42 GHz HD Video + VGA, dual display. Dual Gigabit LAN: it can be configured advanced Router. Aluminum alloy case. Small and compact. Running 24/7. Fan-less design, quite working. DDR3L SO-DIMM & mSATA SSD. Q190S-S02 support 2.5" SATA SSD/ HDD. Dual band Wi-Fi/ BT4.0 is optional Come with inactive Windows 10 for test. Support Windows 7/ 8/ 10, Linux, etc. One year warranty

Wide application, high compatibility

Celeron j1900 Processor Quad core 2.0 GHz, run fast than other processor dual core/ single core. Bay Trail Processor, TDP is only 10W that can save electricity, more environmentally friendly. CPU J1900 can last for years that will be important for some projects. As one of main models, Q190S won't be stopped production unless no longer produce j1900 processor. Support dual screens to display same or different.

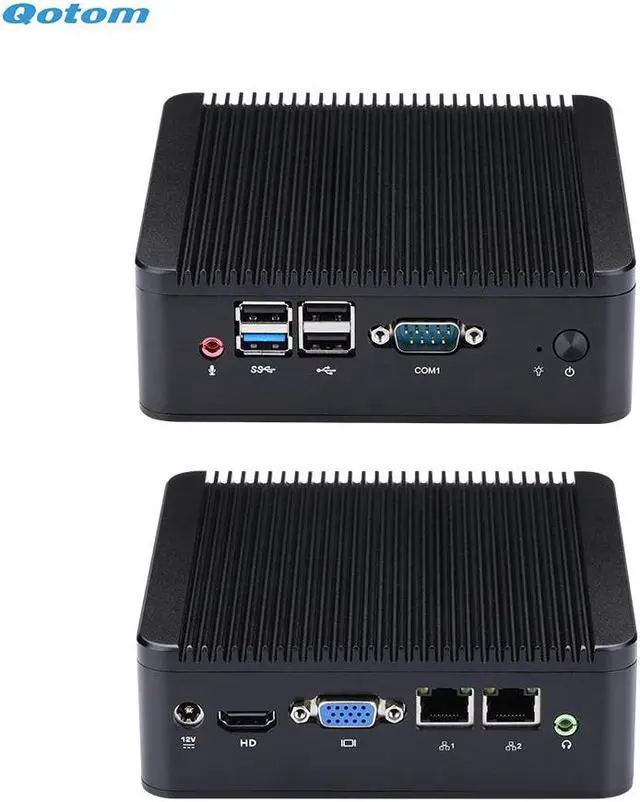

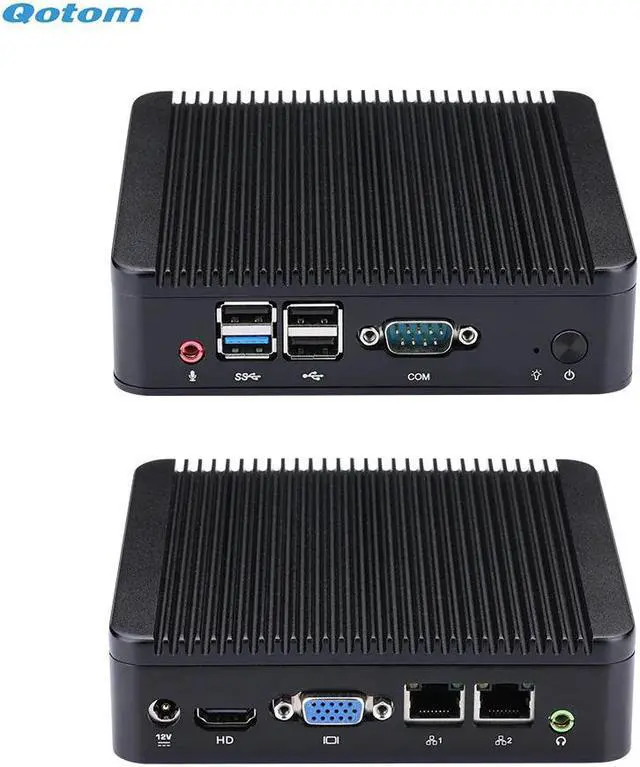

Connectors

Front-Panel Connectors: Power on/off button 1 x USB 3.0 Port 3 x USB 2.0 Ports 1 x Microphone Connector 1 x Serial port-RS232Back-Panel Connectors: 1 x 12V DC input 1 x HD Video Port 1 x VGA port 2 x Realtek RTL8111E 10/100/1000 Controller 1 x Speaker port Wi-Fi (Optional)

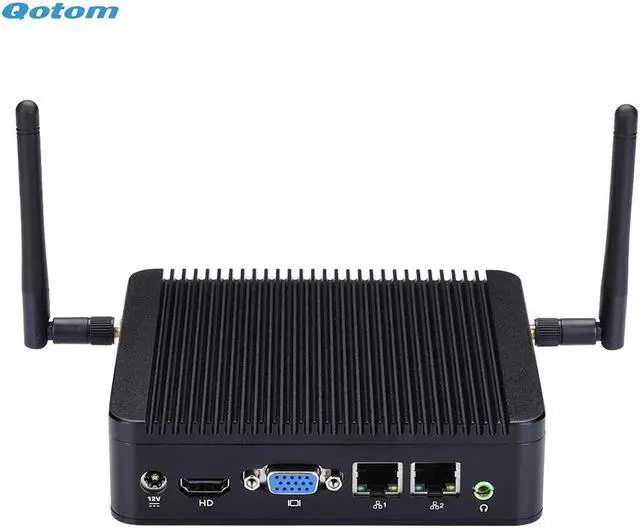

WiFi

Half mini PCIe slot for Wi-FiWi-Fi is optionalDual band Wi-Fi/ BT4.0

Mini PC Q190S has 2 versions:

Q190S-S01: 135*128*38 mm, 0.7kg. Only support mSATA SSD. Q190S-S02: 135*128*45 mm, 0.8kg. Support mSATA SSD and 2.5 inch SATA SSD/ HDD at the same time. * If you choose SSD, it will come with mSATA SSD by default. * If you choose S02, it will come with SATA cable in PC.

Mini PC Q190S-S01

135*128*38 mm, 0.7kg. Only support mSATA SSD

Packing
