Wireless Mini PC with 4 Gigabit NIC and Core i3 i5 Processor to build advanced Firewall Router

Product Option:Color:8GB RAM 256GB SSD,Bundle:i5-4200U NO WIFI.Contact with us if you need other option.

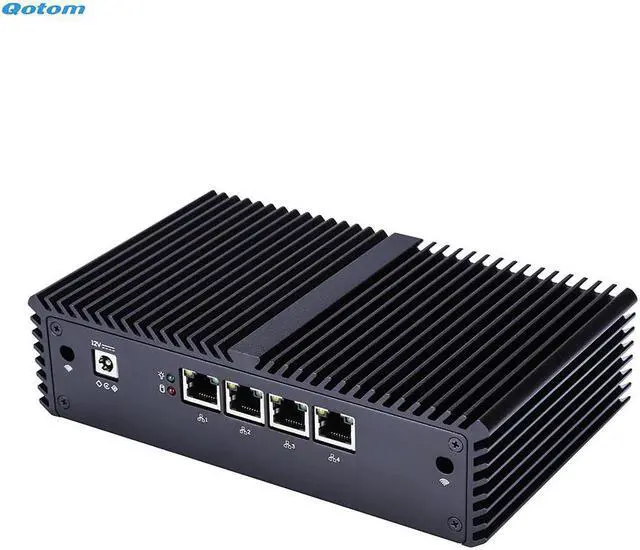

Mini PC Q300G4 Series

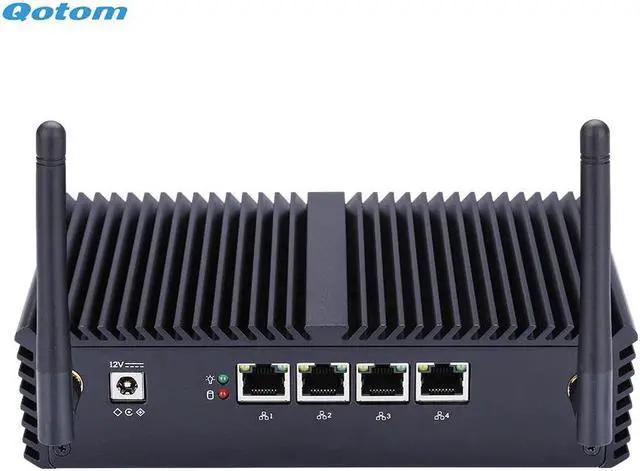

Onboard CPU: Core i3-4005U/ Core i5-4200U* Small and compact: 187*111*50 mm* Fan-less design, quite working* Running 24/7* Aluminum alloy case* DDR3L SO-DIMM & mSATA SSD* WiFi with Atheros chipset (optional)* Preload inactive Windows 10 Pro for test* One year warranty

Q300G4 in 2021 no longer have Speak Out and Mic In ports.

Router Firewall Appliance

With 4x 1GbE and pfsense, this appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and so on.

Personal Computer

With powerful Core i3 i5 Processor, attaching a keyboard & monitor and reinstalling a Operating system and some softwares, it's your new personal computer, excellent POS terminal, mini server, etc.

Operating System

Mini PC supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc. * Preload inactive Windows 10 Pro for test. Please preinstall OS by yourself if necessary.* F11 key boot from USB Drive. Delete key enter BIOS.

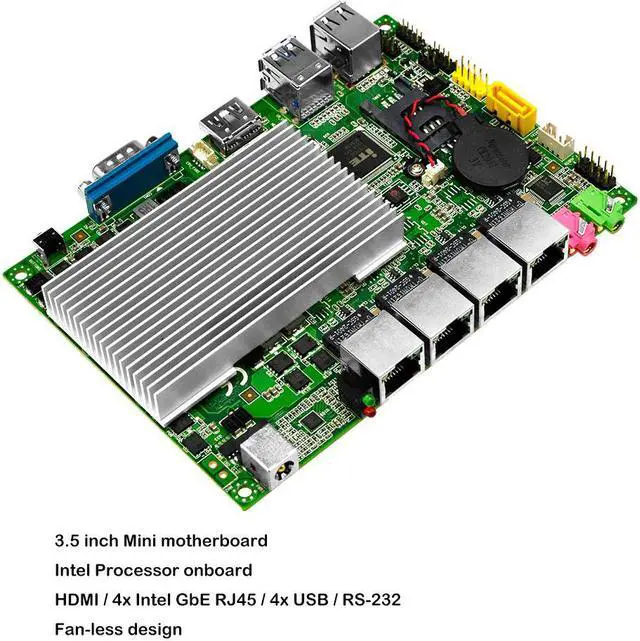

Core i3 i5 Processor onboard

Q330G4: Core i3-4005U Processor, Cache, dual core 1.7 GHz Q350G4: Core i5-4200U Processor, Cache, dual core 1.6 GHz, up to 2.6 GHzTDP: 15WAbove models support AES-NI

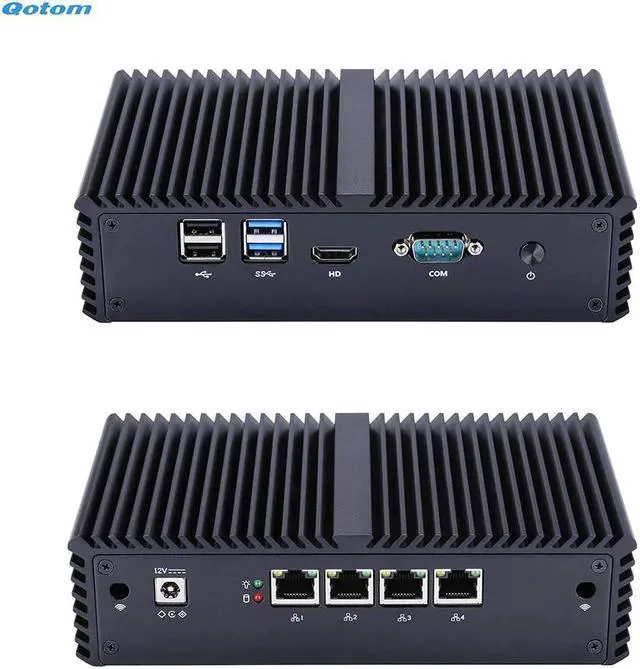

Connectors

1 x Power Button 1 x Serial Port (RS-232) 1 x HD Video Port 2 x USB 2.0 & 2 x USB 3.0 1 x DV 12V DC input HDD LED, Power LED 4 x I211-AT- 10/100/1000 Controller WiFi (optional)

Internal Connectors

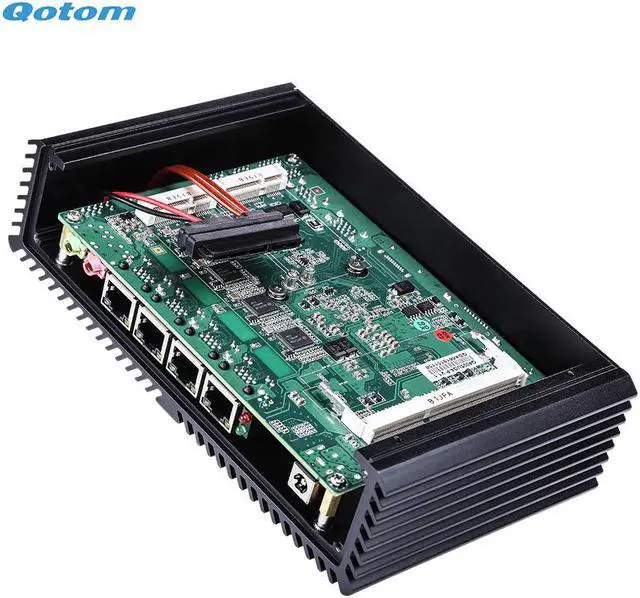

1 x Full Mini pcie slot (for mSATA SSD) 1 x SATA connector (for 2.5 inch SATA) 1 x Half Mini pcie slot (for WIFI/ 4G Module) 1 x DDR3L SO-DIMM Memory Slot, No-ECC. 8GB MAX

Fan-less design

Packing
