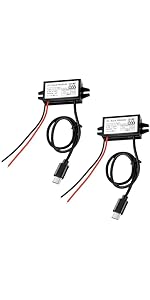

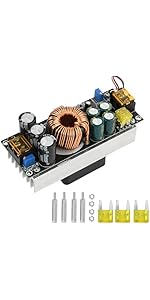

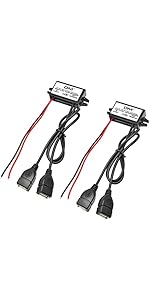

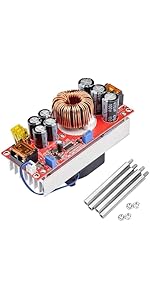

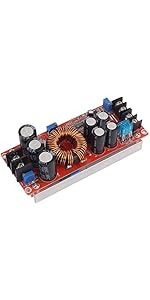

 1200W 20A Boost Converter |  1800W 20A Boost Converter |  1800W 20A Boost Converter |  150W Buck Boost Converter |  24W 12V to 5V Converter |  15W 12V to 5V Converter | |
|---|---|---|---|---|---|---|
| Price | — | — | — | — | — | — |
| Input(DC) | 10-60V | 10-60V | 14-85V | 6-36V | 6-32V | 8-20V |
| Output | 12-83V | 12V-90V | 14-120V | 0-36V | 5V | 5V |
| Output Current | 18A Max | 1.5A-22A | 1.5-20A | 0-7A | 3.4A Max | 3A Max |
| W | 1200W | 1800W | 1800W | 150W | 24W | 15W |

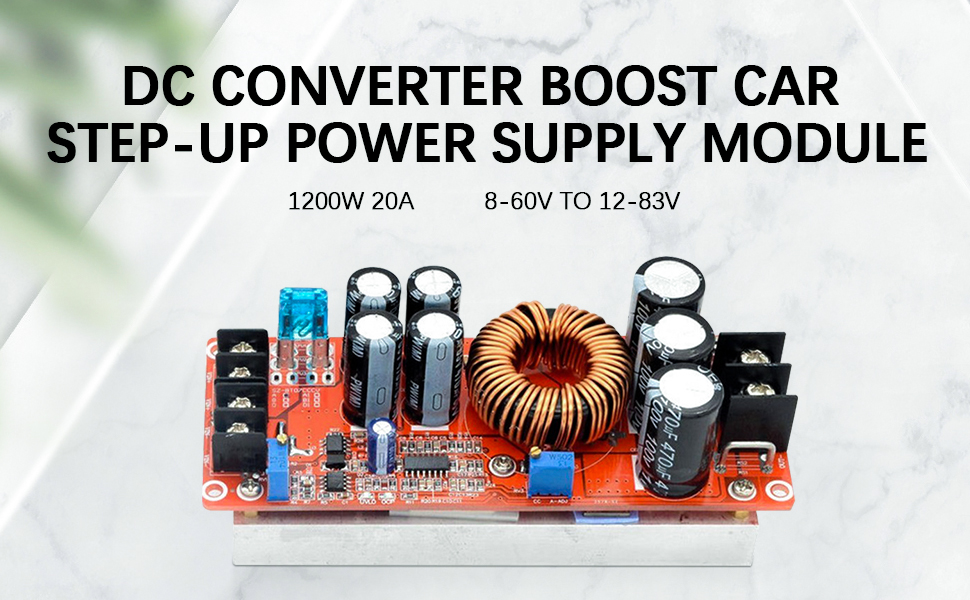

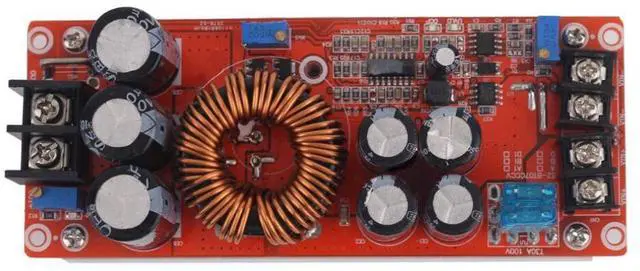

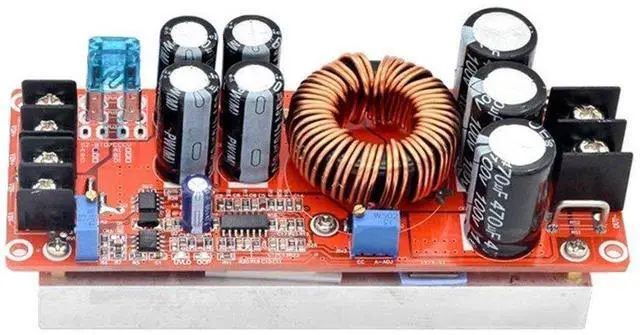

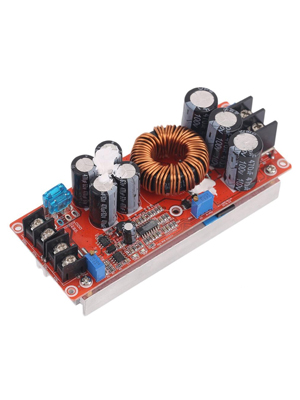

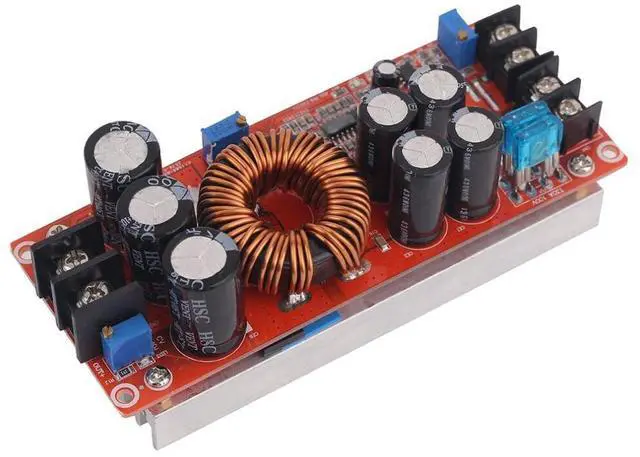

Aideepen 1200W 20A DC Converter Boost Car Step-up Power Supply Module 8-60V to 12-83V
Parameters:
- Input voltage: DC10-60V (direct input 10-60V without jumper cap selection voltage)
- Input current: 20A (MAX) exceeds 15A, please add fan cooling (add fan input current can reach 25A when the fan input voltage is 12-24V)
- Static working current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 12-83V continuously adjustable (default output is adjusted to 19V shipment, please adjust to other voltage values.) 12-83V fixed output (for bulk customers)
- Output current: 18A MAX More than 10A, please strengthen the heat dissipation (related to the input and output voltage difference, the larger the differential pressure, the smaller the output current)
- Constant current range: 0.5-18A (+/-0.3A)
- Low battery protection: yes (9-50V adjustable)
- Working temperature: -40~+85 degrees (enhance heat dissipation when the ambient temperature is too high)
- Working frequency: 150KHz
- Conversion efficiency: 92%-97% (efficiency and input and output voltage, current, pressure related)
Note:
- The maximum power is 240W when inputting 12V;
- The maximum power is 480W when inputting 24V;
- And the maximum power is 720W when inputting 36V.
Smart Protection:
- Input overcurrent protection: Yes (input over 25A, automatic protection, power does not boost)
- Short circuit protection: Yes (input 30A fuse) Double short circuit protection, safer to use.
- Input reverse connection protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)
- Low battery protection

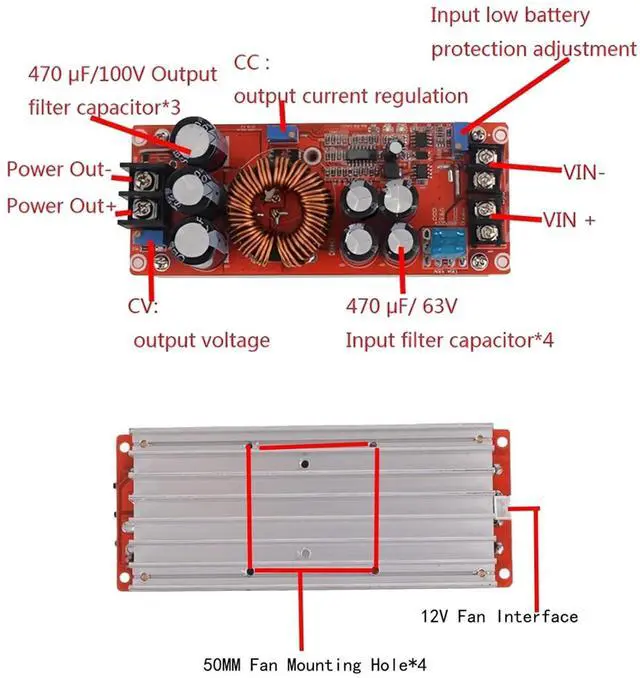

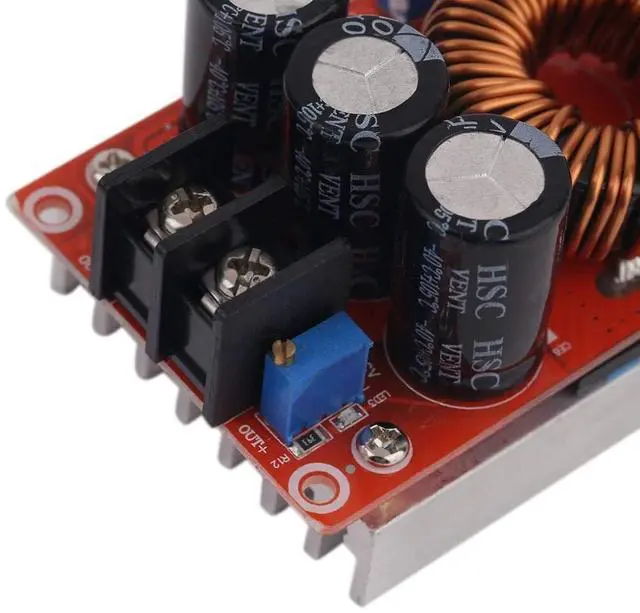

- Wiring method: 4 3mm copper columns, terminal block (please use high current pure copper wire)

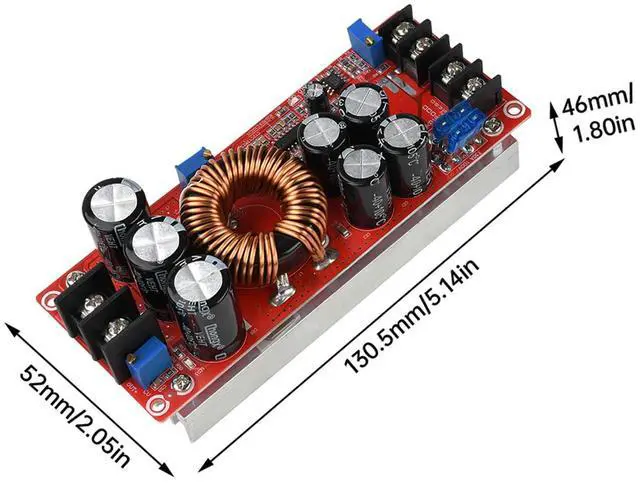

- Module size: length 130mm width 52mm height 53mm
- Output power: = input voltage * 20A, such as: input 12V * 20A = 240W The maximum power when inputting 12V is 240W
- Input voltage *20A For example: input 24V * 20A = 480W, that is: the maximum power is 480W when inputting 24V
- DIY a regulated power supply, input 12V, the output can be adjusted 12-80V
- As a car power supply, power your laptop, PDA or a variety of digital products
- DIY a high-power notebook mobile power;
- Solar panel voltage regulator;
- Drive high-power LED lights
Note:
Before using the product, it is necessary to know distinguish between constant voltage, constant current, constant current load, and constant voltage load.
If you connect a constant voltage load. When the load's current is greater than the current you set, the output voltage will be pulled down. Only when a constant current load is connected, the voltage will not be pulled down. (Constant current: the current does not change and the voltage changes with the load).

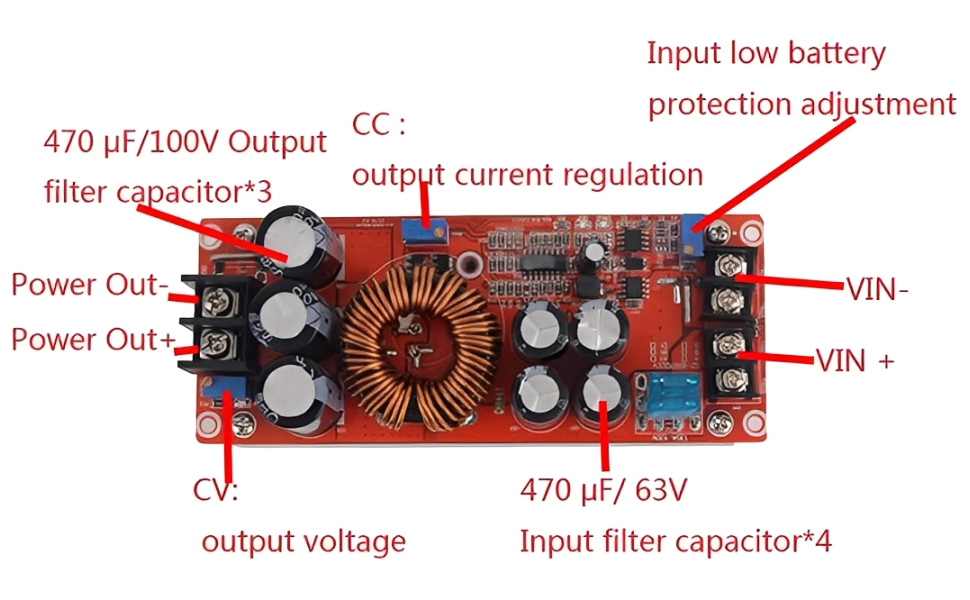

For example, the storage battery, 12V input to charge the 24V storage battery, the no-load voltage is adjusted to 28V. Then turn the cc potentiometer counterclockwise 30 turns. Adjust the current to the minimum. Connecting the storage battery. Just increase the current.
We greatly appreciate your POSITIVE feedback. Please do not leave negative feedback without asking for help. If you have any questions , please let me know ! we will try our best to solve any problem.Thank you very much!
Package Included:
- 1 x1200W 20A DC Converter Boost Power Supply Module
Boost Converter
Buck-Boost Converter
Voltage Converter
![Aideepen [6-Pack] MG996R Metal Gear High Speed Torque Digital Servo Motor for JR RC Helicopter Ca...](//c1.neweggimages.com/sellingpilot/modules/product/a-plus/2cccf15be74ec38b5738c365fb1de91211da3fdd42622399a0e96973ed6247d0.jpg)
Servo
How did we get our start?
In 2009, an electronic lover began to produce/sell and share various products with two engineers in Shenzhen. Aideepen was established.
What keeps us going?
We have been committed to becoming an expert in this field, constantly developing until build own factory and R&D team,and expanding the team to more than 200 employees.
How do we do, if there's some issue with product?
Each product you purchase from Aideepen have 24 months service. You can get a new replacement if there's any quality issue with your items.
