Note:
- For indoor use only.
- Suitable for electric locks, access control keypads, exit buttons and video doorbell cameras.
- With overload, overvoltage, short circuit and other automatic protection functions.
- When the output circuit is short-circuited, it will be automatically disconnected, and automatically return to normal state when the fault is removed.
Features:
- Compatible with world voltage, light weight, convenient transportation, small disturbance
- 3A power load, NC / NO / COM outputs, can control various types of electric locks
- Reduce the load of access controller, save wiring to reduce the hidden trouble
- Wide input voltage range, steady and precise,Automatic protection function:overload/ over voltage/ short circuit
- It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable)
- Aluminum alloy enclosure with good heat dissipation
- Provide very stable and reliable output
0~15 Seconds unlock time adjustable
Based delay control circuit, It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).
Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Specification
Dimensions:
- Body: 4.0L x 2.66W x 1.30H (in)
- Pitch:1.18 x 3.15 (in)
- Aperturer:0.15 (in)
Input AC 110-240V Wiring Diagram
Output DC 12V 3A Wiring Diagram
AMOCAM Video Doorbell System
Tuya APP push doorbell alert
AMOCAM Access Control Keypad
AMOCAM Technology Inc. is a high-tech enterprise integrating R&D, production, service and e-commerce of intelligent video doorbell system, advanced access control system and smart home system.
Make life better aims to help people apply the power of technology to make their lives better, more convenient and more fulfilling.
We provide after-sales support and services to all of our customers around the world.
Privacy and security are our top priorities. We are wholeheartedly and passionately committed to protecting your privacy and taking steps to ensure that your data is always secure.
Video doorbell protect your home, you’ll always know who at your door. locally stored recording protects your privacy.
Access control systems provide a secure and automated solution that can stop unauthorized persons from entering.
AMOCAM Video Doorbell System
Tuya APP push doorbell alert
AMOCAM Access Control Keypad
AMOCAM Technology Inc. is a high-tech enterprise integrating R&D, production, service and e-commerce of intelligent video doorbell system, advanced access control system and smart home system.
Make life better aims to help people apply the power of technology to make their lives better, more convenient and more fulfilling.
We provide after-sales support and services to all of our customers around the world.
Privacy and security are our top priorities. We are wholeheartedly and passionately committed to protecting your privacy and taking steps to ensure that your data is always secure.
Video doorbell protect your home, you’ll always know who at your door. locally stored recording protects your privacy.
Access control systems provide a secure and automated solution that can stop unauthorized persons from entering.
Note:
- For indoor use only.
- Suitable for electric locks, access control keypads, exit buttons and video doorbell cameras.
- With overload, overvoltage, short circuit and other automatic protection functions.
- When the output circuit is short-circuited, it will be automatically disconnected, and automatically return to normal state when the fault is removed.

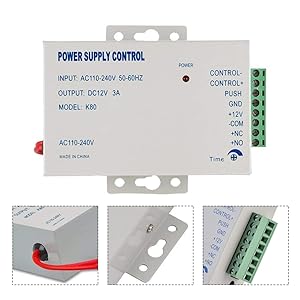

Features:
- Compatible with world voltage, light weight, convenient transportation, small disturbance
- 3A power load, NC / NO / COM outputs, can control various types of electric locks
- Reduce the load of access controller, save wiring to reduce the hidden trouble
- Wide input voltage range, steady and precise,Automatic protection function:overload/ over voltage/ short circuit
- It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable)
- Aluminum alloy enclosure with good heat dissipation
- Provide very stable and reliable output

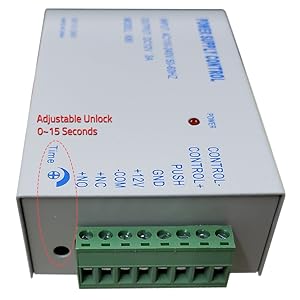

0~15 Seconds unlock time adjustable
Based delay control circuit, It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).
Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Specification
| Input Voltage | 100-240V AC |
| Input Frequency | 50~60Hz |
| Output Voltage | 12V DC |
| Output Current | 3A |
| Output Power | 36W |
| Output Stability | 0.5% Typical |
| Adjustable Locking Delay | 0~15sec |
| Operating Temperature | -4 ~ +140? |
| Operating Humidity | 10%-90% RH |
| Enclosure Material | Aluminum alloy |
| Enclosure Finish | Spraying |
| Weight | 9.8oz |
Dimensions:
- Body: 4.0L x 2.66W x 1.30H (in)
- Pitch:1.18 x 3.15 (in)
- Aperturer:0.15 (in)

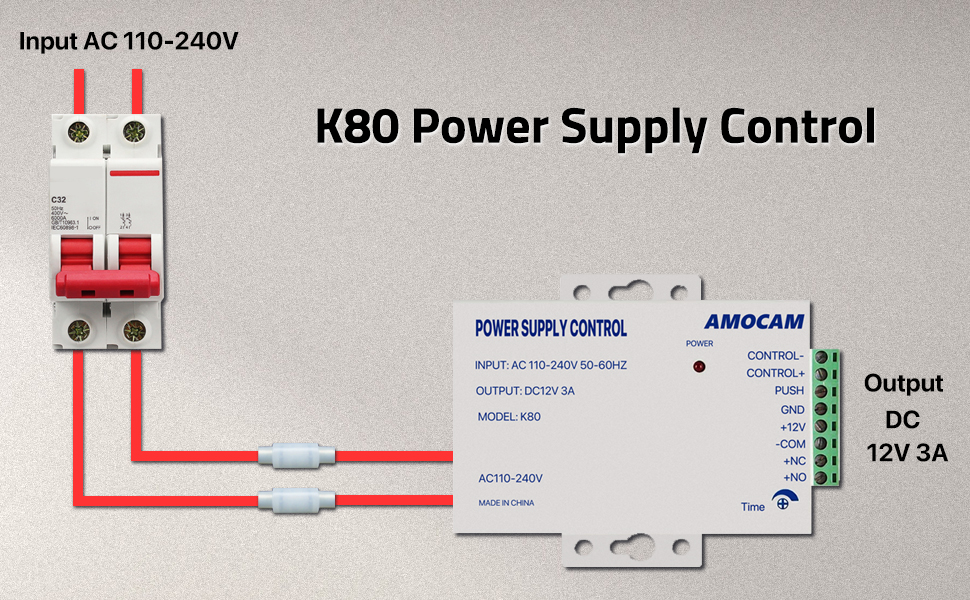

Input AC 110-240V Wiring Diagram

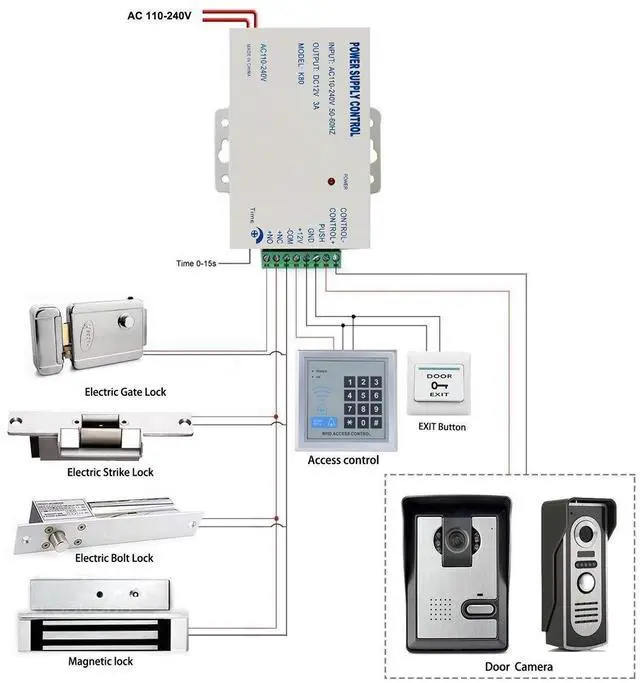

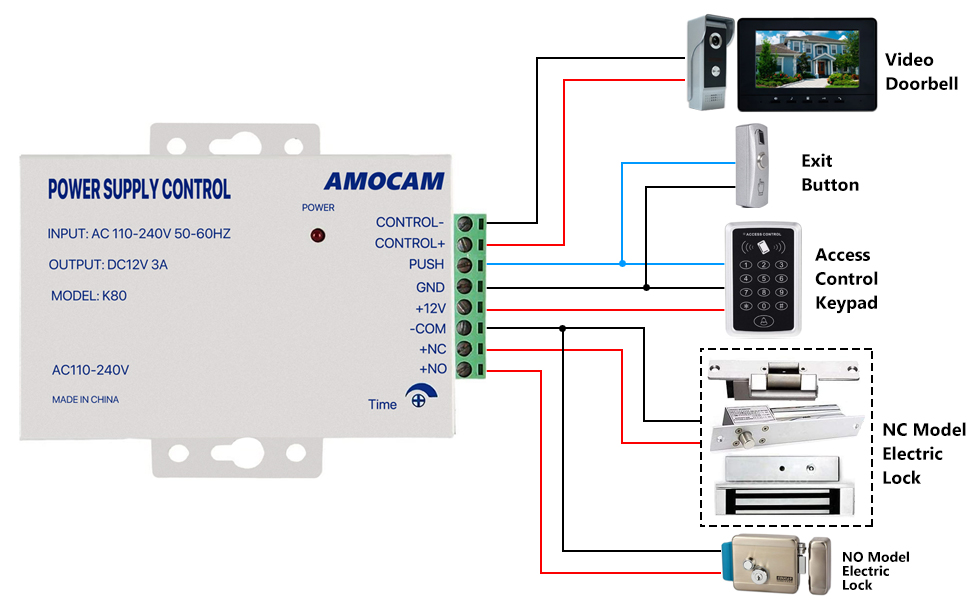

Output DC 12V 3A Wiring Diagram
