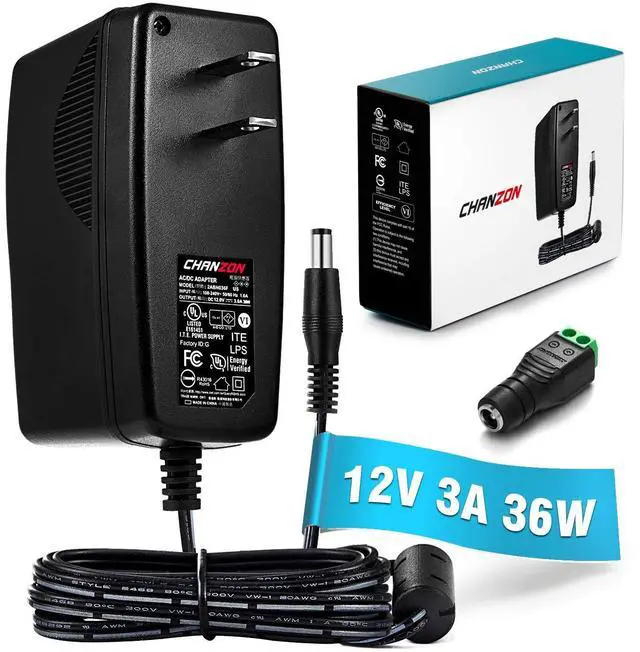

UL Listed 12V 3A 36W Power Supply AC DC Switching Adapter, 12 Volt 3 Amp AC/DC Wall Wart Converter Transformer, 100-240v 50 60HZ Input with 12vdc 3000ma Output

Specifications: Input 100~240v 50/60hz with output dc12v 3amp; adaptor self-adapting barrel jack size: 5.5mm x 2.1mm (applicable 2.5mm) positive (+) center
Certifications: Our 6ft charger cord have over 20 product certifications, including UL-Listed, FCC (US), CE (Europe), GS (Germany), TÜV (Germany), PSE (Japan), CCC (China), EAC (Russia), BSMI (Taiwan), and others, ensuring safety and reliability
High Efficiency: Our Level VI power adapters cables offer superior energy efficiency over Level V, resulting in a 10% to 20% energy saving
Intelligent Output Adjustment: The class 2 adapter is capable of automatically detecting the current amperage required by the electronic device, ranging from 50mA to 3A, such as 250mA, 500mA, 750mA, 1A, 1.5A, 2A, 2.5A and so on, with the maximum power of 36 watts
Applications: Suitable for CCTV Cameras, GPS, Bluetooth speakers, LED Strips light, LED tape light, keyboards, webcams, routers, audio amplifiers, wireless routers, ADSL modems (Cats), HUBs, audio/video power supply and more 12V electronics. Includes a DC power jack connector for versatility

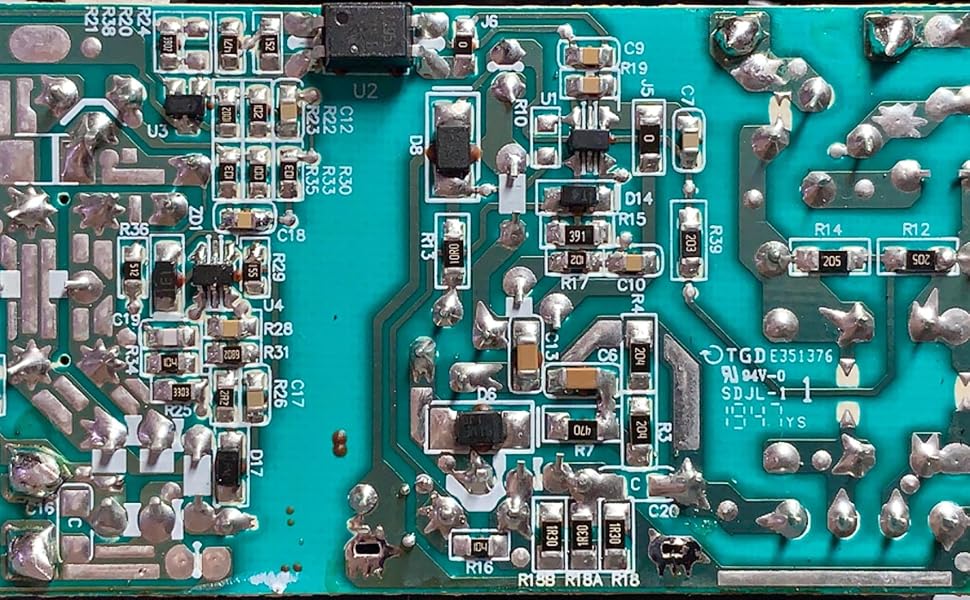

Well-designed and well-built

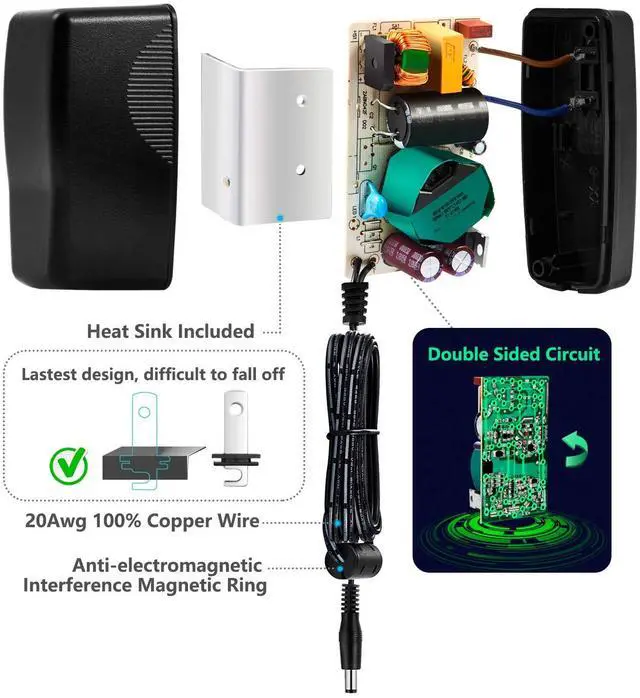

Caps are rated 105 degrees (at least according to their shrink labels) and are appropriately sized. 3.15A/250V sealed fuse mains side and a 0.33µF type X2 filter capacitor across the line. Good size X1/Y1 cap to the secondary. The TO-220 device seen in the product photos is an SPN80T10 N-channel enhancement mode MOSFET with ferrite bead (no expense spared) on the source lead. Unseen in the product photos is an additional TO-220 device, an 08N65A type N-channel power MOSFET. It is attached to the hefty heatsink plate using a screw with proper washer, spring/lock washer, and thermal compound.

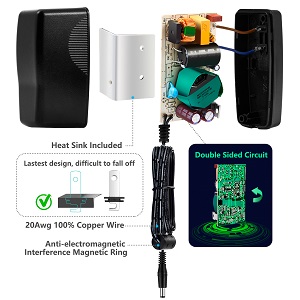

inner

Specifications:

Input: 100Vac - 240Vac 50Hz / 60Hz (Worldwide Suitable)
Output Voltage: 12V
Output Current: 0 – 3 A
Maximum Power: 36W
Operation Temperature: -10? to 40?
Storage Temperature: -20? to 85?

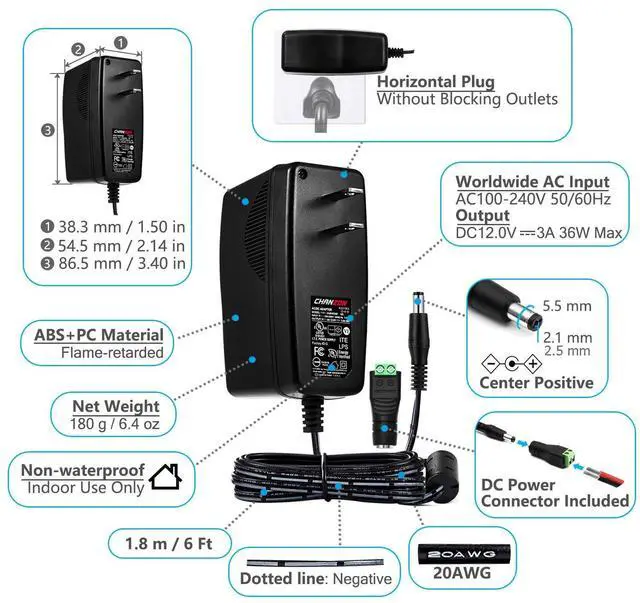

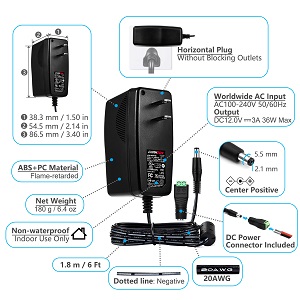

specifications

Features:

Power Cord : 6 Feet (1.8 M) 18Awg

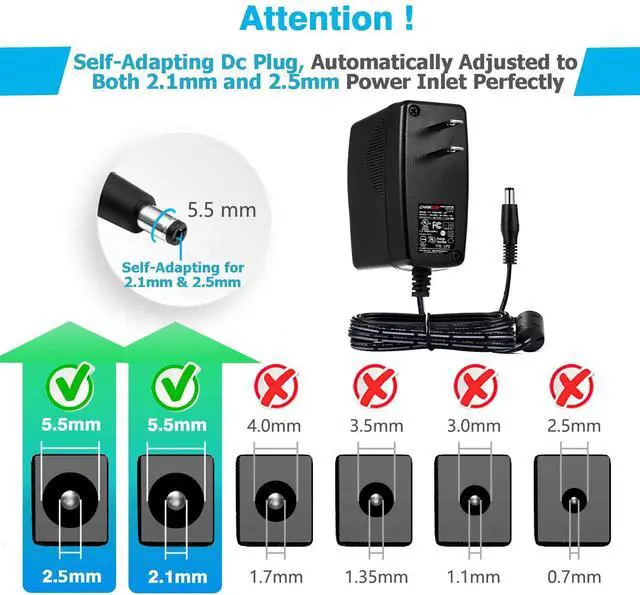

DC Male Barrel Plug: Suitable for both 2.1*5.5 & 2.5*5.5 mm
Net Weight: 6.4oz (180g)

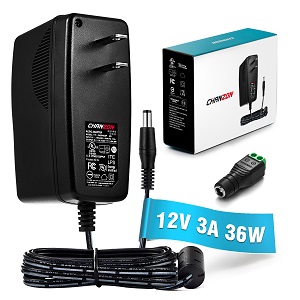

36W

Package:

1 x AC DC Power Adapter
1 x Power Jack Adapter
1 x Packing Box

Lifespan Test: Exceed 100,000 hours

2 Years Free Replacement
UL-Listed FCC PSE TUV RoHS-Compliant Lead-Free (Safety & Environmental Certificate)

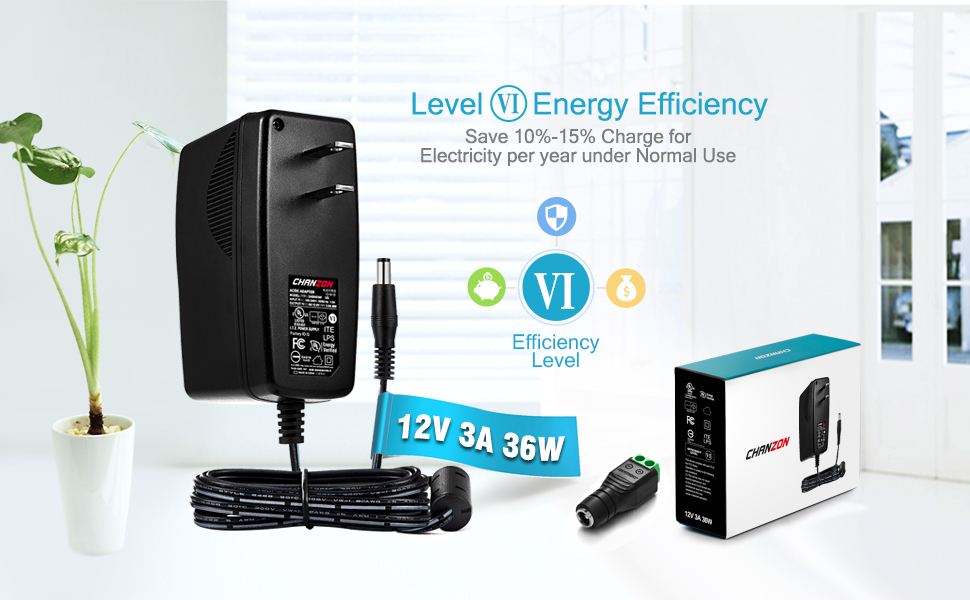

High Efficiency Level : VI (=90% , Save 15%-20% Electricity Charge)
Anti-interference Magnetic Ring to avoid EMI (Electromagnetic Interference)
Short Circuit / Over-Current / Over-Voltage Protection
Low Fever & No Noise at Full Rated Load
ABS+PC Flame-retarded Material Case
Double-sided Circuit Board Design
Shockproof Packing Box

Application:

(1) LED Lights

(2) 12V Fresh Water bilge Air Pump

(3) Wireless Wifi Router

(4) Foot Back Neck Shoulder Massager

(5) Power Supply AC DC Adapter

(6) Cable Modem

(7) External Hard Drive HDD

(8) USB Hub charger

(9) Universal Battery Charger Cord

(10) CCTV Security Camera

(11) DVR NVR Surveillance System

(12) Networking Ethernet Switches

(13) Computer Speakers

Reminder:

Avoid water, indoor use only.
Turn on delay time: 0.8-1.5 seconds.

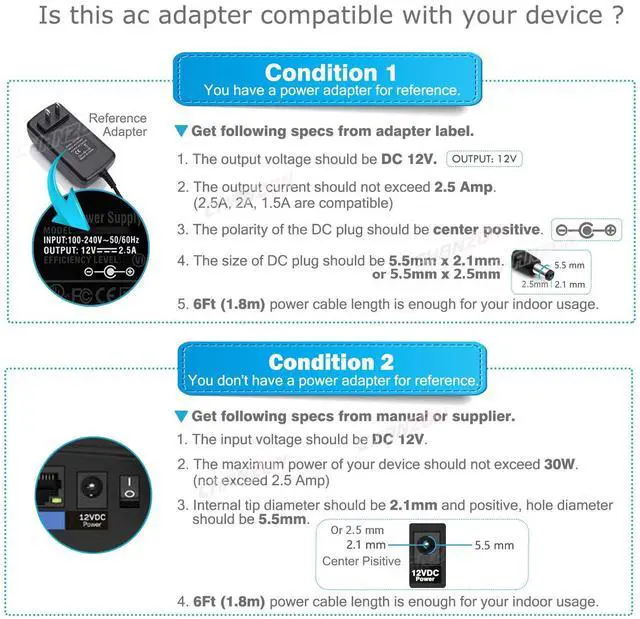

See Image-5 to confirm is this power charger compatible with your device.
Cut off the dc plug and connect the wire directly for some special usages (Dotted line is negative).



Customer Reviews	—	—	—	—	—
Price	—	—	—	—	—
UL Listed	?	?	?	?	?
Level VI Energy Efficiency	?	?	?	?	?
Output Voltage	12V	12V	12V	12V	12V
Output Current	2.5A	3A	5A	2A	2A
Pack	1	1	1	1	5
