12V 1A~15A Power Adapter
12V 5A~50A Power Supply
24V 1A~10A Power Adapter
5V 3A~15A Power Adapter
5V 20A~70A Power Supply
24V 5A~25A Power Supply
12V 2~10A Car Power Converter
12V 15~30A Car Power Converter
 12V 2A 24W 10Tips Adapter |  12V 2.5A 30W 14Tips Adapter |  12V 4A 48W 14Tips Adapter |  12V 5A 60W 14Tips Adapter |  12V 5A 60W Adapter |  12V 3A 36W 10Tips Adapter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Output Amps | 2A | 2.5A | 4A | 5A | 5A | 3A |
| Output Watts | 24W | 30W | 48W | 60W | 60W | 36W |
| Output Tips | 10 Tips | 14 Tips | 14 Tips | 14 Tips | Barrel Connector | 10 Tips |

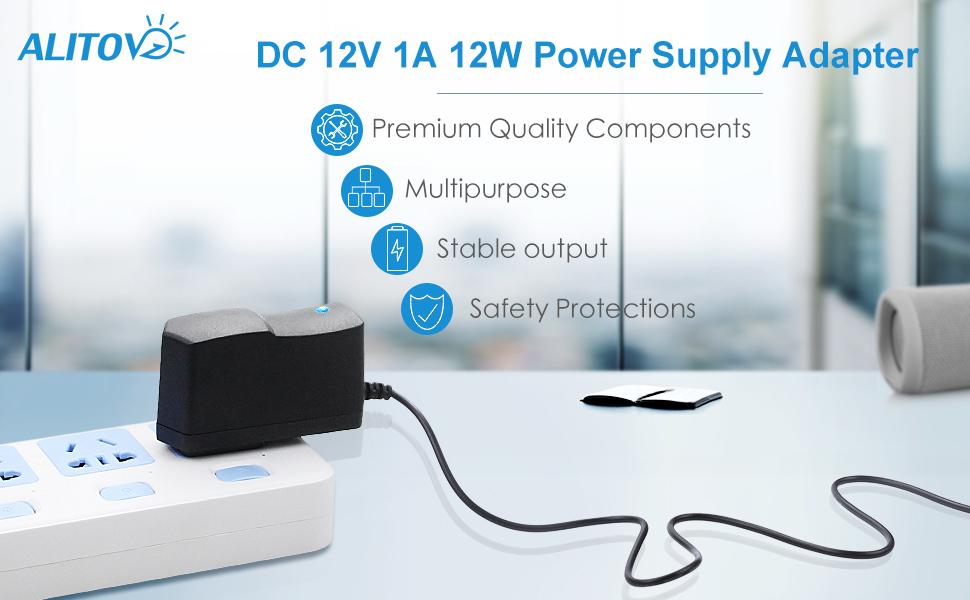

Product Specification:
Parameter
- Input: 100~240V AC, 50/60Hz
- Output voltage: 12V DC
- Output current: 1A max
- Output wattage: 12W max
- DC plug connector size: 5.5mmx2.5mm; 5.5mmx2.1mm compatible
- Polarity: internal "+", outside"-"
- Dimensions: Please refer to the picture.
- Working Temperature: -20~60?
- Ambient Humidity: 0~95% Non-Condensation
- Dimensions: Please refer to the picture.
- Weight: 0.22 lb / 100g
Package List:
- 1x 12V 1A power supply adapter & 1x DC female connector
Important Note:
Please choose correct power supply before place the order. Wrong power supply may damage your equipment!
If you don't know what power supply you should buy, please let us know, we will help you.
How to choose correct power supply?
1.Check Voltage:
Please check the parameter label of your device and check the working voltage. It should be 12V DC, not be lower/higher than 12V DC. Otherwise, your device will not work or be damaged.
2. Check Current:
Check the max current your device will draw. It should be equal to or less than 2A, such as 0.5A, 1A, 1.5A, 2A. Otherwise, your device won’t work well and the power supply will be damaged very soon.
3. Check power input port:
Check the power input port of your device. Its outer diameter should be 5.5mm; inner core diameter should 2.5mm or 2.1mm. Inner core polarity should be"+", exterior polarity should be" - ". Otherwirse, the power supply can't be plugged into your device.
If your device's voltage is 12V DC, the current is less than 2A, the power port is 5.5mm x 2.5mm or 5.5mm x 2.1mm, and the inside polarity is "+", outside polarity is "-", you can choose this 12V 2A power supply. Otherwise, please choose other power supply according to above instructions.
Product Highlights
Superior Safety
Flame-retardant exterior shell and built-in safeguards to protect against overheat, overload, over-charging, short-circuit provide ultimate protection for you and your devices.
Stable Output
Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference, ensure stable voltage output.
High-quality Cable
2x 0.5 mm²(20AWG) copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.
Durable Design
Robust casing protects against scratches,bumps, drops, withstands pressure and keeps internal components safe during emergencies enhanced longevity.
Broad Compatibility
Max 1A ouput means it can only supply with amperage less than 1A. ---such as 0.1A, 0.5A, 0.8A. If your device draws 0.5A, 0.5A will be supplied. But if draws more than 1A, only 1A will be supplied.
Expanded Application
We especially add a female terminal connector in the package. You can screw wires onto it to power the devices that have no female DC socket. This will greatly expand its applied range.
Professional Advice
We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend to use 12W PS to power devices less than 9.6W.
12V 2A 24W 10Tips Adapter | 12V 2.5A 30W 14Tips Adapter | 12V 4A 48W 14Tips Adapter | 12V 5A 60W 14Tips Adapter | 12V 5A 60W Adapter | 12V 3A 36W 10Tips Adapter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Output Amps | 2A | 2.5A | 4A | 5A | 5A | 3A |
| Output Watts | 24W | 30W | 48W | 60W | 60W | 36W |
| Output Tips | 10 Tips | 14 Tips | 14 Tips | 14 Tips | Barrel Connector | 10 Tips |
Product Specification:
Parameter
- Input: 100~240V AC, 50/60Hz
- Output voltage: 12V DC
- Output current: 1A max
- Output wattage: 12W max
- DC plug connector size: 5.5mmx2.5mm; 5.5mmx2.1mm compatible
- Polarity: internal "+", outside"-"
- Dimensions: Please refer to the picture.
- Working Temperature: -20~60?
- Ambient Humidity: 0~95% Non-Condensation
- Dimensions: Please refer to the picture.
- Weight: 0.22 lb / 100g
Package List:
- 1x 12V 1A power supply adapter & 1x DC female connector
Important Note:
Please choose correct power supply before place the order. Wrong power supply may damage your equipment!
If you don't know what power supply you should buy, please let us know, we will help you.
How to choose correct power supply?
1.Check Voltage:
Please check the parameter label of your device and check the working voltage. It should be 12V DC, not be lower/higher than 12V DC. Otherwise, your device will not work or be damaged.
2. Check Current:
Check the max current your device will draw. It should be equal to or less than 2A, such as 0.5A, 1A, 1.5A, 2A. Otherwise, your device won’t work well and the power supply will be damaged very soon.
3. Check power input port:
Check the power input port of your device. Its outer diameter should be 5.5mm; inner core diameter should 2.5mm or 2.1mm. Inner core polarity should be"+", exterior polarity should be" - ". Otherwirse, the power supply can't be plugged into your device.
If your device's voltage is 12V DC, the current is less than 2A, the power port is 5.5mm x 2.5mm or 5.5mm x 2.1mm, and the inside polarity is "+", outside polarity is "-", you can choose this 12V 2A power supply. Otherwise, please choose other power supply according to above instructions.
Product Highlights
Superior Safety
Flame-retardant exterior shell and built-in safeguards to protect against overheat, overload, over-charging, short-circuit provide ultimate protection for you and your devices.
Stable Output
Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference, ensure stable voltage output.
High-quality Cable
2x 0.5 mm²(20AWG) copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.
Durable Design
Robust casing protects against scratches,bumps, drops, withstands pressure and keeps internal components safe during emergencies enhanced longevity.
Broad Compatibility
Max 1A ouput means it can only supply with amperage less than 1A. ---such as 0.1A, 0.5A, 0.8A. If your device draws 0.5A, 0.5A will be supplied. But if draws more than 1A, only 1A will be supplied.
Expanded Application
We especially add a female terminal connector in the package. You can screw wires onto it to power the devices that have no female DC socket. This will greatly expand its applied range.
Professional Advice
We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend to use 12W PS to power devices less than 9.6W.
