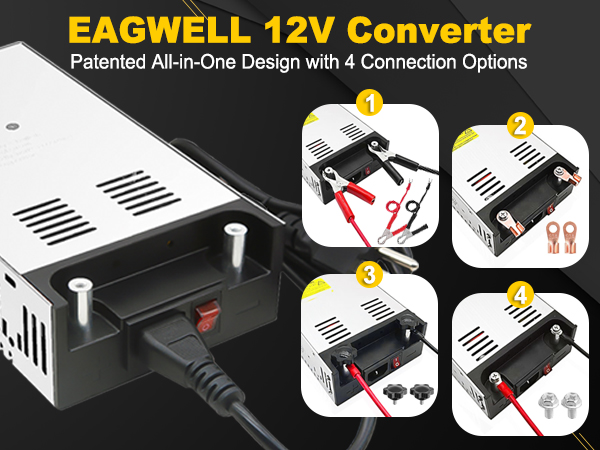

EAGWELL AC to DC Converter Solve All Your Problems in 1 Step – Learn How!
How 12V Power Supply Makes A Difference for You
EAGWELL 110V to 12V Converter is a Smart Choices for you

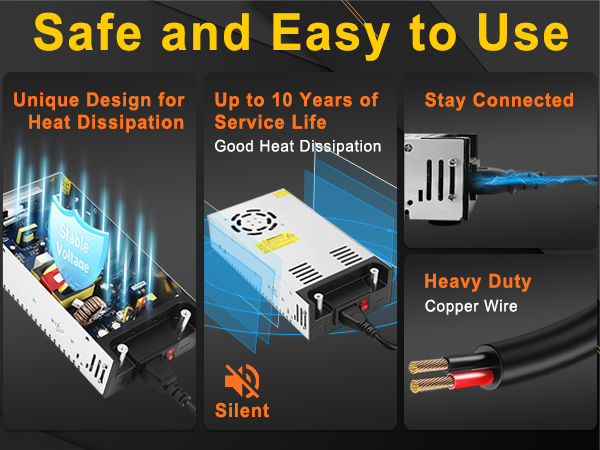

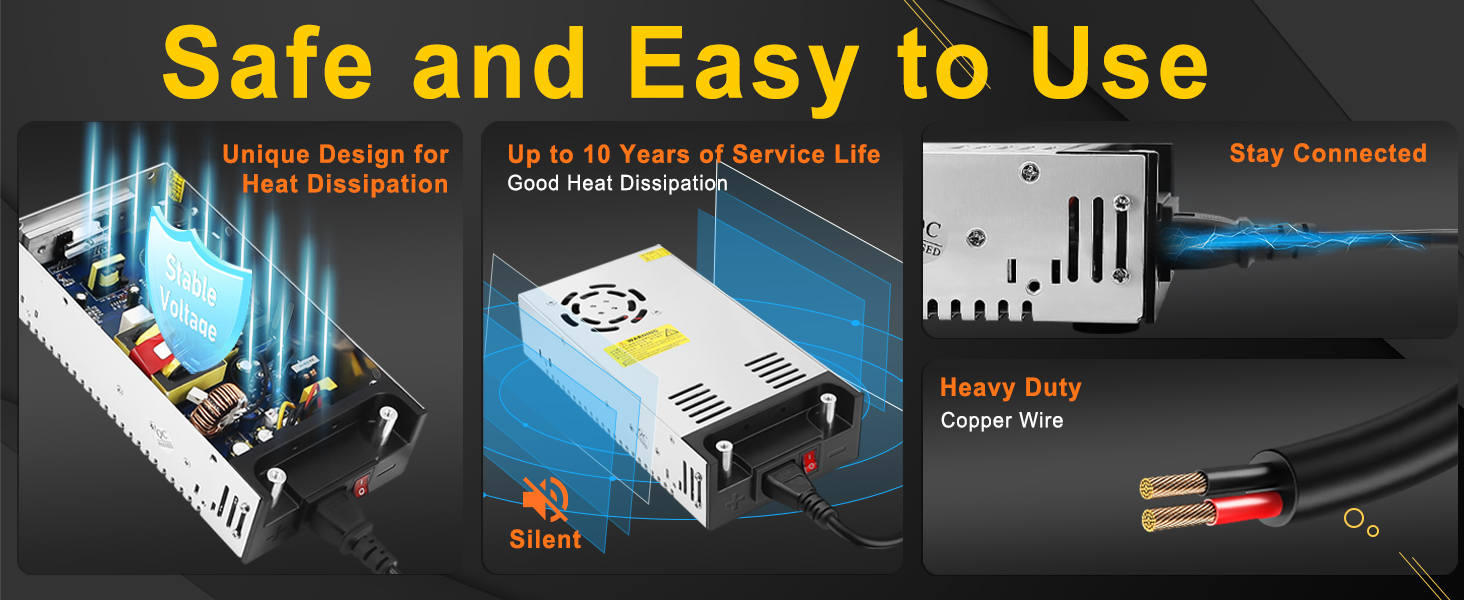

EAGWELL 12V Power Supply Heat Dissipation 95% Stronger Than Competitors

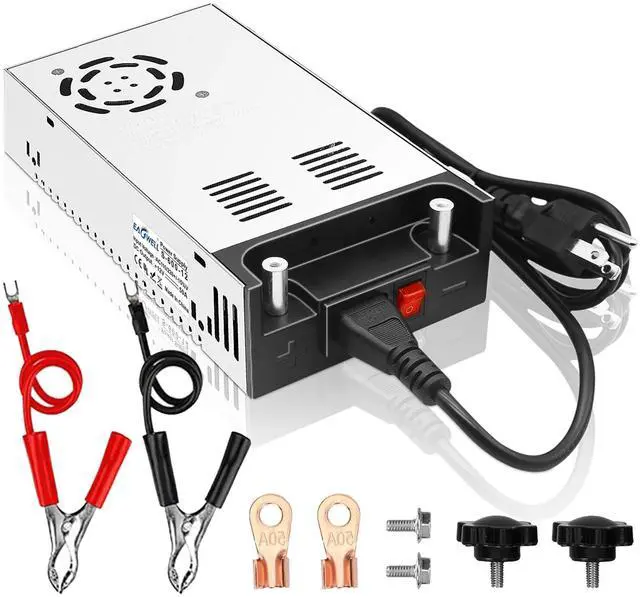

EAGWELL DC 12V 50A 600W Power Supply Technical Specification
EAGWELL AC to DC Converter Works with 1000+ 12V Devices
A Series AC to DC Converter from EAGWELL
 AC to DC Converter 600W |  AC to DC Converter 1000W |  24V Power Supply 600W |  360W Power Supply | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |

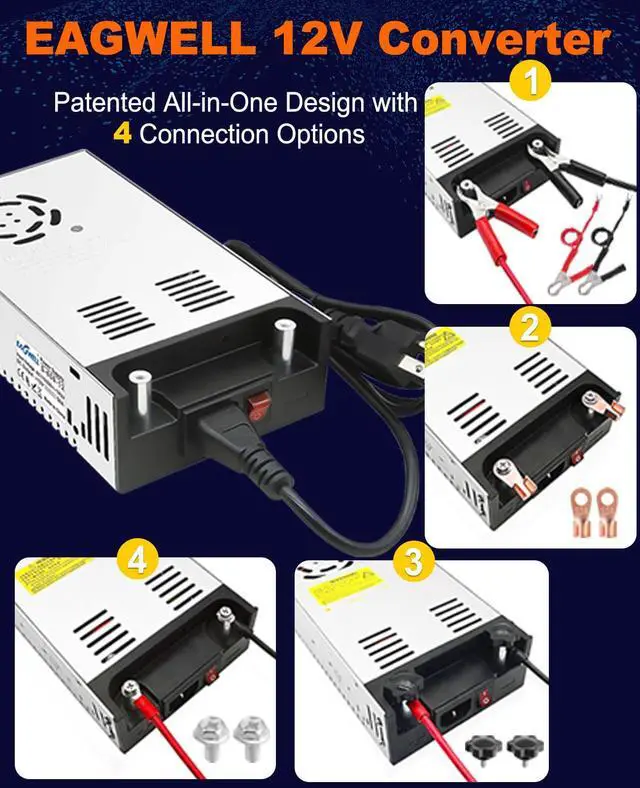

Features | Patented All-in-One Design | Patented All-in-One Design | Patented All-in-One Design | DIY |
Max Power | 600 Watts | 1000 Watts | 600 Watts | 360 Watts |
Max Current | 50 Amp | 83.33 Amp | 25 Amp | 15 Amp |
DC Output Voltage | DC 12V | DC 12V | DC 24V | DC 24V |
Specification Met | UL,UKCA,CE | UL,UKCA,CE | UL,UKCA,CE | CE,RoHS,UKCA |
Eagwell's Patent | ? | ? | ? | ? |

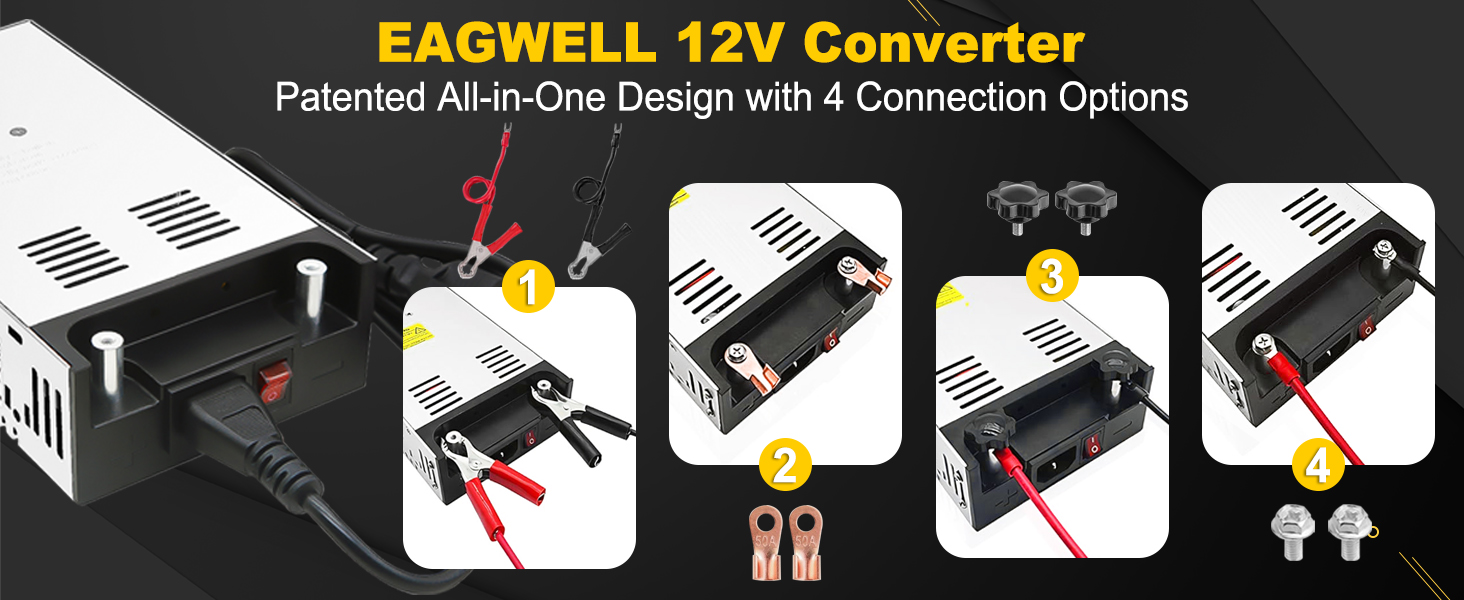

EAGWELL AC to DC Converter Solve All Your Problems in 1 Step – Learn How!

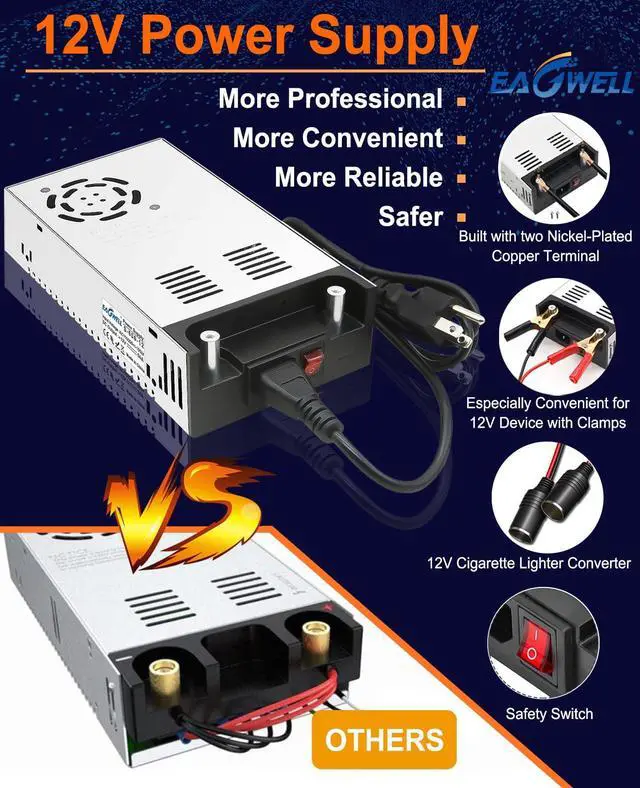

How 12V Power Supply Makes A Difference for You
EAGWELL 110V to 12V Converter is a Smart Choices for you

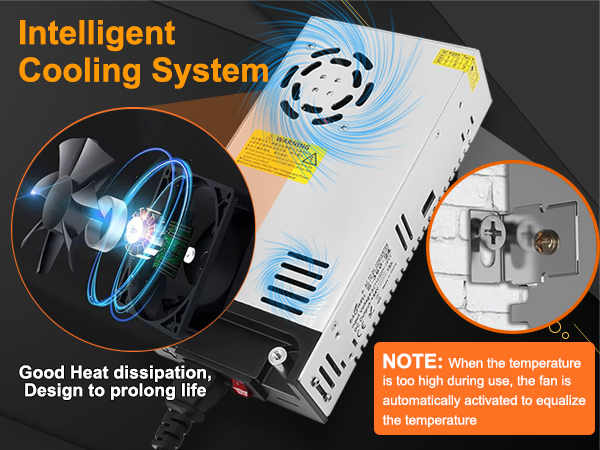

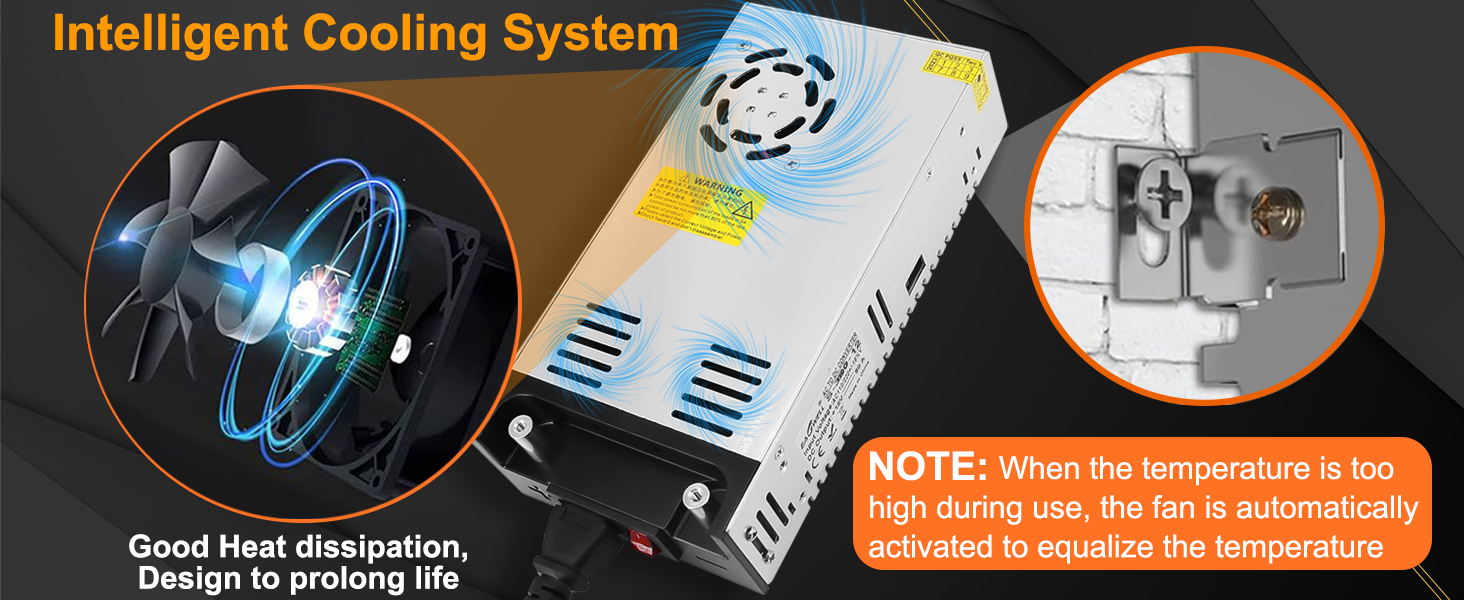

EAGWELL 12V Power Supply Heat Dissipation 95% Stronger Than Competitors

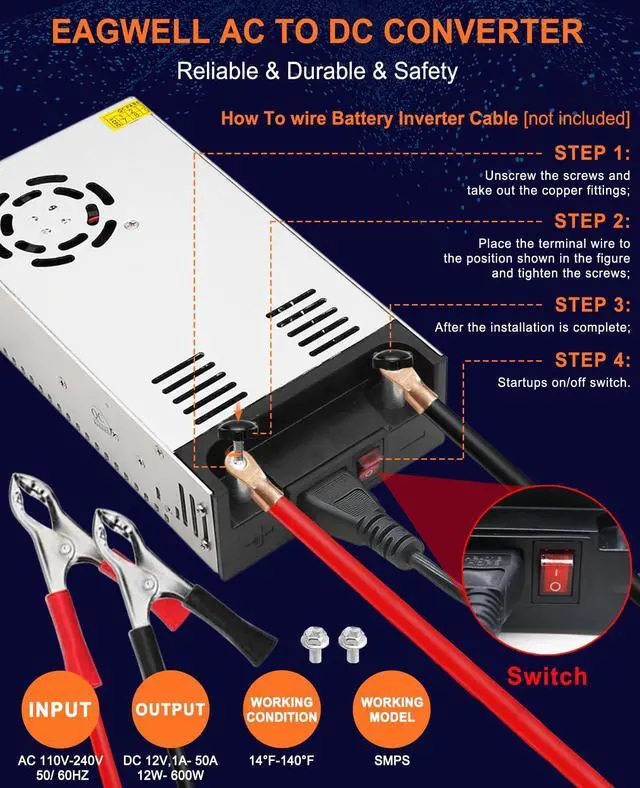

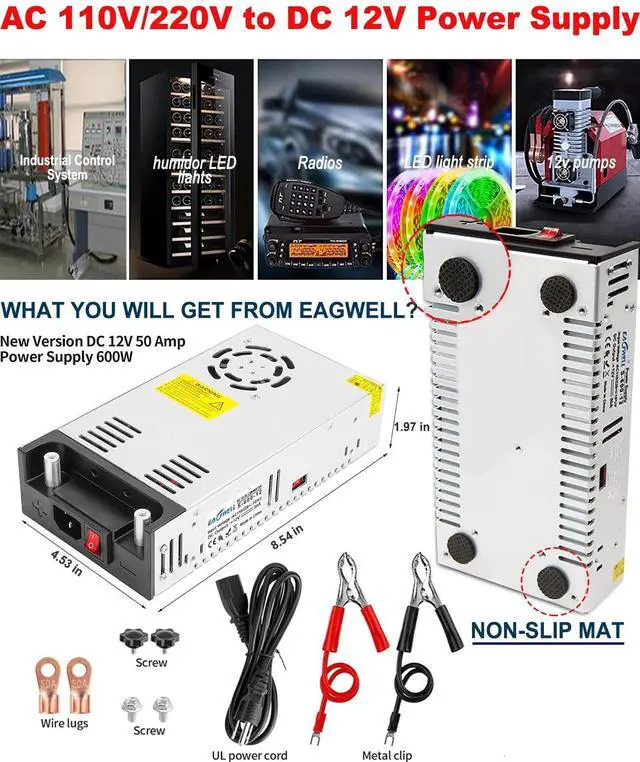

EAGWELL DC 12V 50A 600W Power Supply Technical Specification

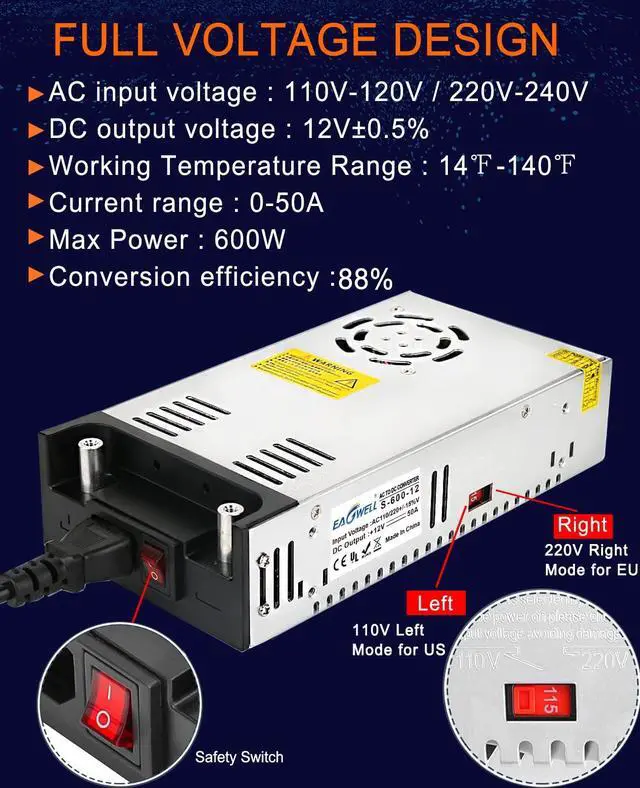

| AC Input | AC 110V / 220V (85-140V / 185-265V) , 50/60Hz |
|---|---|
| Output Voltage | DC 12V ( ?0.5%Efficiency ) |
| Output Current | 0 - 50 Amp |
| Output Wattage | 60W,120W,180W, 300W, 360W, 500W, 600W Max |
| Fixing Screw Hole Diameter | 0.1inch ( 2.5 mm) |
| Ambient Humidity | 0 - 95% Non-Condensation |
| Working Temperature | 14 ? - 140? |
| Warm Tip 1 | We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 12V 50A 600W power supply to power devices less than 480W.For resistive device, SMPS peak power = device power × 1.25 times. For Motor device, the peak power of the SMPS needs to be more than 2 times the power of the Motor. |
| Warm Tip 2 | 110V/220V must be selected by switch before use to avoid damage. Please change the switch to 110V for USA/CA and 220V for EUR,AU |
| Warm Tip 3 | Not Applicable for Battery, PWM Motor, Adjustable Speed Motor, Dimming Light, Conditioning Module Rogram Control Panel |
EAGWELL AC to DC Converter Works with 1000+ 12V Devices
A Series AC to DC Converter from EAGWELL
AC to DC Converter 600W | AC to DC Converter 1000W | 24V Power Supply 600W | 360W Power Supply |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| Features | |||
| Patented All-in-One Design | Patented All-in-One Design | Patented All-in-One Design | DIY |
| Max Power | |||
| 600 Watts | 1000 Watts | 600 Watts | 360 Watts |
| Max Current | |||
| 50 Amp | 83.33 Amp | 25 Amp | 15 Amp |
| DC Output Voltage | |||
| DC 12V | DC 12V | DC 24V | DC 24V |
| Specification Met | |||
| UL,UKCA,CE | UL,UKCA,CE | UL,UKCA,CE | CE,RoHS,UKCA |
| Eagwell's Patent | |||
| ? | ? | ? | ? |
