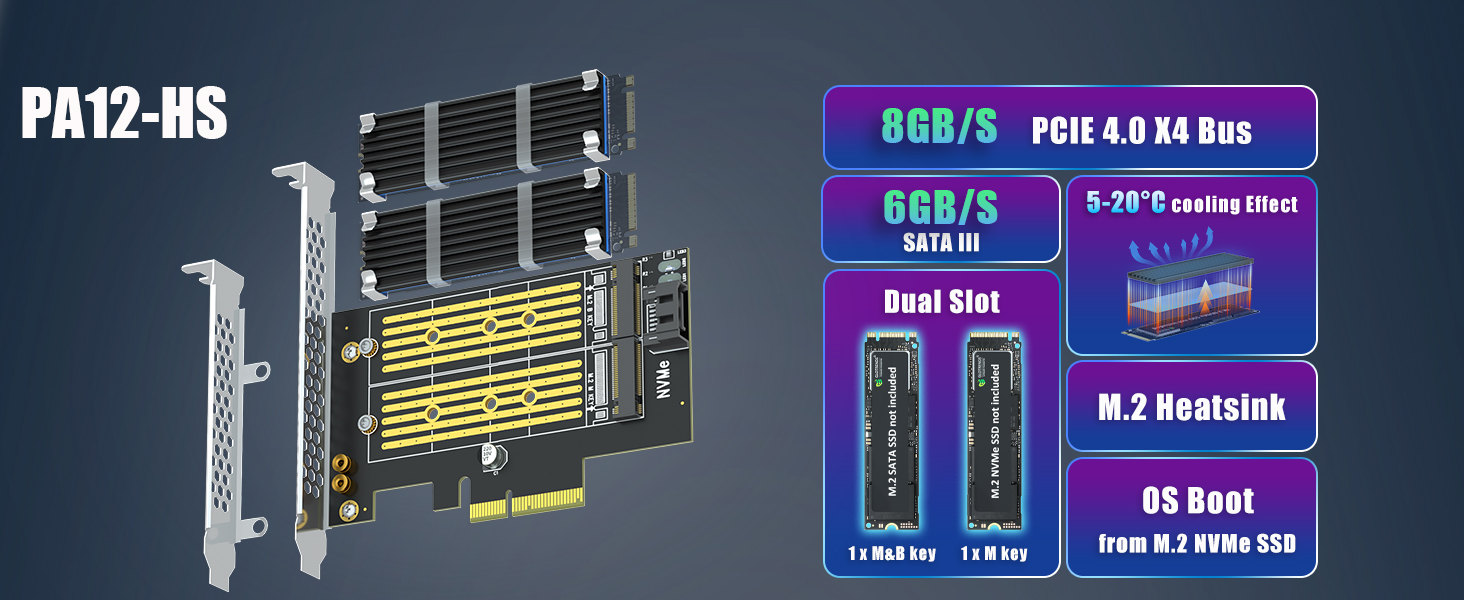

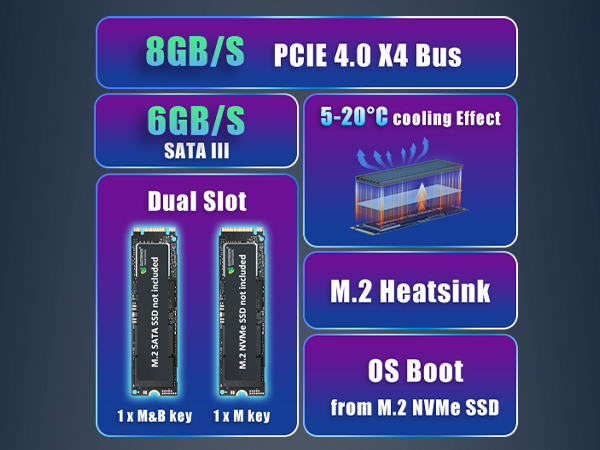

    PA12-HS M.2 PCIe 4.0 X4 Adapter for One M.2 NVMe SSD and One M.2 SATA SSD, Including 2 Sets of M.2 Heatsink Kits

    Be the first to review this product...

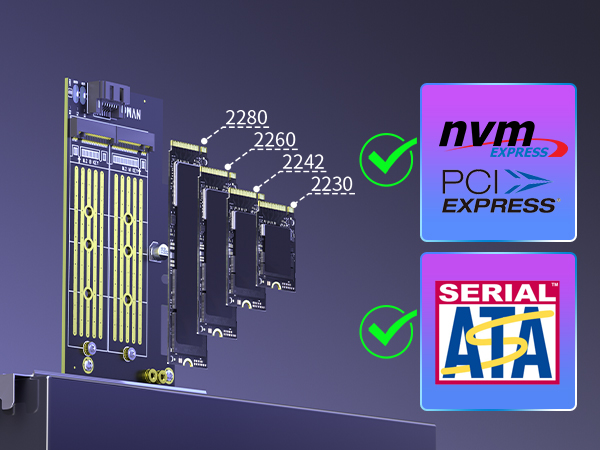

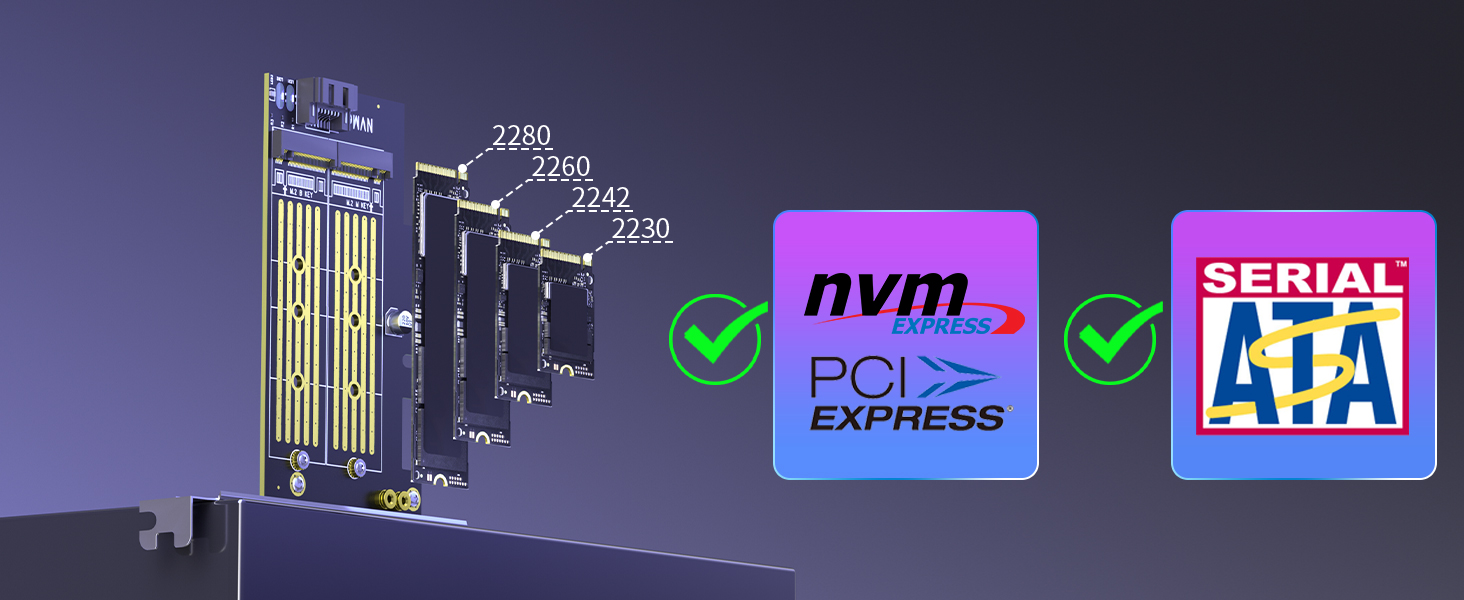

    • 2-in-1 M.2 SSD Adapter: It allows you to install one M.2 NVMe SSD and one M.2 SATA SSD on your computer. The M.2 NVMe SSD is installed in the lower slot (M Key), while the M.2 SATA SSD is installed in the upper slot (B Key).

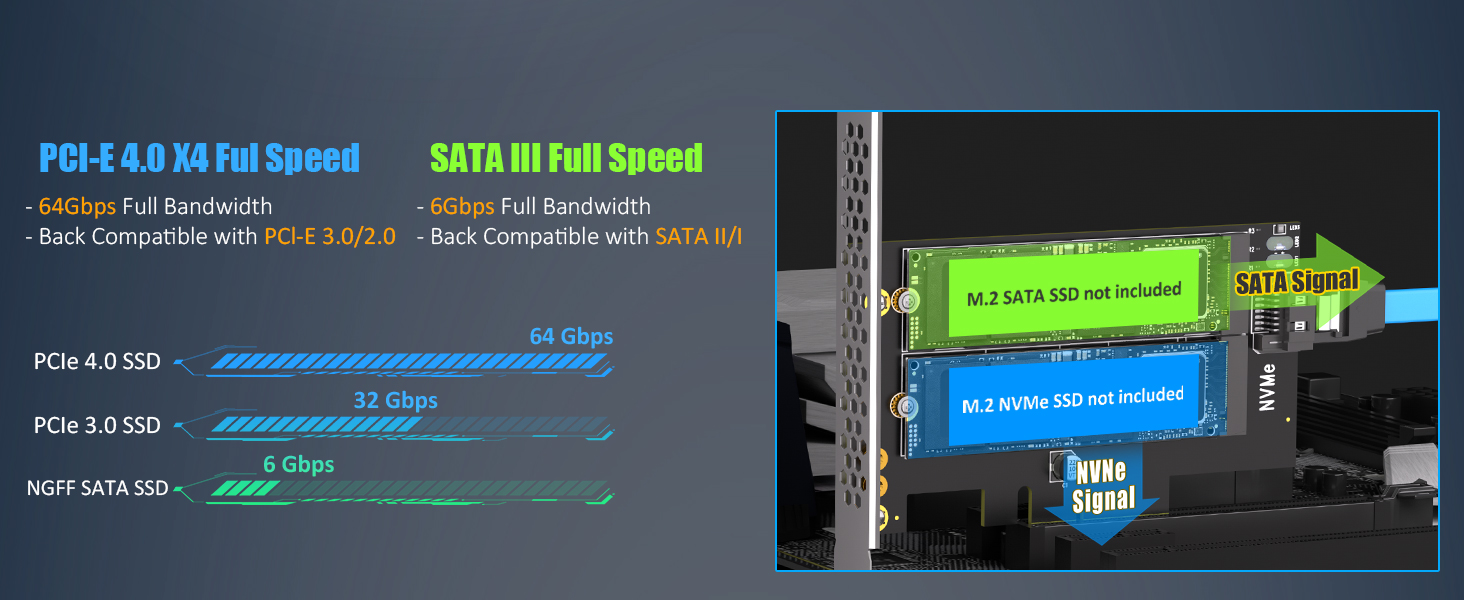

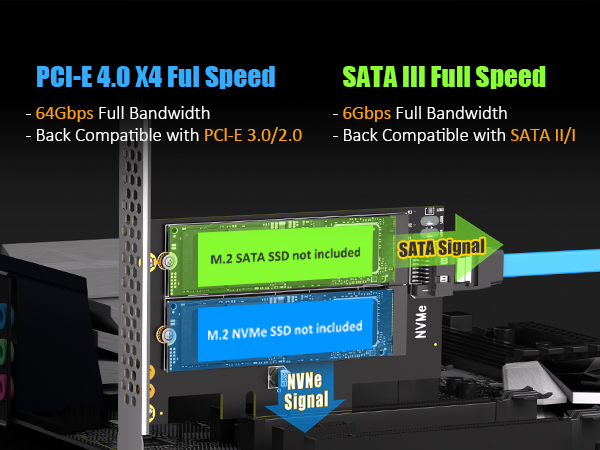

    • The NVMe SSD signals go directly to the PCIe X4 interface, while the SATA SSD signals go to the SATA III interface, which needs to be connected to the motherboard's SATA interface via a SATA cable (included). These are two completely independent data channels.

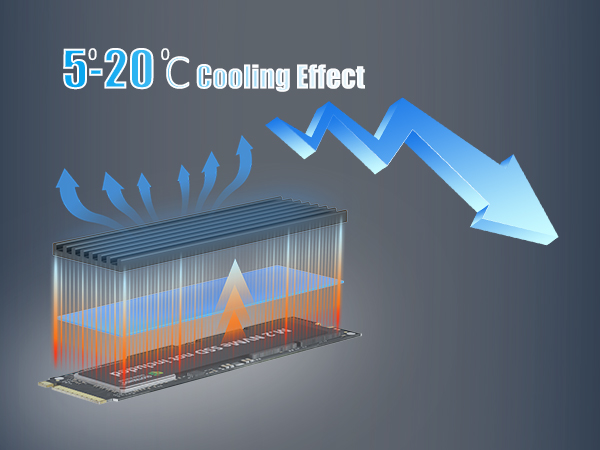

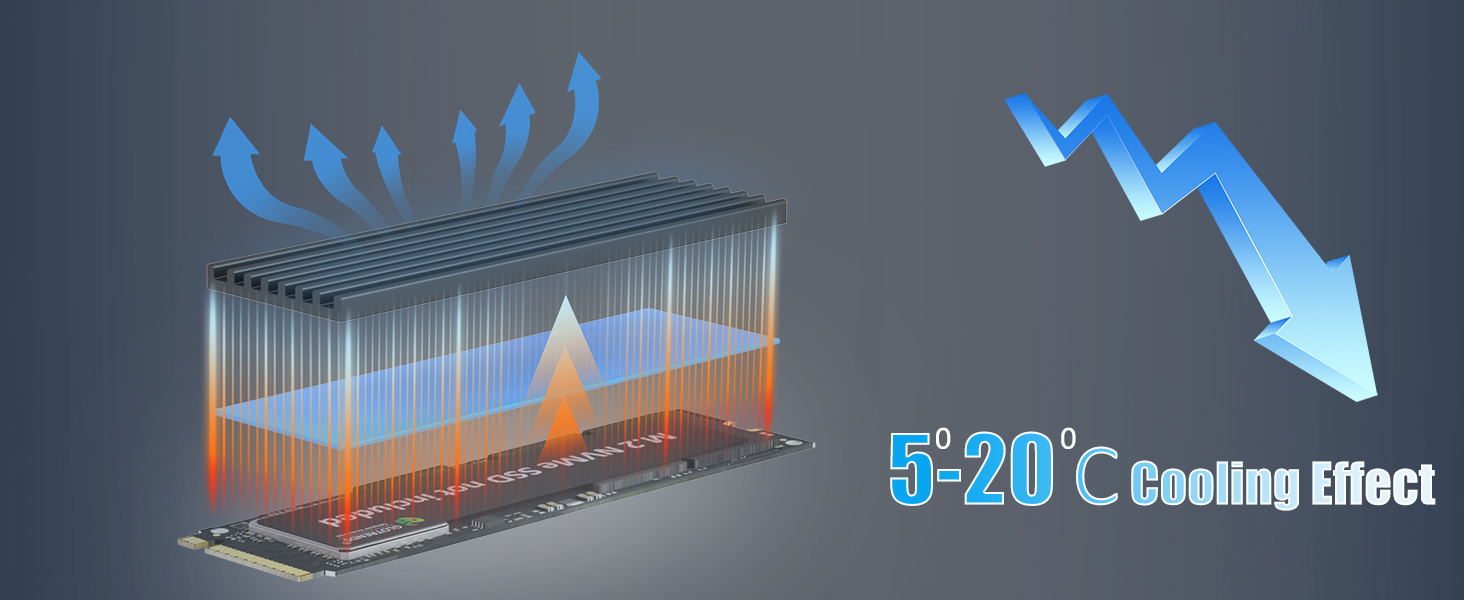

    • 2 sets of M.2 Heatsink: 5°C- 20°C cooling effect (Varies depending on the environment) keeps M.2 SSD under good performance even full-load operation
    • It is FCC and CE certified, ensuring highly reliable and stable PCIe X4 full speed. Your M.2 NVMe SSD speed remains unaffected, just as if it was installed on the motherboard.
    • To reach PCIe 4.0 X4 (64Gbps) full speed, the CPU and motherboard PCIe slot and M.2 NVMe SSD should all be PCIe 4.0 features (Note: PCIe 4.0 is not supported on Intel CPUs below 11th generation)
    • Support OS booting from the M.2 NVMe SSD. Please reinstall OS and set up BIOS/UEFI boot from this M.2 NVMe SSD. (Note: Some motherboards are too old to support OS booting. In this case, M.2 NVMe SSDs can be used as storage disks)
    • OS compatibility: Plug-and-play in Windows 11/10/8/Linux/Mac OS (Note: Windows 7 supports M.2 SATA SSD, but no M.2 NVMe SSD). The new M.2 NVMe SSD needs to be initialized and formatted before it can be recognized by the computer host
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Model: PA12-HS

    Up Slot For M.2 SATA SSD
    Interface to MB SATA III Port
    Interface to SSD Key B for M.2 SATA SSD
    Max Bandwidth 6Gbps
    Down Slot For M.2 NVMe SSD
    Interface to MB PCIe 4.0 X4
    Interface to SSD Key M for M.2 NVMe SSD
    Max Bandwidth 64Gbps for PCIe 4.0/ 32Gbps for PCIe 3.0

    Design for One M.2 NVMe SSD and One M.2 SATA SSD

    GLOTRENDS PA12-HS M.2 PCIe Adapter with Heatsink for One M.2 NVMe SSD and One M.2 SATA SSD

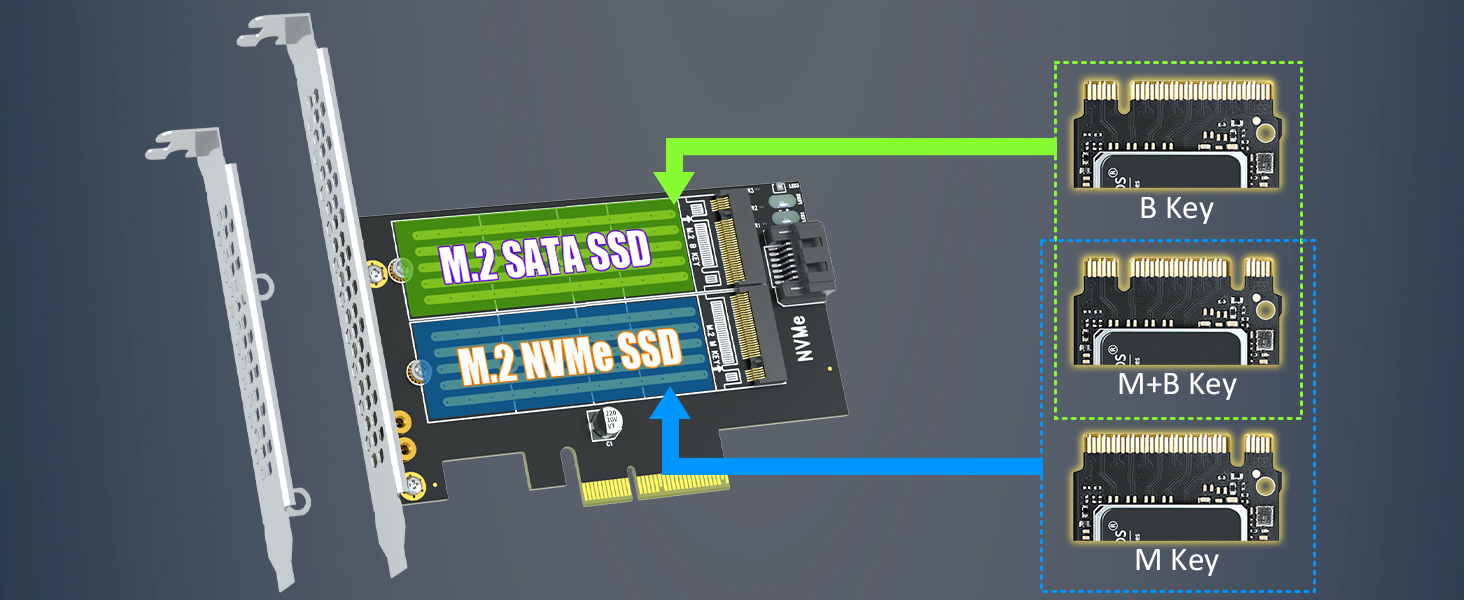

    Please note that the upper slot is only used for M.2 SATA SSD, and the down slot is only used for M.2 NVMe SSD. Can not 2 x NVMe SSD or 2 x M.2 SATA SSD.

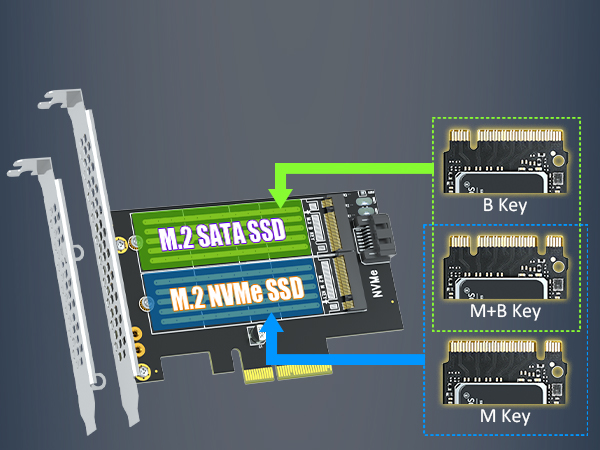

    M.2 SATA SSD and M.2 NVMe SSD

    Difference between M.2 SATA SSD and M.2 NVMe SSD

    • B-Key: almost M.2 SATA SSDs and older NVMe SSDs
    • M+B Key: M.2 SATA SSDs and some NVMe SSDs
    • M Key: M.2 NVMe SSDs using the PCIe x4 bus

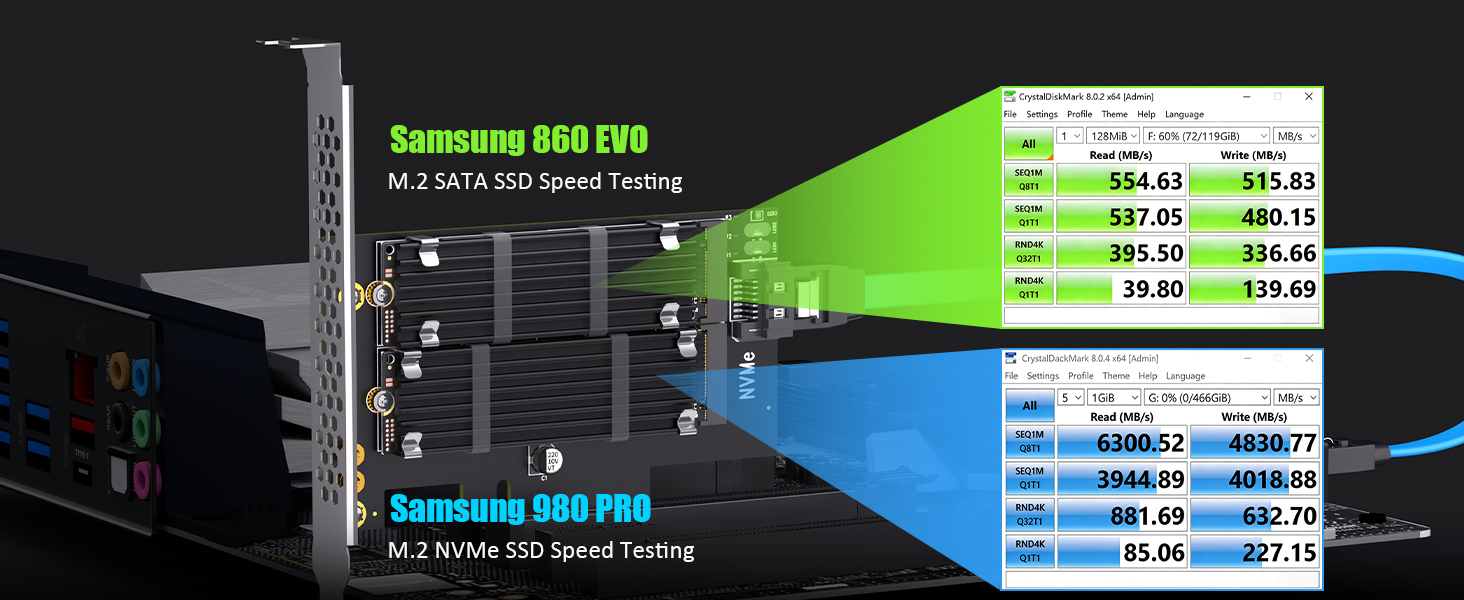

    Max speed between M.2 SATA SSD and M.2 NVMe SSD

    • The max speed of M.2 SATA SSD is 400-550Mbps
    • The max speed of M.2 PCIe 3.0 X4 NVMe SSD is 2000-3300Mbps
    • The max speed of M.2 PCIe 4.0 X4 NVMe SSD is 4000-6700Mbps

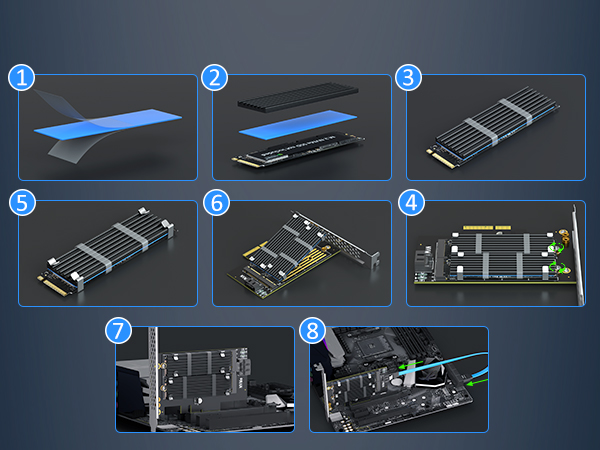

    Installation

    GLOTRENDS PA12-HS M.2 SSD PCIe X4 Adapter for One M.2 NVMe SSD and One M.2 SATA SSD
    2. https://m.media-amazon.com/images/S/aplus-media-library-service-media/c49b1b38-148e-4f4e-95ea-ba82ae27e02e.__CR0,0,315,145_PT0_SX315_V1___.jpg

      GLOTRENDS specializes in developing high-performance PCIe adapters and riser cables for computer engineers and DIY enthusiasts.

      The products mainly include 2 series: PCIe adapters (M.2 SSD Adapter, SATA Card, WiFi/Ethernet Card, USB Card, etc) and PCIe 5.0/4.0/3.0 extension cables.

      The goal of GLOTRENDS is to provide quality-assured and cost-effective products to customers worldwide. Customized production is welcome.

    3. GLOTRENDS PA21 Dual M.2 NVMe to PCIe 4.0 X8 Adapter Without PCIe Bifurcation, Setup Soft M.2 NVMe...
      GLOTRENDS PA41 Quad M.2 NVMe to PCIe 4.0 X16 Adapter Without PCIe Bifurcation, Setup Soft M.2 NVM...
      GLOTRENDS PA52L Dual M.2 NVMe to PCIe 5.0 X8 Adapter Without PCIe Bifurcation, Setup Soft M.2 NVM...
      GLOTRENDS PA54L Quad M.2 NVMe to PCIe 5.0 X16 Adapter Without PCIe Bifurcation, Setup Soft M.2 NV...

      M2 Adapter without Bifurcation

    4. GLOTRENDS PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RA...
      GLOTRENDS PA40 Quad M.2 NVMe to PCIe 3.0 X8 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RA...
      GLOTRENDS PA44 Quad M.2 NVMe to PCIe 4.0 X8 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RA...
      GLOTRENDS ST560 Quad M.2 NVMe to PCIe 3.0 X8 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe R...

      M2 Adapter with Bifurcation

    5. https://m.media-amazon.com/images/S/aplus-media-library-service-media/51a87feb-9ab9-4ace-b4b7-a00ceb3d3c0b.__CR0,0,362,453_PT0_SX362_V1___.jpg

      PU41

      • U.2 PCIe 4.0 X16 Adapter
      • 4 x U.2 SSD

    6. GLOTRENDS PU11 U.2 to PCIe 4.0 X4 Adapter for 2.5 Inch U.2 SSD, PCIe 4.0 X4 Full Speed
      GLOTRENDS PU15 U.2 to PCIe 5.0 X4 Adapter, PCIe 5.0 X4 Full Speed (No Signal Attenuation Design),...
      GLOTRENDS PU21 Dual U.2 SSD to PCIe 4.0 X8 Adapter, Support 2 x U.2 SSD or Soft Raid, without PCI...
      GLOTRENDS PU41 Quad U.2 SSD to PCIe 4.0 X16 Adapter Without PCIe Bifurcation Function (PCIe Bifur...

      U.2 Adapter

    7. GLOTRENDS SF02 2-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X8 Adapter Card Without PCIe Bifurcation ...
      GLOTRENDS SF44 4-Port SFF-8643(Mini-SAS HD) to PCIE 3.0 X8 Adapter Card with PCIe Bifurcation Fun...
      GLOTRENDS ST583 4-Port SFF-8643 to PCIE 3.0 X16 Adapter Card with PEX8747 Controller for High-Den...
      GLOTRENDS ST538 8-Port SFF-8643 to PCIE 3.0 X16 Adapter Card with PEX8749 Controller for High-Den...

      SFF-8643 PCIe Adapter

    8. GLOTRENDS 4-Slot M.2 SSD Storage Case for M.2 2280/2260/2242/2230 SSD
      GLOTRENDS 3-Pack 4-Slot M.2 SSD Storage Case for M.2 2280/2260/2242/2230 SSD
      GLOTRENDS M.2 Heatsink Kits with Thermal Pad for 2280 M.2 SSD, Fit for Desktop PC/PS5/PS5 Slim In...
      GLOTRENDS M.2 Heatsink with M.2 Screws and Thermal Pads for Single/Dual Sided Chip M.2 SSD, PC/PS...

      Accessories for M.2 SSD

    Model: PA12-HS

    Up Slot For M.2 SATA SSD
    Interface to MB SATA III Port
    Interface to SSD Key B for M.2 SATA SSD
    Max Bandwidth 6Gbps
    Down Slot For M.2 NVMe SSD
    Interface to MB PCIe 4.0 X4
    Interface to SSD Key M for M.2 NVMe SSD
    Max Bandwidth 64Gbps for PCIe 4.0/ 32Gbps for PCIe 3.0

    Design for One M.2 NVMe SSD and One M.2 SATA SSD

    GLOTRENDS PA12-HS M.2 PCIe Adapter with Heatsink for One M.2 NVMe SSD and One M.2 SATA SSD

    Please note that the upper slot is only used for M.2 SATA SSD, and the down slot is only used for M.2 NVMe SSD. Can not 2 x NVMe SSD or 2 x M.2 SATA SSD.

    M.2 SATA SSD and M.2 NVMe SSD

    Difference between M.2 SATA SSD and M.2 NVMe SSD

    • B-Key: almost M.2 SATA SSDs and older NVMe SSDs
    • M+B Key: M.2 SATA SSDs and some NVMe SSDs
    • M Key: M.2 NVMe SSDs using the PCIe x4 bus

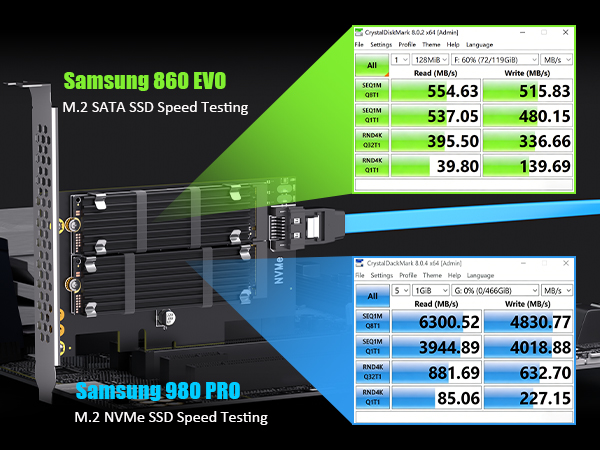

    Max speed between M.2 SATA SSD and M.2 NVMe SSD

    • The max speed of M.2 SATA SSD is 400-550Mbps
    • The max speed of M.2 PCIe 3.0 X4 NVMe SSD is 2000-3300Mbps
    • The max speed of M.2 PCIe 4.0 X4 NVMe SSD is 4000-6700Mbps

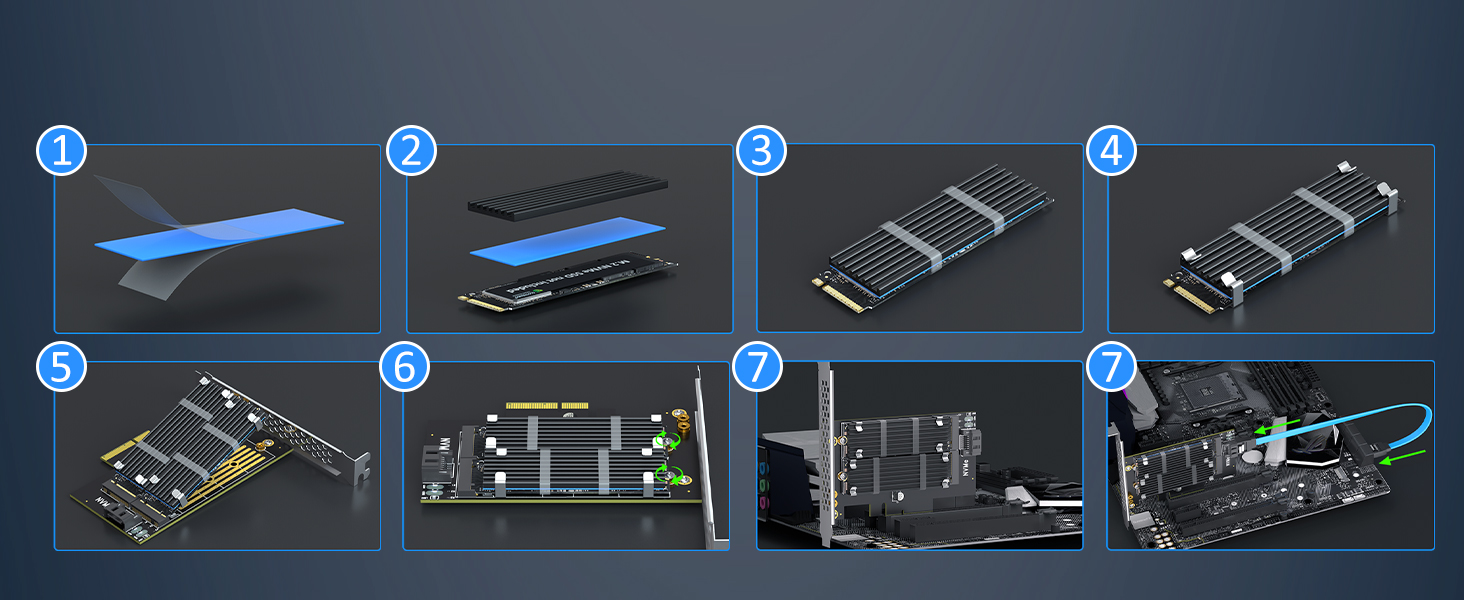

    Installation

    GLOTRENDS PA12-HS M.2 SSD PCIe X4 Adapter for One M.2 NVMe SSD and One M.2 SATA SSD
