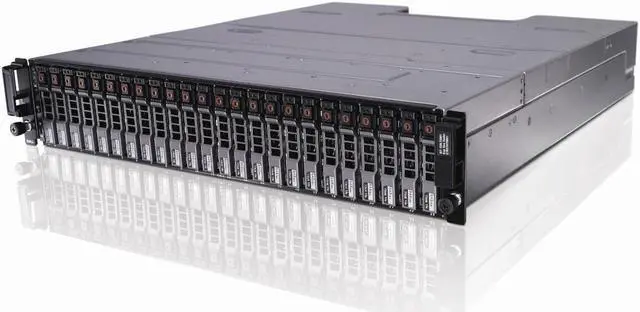

Dell PowerVault MD1220 DAS Redundant 6Gb/s SAS/SATA EMM Modules

Model: Dell PowerVault MD1220

Controller(s): Redundant 6Gb/s SAS/SATA EMM Modules

Hard Drives: No Hard Drives or Trays Included

Capacity: Up to twenty-four (24) 2.5-inch hot-pluggable SAS Hard Disk Drives (HDDs) at 7200, 10K, 15K rpm and SAS Solid State Drive (SSDs). Up to 28.8TB when using twenty-four (24) 1.2TB 7.2K rpm SAS HDDs.

Raid: Requires server with Perc H800 or H810 which supports (RAID levels 0, 1, 5, 6, 10, 50, and 60)

Expansion Capabilities: Expand up to a base of 120 hard drives with an optional Premium Feature Key to scale up to 192 total drives using MD1200 and/or MD1220 expansion enclosures

Host Connectivity (per controller): 1 SAS (SFF 8088) IN connector for connection to the host (cables not included and can added above)

Expansion Connectivity (per controller): 1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure (cables not included and can added above)

Remote Management: Feature not available

Service Management: 1 6-pin UART mini-DIN connector (for factory use only) (cables not included and can added above)

Power Supplies: Redundant 600W Power Supplies (power cables included)

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
