Parameter
- Input: AC 100V~240V 50/60Hz
- Output Voltage: DC 9V~36V Adjustable
- Output Current: Max 4A
- Output Wattage:Max 144W

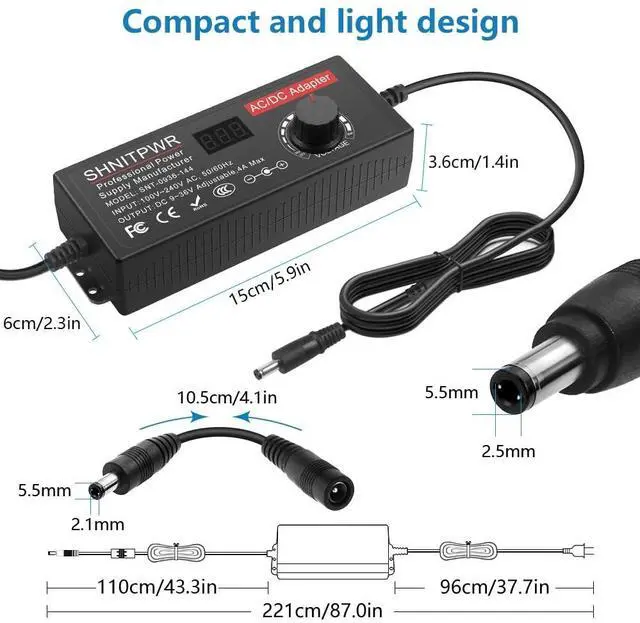

- Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")

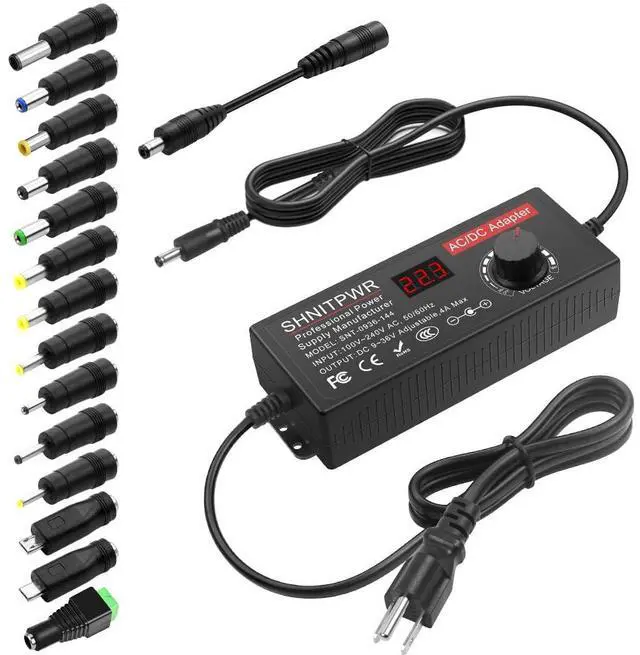

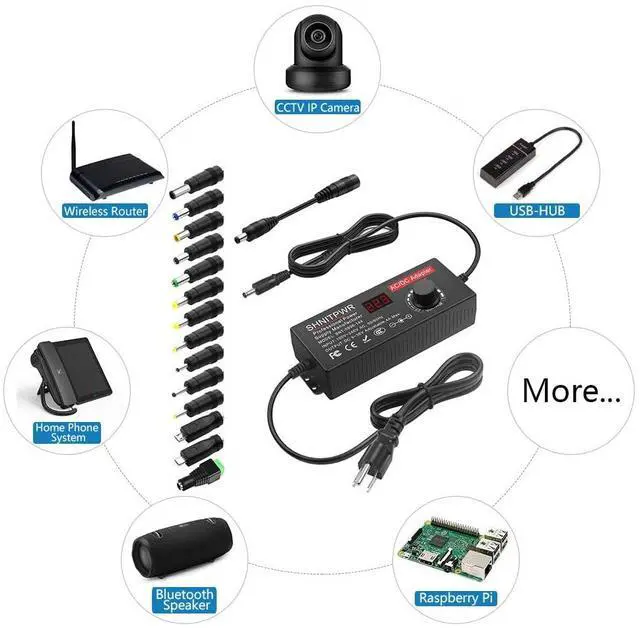

- 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm,3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
- Reverse polarity converter: 5.5mm x 2.1mm
- Power cable length: 6.89ft / 215cm
- Working Temperature: 0~40?
- Ambient Humidity: 5~95% Non-Condensation
- Weight: 0.886lb / 402g
Package include
- 1x 144W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable
Attention:
- The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 9.5V~36.5V. Only in this way can your device really get 9V~36V voltage. This is the reason why we advertise the power supply's voltage range is 9V~36V, not 9.5V~36.5V.
Caution:
- The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Is this 9~36V 144W universal power supply (PS) compatible with your device?
1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be among 9V~36V DC, not lower than 9V or higher than 36V DC. Otherwise, your device will not work or be damaged.
2. Check Current
Check the max current your device will draw. It should be equal to or less than 4A, such as 1A, 2A,3A, 3.5A, 4A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs
Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS
If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
 3.5V~24V-144W |  3V~24V-72W |  9V~36V-144W |  3.5V~36V-108W |  3V~12V-120W |  3.5V~12V-144W | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — | — |
| Max Output Amps | 6A | 3A | 4A | 3A | 10A | 12A |
| Output Volts | 3.5V~24V DC | 3V~24V DC | 9V~36V DC | 3.5V~36V DC | 3V~12V DC | 3.5V~12V DC |
| Output Tip | 14 Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips | 14 Tips |
| Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
| Max Power | 144W | 72W | 144W | 108W | 120W | 144W |
Parameter
- Input: AC 100V~240V 50/60Hz

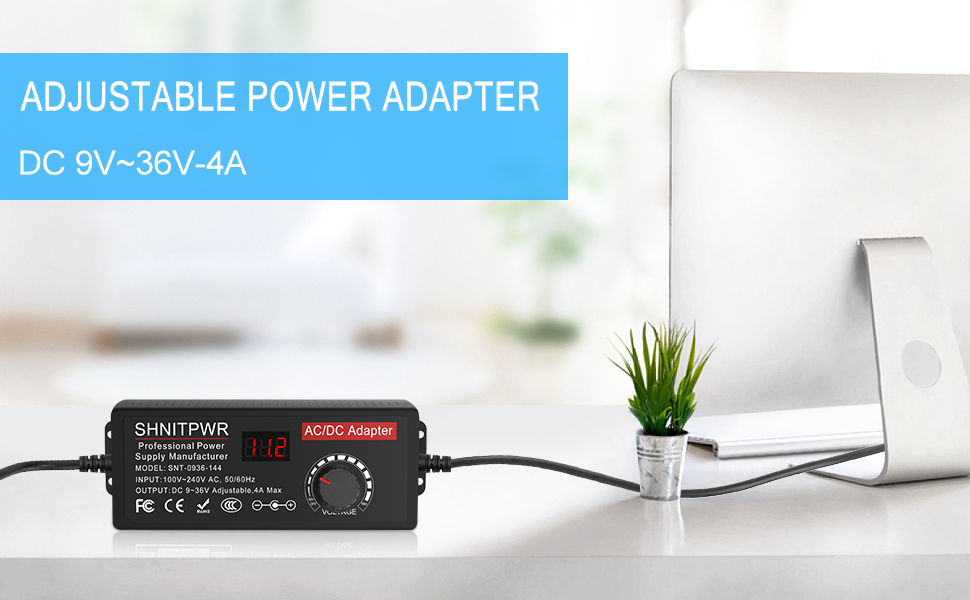

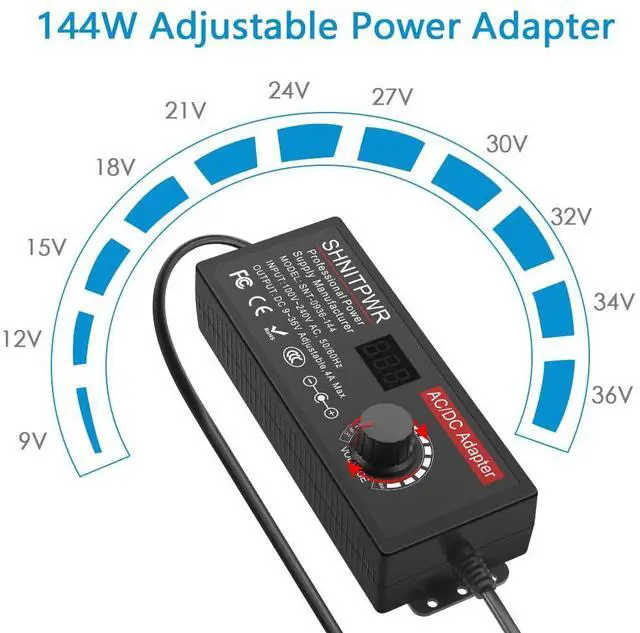

- Output Voltage: DC 9V~36V Adjustable
