Question 1

ECC or non ECC ram?
What is the motherboard model #/manufacturer?
Can I install an aftermarket video card?

Accepted Answer

Your computer uses 1066 MHz and 1333Mhz DDR3 unbuffered or registered ECC SDRAM memory. DDR3 SDRAM, or double-data-rate three synchronous dynamic random access memory

Video card complaint with PCI or PCI Express 2.0 x16

Question 2

Will I be able to add a SATA drive as a slave drive?

Accepted Answer

Yes. You can find the setup guide for the T5500 on the support page at the dell website. The setup guide shows how to change HDDs and where the second  drive can be installed.

Question 3

what does the "x2" in the spec " XEON E5520 (2.26GHz) x2" mean?

How many cpu is in this computer? One XEON E5520 or two XEON E5520? Thanks

Accepted Answer

Jason,

The x2 should signify that the unit is equipped with two physical Xeon processors.  I ordered my T5500 from Newegg a few months ago with the same 'x2' designation and it came equipped with two Xeon processors.  The second CPU is mounted on a riser card attached to the motherboard.

Question 4

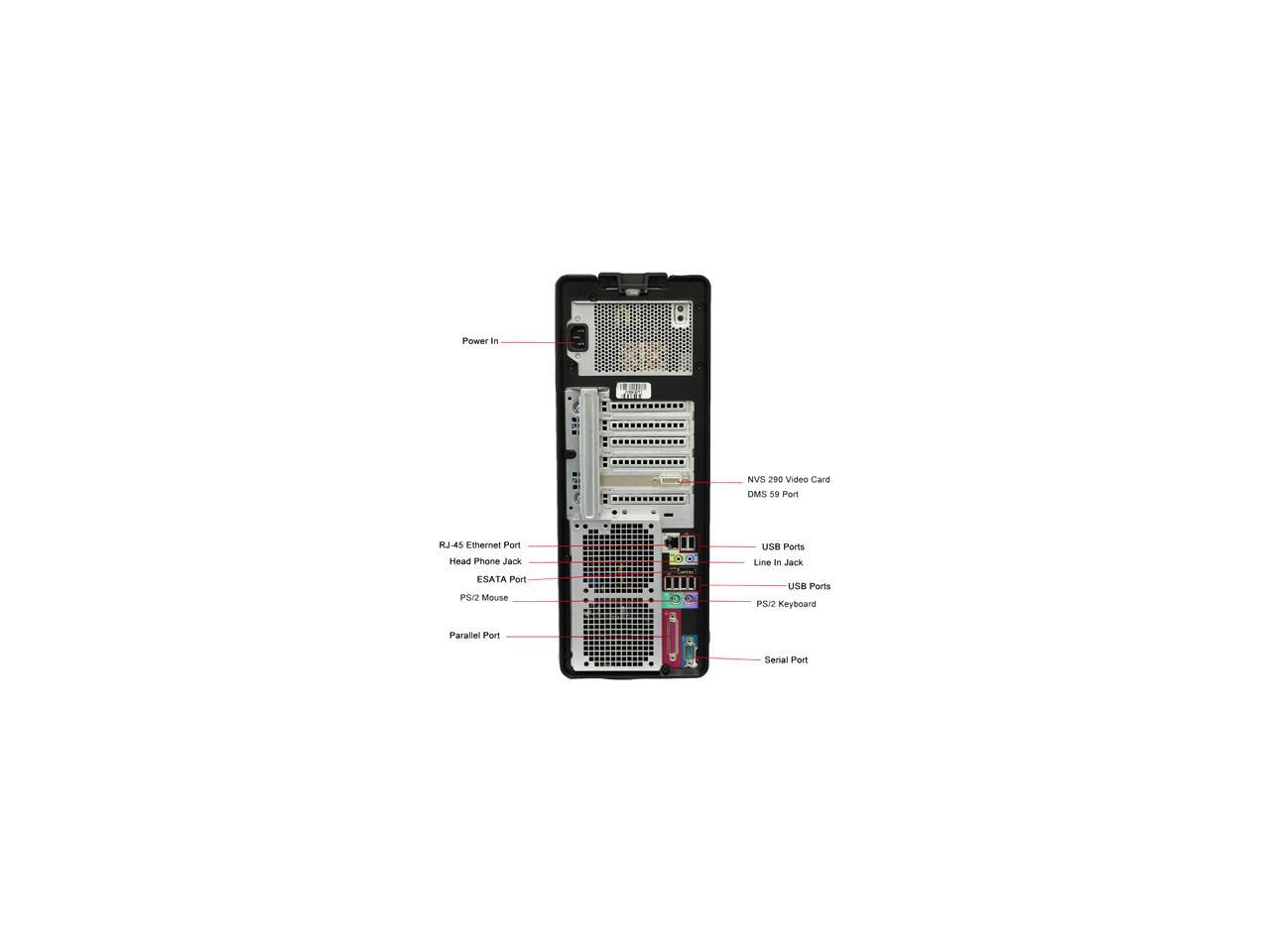

Does this model have vga & dvi?  Need to run 2 mont.

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.  This item is equipped with 2 DVI ports.

Thank you,
Newegg Support

Question 5

Is this ECC memory or not? The Dell site says yes for the T5500, but it also refers to a maximum 72GB of DDR3, while the Newegg specs say max of 16GB, so I'm not sure it's the same system.

Accepted Answer

This uses registered ECC memory.  240pin PC3-10600 1333MHz DDR3 RDIMM.  The 16gb probably max per memory stick x number of slots.  Since this is a workstation it will like similar memory sticks in certain slots. Dell has preferred memory tables to explain the preferred memory configurations.  Need to understand memory rank (2R4 etc) for these types of systems also.

Question 6

Was the DMS-59 to dual DVI adapter for the video card included?

Accepted Answer

No.  I had to get one.

Question 7

How many open SATA ports does it have? What speed(s) are they? Does it support RAID?

Accepted Answer

Sata2,

Question 8

what is  "x2" in the spec "E5520 (2.26GHz) x2" ? How many CPU is there? One Xeon E5520 or Two Xeon E5520 in this computer?

Accepted Answer

2
