19V 3.42A Power Adapter

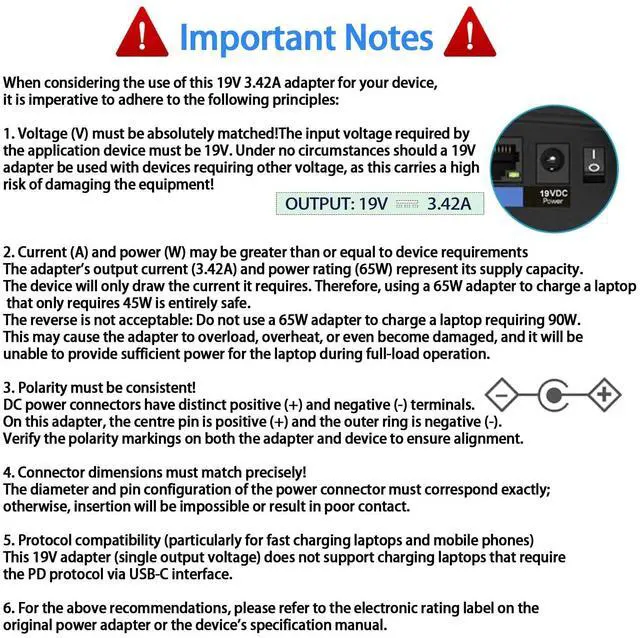

How to judge whether TKDY's power supply is suitable for your equipment.
- 1. Please find the spec label of your device and check the working voltage. It should be 19V DC, not be AC19V or lower/higher than19V DC. Otherwise, your device will not work or be damaged.
- 2. Check the max current your device will draw. It should be equal to or less than 3.42A,such as 1A 2.1A 2.37A 3A 3.16A. Otherwise, your device won’t work well and the power supply will be damaged very soon.
- 3. Check the power input port of your device. Whether the outer diameter and inner diameter dimensions are consistent with the details page. Inner core polarity should be"+", exterior polarity should be" - ".
- 4. If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our TKDY's current is equal to or higher than original one’s, then our will work with your device.
- 5. If you purchase an adapter charger and find that you cannot charge the battery, it may be that your battery's life has expired or is damaged.
Compatible with:
How to judge whether TKDY's power supply is suitable for your equipment.

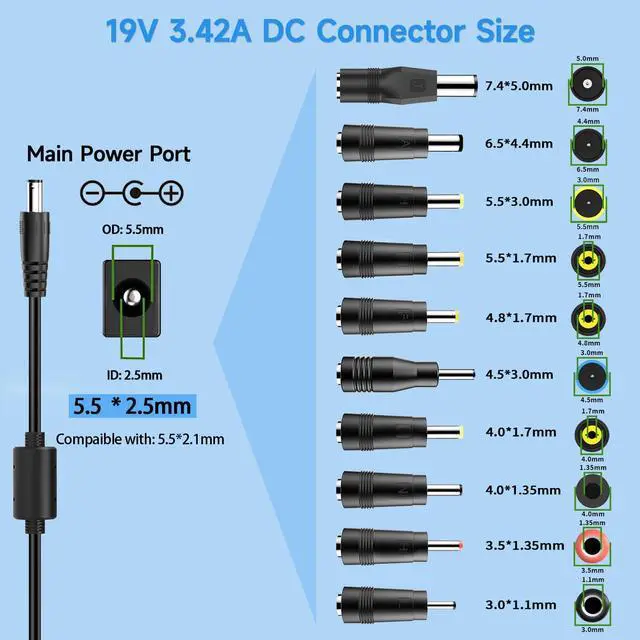

10* replaces dc connector.
(Additional DC terminals SIZE: 7.4*5.0 mm, 6.5*4.4 mm, 5.5*3.0 mm (with pin), 5.5*1.7 mm, 4.8*1.7 mm, 4.5*3.0 mm, 4.0*1.7 mm, 4.0*1.35 mm, 3.5*1.35mm, 3.0*1.0 mm..)
Product Specifications:
High-quality Power Cable
- Use copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.
Durable Construction:
- High-quality materials and robust design ensure durability and reliable performance over time.
Superior Safety
- Flame-retardant exterior shell and built-in safeguards, ?Shortage Protection, Overload Protection, Over Voltage Protection. No need to worry about any fires explosions or shocks occurring.
 90W Laptop Charger Power Cord, Replacement for DC 19V 19.5V 20V 18.5V 15V 16V... |  TKDY 12V 5A LCD Monitor Power Supply Cord, 12 Volts 5A 4A 3A AC DC Adapter, C... |  TKDY 12V DC Power Supply for WiFi Router, 110-240V AC to DC 12Volt 3.5A 3A 2.... |  TKDY 24V DC Power Supply Cord 24Vdc 2.5A AC Adapter Compatible with 24Volts V... |  TKDY 24V Charger for Dymo Printer Power Supply, 24Volt 2.5A AC to DC Adapter ... |  DC 19V for LG Monitor Power Cord UL Certificates, Replacement for LG TV Monit... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — | — no data | — | — no data | — |
| Power Adapter Specification | 15V 16V 18.5V 19V 19V.5 20V , 90W Max | 12Volt 5Amp | 12Volt 3.5Amp | 24Volt 2.5Amp | 24Volt 2.5Amp | 19Volt 3.42Amp |
| Multiple Purpose | for HP Dell Acer Toshiba IBM Lenovo Asus Gateway Samsung Fujitsu Notebook Ultrabook Chromebook. | for 5050 3528 LED Strip Module Light, LCD Monitor, Zebra Mobile Thermal Printer, Peloton Exercise Bike. | for 5050 3528 LED Strip 3D Printer CCTV Security System LCD Monitor. | for Soundbar Speaker, Logitech Racing Wheel, FUJITSU Image Scanner; 24V Epson Photo Scanner; Canon CA-CP200; DYMO Label Writer Printer; Christmas trees LED strip light; Wireless Router; CCTV Security Cameras, LCD Monitor, Silhouette Cutting Tool. | for Dymo 4XL 310 315 320 330 400 450 Label Thermal/Twin Turbo/Turbo Labels Printer/Duo Printer/Label Writer. | for LG TV Monitor Power Supply 34" 32" 29" 27" 24" 23" 22" 20" 19" LED LCD Widescreen Ultrawide HDTV HD TV Monitor AC Power Adapter. |
19V 3.42A Power Adapter
How to judge whether TKDY's power supply is suitable for your equipment.
- 1. Please find the spec label of your device and check the working voltage. It should be 19V DC, not be AC19V or lower/higher than19V DC. Otherwise, your device will not work or be damaged.
- 2. Check the max current your device will draw. It should be equal to or less than 3.42A,such as 1A 2.1A 2.37A 3A 3.16A. Otherwise, your device won’t work well and the power supply will be damaged very soon.
- 3. Check the power input port of your device. Whether the outer diameter and inner diameter dimensions are consistent with the details page. Inner core polarity should be"+", exterior polarity should be" - ".
- 4. If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our TKDY's current is equal to or higher than original one’s, then our will work with your device.
- 5. If you purchase an adapter charger and find that you cannot charge the battery, it may be that your battery's life has expired or is damaged.
Compatible with:
| 6.5*4.4mm: | Compatible for 19V Samsung J4000 J4500 J400D J5003 J5205 J525D Series LED LCD TV Monitor, 19Vdc LG Electronics 19'' 20'' 22'' 23'' 24'' 27'' LED LCD Monitor, 19volt Widescreen LED LCD HD TV Power Cord. |
| 5.5*2.5mm/ 5.5*2.1mm: | Compatible 19v Toshiba Satellite L655 L745 L745D L750 L875D-S7332 P50 C855D C55D S55 C55 C655 C850 C50 PA3097U-1ACA PA3714U-1ACA Charger Cord. |
| 5.5*2.5mm/ 5.5*2.1mm: | Compatible 19v Toshiba Satellite C55-a5302 C55-a5300 C55-a5105 C55-a5286 C55-a5104 C55-a5309 C55t-a5222 C55-B5302 C55-b5299 C55-b5287 C55-B5272 C55-B5270 C55-b5200 C55-c5241 C55d-b5310 C855-s5231 C855-s5214 C855-s5347 C855-s5236 C875-s7304 C875-s7303 L855-s5240 L855-s5405 P855-s5102 P855-s5312 P855-s5200 P875-s7102 C655-s5049 C675-s7106 L645-s4102 L645d-s4056 L655-s5096 L655-s5150 L745-s4210 L755-s5112 L755-s5216 L775d-s7340 P745-s4102 laptop charger. |
| 5.5*2.5mm: | Compatible 19v Asus Monitor VG279Q VG278Q VG275Q VG245Q VG258Q VG258QR VG258QM VG248QG VG278QR VG278QE VG278QF TUF Gaming 65W Power Supply Adapter Cord. |
| 5.5*1.7mm: | 19v 3.42a Compatible Acer Aspire E5-576G E5-575G E5-521 E5-522 E5-571 E5-571P E5-573 E5-573G E5-575 V3-571G V3-572G V3-572P E1 E11 E14 E15 E3 E5 ES1 F15 M3 M5 R3 R7 S3 V15 V3 V5 V7 VN7 laptop charger. |
| 5.5*1.7mm: | 19v Compatible Acer Aspire 1410 3000 3680 4420 5000 5100 5250 5253 5315 5336 5349 5420 5515 5516 5517 5520 5532 5534 5542 5551 5552 5560 5600 5610 5613 5620 5630 5650 5683 5720 5730 5732 5733 5734 5735 5736 5738 5739 5740 5741 5742 5745 5749 5750 5755 5810 5820 5920 5930 6920 6930 6935 7100 7103 7520 7540 7551 7736 7741 7745 7750 4630z 4720z power supply. |
| 5.5*1.7mm: | 19v Compatible Acer LCD Monitor S202HL S230HL S231HL S232HL H236HL G246HL H276HL G276HL G236HL S240HL S220HQL S271HL H226HQL G226HQL S202HL S241HL HN274H power adapter. |
| 5.5*1.7mm: | 19v Compatible Gateway Laptop NE56R10U NE56R11U NE56R12U NE56R13U NE56R15U NE56R27U NE56R31U NE56R34U NE56R37U NE56R41U NE56R42U NE71B06U NV55C NV57H NV59 NV73 NV79 laptop charger. |
| 5.5*1.7mm: | Compatible for dc in 19v Gateway GWTN156-1 GWTN156-5BK GWTN156-4 GWTN156-9 GWTN141-2BK GWTN141-10BK GWTN156-7 GWNC31514-BK series laptop charger gwtn141-10 charger. |
| 5.5*1.7mm: | Compatible for dc19v Gateway laptop charger gwtc71427 gwtc51427 gwcc71416 gwcc51416 gwnc31514 gwnr51416 gwnr71517 gwtn156-12 gwnc31514-bk gwnc31514-bl gwnr51416-bl gwnr51416-bk gwtn156-12-bk gwtn156-12bl gwcc51416-bl gwnr71517-bk gwnr71517-bl; Vaio FE 14 vwnc71419 vwnc71419 vwnc71419-sl vwnc71419-bk vwnc71419-sl vwnc51518 Vaio FE 15 vwnc51518 vwnc51518-bk vwnc51518-sl power cord. |
| 5.5*2.5mm: | Compatible for Asus Laptops X550 X550ZA X551 X551CA X551MA X551MAV X555LA Q301L Q301LA S300CA S300C Q501L Q501LA power supply. |
| 5.5*2.5mm: | Compatible for JBL Xtreme 2 Extreme 2 Boombox Wireless Bluetooth Portable Speaker Boost TV SoundBar. Compatible for 19v 2a Harman Kardon Onyx Studio 5 4 3 2 1 IV III II I Bluetooth Wireless Portable Speaker. |
| 5.5*3.0mm: | Compatible for 19v Samsung GS6 GT6 GT7 GT8 X05 VM GT NT N110 N120 N130 N140 N145 N150 N210 N220 N310 N510 NB30 NC10 NC110 NC20 NC215S NF210 NF310 P530 Q330 Q430 Q530 QX410 QX411 ATIV Book 2 series. |
| 4.0*1.7mm: | Compatible for 19v HP Compaq Mini 110 210 700 CQ10 200 210t 100e 1000 1010 1100 1101 1103 1104 2102 1110 110-1012NR 110-3135dx 210-1091nr 210-1076nr 210-1032cl. |
| 4.0*1.35mm: | Compatible for 19v ASUS Vivobook Flip 15 14 13 17 S13 S14 S15 X540 X540S X540L X540SA X540LA X540LJ X540NA X540N X540U X540UA X540UV X540Y X540YA X541NA X541N X541S X541SA X541SC X541UA X541UV X541UJ X541U X541 X441U X441UV X441UA X441S X441SC X441SA E402MA E402M E402SA E402S E402NA E402N E403S E403SA E403N E403NA S510UQ S510UN S510UA S510UF S510UR S510U S510 S530FN S530FA S530UF S530UN S530UA S410UA S410UQ S410UN S410UF S430UN S430UA S430UF S430FA S430FN R416SA R416S. |
| 3.0*1.1mm: | Compatible for Samsung Series 5 7 9 Series 900X 940X Np900 Np900X NP900X3A Np940 Np940X Np930X PA-1400-96 Ultrabook Ativ Book Laptop. Compatible for Acer-Chromebook 15 14 13 11 R11 CB3 Series CB3-111 CB3-532-C47C CB3-431 CB3-431-C5FM CB3-131 CB3-111-C8UB CB3-131-C3SZ CB3-532 AO1-131, AO1-431. |
How to judge whether TKDY's power supply is suitable for your equipment.
10* replaces dc connector.
(Additional DC terminals SIZE: 7.4*5.0 mm, 6.5*4.4 mm, 5.5*3.0 mm (with pin), 5.5*1.7 mm, 4.8*1.7 mm, 4.5*3.0 mm, 4.0*1.7 mm, 4.0*1.35 mm, 3.5*1.35mm, 3.0*1.0 mm..)
Product Specifications:
| Rated Output: | DC 19 V 3.42 A |
| Max Wattage: | 65 Watts |
| Input Voltage: | 100-240V AC 50/60Hz |
| Main DC Port Connector Size: | 5.5 x 2.5 x 10 mm (inside"+", outside"-") |
| AC Power Cord: | 1.2M / 47.2 Inches |
| DC Cable Length: | 1.5M / 59 Inches |
High-quality Power Cable
- Use copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.
Durable Construction:
- High-quality materials and robust design ensure durability and reliable performance over time.
Superior Safety
- Flame-retardant exterior shell and built-in safeguards, ?Shortage Protection, Overload Protection, Over Voltage Protection. No need to worry about any fires explosions or shocks occurring.
