    DC 9V 12V 24V to DC 5V 5A Buck Converter Module, 9-36V Step Down to USB 5V Transformer Dual Output Voltage Regulator Board [2 Pack]

    Be the first to review this product...
    • Power Supply: DC 9-36V; Output Voltage: 5-5.3V; Output Power: 18W to 30W (input DC 9-24V, output 5.2V/6A; input DC 24-32V, output 5.2V/5A; input DC 32-36V, output 5.2V/3.5A)
    • Input Port: 5.5mm×2.1mm DC socket and wiring terminal, each way makes the module work; Output Port: USB and wiring terminal, can output power at the same time.
    • High-efficient Transformation: the module adopts the new technology synchronous rectification, which improves conversion efficiency obviously and expands the working voltage and current.
    • Mini and Portable: 63 x 2 x 10mm, suitable for various narrow installation space and small case.
    • Application: as a USB 5V buck converter, DIY a phone charger, refit car charger, supply power to raspberry pi 4 b.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

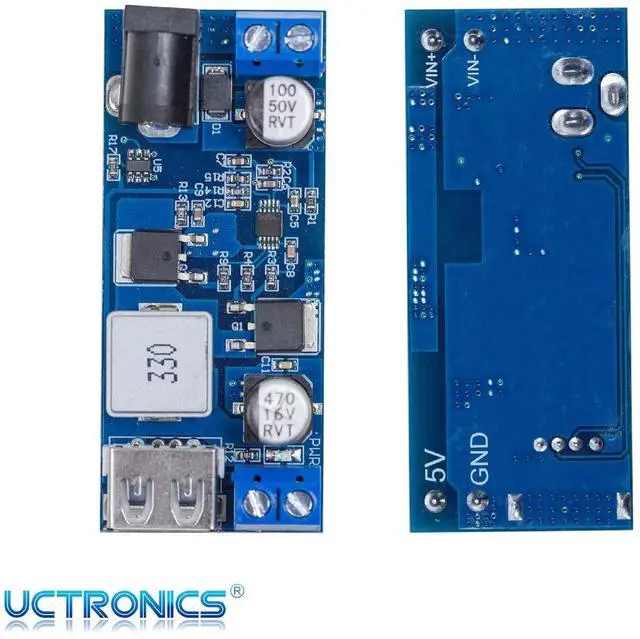

    UCTRONICS buck converter board U6223 is a 2-pack DC 9-36V high-efficiency synchronous step down to DC 5-5.3V transformer module.

    SPECIFICATIONS:

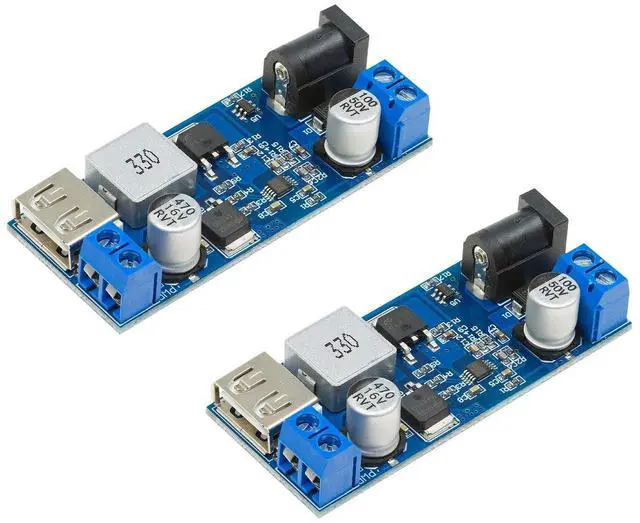

    - Quantity: 2 pcs

    - Input Voltage: 9V- 36V

    - Output Voltage: 5-5.3V

    - Output Power When Input Different Voltage:

    • DC 9-24V, output 5.2V/6A/30W
    • DC 24-32V, output 5.2V/5A/25W
    • DC 32-36V, output 5.2V/3.5A/18W

    - Dimension: 63×27×10mm (L× W × H)

    2

    Dual Output

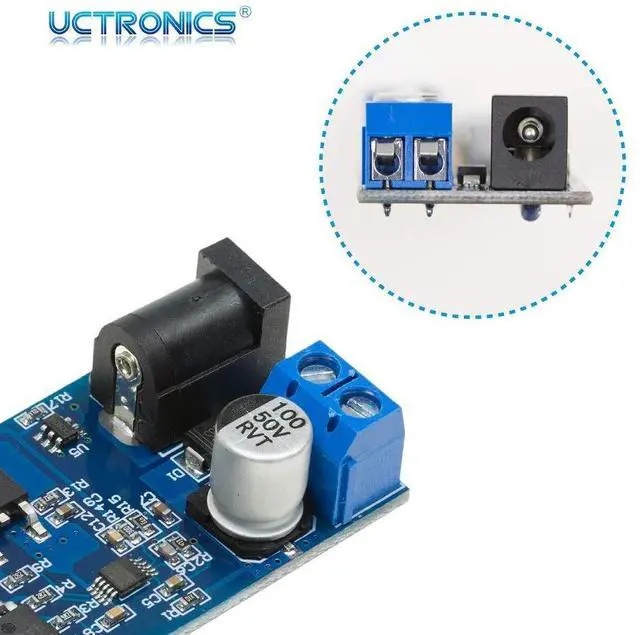

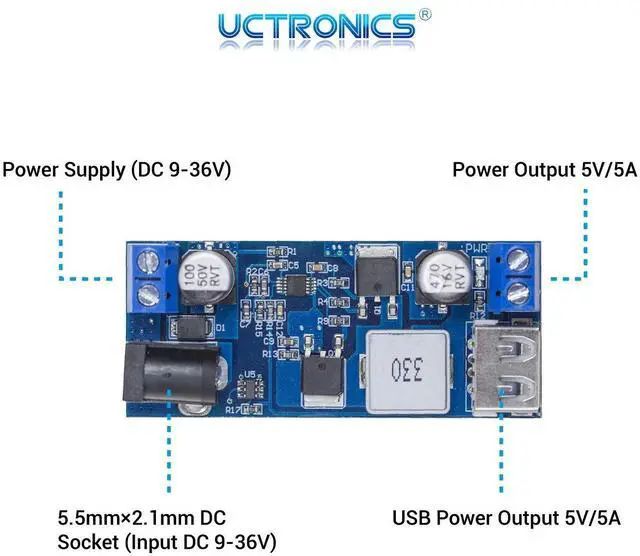

    Input Port: 5.5mm×2.1mm DC socket and wiring terminal.

    Output Port: USB and wiring terminal, can output voltage at the same time.

    NOTE: The input voltage must not exceed 36V, otherwise there is a danger of burning!

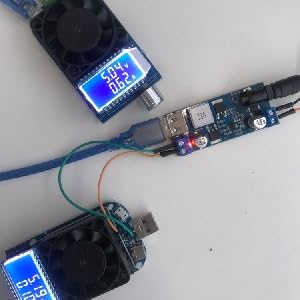

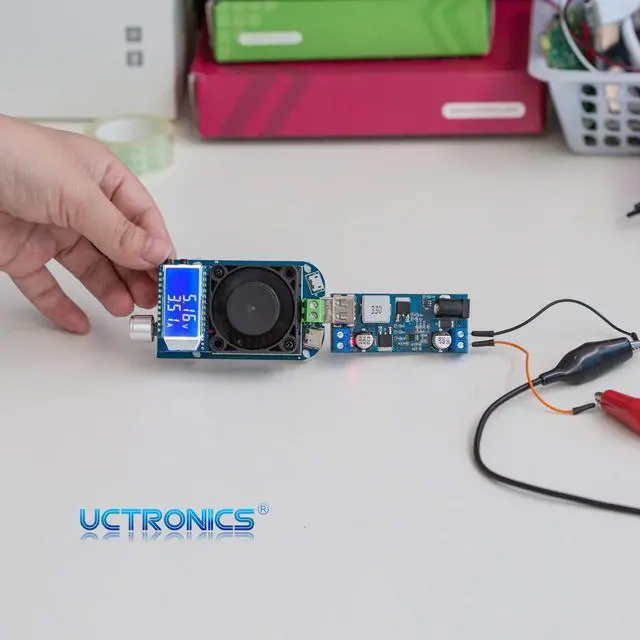

    The load tester ASIN: B07SPJFJFJ

    UCTRONICS buck converter board U6223 is a 2-pack DC 9-36V high-efficiency synchronous step down to DC 5-5.3V transformer module.

    SPECIFICATIONS:

    - Quantity: 2 pcs

    - Input Voltage: 9V- 36V

    - Output Voltage: 5-5.3V

    - Output Power When Input Different Voltage:

    • DC 9-24V, output 5.2V/6A/30W
    • DC 24-32V, output 5.2V/5A/25W
    • DC 32-36V, output 5.2V/3.5A/18W

    - Dimension: 63×27×10mm (L× W × H)

    2

    Dual Output

    Input Port: 5.5mm×2.1mm DC socket and wiring terminal.

    Output Port: USB and wiring terminal, can output voltage at the same time.

    NOTE: The input voltage must not exceed 36V, otherwise there is a danger of burning!

    The load tester ASIN: B07SPJFJFJ
