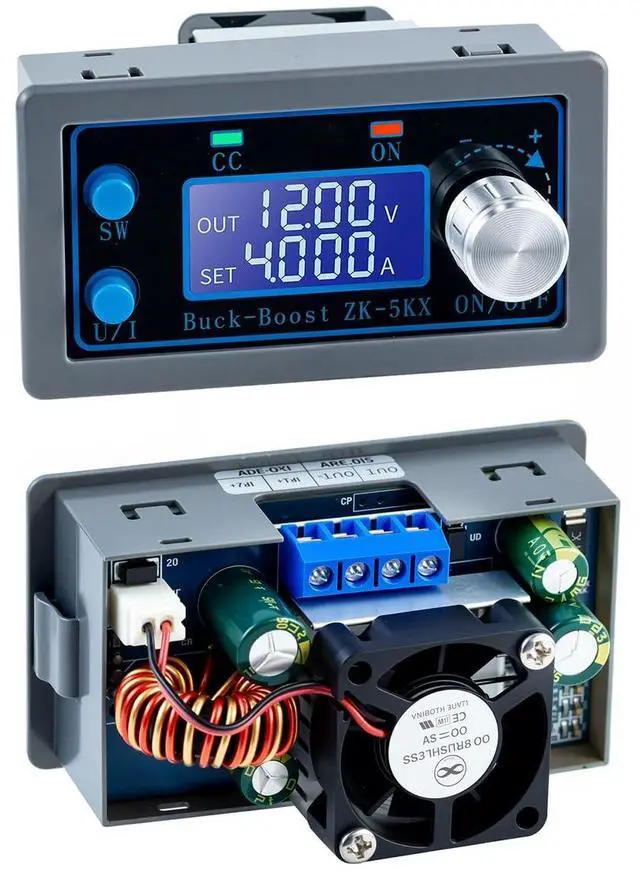

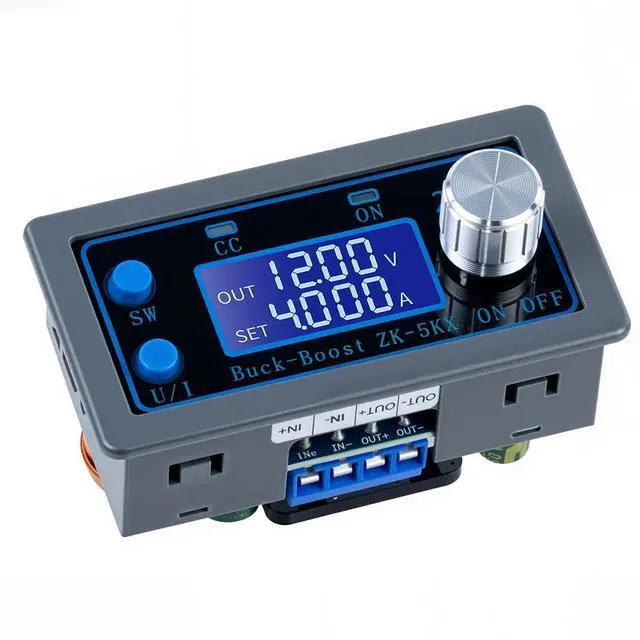

DC DC Buck Boost Power Converter CC CV 0.6-36V 5A 5V 6V 12V 24V Power Module Adjustable Voltage Regulated Laboratory Power Supply
- Precision Voltage and Current Control Adjustable output voltage from 0.6V to 36V and current limit from 0A to 5A. Delivers precise CNC regulation with fast response, ensures accurate, stable, and consistent output for sensitive electronics.

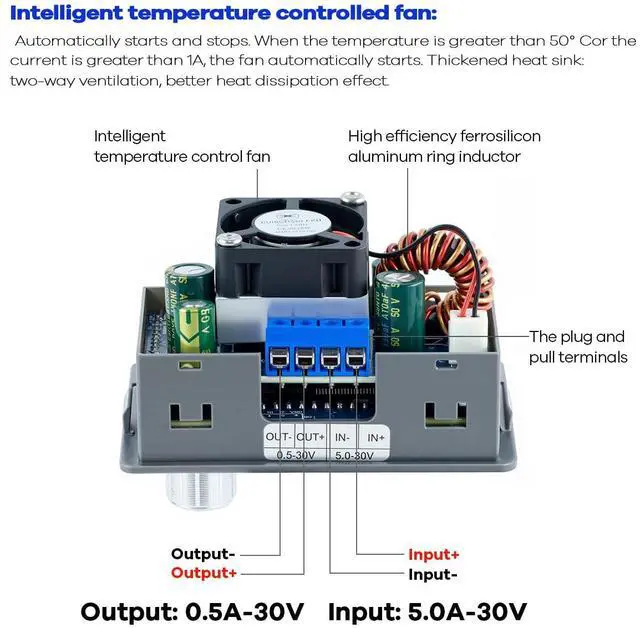

- Smart Cooling System Features a high-efficiency heat sink and an intelligent temperature-controlled fan. The fan automatically activates when the module exceeds 50°C or when the current goes over 1A, providing efficient heat dissipation and extending product lifespan.

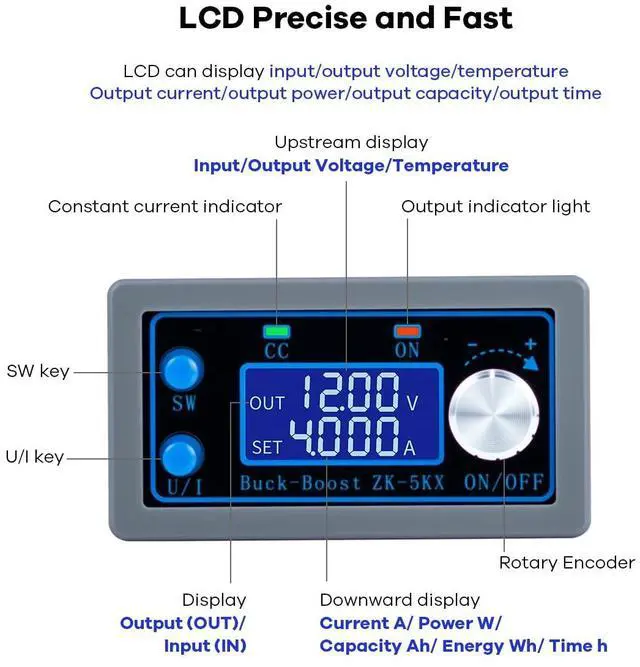

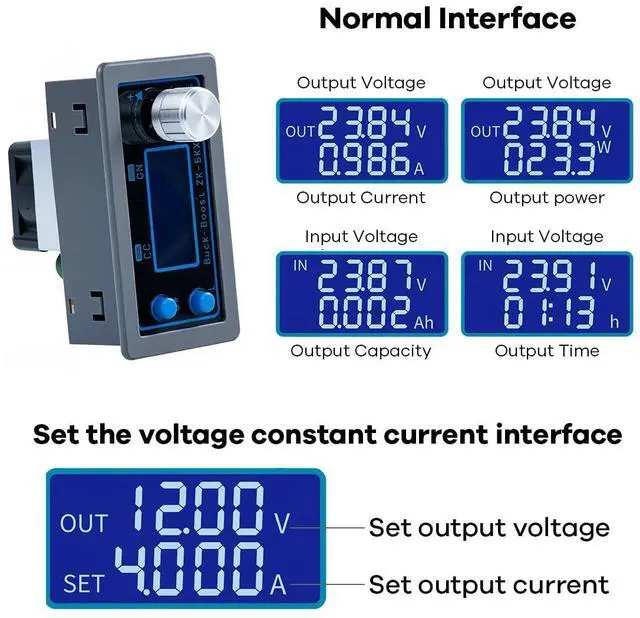

- Clear LCD Real-Time Monitoring Built-in LCD display shows input/output voltage, current, power, capacity, time, and temperature at a glance. Convenient for real-time monitoring and fine-tuning of your power settings.
- Comprehensive Protection for Safe Operation Equipped with multiple safety mechanisms including reverse connection, backflow prevention, undervoltage, overvoltage, overcurrent, overpower, overheating, timeout, and overcapacity protection. Ensures your electronic devices run reliably in a safe environment.
- High Efficiency and Wide Applications Delivers up to 80W with about 88% conversion efficiency, reducing energy loss and ensuring stable performance. Compact and lightweight design makes it perfect for DIY electronics, laboratory power supplies, and versatile voltage regulation needs.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

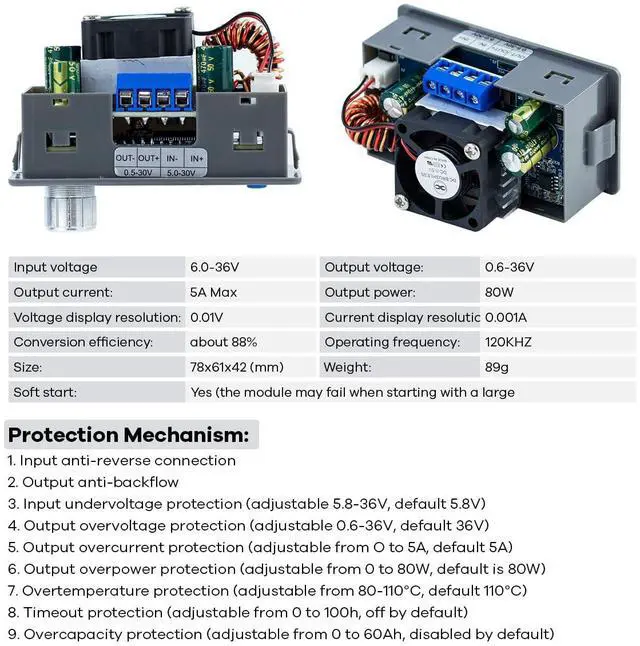

Basic Parameters
Product Name: ZK-5KX DC-DC Buck-Boost Regulator
Casing Material: ABS
Input Voltage Range: 5V-30V DC
Output Voltage Range: 0.6V-36V DC (Adjustable)
Output Current Range: 0-5A (Adjustable, with current limiting)
Output Power: Maximum 80W
Conversion Efficiency: Approximately 88% (typical, depending on input/output conditions)
Voltage Resolution: 0.01V
Current Resolution: 0.001A

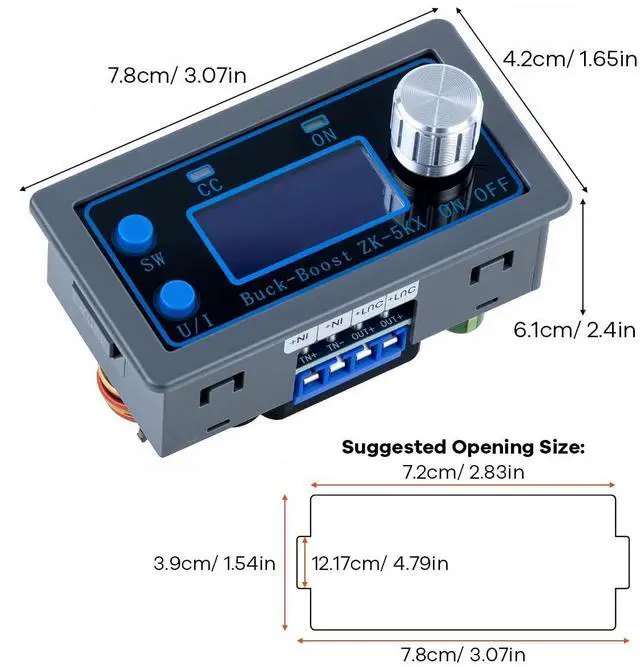

Module Dimensions: Approximately 7.9 × 4.3 × 6 cm
Weight: Approximately 93g
Functions and Protections
Voltage Regulation: CNC precision regulation, supports both step-up and step-down
Protection Mechanisms: Reverse Polarity Protection, Backflow Protection, Undervoltage Protection, Overvoltage Protection, Overcurrent Protection, Overpower Protection, Overheat Protection, Timeout Protection, Overcapacity Protection
Cooling Design: Large heat sink + intelligent temperature-controlled fan (50°C or 1A) (Automatically starts when power is turned on)
Applicable scenarios:
Electronic device power management, DIY electronics manufacturing, laboratory adjustable power supplies, battery charging and discharging, and testing, LED drivers, and motor power supplies
Package include:
1 x DC-DC Buck-Boost Regulator
