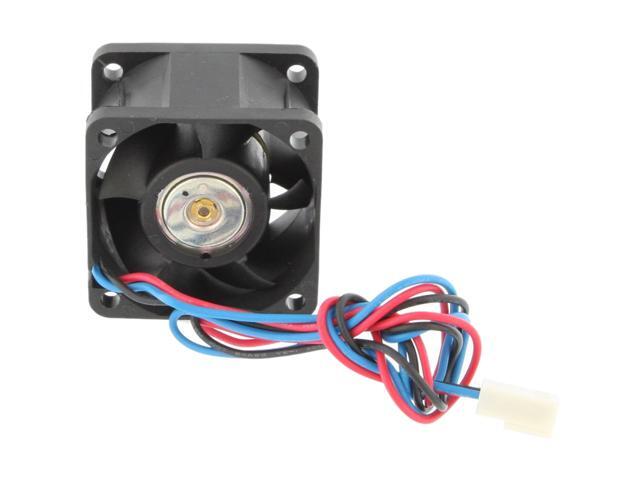

Delta Electronics FFB0412VHN-F00 40mm Non-LED LED Case Cooler

In stock.
Ships from Hong Kong.
Most customers receive within 5-32 days.
  • 40mm
  • 9500 RPM 15.79 CFM
  • Dual Ball
  • 45 dBA
LOADING...
Specs
Reviews

Learn more about the 1ST PC CORP. FFB0412VHN-F00

Model
Brand Delta Electronics
Model FFB0412VHN-F00
Details
Type Case Fan
Compatibility Case
Fan Size 40mm
Bearing Type Dual Ball
RPM 9500 RPM
Air Flow 15.79 CFM
Noise Level 45 dBA
Power Connector 3 Pin
Color Black
LED Non-LED
Features
Features Rated Voltage: 12 VDC
Operating Voltage Range: 4.5 - 13.2 VDC
Input Current: 0.24 Amp
Input Power: 2.88W
Maximum Air Pressure: 12.94 mmH2O or 0.509 inchH2O

The Delta FFB0412VHN-F00 is an super high speed cooling fan at 40 x 40 x 28mm. This is the fan you want when you have low profile systems that require a whole lot of air cooling capacity. Air flow is 15.79 CFM, or 0.447 cubic meter per minute at 9500 RPM and 45 dBA. Life expectance is 70,000 hours (or almost 8 years if you operate the fan 24 hours a day) at 40 Degree C with 15 - 65% RH, all thanks for industrial grade materials plus top notched, high quality dual ball bearing. Suitable applications include but are not limited to low profile industrial rack mount systems. Safety protections include Over Current Shut Down where the current will shut down when locking rotor occurs and Locked Rotor Protection where impedance of motor winding protects the motor from fire in 96 hours of locked motor condition at the rated voltage. It's also equipped with Polarity Protection that is capable of withstanding reverse connection of positive and negative leads. Operating temperature is -10 to +70 Degree C with 5 - 90% RH. This fan does not contain ozone depleting substances such as PBBs, PBBOs, CFCs, PBBEs, PBDPEs, or HCFCs.

This fan has 3 wires lead with fan speed sensor output and a standard 3 pin fan connector so you can plug it to a 3 pin fan header on most computer motherboards. Or you can power it by a common computer power supply with a 3 pin to Molex 4 pin cable adapter (sold separately) but you will lose the fan failure monitoring functionality. Wire lead is approximately 12.9 inches long.
Dimensions & Weight
Dimensions 40.00 x 40.00 x 28.00mm
