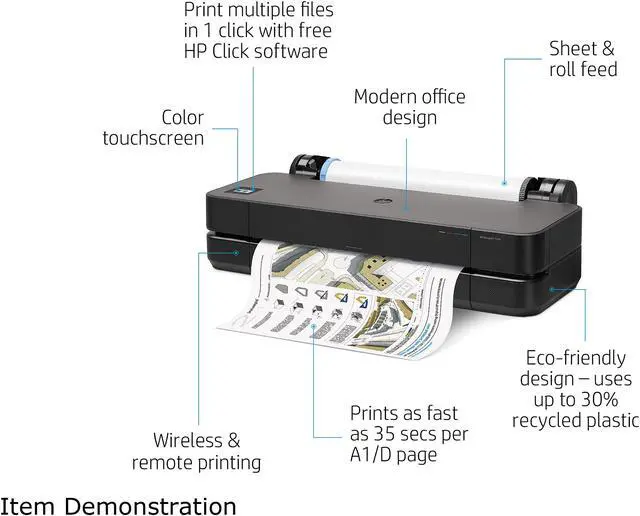

HP DesignJet T230 Large Format Compact Wireless Plotter Printer - 24", with Mobile Printing (5HB07A)

Shop All HP Products

HP DesignJet T230 Large Format Compact Wireless Plotter Printer - 24", with Mobile Printing (5HB07A)

Be the first to review this product...

Up to 2400 x 1200 optimized dpi Color Print Quality
35 sec/page on D, 68 D prints per hour
Dye-based (C, M, Y); pigment-based (K)
Sheet feed, roll feed, automatic horizontal cutter, optional automatic sheet feeder includes tray
Compliant with Class B requirements, including: USA (FCC rules)

Overview

Specs

Reviews

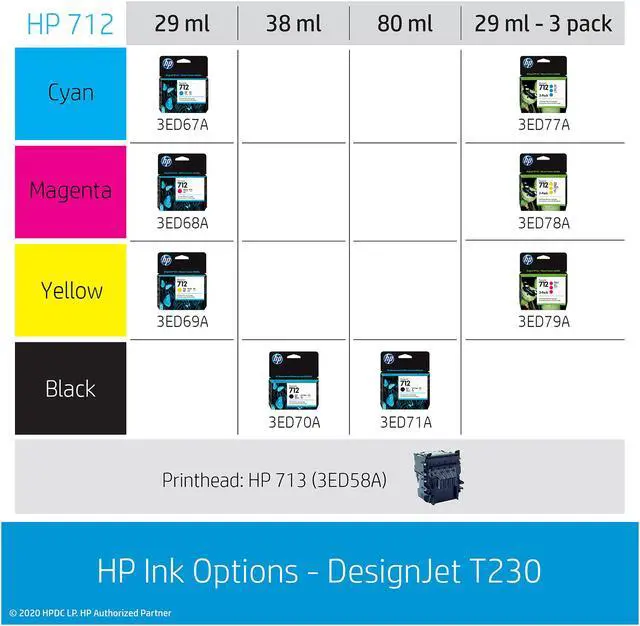

Cartridges Compatible
Cartridges Compatible	3ED67A HP 712 29-ml Cyan DesignJet Ink Cartridge 3ED68A HP 712 29-ml Magenta DesignJet Ink Cartridge 3ED69A HP 712 29-ml Yellow DesignJet Ink Cartridge 3ED70A HP 712 38-ml Black DesignJet Ink Cartridge 3ED71A HP 712 80-ml Black DesignJet Ink Cartridge 3ED77A HP 712 3-pack 29-ml Cyan DesignJet Ink Cartridge 3ED78A HP 712 3-pack 29-ml Magenta DesignJet Ink Cartridge 3ED79A HP 712 3-pack 29-ml Yellow DesignJet Ink Cartridge

Model
Brand	HP
Series	Designjet
Model	T230
Part Number	5HB07A#B1K
Recommended Use	Large Format
Functions	Print

Print
Print Technology	HP Thermal Inkjet
Output Type	Color
Max. Print Speed	35 sec/page on D, 68 D prints per hour
Color Print Quality	Up to 2400 x 1200 optimized dpi
Number of Nozzles	1376
Printhead Numbers	1 (cyan, magenta, yellow, black)
Thickness	Up to 11.8 mil
Print Languages, std.	JPEG, URF

Media Handling
Media Type	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported	11 to 24 in (279 to 610 mm) Media sizes supported: A4, A3, A2, A1 Media sizes, custom: 8.3 x 11 to 24 x 74.7 in (210 x 279 to 610 x 1897 mm)

Ports
USB Ports	Yes
Network Ports	Ethernet 10 / 100 / 1000BaseTX (RJ45)
Other Ports	Wireless LAN
Connectivity Technology	Wi-Fi 802.11a/b/g/n

Hardware
Noise Level (Approx.)	42 dB(A) (operating), <16 dB(A) (idle)
Memory, std.	512 MB
Power Requirements	100 - 240V, 50/60Hz
Power Consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Features
Features	35 sec/page on D, 68 D prints per hour Dye-based (C, M, Y); pigment-based (K) Sheet feed, roll feed, automatic horizontal cutter, optional automatic sheet feeder includes tray Compliant with Class B requirements, including: USA (FCC rules)

Dimensions & Weight
Dimensions	39.9" x 17.3" x 11.2"
Weight	47.40 lbs.

Packaging
Package Contents	HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Software Included	HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Additional Information
Date First Available	March 16, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
