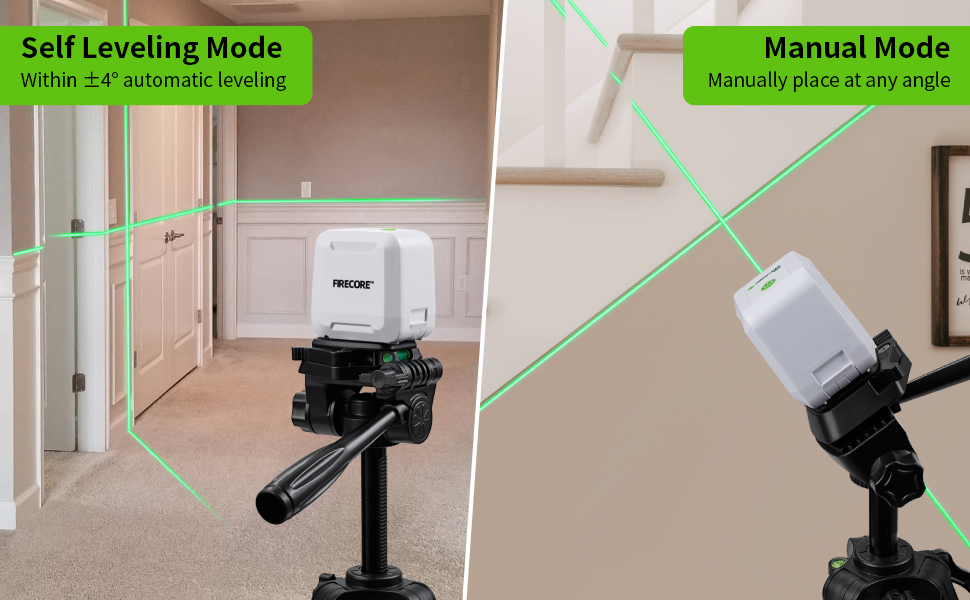

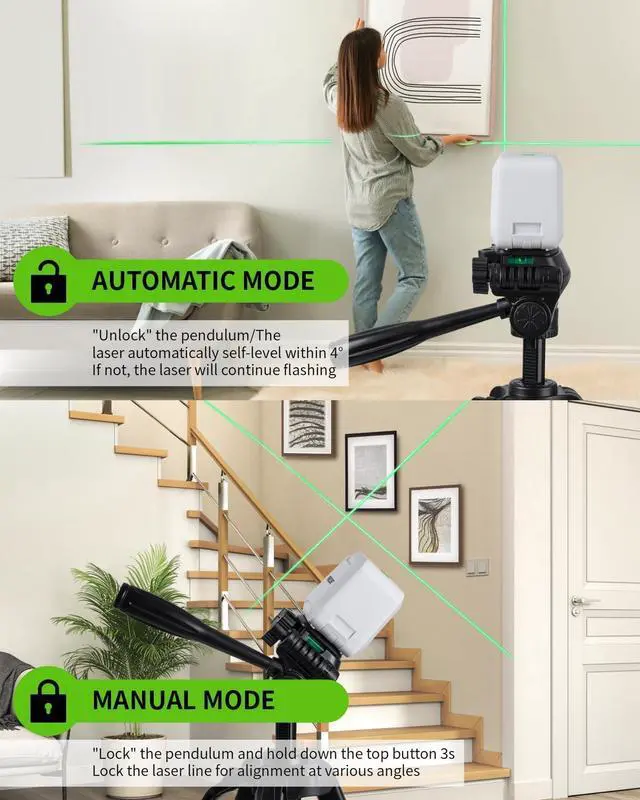

Self-leveling Mode: when the pendulum is unlocked, the self-leveling mode is enabled. If the surface inclines over 4 degrees, it will keep flashing to remind you of the out-of-level condition.

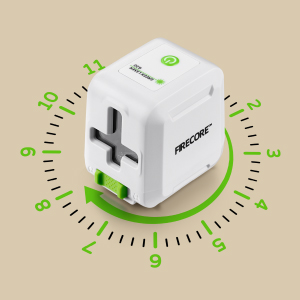

Manual Mode: Slide the power switch to the locking position, press and hold the top button for 3 seconds, then you can place the laser tool at various angles to project non-level straight lines.
Long-term Use
The self leveling laser level is equipped with two AA batteries, support up to 8 hours of continuous work to give you the easiest and most efficient working experience.

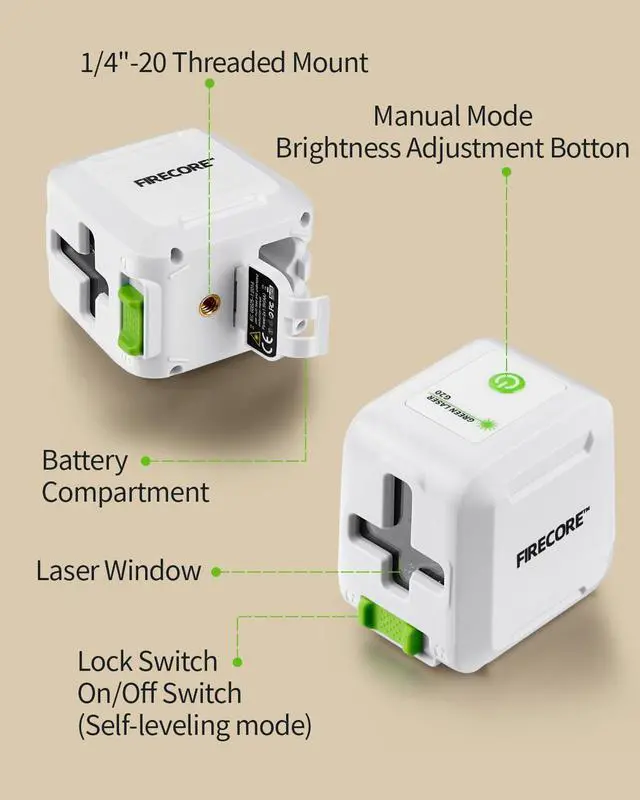

1/4" Threaded Mount
The G20 cross line laser comes with 1/4"-20 female thread, allowing it to be attached to tripod or other mounting bases for positioning, and adjust its height easily to make measuring flexible and stable.
Compact & Durable
This laser tool is only 0.6 lb, lightweight and palm-sized design for easy gripping, carry and store. IP54 water/dust resistance ensures you work well in daily indoor use.
 Laser Level, Firecore 82Ft Self Leveling Lazer Level, Green Cross Line levele... |  Firecore Laser Level with Tripod, Self Leveling Lazer Level Green Cross Line ... |  Firecore Laser Level 360 Self Leveling, Compact Green Cross Line Laser Levele... |  Firecore 360° Laser Level with Tripod, Green Self Leveling Cross Line Laser T... |  Firecore Professional Green Cross Line Laser, 130ft Self-Leveling Laser Level... |  Firecore Laser Level with Tripod, 3 X 360° Rechargeable Green Self Leveling C... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — no data | — no data |
| Number of Lines | 2 Lines (H: 110°/ V: 110°) | 2 Lines (H: 110°/ V: 110°) | 2 Lines (H: 360°/ V: 120°) | 2 Lines (H: 360°/ V: 120°) | 2 Lines (H: 120°/ V: 150°) | 3 Lines (H: 360°/ V: 360°) |
| Line Accuracy | ±1/17-Inch at 23 ft. | ±1/17-Inch at 23 ft. | ±1/17-Inch at 23 ft. | ±1/17-Inch at 23 ft. | ±1/9-Inch at 33 ft. | ±1/17-Inch at 23 ft. |
| Modes | Self-Leveling; Manual Mode | Self-Leveling; Manual Mode | Self-Leveling; Manual Modes; Pulse Mode | Self-Leveling; Manual Modes; Pulse Mode | Self-Leveling; Manual Modes; Pulse Mode | Self-Leveling; Manual Modes; Pulse Mode |
| IP Rating | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
| Power Source | 2 AA Batteries | 2 AA Batteries | 4 AA Batteries | 4 AA Batteries | 3 AA Batteries | Two 3.7V / 4000mAh Li-ion battery |
| Threaded Mount | 1/4''-20 | 1/4''-20 | 1/4''-20 | 1/4''-20 | 1/4''-20 | 1/4''-20 |
| Package | Carry Pouch | Carry Pouch | Carry Pouch | Carry Pouch | Carry Pouch | Carry Pouch |
- Specializing in the wide range of home improvement tools, Firecore has won the trust of customers by virtue of high-quality products and services since its establishment.
- The product range comprises Laser levels, rotation lasers, optical level, laser level accessories, such as laser poles, tripods, grade rods, etc.
- We believe that continuing to provide customers with high-quality and affordable products is the key to our continuous development.
Firecore Cross Line Laser
Firecore 360 Laser with Tripod
Firecore 360 Laser Levels
Firecore Laser Poles & Tripods
Firecore Tripods & Grade Rods
- Specializing in the wide range of home improvement tools, Firecore has won the trust of customers by virtue of high-quality products and services since its establishment.
- The product range comprises Laser levels, rotation lasers, optical level, laser level accessories, such as laser poles, tripods, grade rods, etc.
- We believe that continuing to provide customers with high-quality and affordable products is the key to our continuous development.
Firecore Cross Line Laser
Firecore 360 Laser with Tripod
Firecore 360 Laser Levels
Firecore Laser Poles & Tripods
Firecore Tripods & Grade Rods

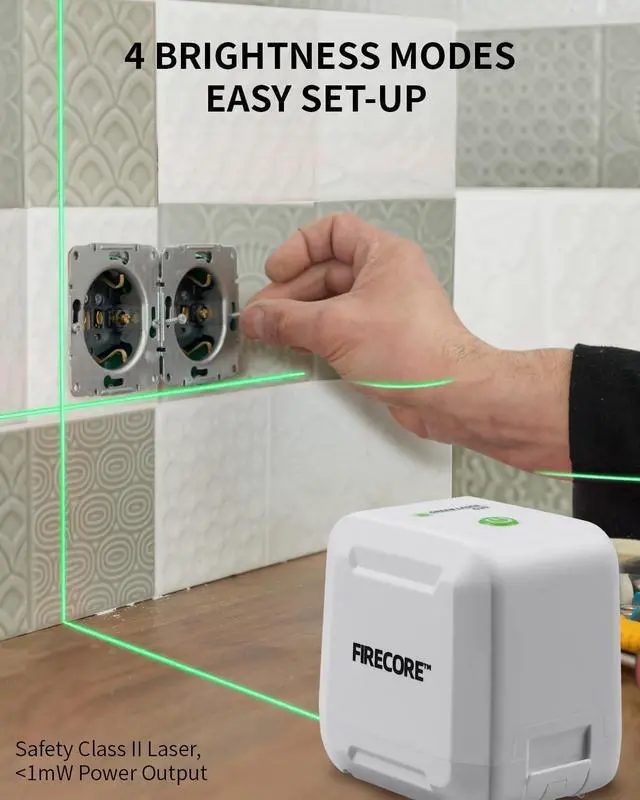

| Laser Class: | Class II (IEC/EN60825-1/2014), =1mW power output |
| Leveling Method: | Self-leveling Mode + Manual Mode |
| Leveling Accuracy: | ±1.5mm/7m (±1/17 in. at 23 ft.) |
| Self-leveling Range: | ±4° |
| Laser Wavelength: | 505nm-520nm |

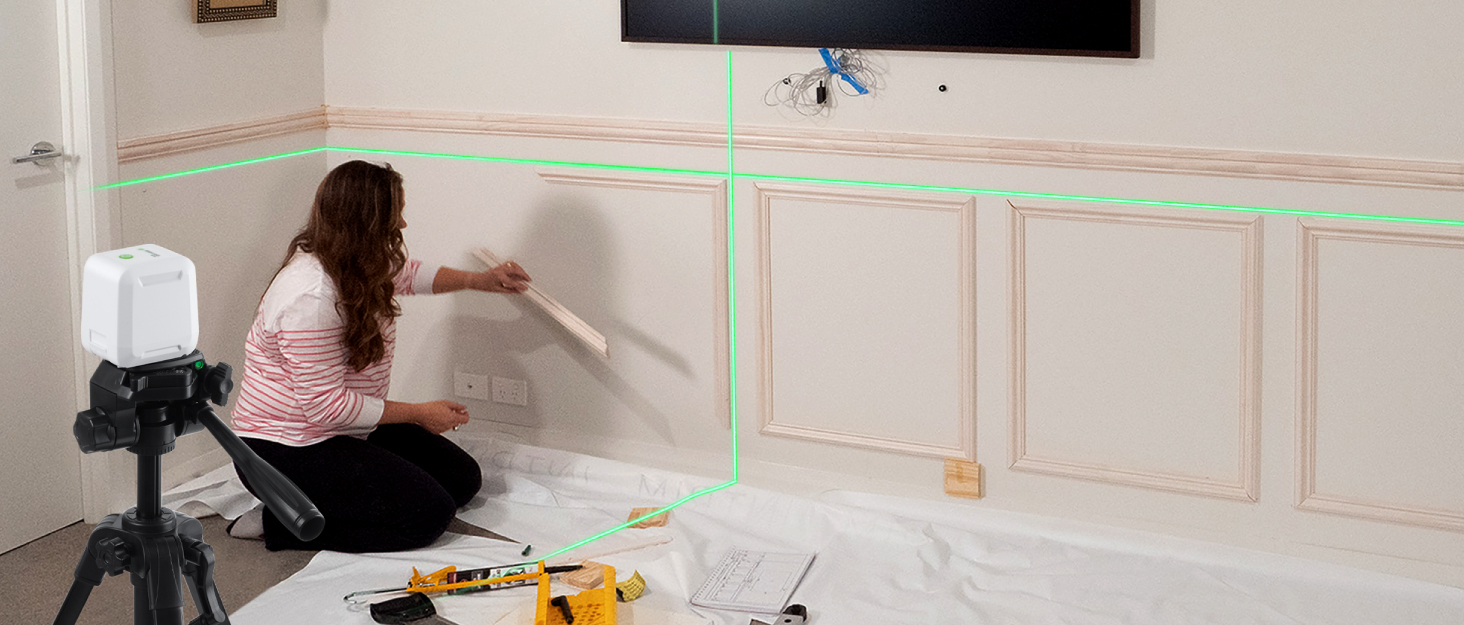

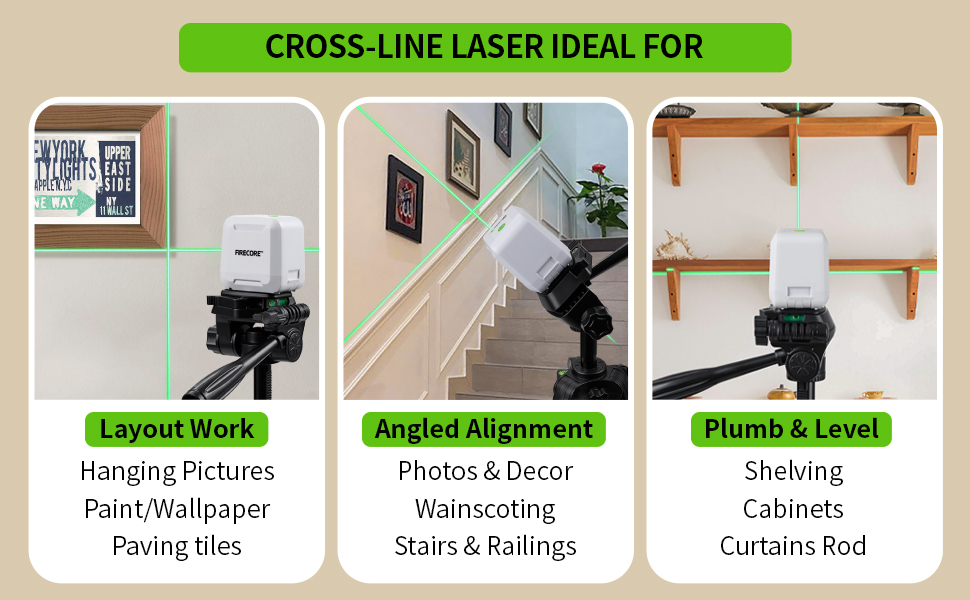

| Common Uses: | Picture Hanging / Installing Shelves / Fitting Dado Rails / Indoor DIY Construction Projects |
| Working Range: | 25m/82 ft. |
| Operating Time: | Approx. 8 hours |
| Mount Size: | 1/4"-20 |
| Power Supply: | 2×1.5V AA (LR6) |
| IP Rating: | IP54 |

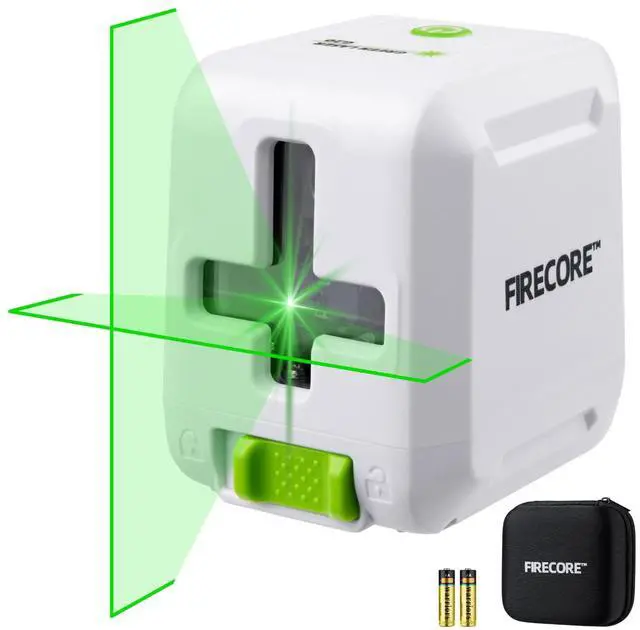

| Included Components: | 1 x Green Cross Line Laser Level , 1 x Carry Pouch, 2 x AA Batteries, 1 x User Manual |
Self-leveling Mode: when the pendulum is unlocked, the self-leveling mode is enabled. If the surface inclines over 4 degrees, it will keep flashing to remind you of the out-of-level condition.
Manual Mode: Slide the power switch to the locking position, press and hold the top button for 3 seconds, then you can place the laser tool at various angles to project non-level straight lines.
Long-term Use
The self leveling laser level is equipped with two AA batteries, support up to 8 hours of continuous work to give you the easiest and most efficient working experience.

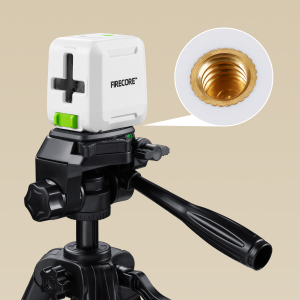

1/4" Threaded Mount
The G20 cross line laser comes with 1/4"-20 female thread, allowing it to be attached to tripod or other mounting bases for positioning, and adjust its height easily to make measuring flexible and stable.

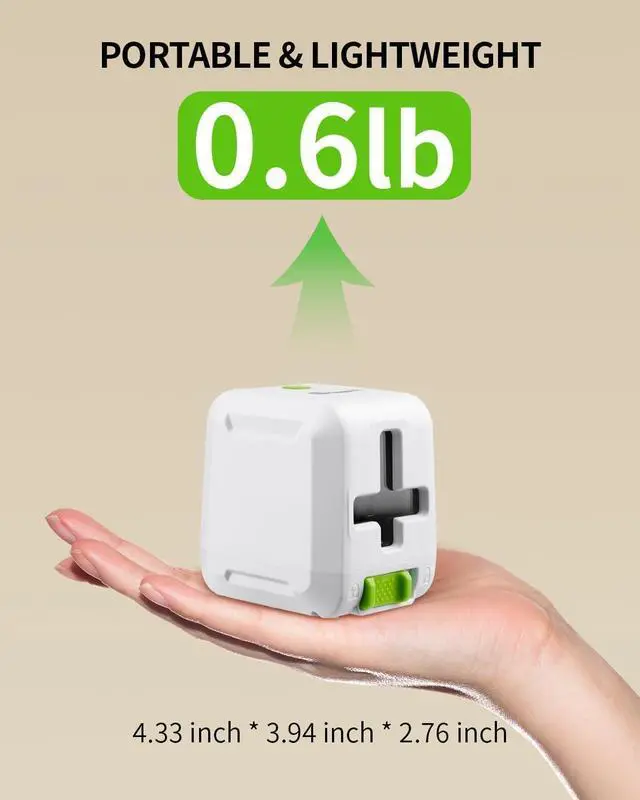

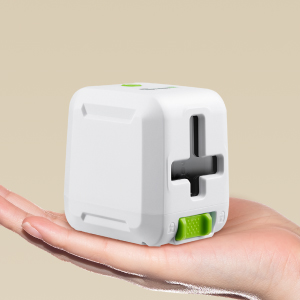

Compact & Durable
