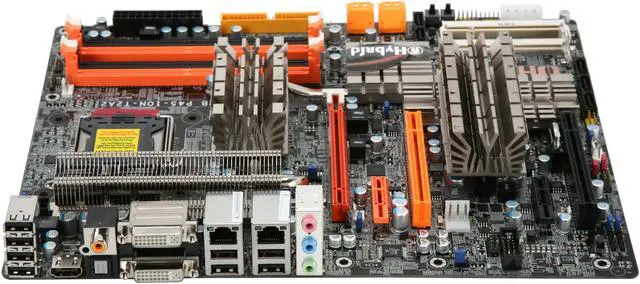

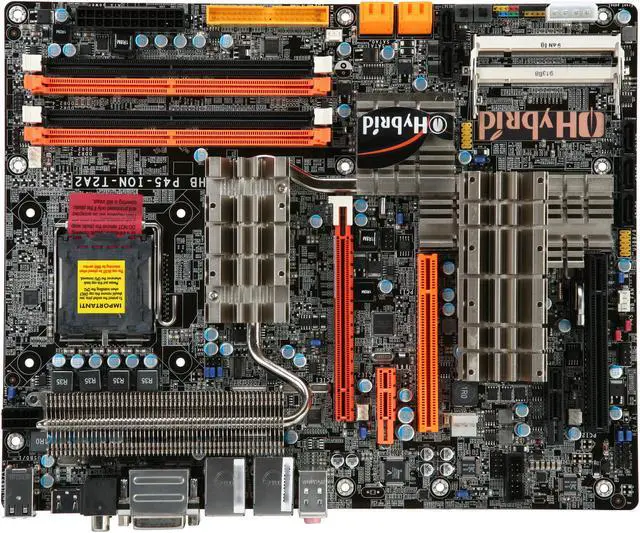

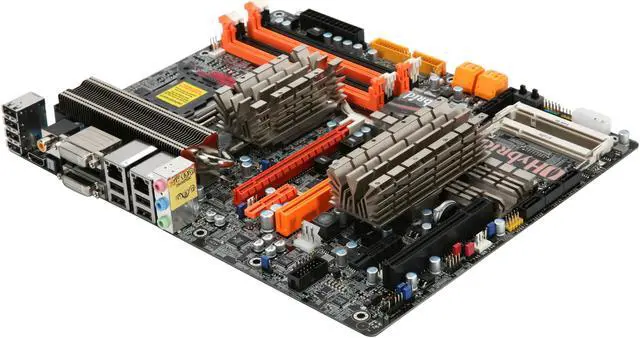

DFI P45-ION-T2A2 Intel Atom 230 Intel P45 / NVIDIA ION Hybrid Platform ATX Motherboard w/ NVIDIA GeForce 9400 Integrated Graphics
- Core 2 Quad/Core 2 Duo
- DDRII 667/800/1066 (Intel Platform) DDRII 667/800 (NVIDIA Platform)
- NVIDIA GeForce 9400
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the DFI P45-ION-T2A2
| Brand | DFI |
|---|---|
| Model | P45-ION-T2A2 |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Atom 230 |
|---|
| CPU Socket Type | T (LGA 775) / PBGA437 |
|---|---|
| CPU Type | Core 2 Quad/Core 2 Duo |
| FSB | 1333/1066/800MHz (Intel Platform) 533MHz (NVIDIA Platform) |
| North Bridge | Intel P45 (Intel Platform) NVIDIA ION (NVIDIA Platform) |
|---|---|
| South Bridge | Intel ICH10R |
| Number of Memory Slots | 4x240pin + 2x200pin SO-DIMM |
|---|---|
| Memory Standard | DDRII 667/800/1066 (Intel Platform) DDRII 667/800 (NVIDIA Platform) |
| Maximum Memory Supported | 16GB (Intel Platform) 4GB (NVIDIA Platform) |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 (Intel Platform) 1 (NVIDIA Platform) |
| PCI Slots | 1 (Intel Platform) 1 (NVIDIA Platform) |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s (Intel Platform) 3 x SATA 3.0Gb/s (NVIDIA Platform) |
| Onboard Video Chipset | NVIDIA GeForce 9400 |
|---|
| Audio Chipset | Realtek ALC885 (Intel Platform) Realtek ALC885 (NVIDIA Platform) |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RTL8111DL (Intel Platform) VITESS VSC8601XKN (NVIDIA Platform) |
|---|---|
| Max LAN Speed | 2 x 1Gbps |
| Video Ports | 2 x DVI |
|---|---|
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 8 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 2 connectors for 4 additional external USB2.0 ports |
|---|

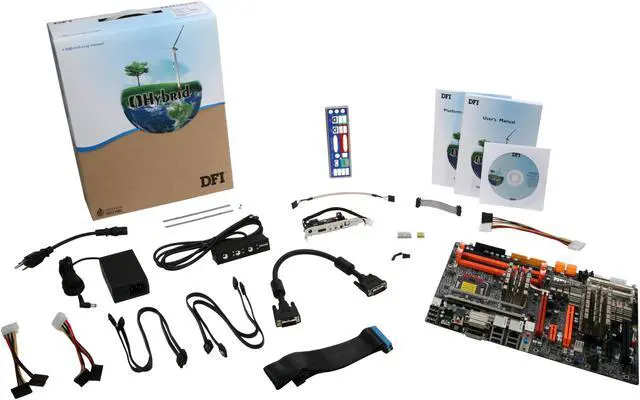

| Features | DFI Hybrid Platform H-PLUS-EA (I/O Expension ) - 1 Power port - 1 Power e-SATA (share with USB2.0 port) - 3 Channel audio - 1 Optical S/PDIF input port HB-F-BOX (Platform control panel) - 1 button for selecting Intel Platform to NVIDIA Platform - 1 button for selecting Audio mode in Auto or Fixed - 1 button for selecting Fixed Intel Platform or NVIDIA Platform Realtek 8366SB Giga Switching Controller Independent 60W power adapter for power supply 6 FAN connectors |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | December 15, 2009 |
|---|
