4K 1080P Audio Video HDMI Capture Card
Support Multiple Systems and Platforms
- Suitable for Windows 7, 8, 10, Mac OS X 10.9 or above, Linux.
- USB3.0 high-speed transmission port, let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.

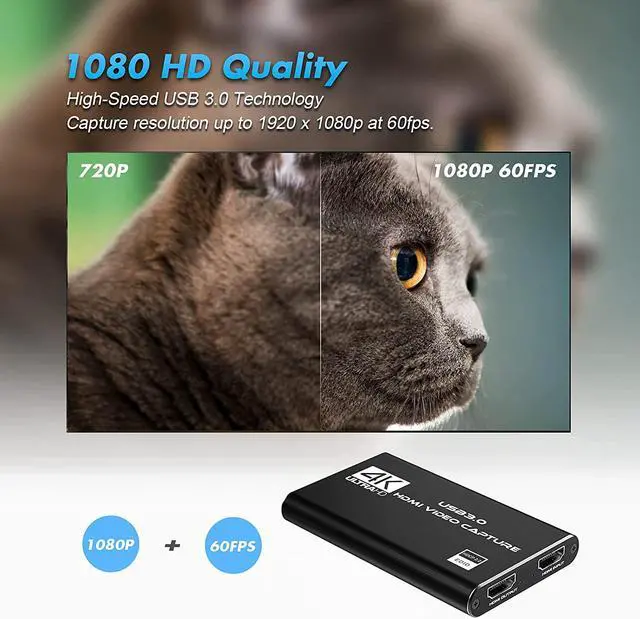

1080P HD Quality
- Full HD 1080P video capture, video recording and live broadcast.
- Compatible with all 1080P 720P HDMI port device.
Support Mic-in for Commentary
- This capture card has microphone input and you can use it to add external commentary when playing a game, but it doesn't record party chat.
- Please note: it only accepts 3.5mm TRS standard microphone headset.
--HDMI
LOOP-OUT: Based on the high-speed USB 3.0 technology, it can capture one single channel HD HDMI video signal. There is no delay when you are playing game live.
--SupportMic-inforCommentary: capture card has microphone input and you can use it to add external commentary when playing a game.
Pleasenote: it only accepts 3.5 mm TRS standard microphone headset. Our 4K Video Capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. It is the BEST Choice for you.
Advantages: 1. Universal Compatibility. Support most acquisition software, Support Windows? Android and Mac OS system. 2. Stable Capture; Smooth video and audio; Without delay. 3. High Speed Transmission. It supports Input (HDMI) max resolution 4K @30Hz; output (USB) max resolution 4K@30Hz. Please used with 4k HDMI cable. 4. The capture card can realize screen sharing, fast, convenient & economical. 5. No External Power Supply Required, Compact and Portable; Easy to Use and Carry.

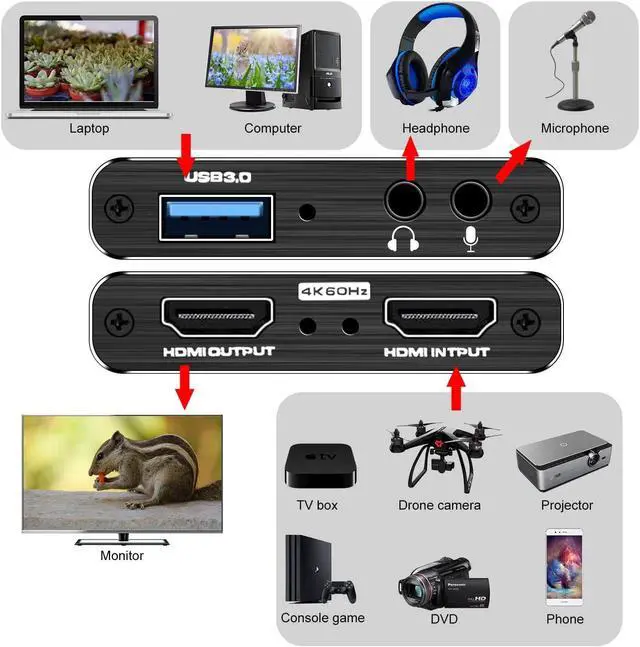

ConnectionandOperation:
1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2. Connect the computer to the usb port of the video capture with usb cable.
3. Operation steps for
USBvideocapture(OBS): Open the software - Choose sources of Video capture Device - Set the size of image - Choose Studio Mode (double window) - Choose Start Recording.
Features: * Support input & output max resolution 4K; * Support 8/10/12bit deep color; * Support AWG26
HDMIstandardcable: input up to 15 meters, (1080P and below resolution); *
Videooutputformat: YUV / JPEG;
Supportaudioformat: L-PCM *
Maxworkingcurrent: 0.4A /5VDC *
OperatingTemperaturerange: (-10 to +55?) *
Dimension(L x W x H): 64x28x13 (mm);
Weight: 21.4 g
Note: Computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphicscard: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above;
Runmemory: 4G RAM
PackageLists: 1x Video capture; 1x User manual
