DJI Matrice 4D 240W Charging Hub Sequential 3-Battery Fast Charge, Standby Mode

DJI Matrice 4D Series 240W Charging Hub Intelligent Sequential Charging for Three Batteries

Compatible Products

DJI Matrice 4D / 4TD Series

Package Contents

1 × DJI Matrice 4D Series 240W Charging Hub

Product Overview

The DJI Matrice 4D Series 240W Charging Hub is an essential accessory for professional users who rely on the DJI Matrice 4D series for demanding tasks such as surveying, inspection, search and rescue, and industrial monitoring.

Used together with a compatible charger, the hub intelligently selects the battery that will charge to full fastest, then charges batteries one after another (sequential charging) until all three are ready. This smart charging logic reduces overall waiting time and ensures your drones spend less time on the ground and more time in the air.

The hub supports two modes:

Standard Mode (100% SOC) Fully charges batteries for maximum flight endurance.

Standby Mode (90% SOC) Charges to 90% to help prolong battery lifespan during frequent daily use.

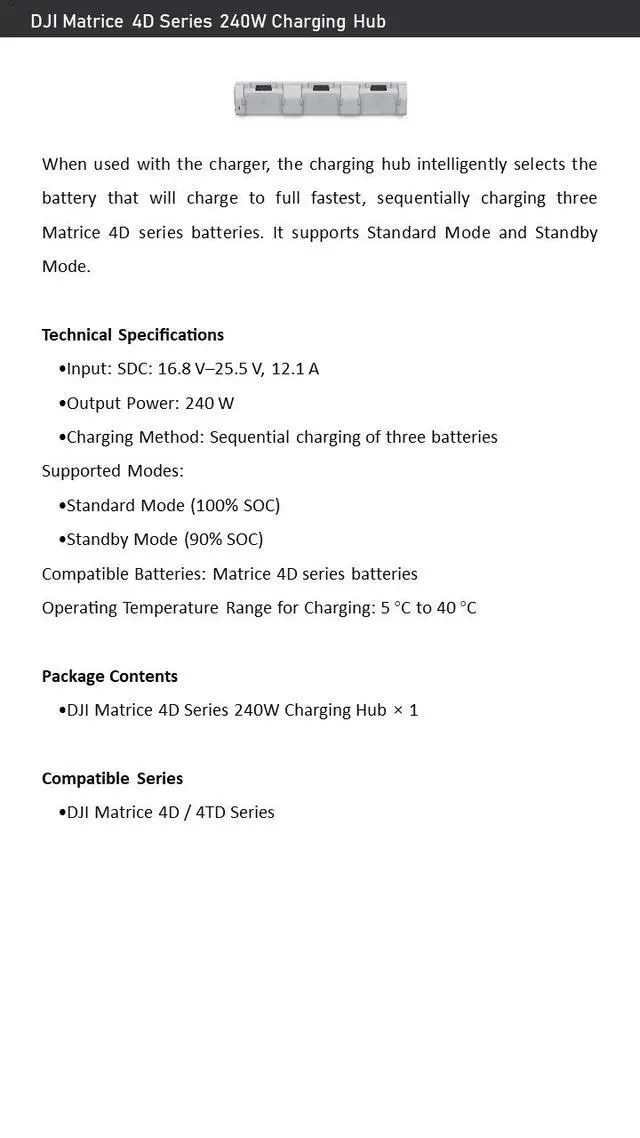

Technical Specifications

Input: SDC: 16.8V25.5V, 12.1A

Output Power: 240W

Charging Method: Sequential charging of three batteries

Supported Modes:

Standard Mode (100% SOC)

Standby Mode (90% SOC)

Compatible Batteries: Matrice 4D series batteries

Operating Temperature Range for Charging: 5°C to 40°C

Key Features

Intelligent Charging Priority Automatically identifies the battery closest to full charge and charges batteries in the most timeefficient order.

Sequential Charging Charges up to three Matrice 4D series batteries one by one, ensuring each receives full power safely.

Dual Operation Modes Choose Standard Mode for 100% capacity or Standby Mode for 90% to balance endurance and battery longevity.

High Output Power 240W output delivers fast charging for highcapacity enterprise batteries.

Wide Input Voltage Range Compatible with 16.8V25.5V input for use with DJI chargers and various power sources.

Temperature Control Safe charging between 5°C and 40°C protects batteries in harsh environments.

Usage Tips

Connect Batteries Insert up to three Matrice 4D series batteries into the hub.

Choose Mode Select Standard Mode for full charge or Standby Mode to extend battery lifespan.

Power Requirements Use a compatible charger that meets the 16.8V25.5V, 12.1A input specification.

Temperature Awareness Charge only within 5°C40°C for safe and efficient operation.

Sequential Process Batteries are charged one at a time according to the hubs smart priority logic.

Notes

Battery Compatibility Only compatible with Matrice 4D series batteries.

Mode Selection Standby Mode helps reduce battery wear during frequent charging cycles.

Temperature Limits Charging outside 5°C40°C may affect performance or battery health.

Input Voltage Ensure your power source matches the required input range for stable operation.
