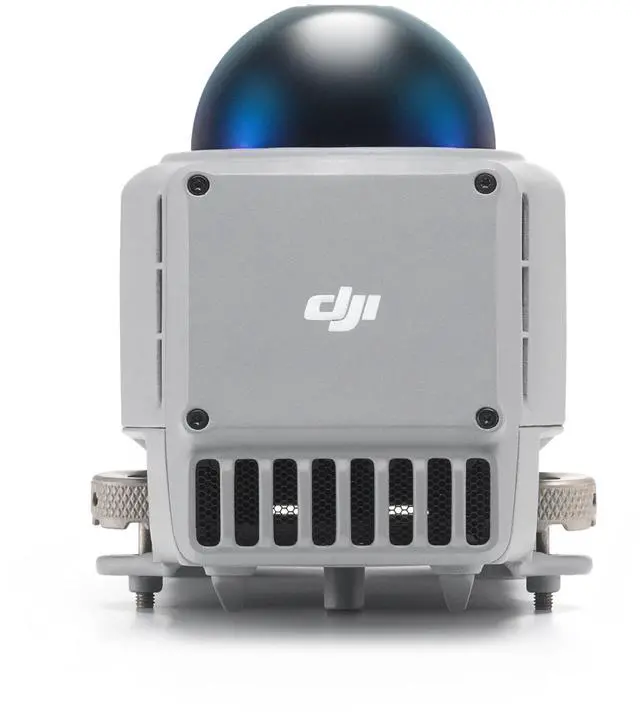

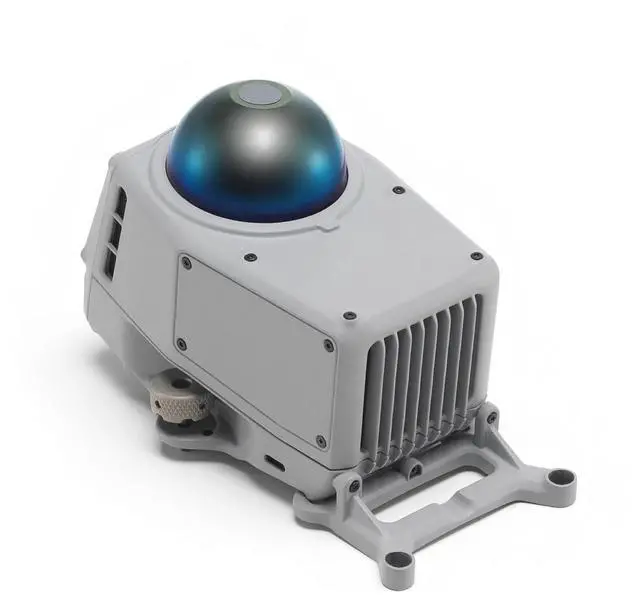

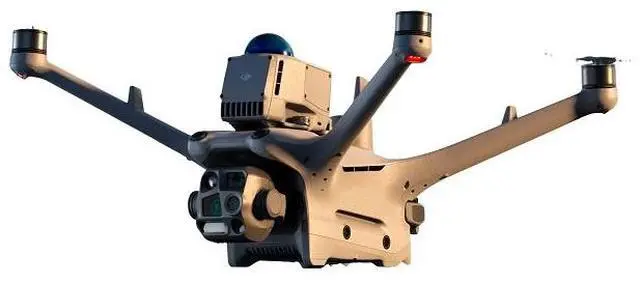

DJI Matrix4 laser barrier avoidance radar, for models such as the Matrix 4D/4TD series and the Matrix 4T/4E series, to ensure precise barrier avoidance for flight safety

Technical parameters:

Product Model: LR-01

Product weight: 235 grams

Product dimensions: 103.3 mm long, 64 mm wide, 85.8 mm high

Operating temperature: -20°C to 50°C

Perceptive system: Combined with circular laser radar and five-millimeter radar

Protection Level: IP55 (for use with the Matrix 4D series)

Applicable Models:DJI Matrice4EMatrice4TMatrice4DMatrice4TD

Cautions:

1. Make sure the aircraft power is turned off before installation or removal.

2. When installing, be sure to tighten the rear screws, and use the internal hexagonal screwdriver lock in the package to tighten the screws by hand. To ensure the stability of the installation.

3. After installation, please update all devices to the latest firmware and activate according to the app prompts.

4. Before flight, please check that radar is operating normally. It is recommended to fly in environments with good GNSS signals and good weather conditions. In the following scenarios, the performance of the avoidance radar will be limited. Please pay attention to flight safety:

1) Aircraft cannot actively avoid rapidly moving objects (such as windmills in a non-stop state, moving tower cranes, flying birds, etc.) ;

2) The ability to avoid and circumvent obstacles will vary depending on the environment (clouds, fog, rain, snow, dust), the materials, position, and shape of the target object;

3) The obstruction is located within the blind spot of the obstruction radar observation, the range of the blind spot is detailed in the Obstruction Radar User Manual;

4) Small tree branches or wires less than 12 mm in diameter are present around the route, or when the drone is flying vertically, there are diagonally pulled wires nearby ;

5) Due to national policy restrictions, some countries and regions cannot turn on radar or can only turn on partial radar functions.

5. The radar contains delicate components, and external impacts or falls can cause damage or decrease accuracy. Please be careful to avoid falling.

6. When not using the radar, please install a protective cover to prevent wear on the radar surface.
