KEHIPI LM2596 Buck Converter 5pcs, Step Down Converter DC Voltage Regulator Adjustable 4.5-40V to 1.25-37V (36V 24V 12V 9V 5V 3V) Variable Voltage Stabilizer Power Supply
- Non-isolated LM2596 Buck Converter, Dial Down Volt 36V 30V 24V to 12V 5V 3.7V 3.5V 3.3V 2V.

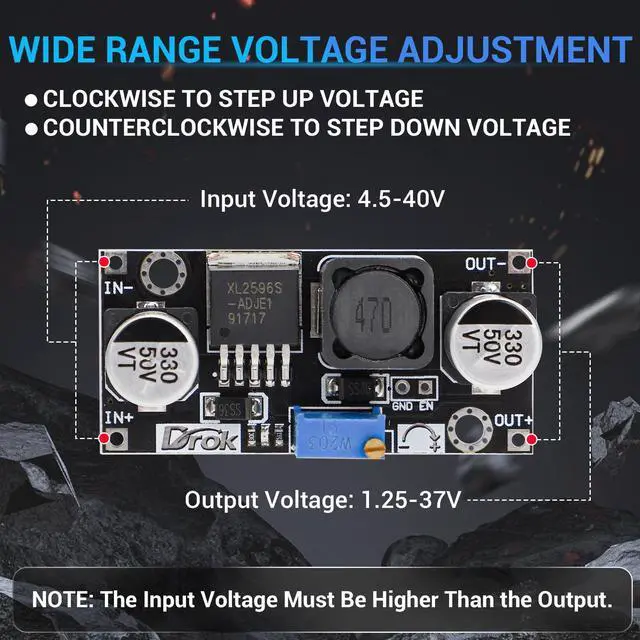

- Analog Control: using a mini screwdriver to increase or decrease output voltage by adjusting the potentiometer, clockwise to step up voltage and counterclockwise to step down voltage.
- With over-temperature and short-circuit protection, hence it is safe to use.
- Wide Voltage input of 4.5-40V and output of 1.25-37V but has low power-consumption.
- Easy to make it work and convenient to accurately adjust the output voltage with a mini screwdriver.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

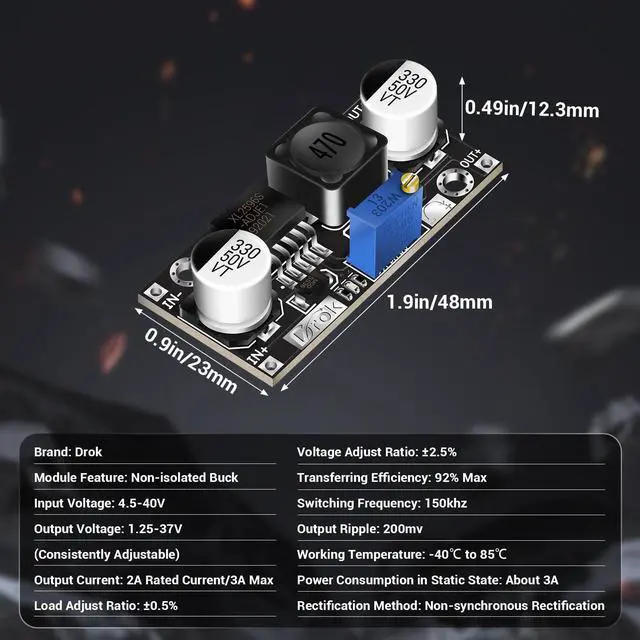

Parameters:
Input voltage: 4.5-40V
Output voltage: 1.25-37V(consistently adjustable and recommend you adjust when in empty load)
Output current: 2A rated current and 3A Max(please add heatsink)
Load adjust ratio: +/-0.5%
Voltage adjust ratio: +/-2.5%
Transferring efficiency: 92% Max(the higher output voltage, the higher efficiency)
ON/OFF frequency: 150KHz
Output ripple: 200mV
Power consumption when in static state: only about 3A
Working temperature: -40 Celsius to 85 Celsius
Module feature: buck and non-isolated
Rectification method: non-synchronous rectification
Adjust method: please use a mini screwdriver to adjust output voltage by adjusting the potentiometer
Note:
1.Please add heatsink when the output power is larger than 15W
2.Please make sure the voltage difference between input voltage and output voltage is at least 1.5V to ensure stable output
3.Please note there is no reversed connection protection, so check the polarity of input voltage before power on to avoid burning due to reversed connection.
4.It has over-temperature and short-circuit protection.
Package includes:

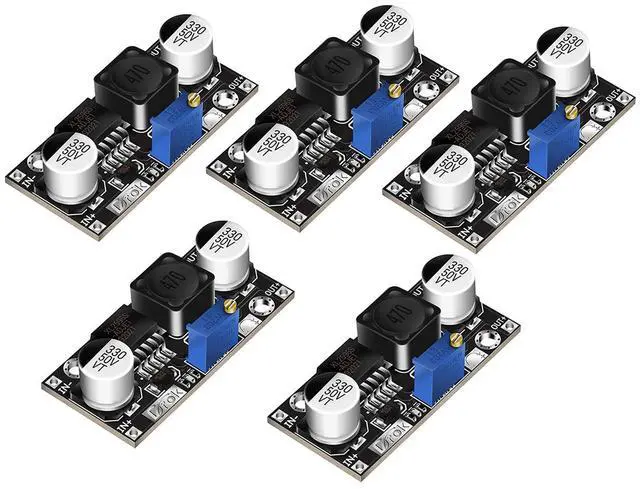

5 X LM2596 bare board
