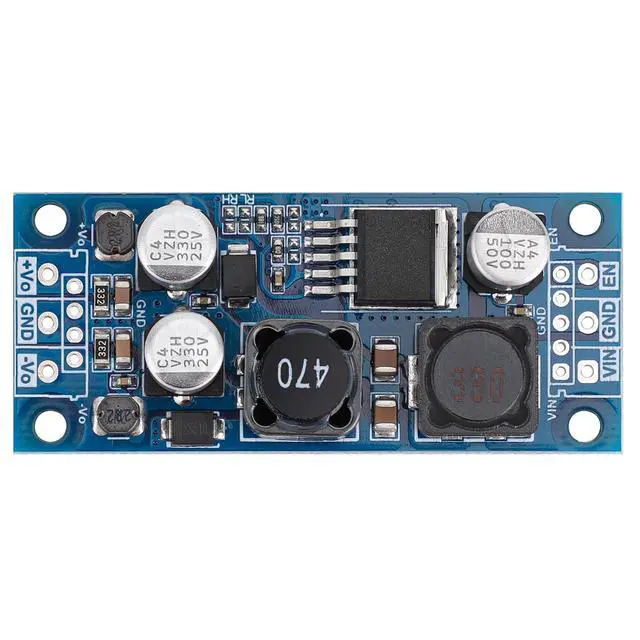

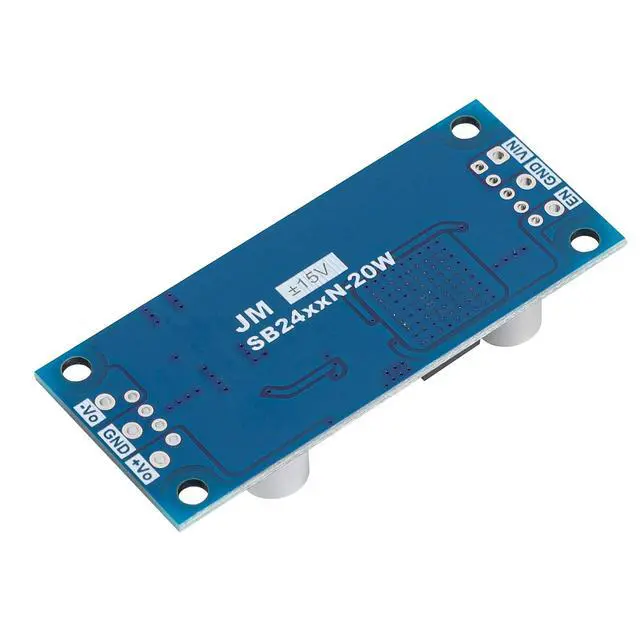

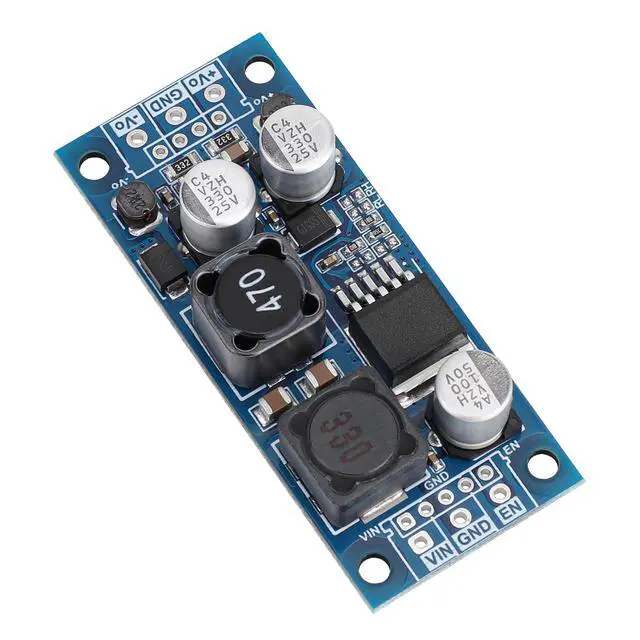

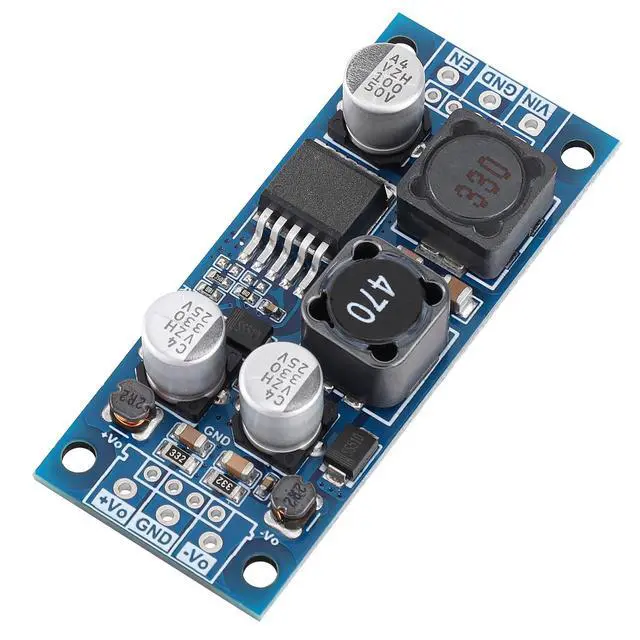

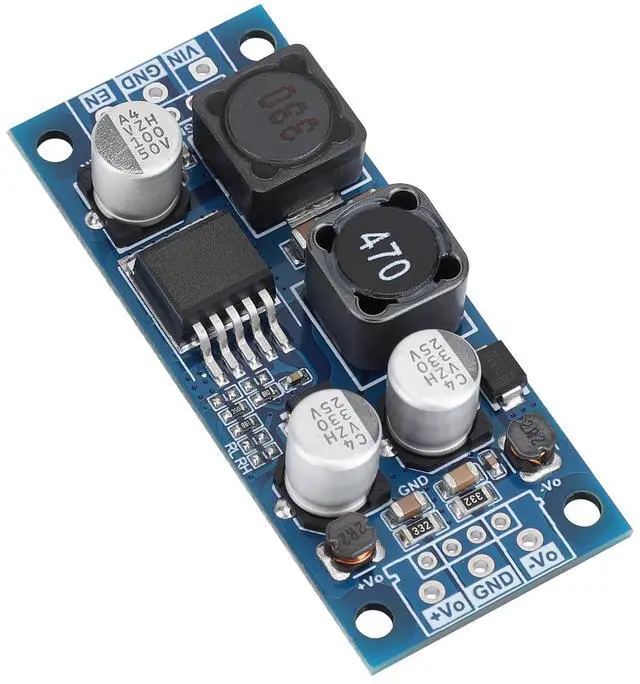

KEHIPI Micro Dual Power Supply - DC to DC Buck Boost Converter 4.8-35V to ±15V Positive Negative Dual Output, Step Up Voltage Regulator for OP-Amps
- DROK micro voltage converter with low voltage input range DC 4.8-35V, positive and negative dual output voltage is ±15V, rated output current is 660mA.
- APPLICATION: the step-up regulator module is suitable for sensor, operational amplifier, audio and other devices that needs positive-negative power output.
- SMALL MODULE HIGH EFFICIENCY: DROK boost converter is with small dimension 64x27.5x12.5mm; the small module conversion rate can be up to 88%.
- TWO MOUNT METHODS: the volt transformer module not only support row pin welding, but also lead mounting, which will be convenient for your use.
- NOTE: please note that although the module is with short circuit protective function, it can not in long continuous short circuit, or it will be damaged.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameters:
Input Voltage: 4.8-35VDC
Output Voltage: ±15VDC
Rated Current: 660mA
Convert Efficiency: 88% (24V input at VIN
Minimum Load: 30 mA
+/-Vo Ripple Noise of Bare Metal: 90mV/80mV
Ripple Noise: 35mV/30mV (test condition: 24V input at VIN, bandwidth limit of 20MHz, full-load output)
No-load Power Consumption: 530-550mW
Short Circuit Protection: YES (the circuit can be self-restored from short circuit, but it does not support long continuous short circuit)
Working Temperature: -40 to +85

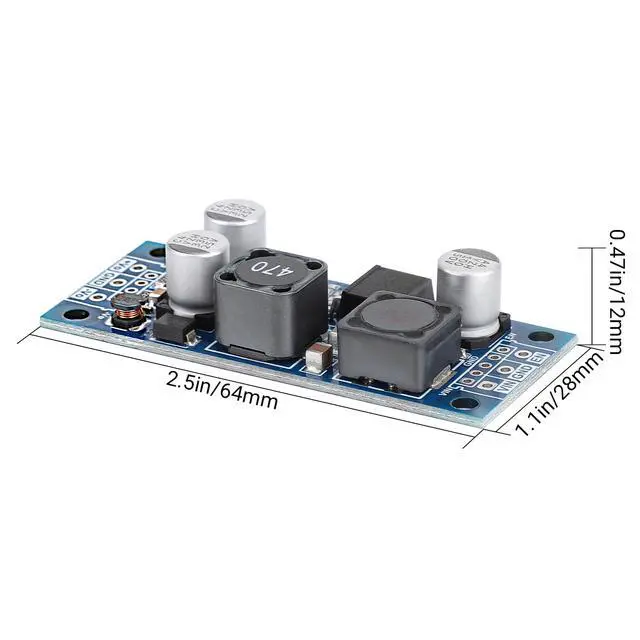

Dimension: 64 x 27.5 x 12.5 mm

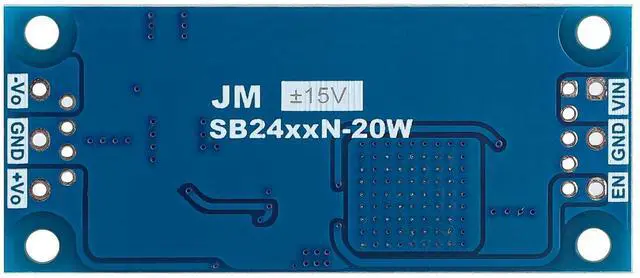

Port Function:
VIN: positive of 4.8~40V DC voltage input
GND : common ground connection port for input and output
+Vo : output +
-Vo : output -
Installation:
1.Pin-type welding of embedded PCB board.
2.Lead terminal installation.
Note:
1. Voltage of EN and voltage of VIN should be different, or it may cause unstable output.
2.For low voltage input, user needs to refer to the curve of output derating use. Package Includes:
±15V Dual Output Power Converter x1
