KEHIPI 5V DC Converter, 2pcs Waterproof DC Buck Converter 8V-22V 12 V Step Down to 3V-15V 6V 9V 3A Adjustable Power Supply Voltage Regulator Module
- DROK buck converter input voltage range is DC 8V-22V; adjustable output voltage range is DC 1V-15V, please ensure input voltage is at least 3V higher than output voltage; max output current is 3A, if for long-term work, 2A doesn't need to enhance heat dissipation.
- Potentiometer: the volt transformer is with potentiometer on the bottom, which allows you adjust the accuracy with the mini screw, but ensures you won't easily change its setting when mounted.
- Safe Protection: our 5v dc converter is with reversed-connection protection, over-current protection, over-heating protection and over-voltage protection, hence it is safe to use.
- Application: the stepdown regulator module is perfect for electronic hobby project, wide application, you can use it on radio, car audio, LED display, motor, Cell phone, etc.
- Features: the dc-dc converter is fully sealed, outer enclosure acts as a heat sink, specially Made to be waterproof, anti-shock, anti-humidity and dust-proof, more durable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

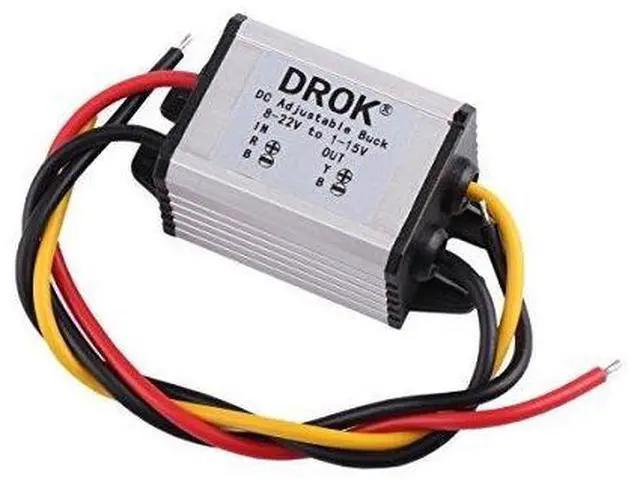

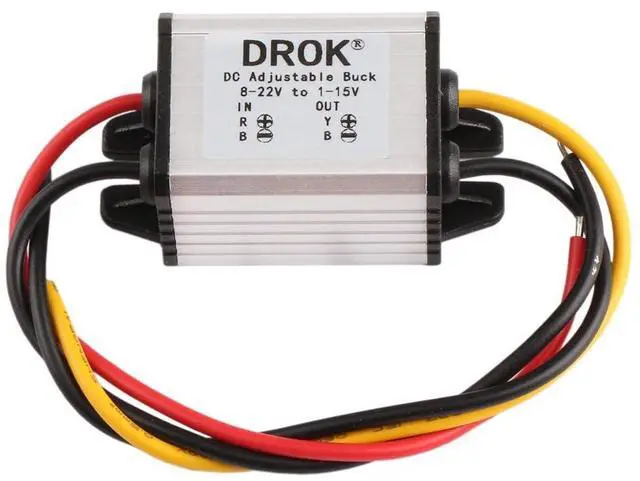

DROK 12V to 5V Converter
Parameters:
Module Name: Non-isolated DC buck module (Synchronous rectification)
Input voltage: DC 8-22V22V Max
Output voltage:1-15V (adjustable,please ensure input voltage is at least 3V higher than output voltage)
Output current: 3A Max. (long-term work in 2A doesn't need to enhance heat dissipation)
Conversion efficiency: up to 96%(Max)
Static power consumption: about 12mA
Ripple output: About 100mV (12V to 5V/3A)
Operating temperature: -20 °c to +60 °c (Industrial grade), -40 °c to 80 °c (limit)
Min voltage margin: 3V

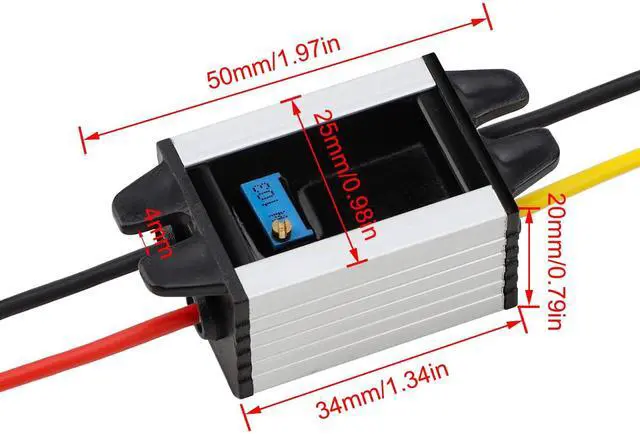

Dimensions: 33 x 25 x 20mm

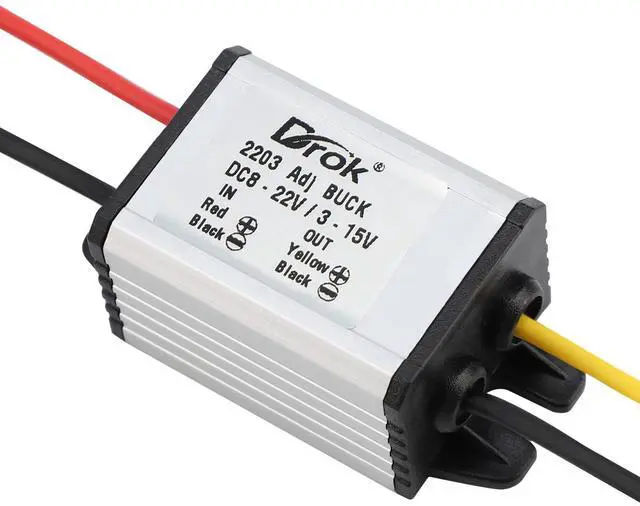

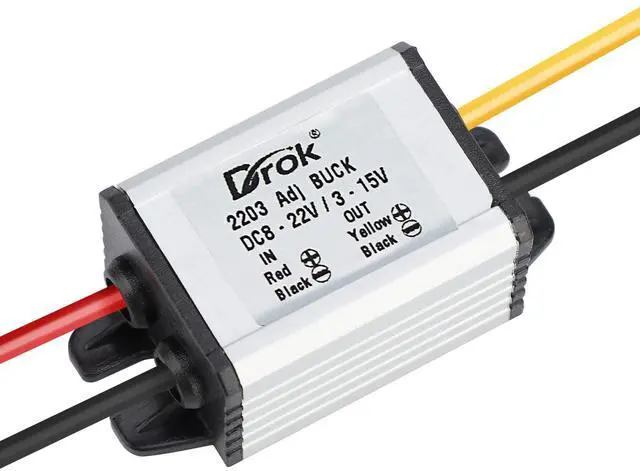

Wiring:
Red wire: connect the red wire to the positive pole of input(input +)
Yellow wire: connect the yellow wire to the positive pole of output (output +)
Black wire: connect the black wire to the negative pole of input or output(input- / output -)
Package Includes:
2 x 5V DC Converter Module
