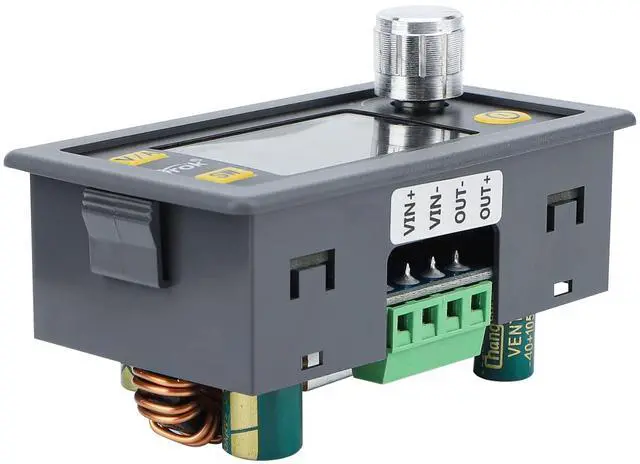

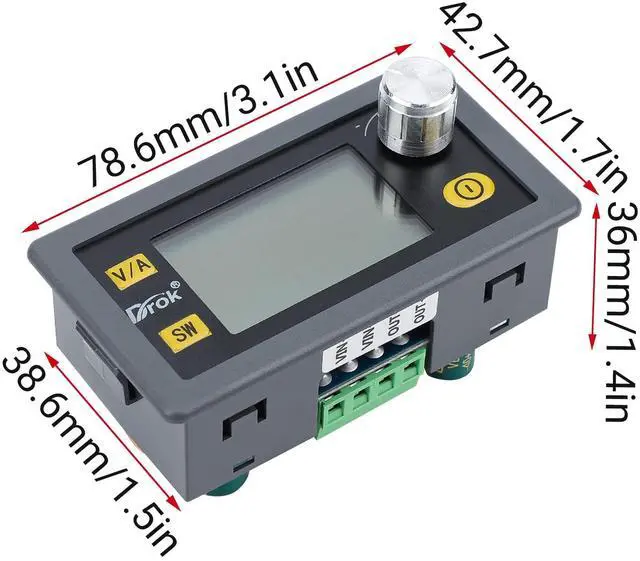

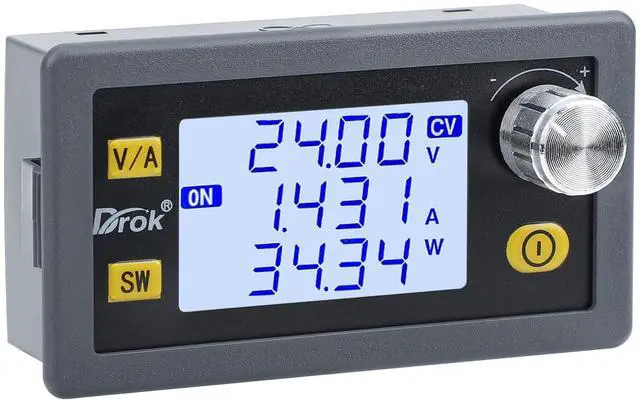

KEHIPI Buck Boost Converter, DC 5.0-30V to 0.6-30V 4A 35W Adjustable Voltage Regulator LCD Display 6V 9V 12V 24V Power Supply Module, CC CV Step Up Step Down Voltage Stabilizer for Car RV Golf Cart
- Parameter --- Input Voltage: DC 5.0-30V; Output Voltage: DC 0.6-30V; Output Current: 0-4.0A; Output Power: 35W, Can Reach to 50W If Add a Cooling Fan; Voltage Resolution: 0.01V; Current Resolution: 0.001A; Conversion Efficiency: 88%.

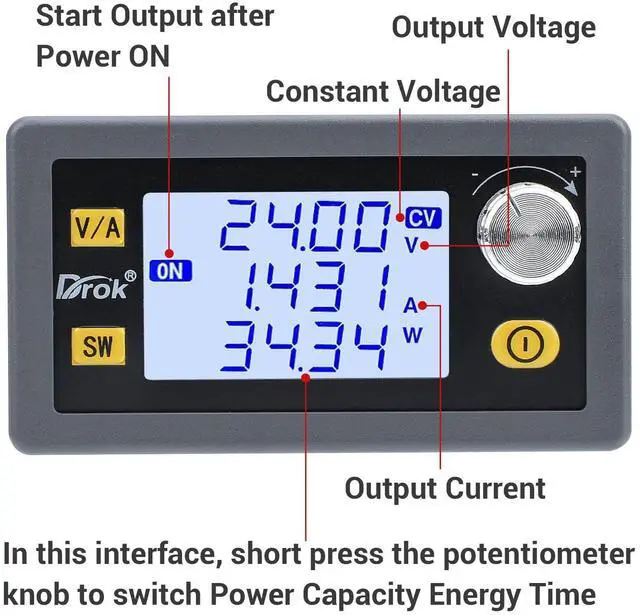

- Display --- New Version Digital LCD Screen, Full View Display with Bigger Screen. More Convenient and Clearer to Check Each Parameter

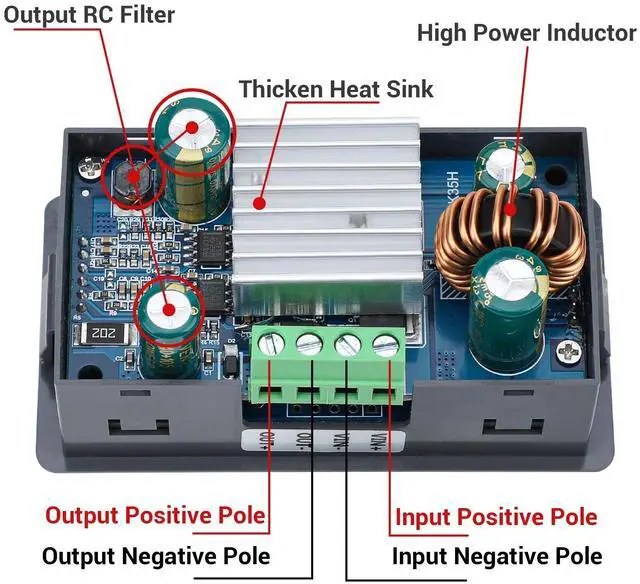

- Features --- Constant Voltage; Constant Current; Lock Function; Thickened Heat Sink; Potentiometer Supports for Fast Rotate. More keys to operate. Regular and Quantitative Supply Power.
- Protection --- Reverse Connect Protection; Backflow Protection; Low Voltage Protection; Over Voltage Protection; Over Current Protection; Over Power Protection; Over Temperature Protection; Over Time Protection; Over Capacity Protection; Over Energy Protection.
- Long Time Warranty --- Since you purchase this item, you will have 1 year long time warranty.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DROK 30V 4A 35W Buck Boost Converter(PRO)
Parameter
Input Voltage: DC 5.0-30V
Output Voltage: DC 0.6-30V
Output Current: 0-4.0A
Output Power: 35W (can reach to 50W with air cooling)
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Voltage Accuracy: ±0.5% + 1 digit
Current Accuracy: ±0.5% + 3 digits
Conversion Efficiency: 88%
Soft Start: Yes

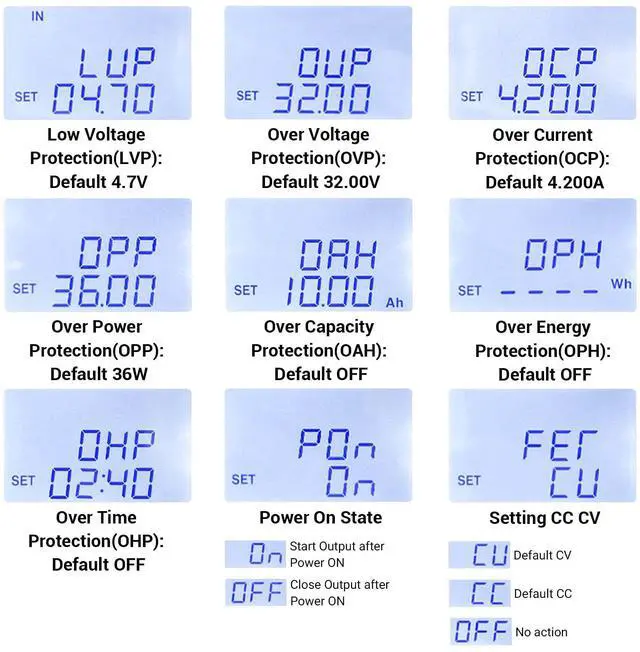

Protection
Reverse Connect Protection: Yes
Backflow Protection: Yes
Low Voltage Protection: Default 4.7V (4.7-30V Adjustable)
Over Voltage Protection: Default 32V (0-32V Adjustable)
Over Current Protection: Default 4.2A (0-4.2A Adjustable)
Over Power Protection: Default 36W (0-51W Adjustable)
Over Temperature Protection: Default 95/203
Over Time Protection: Default OFF (0-100H Adjustable)
Over Capacity Protection: Default OFF (0-9999AH Adjustable)
Over Energy Protection: Default OFF (0-9999WH Adjustable)
