KEHIPI DC Buck Converter, 6pcs Mini Voltage Regulator DC 4.5-20V 12V 9V Step Down to 5V Reducer Board 3A 10W Fixed Adjustable Volt Output Step-Down Transformer Power Supply Stabilizer Module
- Parameter --- For DROK 12V to 5V voltage regulator: Input voltage: DC 4.5-20V; Output voltage can be adjustable or fixed. Adjustable range: 1-16V; Fixed voltage: 1.8V, 2.5V, 3.3V, 5V, 9V, 12V; Output current: Max 3A (peak: 3A, long-term: within 2A); Power: 10W.
- Output Voltage Adjustable or Fixable --- These tiny 12v to 5v step down converters can be variable at output voltage. The small board is default to be used for output voltage adjustment. If you want to get fixed voltage output, you need to cut off the Pad A by using a sharp thing such as a knife then weld together the port of the fixed voltage you want.
- High Efficiency --- Conversion efficiency: Up to 97% (typical value: >90% when step down 12V to 5V 2A).
- Protection and Enable Control --- Output short circuit protection, but please do not keep short circuit for a long time. The integrated enable port defaults the working mode and it will be off when it is at low electric level off, which bring a great convenience for users.

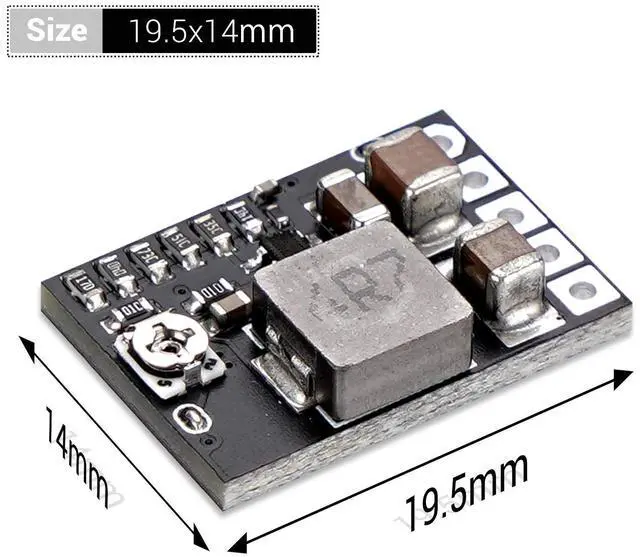

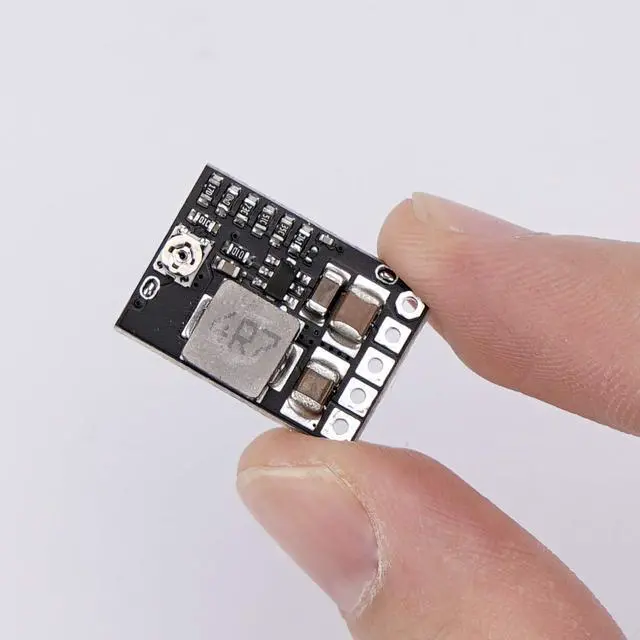

- NOTE --- This mini buck converter is very tiny, much smaller than a 1-dollar coin, nearly a half of the coin.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

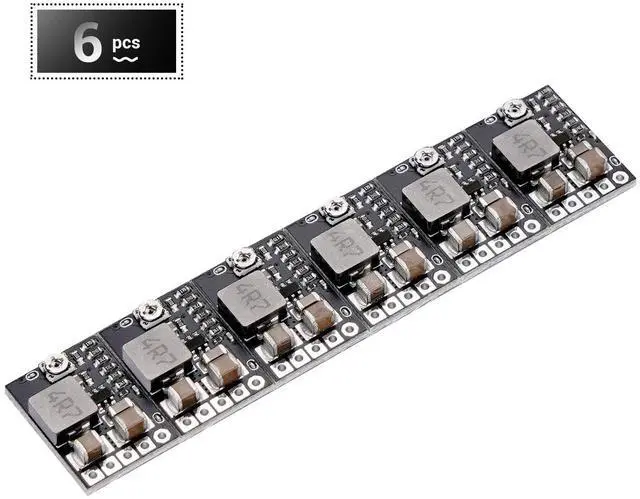

DROK DC 12V to 5V Buck Converter Module A Set of 6 Pcs
Parameters
Type: Non-isolated step-down module (synchronous rectification)
Input voltage: DC 4.5-20V

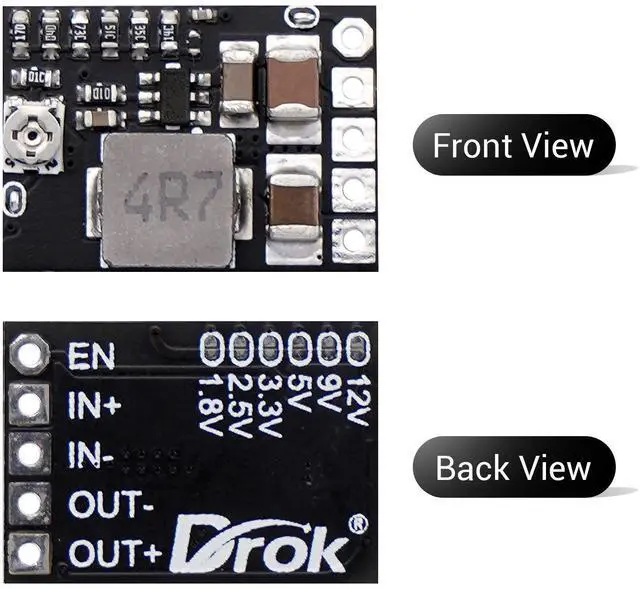

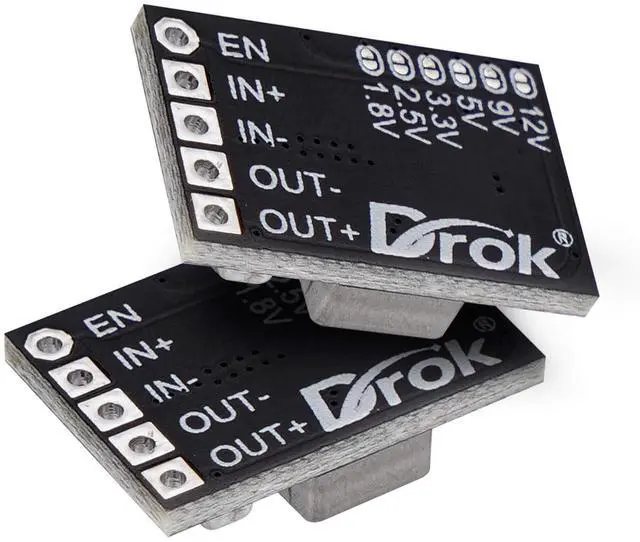

Output voltage: Integrated adjustable and fixed output, fixed output voltage can be selected on the back
Adjustable range: 1-16V; Fixed voltage: 1.8V, 2.5V, 3.3V, 5V, 9V, 12V
Output current: Max 3A (peak: 3A, long-term: within 2A)
Power: 10W
Conversion efficiency: Up to 97% (typical value: >90% when 12V turns to 5V 2A)
Switching frequency: 800KHz
Output ripple: typical value 20mV
Working temperature: -40 to +85 (the higher the ambient temperature, the smaller the output power)
Output overvoltage protection: None
No-load current: <1 mA
Load regulation rate: ±2%
Voltage adjustment rate: ±2%
Dynamic response speed: 5% 200uS
Output short circuit protection: Yes, but please do not keep short circuit for a long time
Input reverse connection protection: None
Enable control: Yes, high level work, low level stop work, high level is 2-5V, low level is about 0V. Default internal with pull - up to input positive pole.
Wiring method: Welding
Input method: Welding
Output method: Welding/pin header
Welding hole spacing: 2.54 mm
Package Includes:
6 x mini 5v regulator
