KEHIPI Buck Boost Voltage Regulator, DC 6-30V to DC 0.5-30V 5V 12V 24V Adjustable Voltage Converter, 4A 60W Power Supply Step Up Down Transformer Board Module with USB Port Case LCD Display Volt
- Parameter --- Input voltage: DC 6-30V; Output voltage: DC 0.5-30V; Output current: 4A (max), adjustable, recommended to use within 3A; Output power: 60W (max), recommended to use within 50W. Note: This product is intended solely for DC-DC loads that do not incorporate computers or laptops.

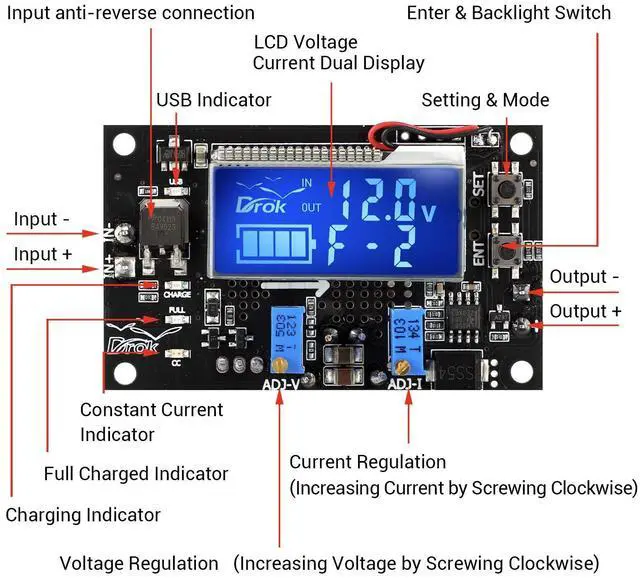

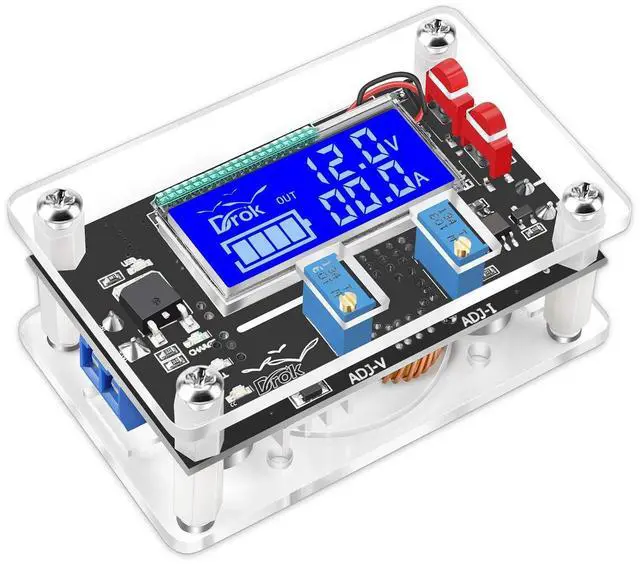

- Easy to Read LCD Display --- The buck boost board is designed with a large clear digital LCD display on which shows both voltage and current value simultaneously. Which is easy to read and can help the user easily monitor the output voltage, then largely enjoy their DIY work.
- Application --- This voltage step up and down module can be used as a normal boost buck converter module with over-current protection, a battery charger, a high-power LED constant current driver module, etc.
- Features --- Constant current/voltage mode; Voltage calibration calibration; USB output; Protective case; Short-circuit protection; Over-temperature protection; Input reverse connection protection. You can find the PDF Instructions on this page -- Product information -- Product guides and documents -- User Manual [PDF].
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
If there's any problem, please feel free to ask us for more information.
Parameters
Input Voltage: DC 6-30V
Output Voltage: DC 0.5-30V adjustable
Output Current: 4A (max), adjustable, recommended to use within 3A.
NOTE: If the output current or power is more than 2.5A or 35W, youd better enhance the heat dissipation.
Output Power: 60W (max), recommended to use within 50W.
NOTE: Please reduce the power when the difference between input and output voltage is large.
Operating Temperature: -20~+70
NOTE: Pay attention to the temperature of the power tube when using this module, please strengthen heat dissipation if it exceeds 70.

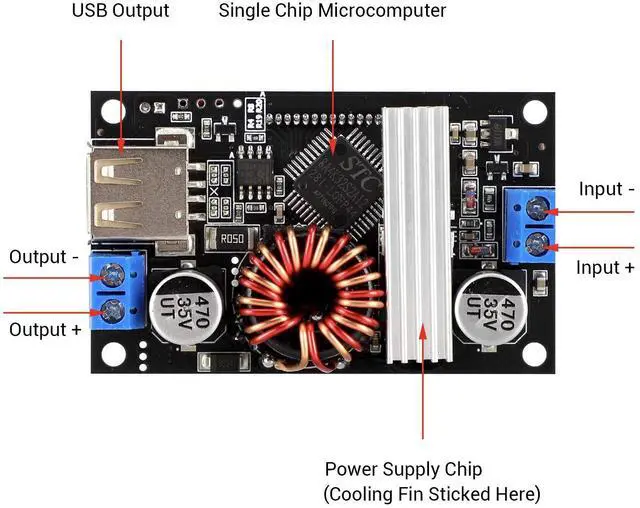

Wiring: Terminals or solder terminals; VIN means input; VOUT means output.
Protections
Short circuit protection: Yes (currently constant current value)
Over temperature protection: Yes (automatically turn off the output if over-temperature)
Tips: There is an additional fan opening on the bottom of the module shell, which can be used to add a fan.
Input reverse polarity protection: Yes
Output anti-backflow: Yes
Voltage Calibration
If you find that the measuring values are not accurate, please do as follow:
In the condition of power off, hold press the SET button and power on to enter the voltage calibration mode, at this time the LCD screen starts to flash.
Then release the SET button, press the SET button to increase voltage value while press the ENT button to reduce, till the input voltage value is correct. e.g. If input voltage is 12.65V, adjust the voltage value to 12.65V.
It will automatically be saved after 2 seconds, then power off the module to finish calibrating.
Package includes:

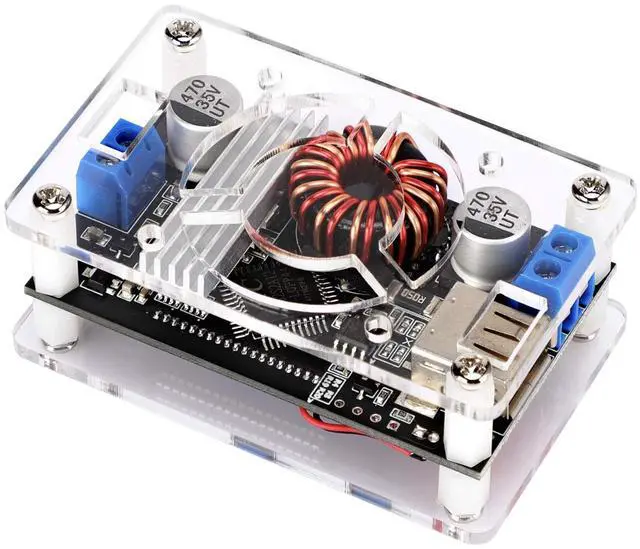

1 x Boost Buck Converter Module; Components for the case (Nylon post *8; Screw *8; Acrylic board *2)
