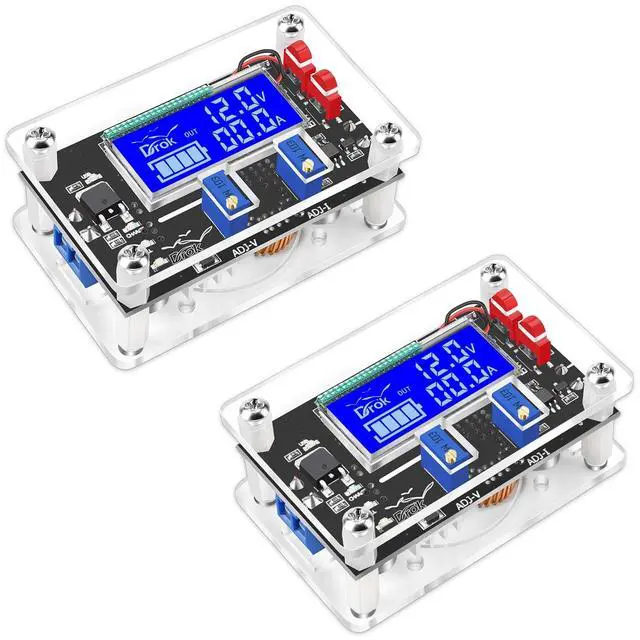

KEHIPI DC Adjustable Buck Converter 2pcs, 24v to 12v Step Down Converter Voltage Regulator 6V-32V to 1.5-32V 5V 5A LCD Power Supply Volt Reducer Step Down Transformer with USB Port and Protective Case

Parameters:

Input voltage: 6~32V

Output voltage: 1.25~32V (Input must be 1.5 higher than output.)

Output current: Max.5V, adjustable, recommend the use of within 4.5A. (Over 2A or 35W, please enhance heat dissipation.Constant current needs above 2V output voltage, then can be adjusted. Only in the status of constant current can current adjustment work.)

Output Power: Max.75W (recommend the use of within 50W, please reduce power if the dropout voltage is large)

Operating temperature: -20 ~+70

Operating frequency: 180KHz

Conversion efficiency: up to 96%

Short circuit protection: Yes

Input reverse polarity protection: None

Over-temperature protection: Yes (Automatically shut off the output when over-temperature.)

Connection: terminals or solder terminals; VIN is input; VOUT is output

Module dimension: 65.6 x 40 x 25mm

Voltage-calibration Method:

In the case of power off, press and hold the "SET" key and power on, then enter into voltage calibration mode, and LCD screen starts to flash, release the "SET" key;

press "SET" and "ENT" key to increase or reduce the voltage to the right input voltage. It will automatically saves after 2s, then power off and the calibration is complete.

Current-calibration Method:

Suitable for no-load with current display or slightly large current. In the case of power off, press and hold "ENT" and power on, then enter into current calibration mode and LCD screen starts to flash, release the "ENT" key; press "SET" and "ENT" key to increase or reduce the voltage to the right value. It will automatically saves after 2s, then power off and the calibration is complete.

Package Includes:

2 x DC-DC Adjustable Step-down Power Supply Module with Shell

8 x Copper Cylinder Screws M3*6

8 x Double-pass Screws M3*12

16 x Roundhead Screws M3*6
