KEHIPI DC Voltage Regulator Adjustable - 2pcs LCD Display Boost Converter 6-30V to 7-32V 5A, 12v to 24v DC Step Up Converter with Protective Case

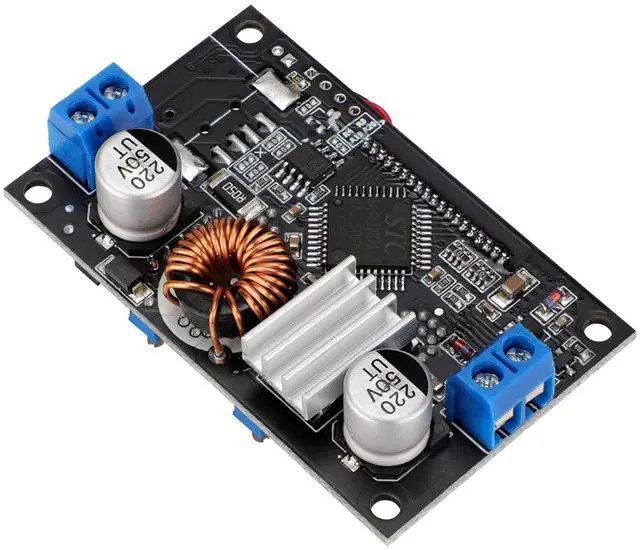

DROK DC 5V to 12V Voltage Boost Converter Module

Parameters

Input Voltage: DC 6-30V

Output Voltage: DC 7-32V adjustable

NOTE: This module can only be used to boost voltage, and the output voltage must be at least 1.5V higher than the input voltage.

Output Current: 5A (max), adjustable, recommended to use within 4A.

NOTE: If the output current or power is more than 3A or 35W, youd better enhance the heat dissipation.

Output Power: 60W (max), recommended to use within 50W.

NOTE: Please reduce the power when the difference between input and output voltage is large.

Operating Temperature: -20~+70

NOTE: Pay attention to the temperature of the power tube when using this module, please strengthen heat dissipation if it exceeds 70.

Conversion efficiency: Up to 96%

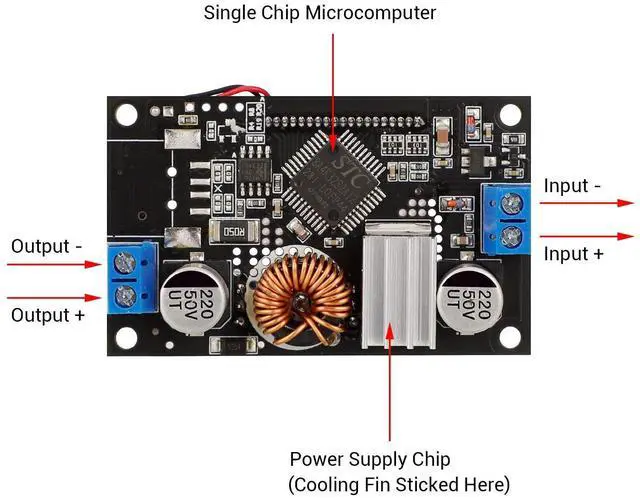

Wiring: Terminals or solder terminals; VIN means input; VOUT means output.

Protections

Short circuit protection: Yes (currently constant current value)

Over temperature protection: Yes (automatically turn off the output if over-temperature)

Input reverse polarity protection: Yes

Output anti-backflow: Yes

Voltage Calibration

If you find that the measuring values are not accurate, please do as follow:

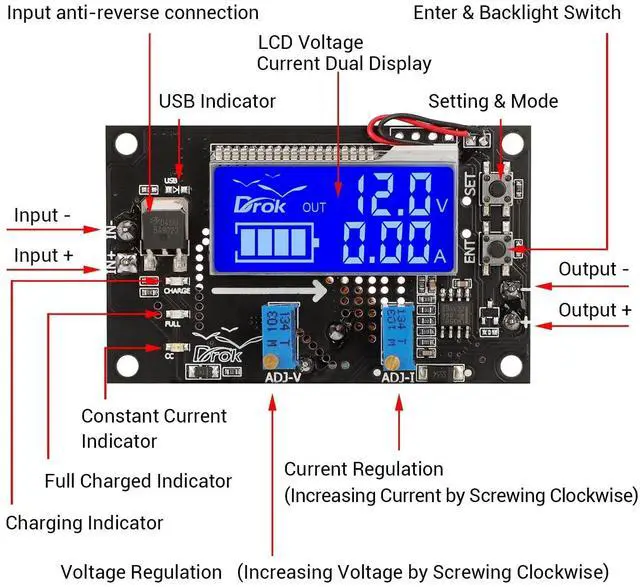

In the condition of power off, hold press the SET button and power on to enter the voltage calibration mode, at this time the LCD screen starts to flash.

Then release the SET button, press the SET button to increase voltage value while press the ENT button to reduce, till the input voltage value is correct. e.g. If input voltage is 12.65V, adjust the voltage value to 12.65V.

It will automatically be saved after 2 seconds, then power off the module to finish calibrating.

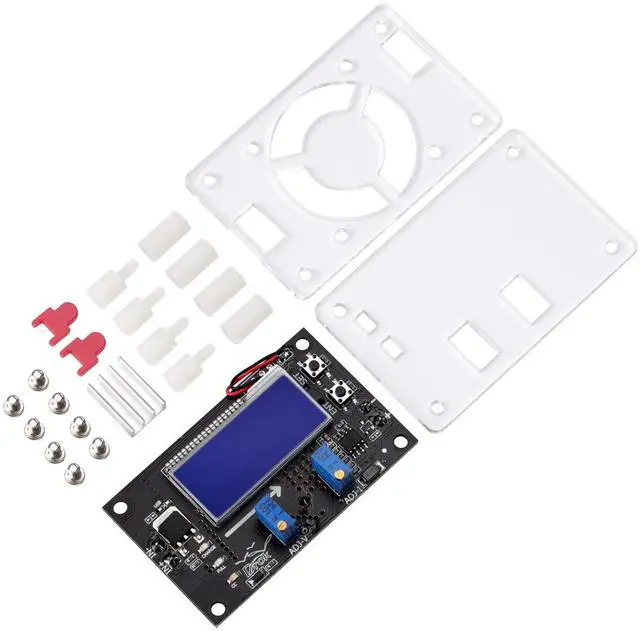

Package includes:

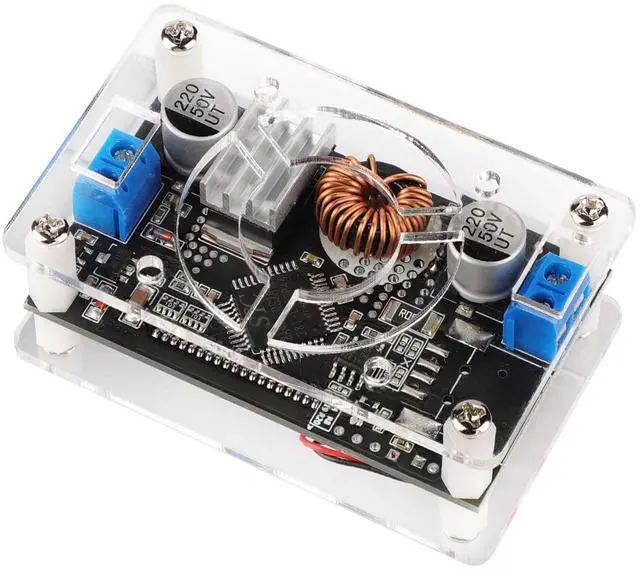

2 x Boost Converter Module; Components for the case (Nylon post *16; Screw *16; Acrylic board *4)
