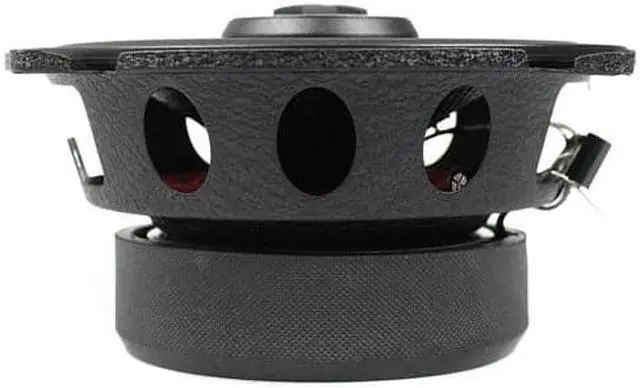

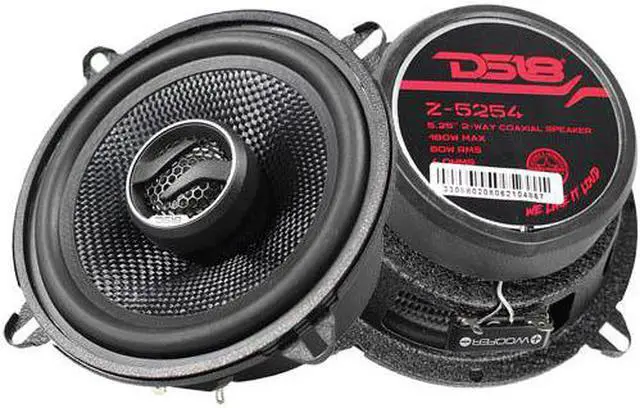

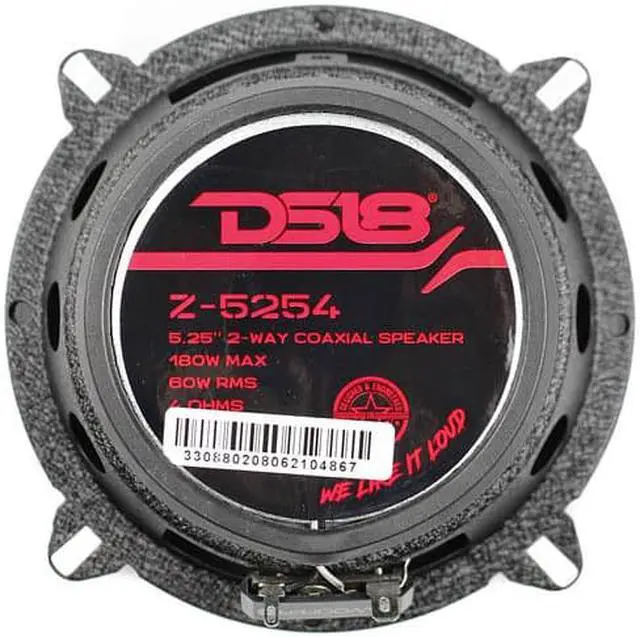

DS18 Elite 5.25" 2 Way Coaxial Speakers 180 Watts 4 Ohm ZXI Series ZXI-5254 Pair
- The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
- 5.25" inch 2 way 4 ohm speaker requiring 60w RMS and 180w max power handling that gives amazing sound from low to extremely high volume.
- 2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
- Nominal Impedance 4 ohm
- Recommended HI Pass Crossover 60Hz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DS18 Elite 5.25"" 2 Way Coaxial Speakers 4 Ohm ZXI-5254
The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 525 is 5.25" inch, 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Features
The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
5.25" inch 2 way 4 ohm speaker requiring 60w RMS and 180w max power handling that gives amazing sound from low to extremely high volume.
2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
Nominal Diameter 5.25 / 129mm
Nominal Impedance 4 ohm
RMS Power Handling 60 Watts
MAX Power Handling 180 Watts
Sensitivity (1w/1m) 89dB
Frequency Response 40Hz-20Khz
Recommended HI Pass Crossover 60Hz
Speaker Type 2-Way
Midrange:
Voice Coil Diameter 1 / 25.5 mm
Voice Coil Former Material KSV
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material. Barium Ferrite Magnet Weight 10.9 oz / 310g
Tweeter:
Nominal Diameter 1" ( 25.4 mm)
Voice Coil Diameter 0.8" (ø 20.4 mm)
Voice Coil Former Material KSV
Winding Material EISVM
Diaphragm Material PEI
Magnet Material. Neodymium
Magnet Weight 0.3 oz / 8.5 g
Thiele & Small Parameters
Equivalent Volume 4.86L
Excursion (one way) 2.3 mm
Free Air Resonance 77Hz
Mechanical Factor 8.39
Electrical Factor 0.87
Total Factor 0.79
Mechanical Mass 9.93 g
Mechanical Compliance 457mm/N
BL Factor 4.321
Cone Area 86.5 cm2
DC Resistance 3.5 ohm
Mechanical Mass w/o air 9.0 g
Measurements
Overall Diameter 5.08 / 129mm
Overall Depth 2.80 / 71mm
Front Mount Baffle Cutout 4.45 / 113mm
Mouting Depth 2.28 / 58mm
Motor Diameter 3.31 / 84mm
The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 525 is 5.25" inch, 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Features
The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
5.25" inch 2 way 4 ohm speaker requiring 60w RMS and 180w max power handling that gives amazing sound from low to extremely high volume.
2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
Nominal Diameter 5.25 / 129mm
Nominal Impedance 4 ohm
RMS Power Handling 60 Watts
MAX Power Handling 180 Watts
Sensitivity (1w/1m) 89dB
Frequency Response 40Hz-20Khz
Recommended HI Pass Crossover 60Hz
Speaker Type 2-Way
Midrange:
Voice Coil Diameter 1 / 25.5 mm
Voice Coil Former Material KSV
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material. Barium Ferrite Magnet Weight 10.9 oz / 310g
Tweeter:
Nominal Diameter 1" ( 25.4 mm)
Voice Coil Diameter 0.8" (ø 20.4 mm)
Voice Coil Former Material KSV
Winding Material EISVM
Diaphragm Material PEI
Magnet Material. Neodymium
Magnet Weight 0.3 oz / 8.5 g
Thiele & Small Parameters
Equivalent Volume 4.86L
Excursion (one way) 2.3 mm
Free Air Resonance 77Hz
Mechanical Factor 8.39
Electrical Factor 0.87
Total Factor 0.79
Mechanical Mass 9.93 g
Mechanical Compliance 457mm/N
BL Factor 4.321
Cone Area 86.5 cm2
DC Resistance 3.5 ohm
Mechanical Mass w/o air 9.0 g
Measurements
Overall Diameter 5.08 / 129mm
Overall Depth 2.80 / 71mm
Front Mount Baffle Cutout 4.45 / 113mm
Mouting Depth 2.28 / 58mm
Motor Diameter 3.31 / 84mm
