Combination 20A Self-Test GFCI Outlet and Type A & Type-C USB in-Wall Charger Outlet with 5V/4.8A, High Speed Charging for Smartphones and Tablets, ETL Listed, Wallplate Included, 1 Pack, White
- Combination: 20A 125V self-test GFCI outlet and USB wall outlet
- GFCI Outlet: Auto self-test, with safe lock protecttion function, GFCI safety is improved. GFCI includes an End-of-Life monitoring function, it can not reset correctly when GFCI reaches the end of life
- USB Outlet: With Type A & Type-C USB ports, 5V 4.8A, dual USB ports shared 4.8A in total and single port can reach up to 4.8A individually
- LED Indicator: Red light means GFCI correct installation. After reset, the indicator (LED) will trun green light, which means the outlet is working properly. Flashing red light means GFCI has stopped functioning and must be replaced

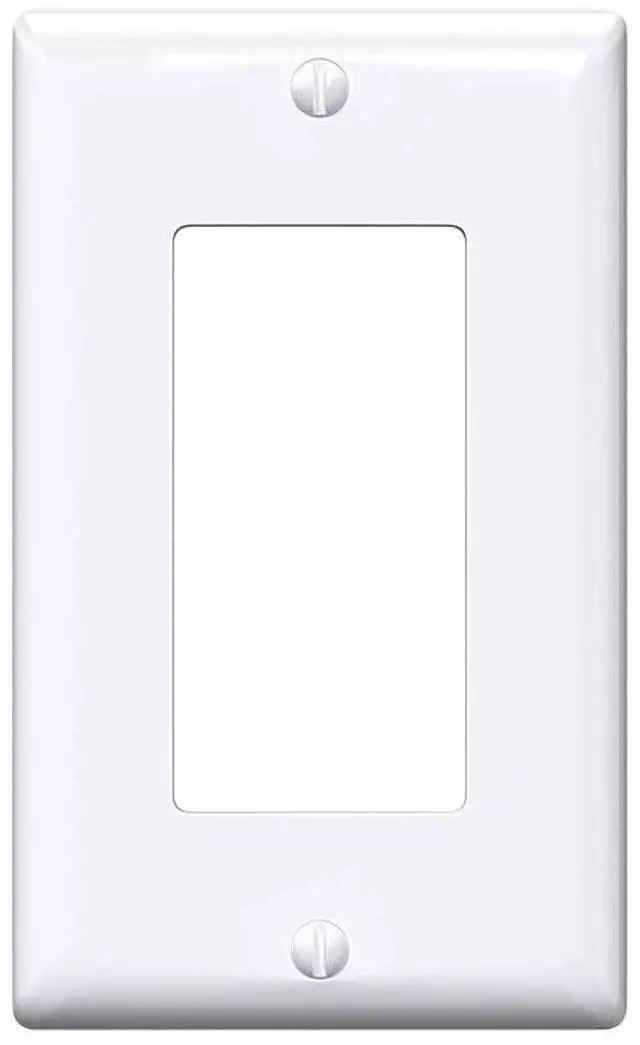

- Installation: Wallplate included. Requires extra deep wallbox for installation, the GFCI USB outlet with 1.58 inch in depth
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
High-quality thermoplastic materials, improved resistance to surge and corrosion (for indoor use only).
With safe lock protecttion function, GFCI safety is improved.
Auto self-test.
GFCI includes an End-of-Life monitoring function, it can not reset correctly when GFCI reaches the end of life.
When miswired, GFCI outlets have no power and can`t be reset, so it`s more safe than conventional outlets.
With Type A & Type-C USB ports, 5V 4.8A, USB2.0 / 3.0 is compatible. Support iphone 15 charging.
Tamper-Resistant, can protect children from the risk of electric shock.
Status indicator (LED) provides simple, intuitive feedback.
- Red light: GFCI correct installation.
- Green light: After reset, the red indicator (LED) will trun green light, which means the outlet is working properly.
- Flashing red light: GFCI has stopped functioning and must be replaced.

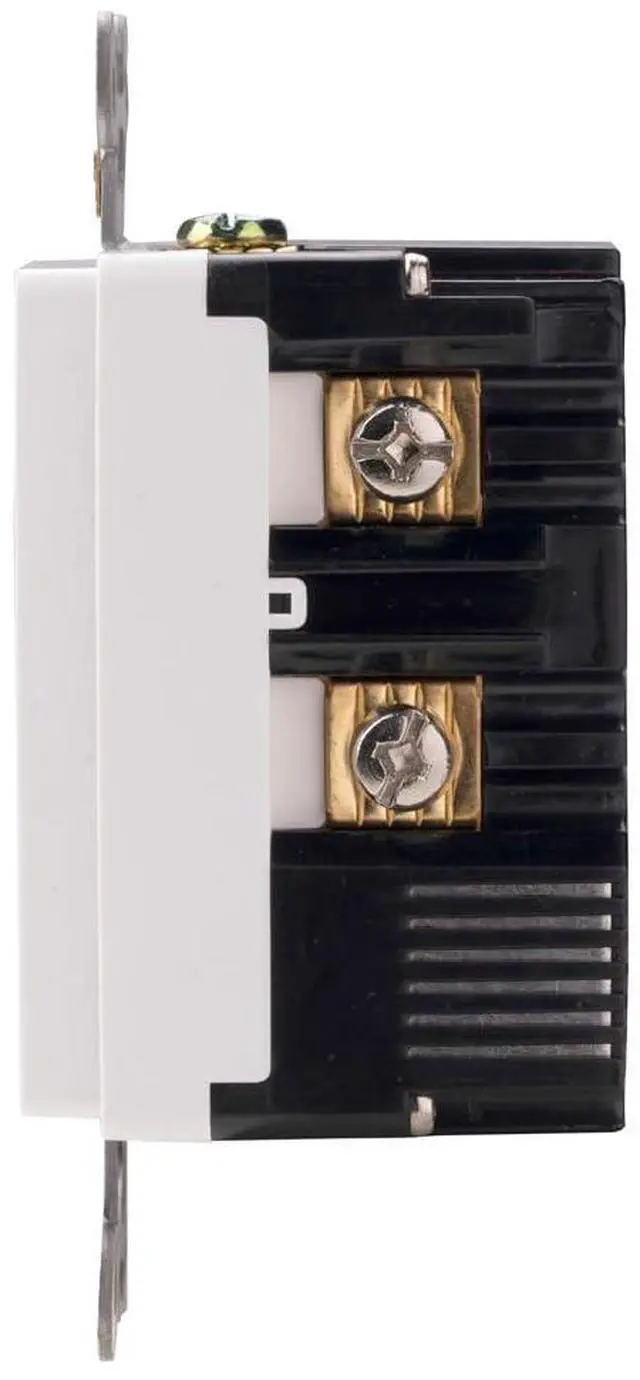

Attention: The GFCI USB outlet with 1.58 inch in depth, requires extra deep wallbox for installation.
Technical Parameters:
Meet UL943, UL498, UL1310 standard
GFCI 20A /125VAC Class A
USB (A + C)5V / 4.2A (shared) Class 2
Withstand voltage: 1500V (AC)
Mechanical Life: 3000 times
Fire Rating: Ul-94 V 2
Trip threshold: 4-6mA
Release time: 25mS
Insertion force: <178N
Pulling force: <67 N
Retention: >13 n
Weight: About 142g
Size: 105 * 41 * 47.5 mm
Product information
| Brand | Duchow |
| Color | White |
| Compatible Devices | Digital Camera, Smartphone, Speaker, Tablet |
| Material | Polycarbonate (PC) |
| Product Dimensions | 4.5"L x 2.76"W |
| Item model number | BCG-004U |
| Date First Available | June 17, 2024 |
| Manufacturer | HOOANKE |
| #137 in Ground Fault Circuit Interrupter Outlets | #137 in Ground Fault Circuit Interrupter Outlets |
| #567 in Standard Electrical Outlets | #567 in Standard Electrical Outlets |
