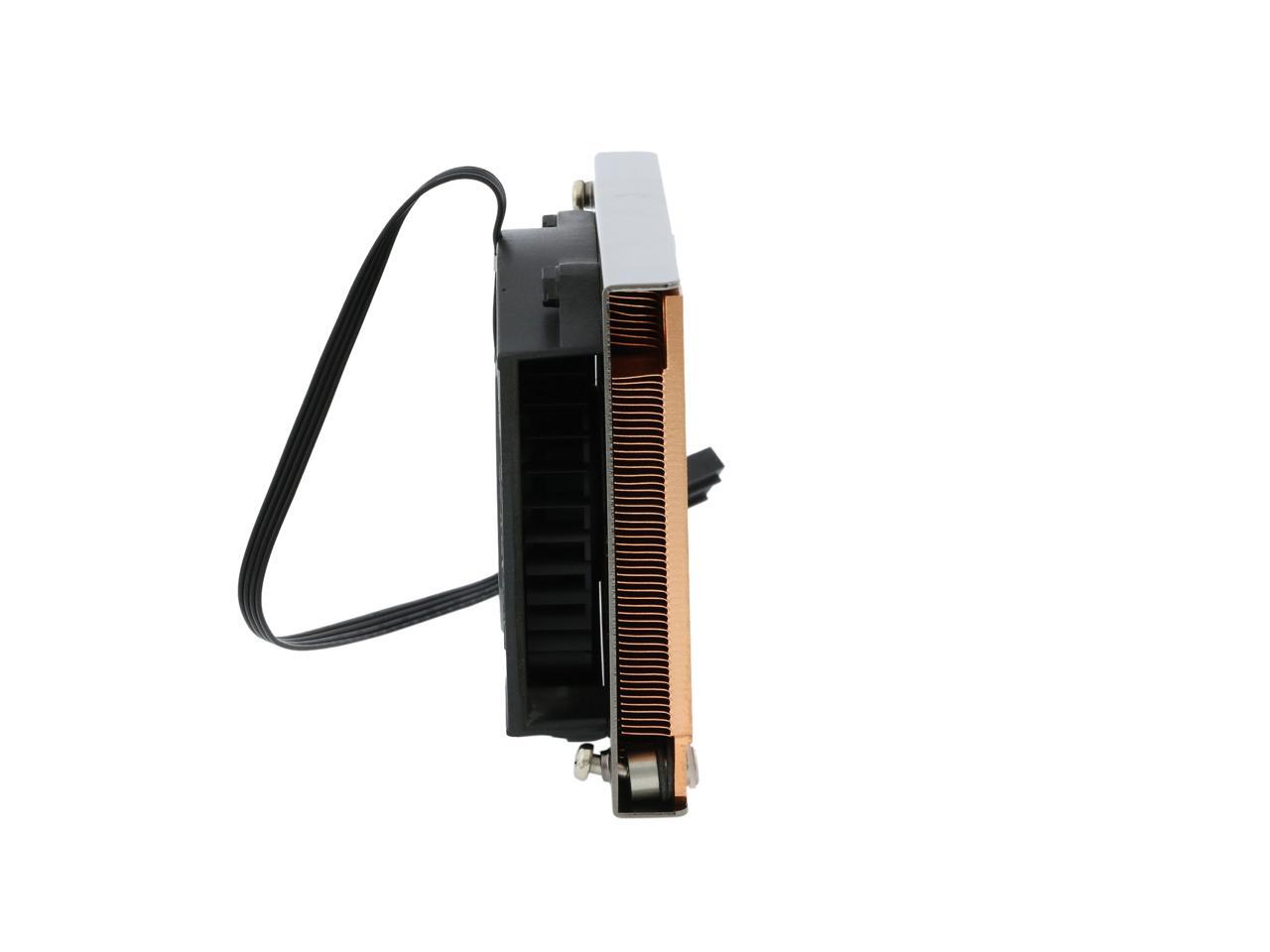

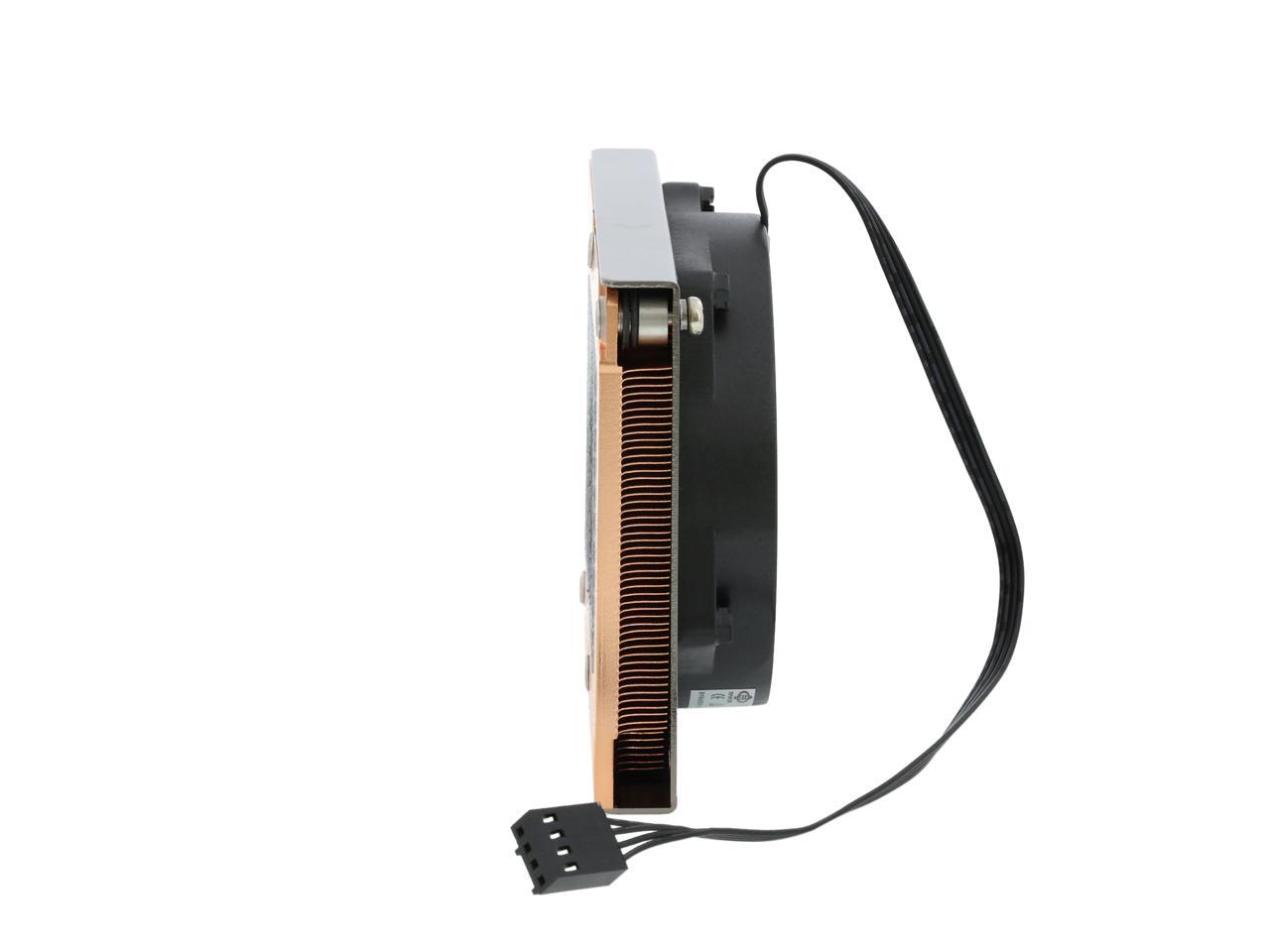

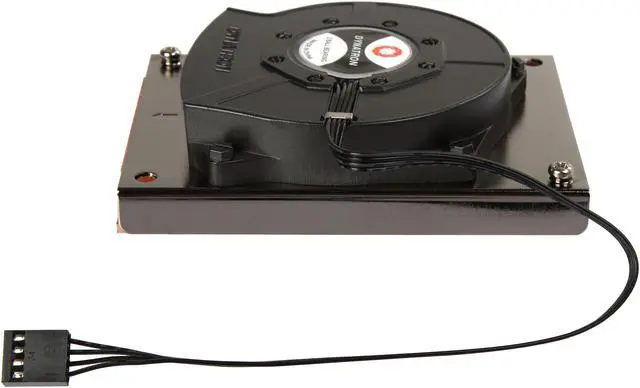

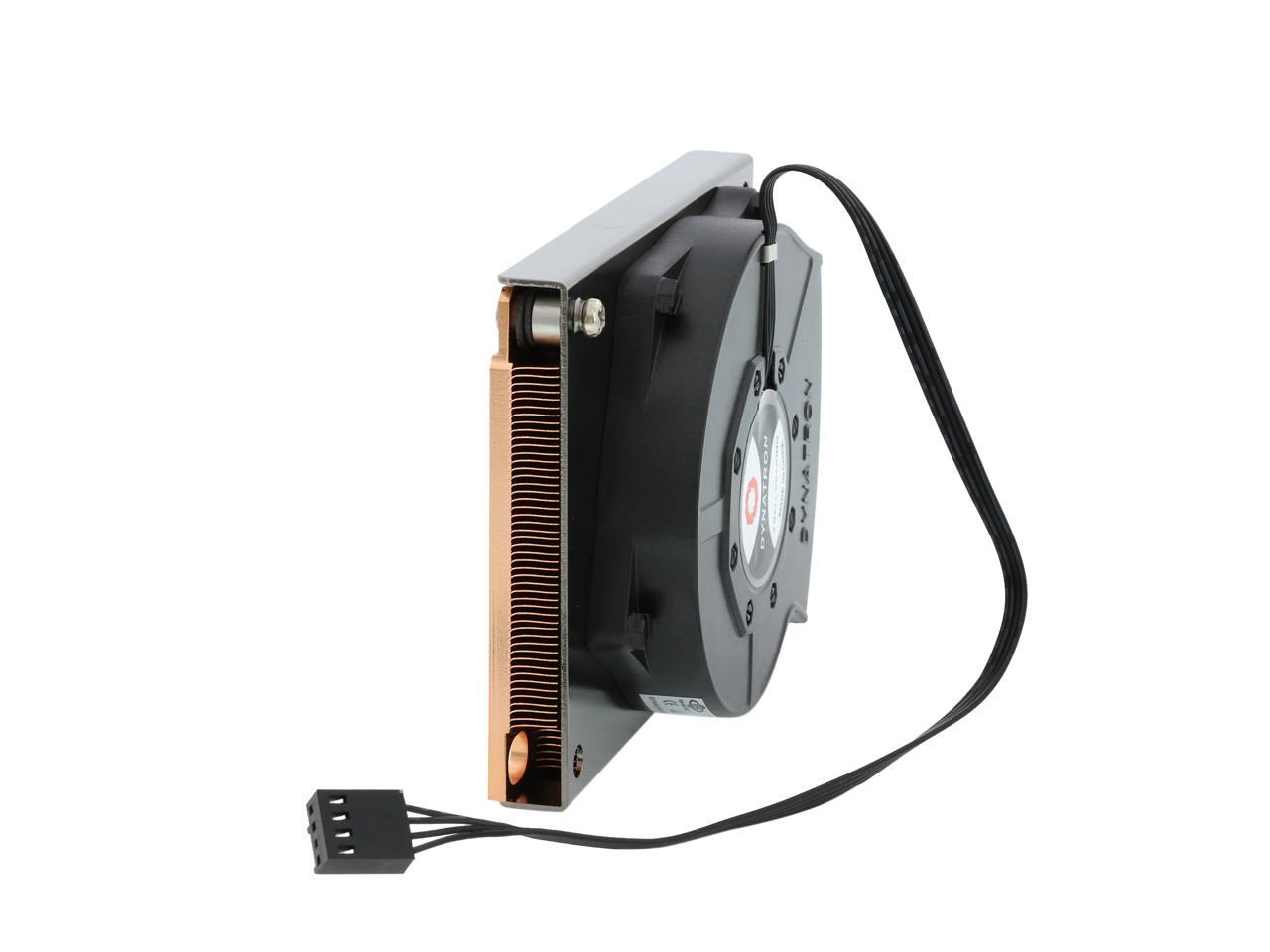

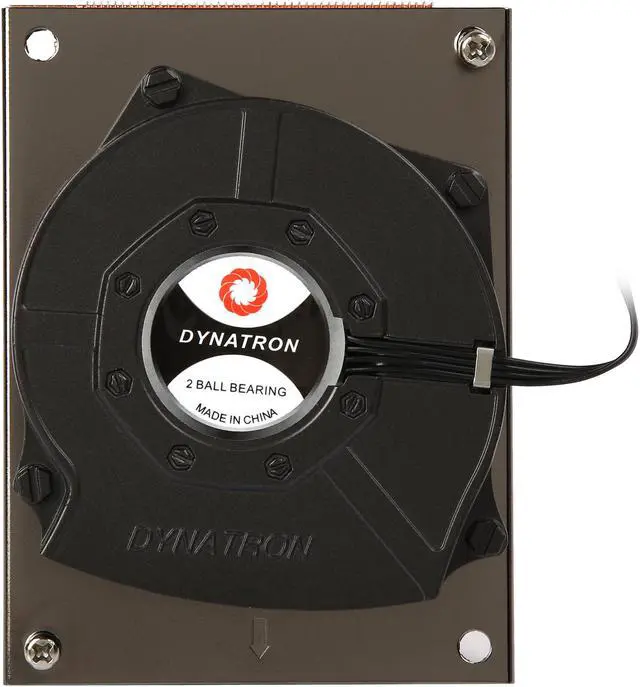

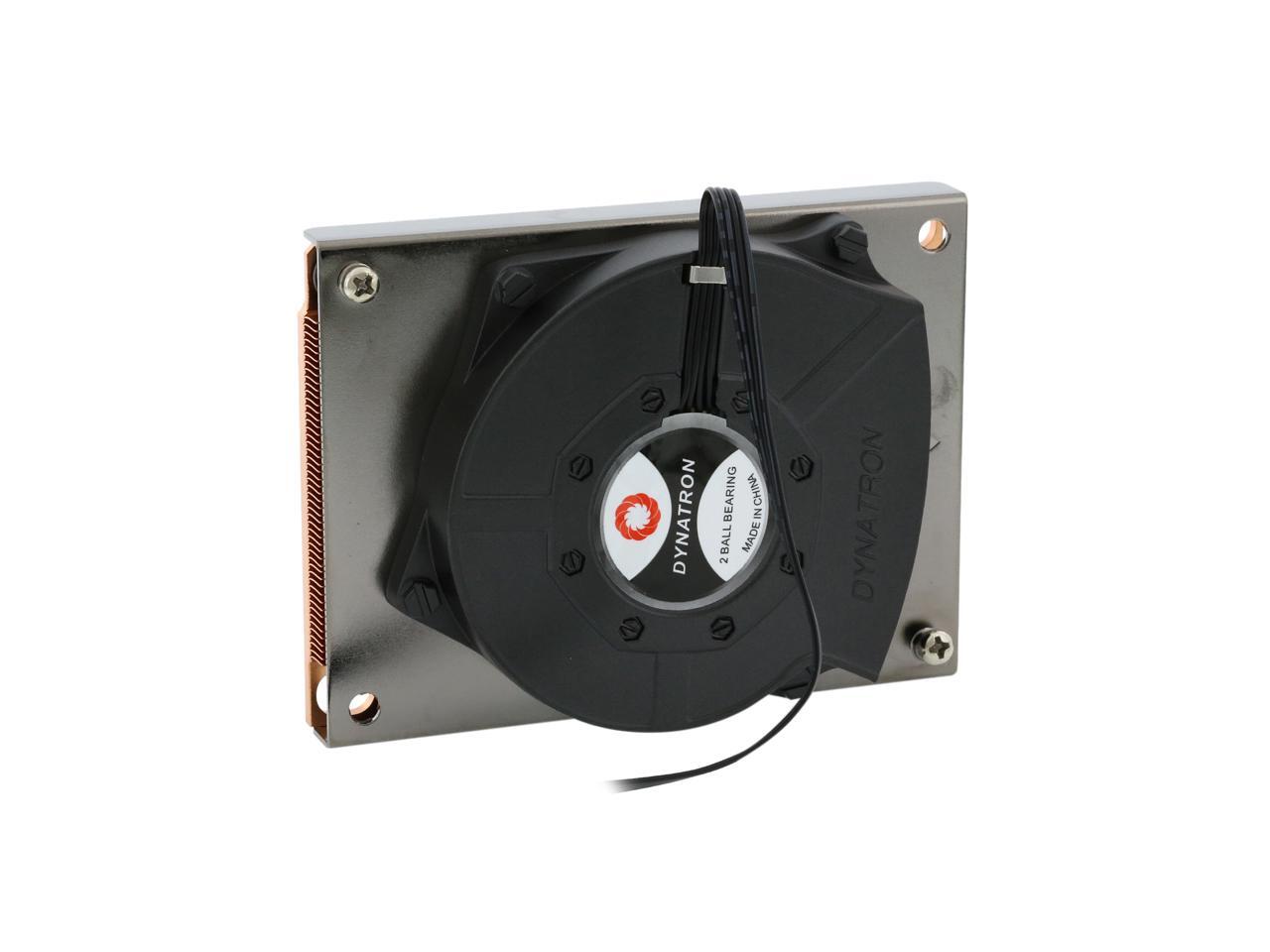

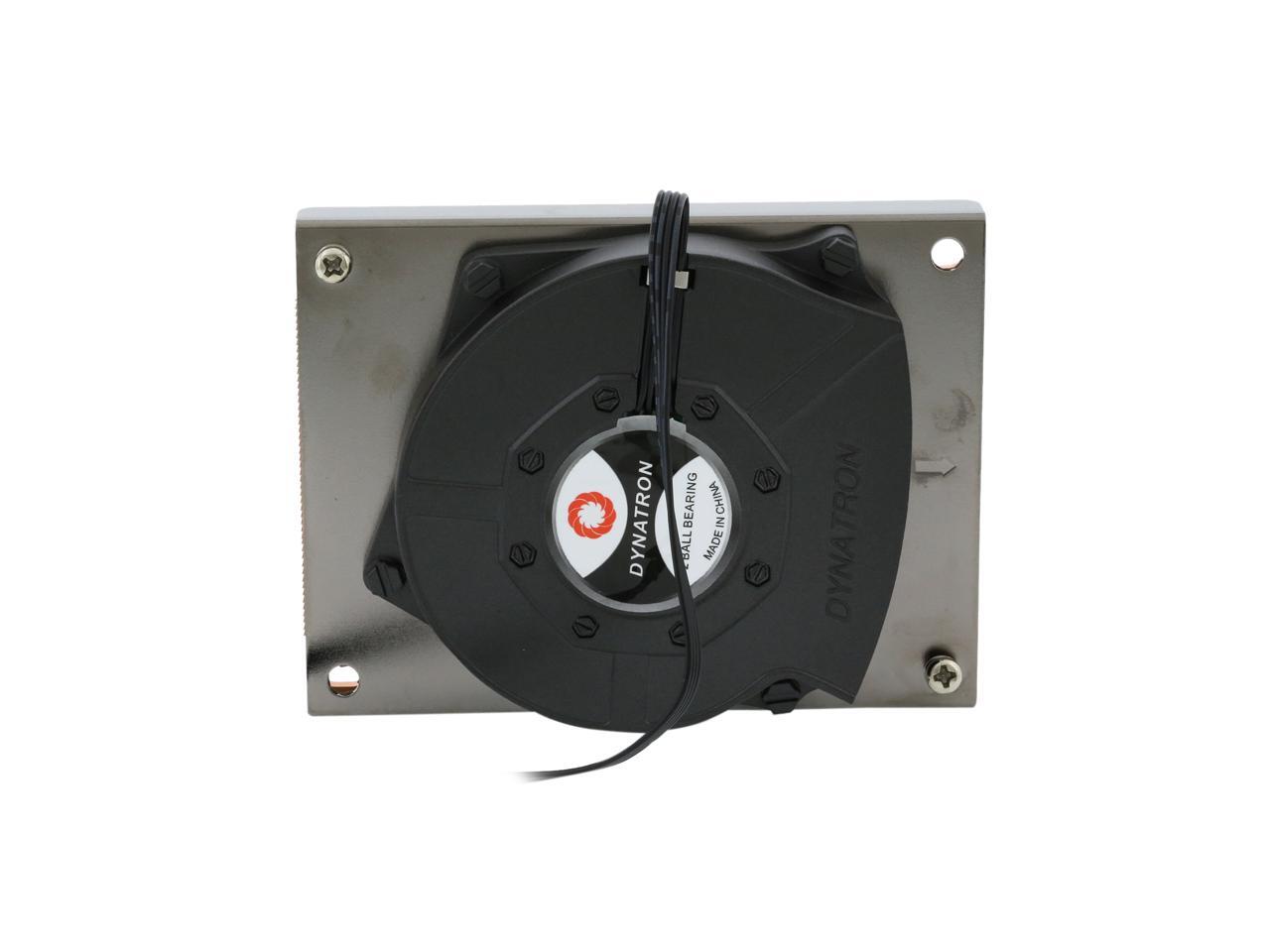

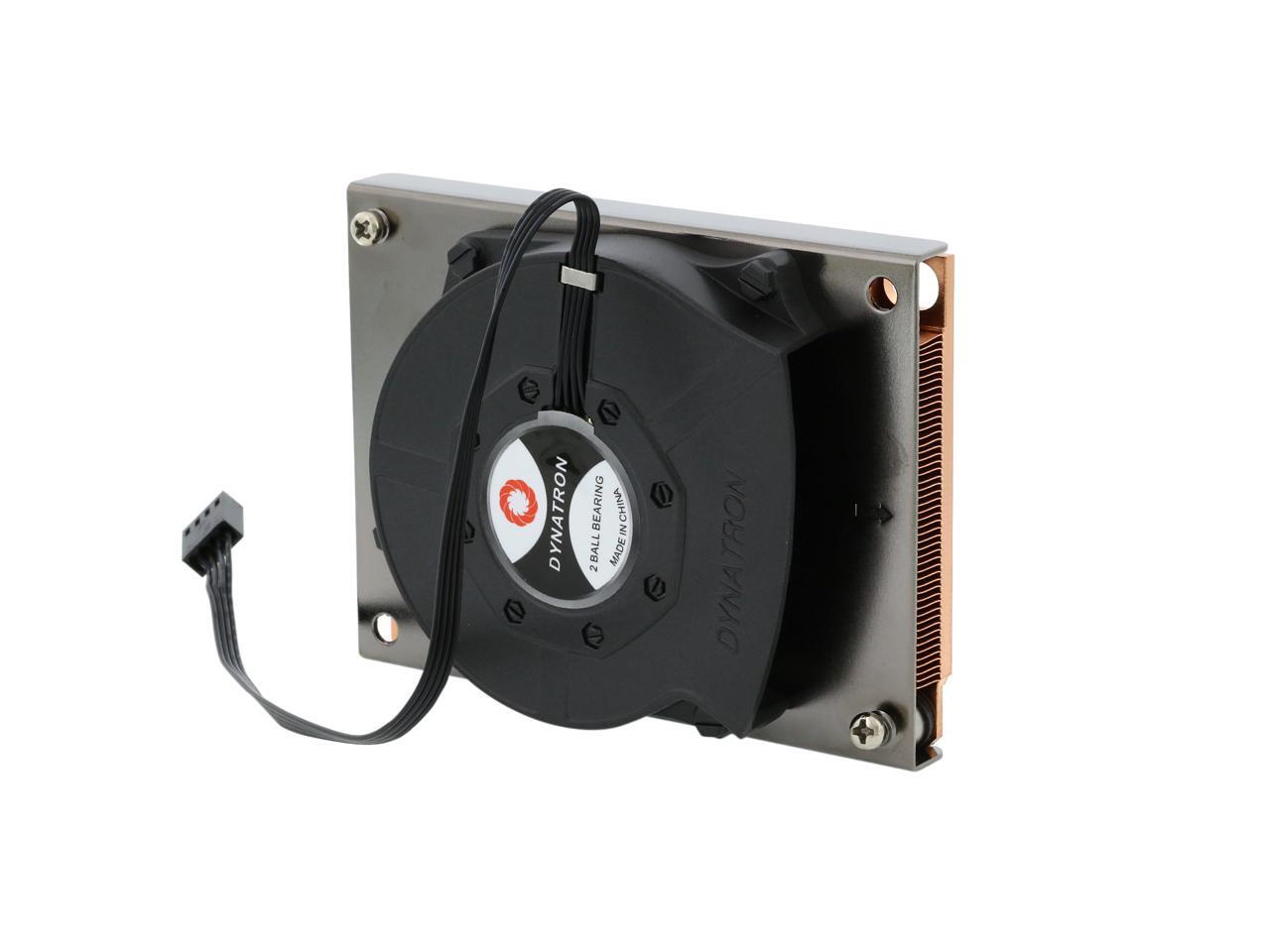

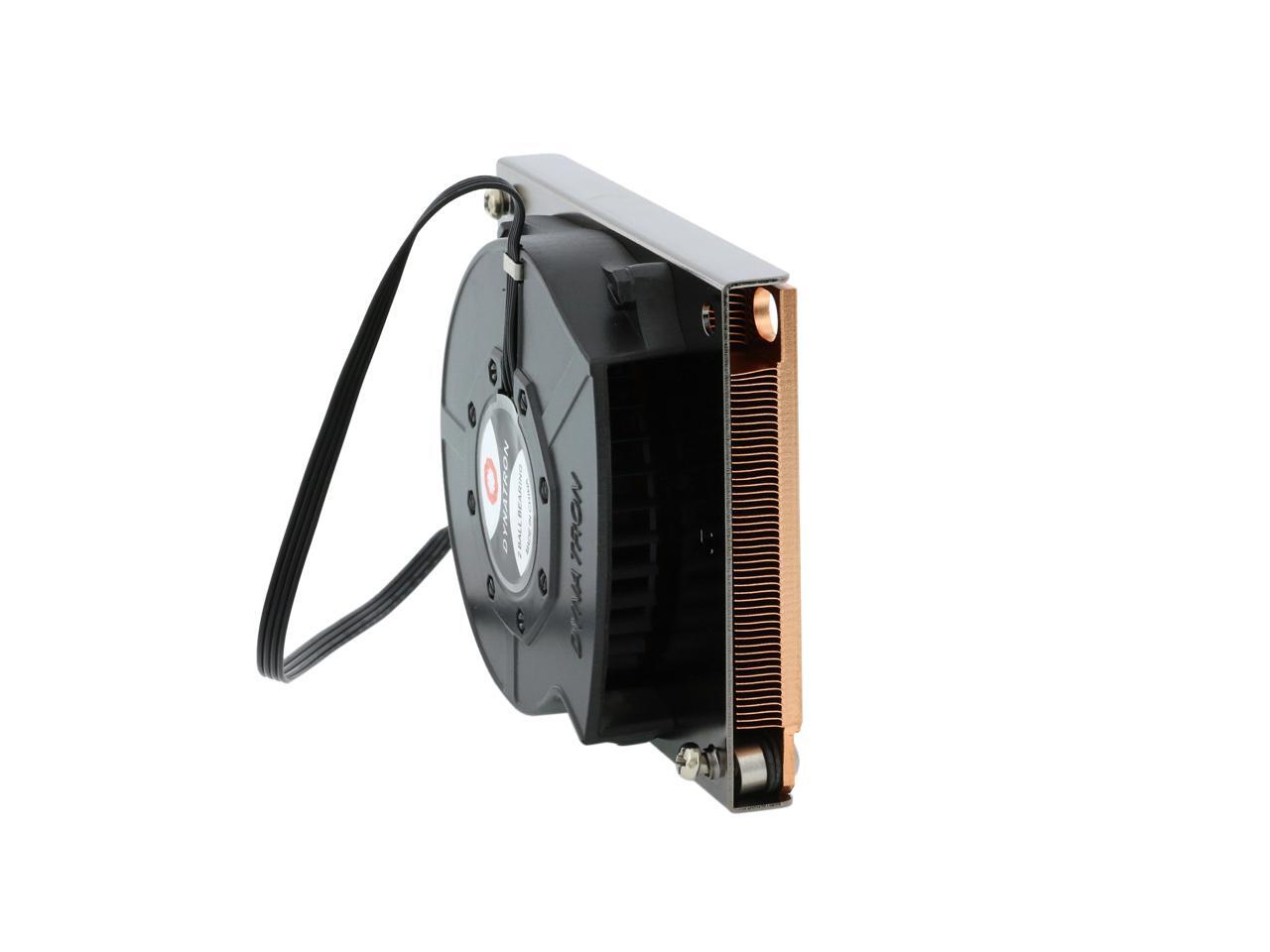

    Dynatron B3 Intel Skylake Socket FCLGA3647 Narrow ILM 80x80x15mm Aluminum PWM Blower Fan, Copper skiving heatsink for 1U Server up to CPU power 165 Watts

    (1) Write a Review

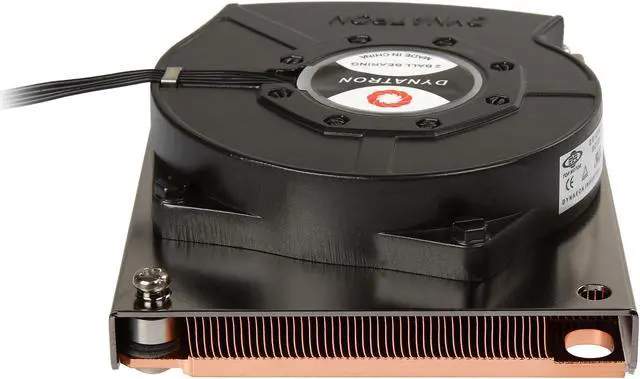

    • Copper 1100 with Skived Fins
    +
    +
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Dynatron B3

    Model
    Brand Dynatron
    Model B3
    Details
    Type Fan & Heatsinks
    Fan Size 80mm
    CPU Socket Compatibility Intel LGA 3647
    Bearing Type 2 Ball Bearing
    RPM At Duty Cycle 20%: 1000 +/- 200 RPM
    At Duty Cycle 50%: 4000 +/- 10% RPM
    At Duty Cycle 100%: 7000 +/- 10% RPM
    Air Flow At Duty Cycle 20%: 3.0 CFM
    At Duty Cycle 50%: 12.0 CFM
    At Duty Cycle 100%: 21.0 CFM
    Noise Level At Duty Cycle 20%: 16 dBA
    At Duty Cycle 50%: 44.9 dBA
    At Duty Cycle 100%: 57.1 dBA
    Power Connector Pin1- (-)
    Pin2- (+)
    Pin3- (Tachometer/Signal output)
    Pin4- (PWM)

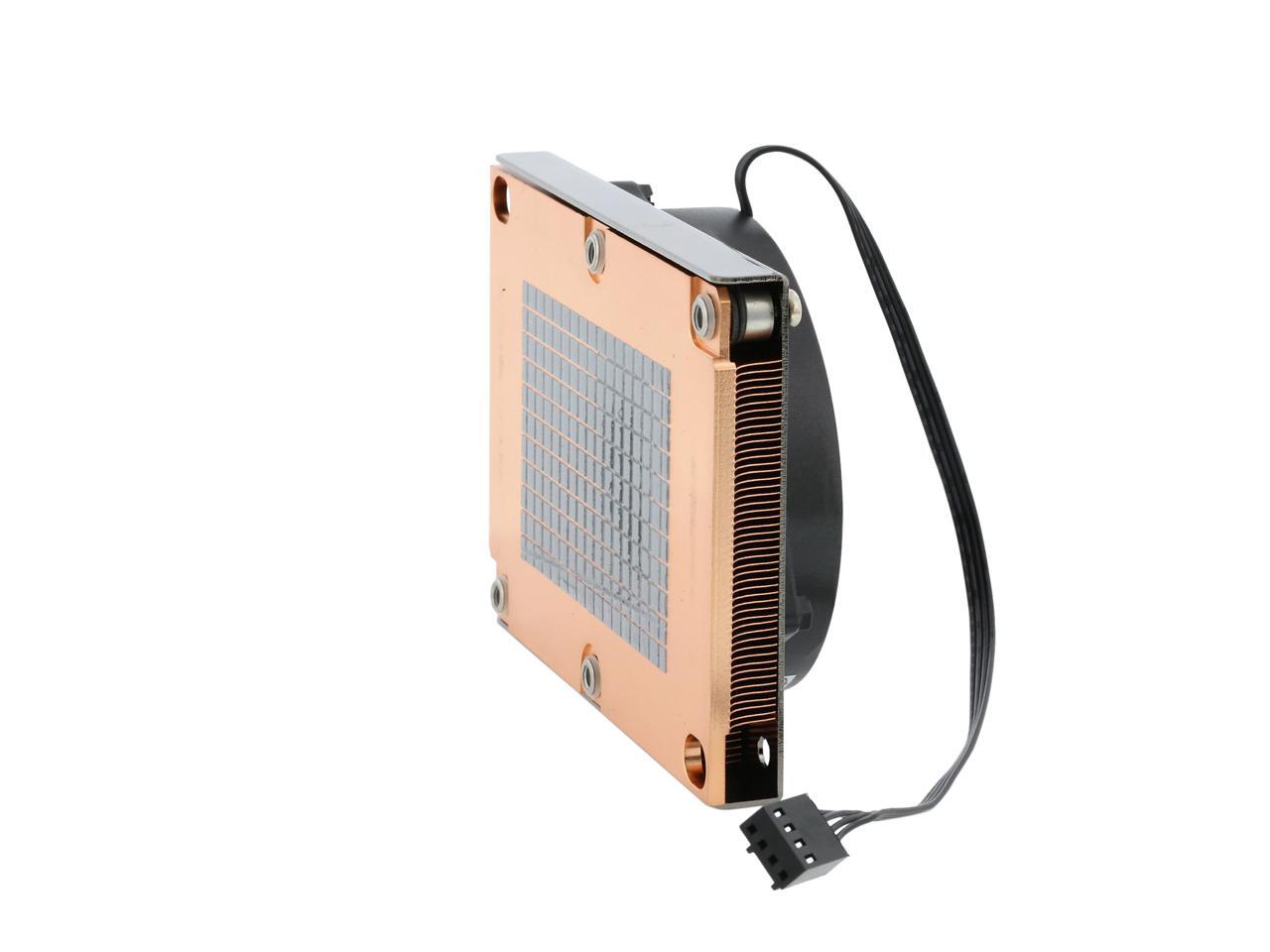

    Heatsink Material Copper 1100 with Skived Fins
    Fan Mounting Types to Heatsink Horizontal
    Dimensions & Weight
    Max CPU Cooler Height 28 mm
    Fan Dimensions 80.00 x 80.00 x 15.00 mm
    Heatsink Dimensions 107.00 x 80.50 x 28.00 mm
    Weight 460g
    Features
    Features Rated Voltage: 12V

    Power:
    At Duty Cycle 20%: 0.60 W
    At Duty Cycle 50%: 3.84 W
    At Duty Cycle 100%: 19.2 W

    Air Pressure:
    At Duty Cycle 20%: 1.5 mm-H2O
    At Duty Cycle 50%: 23.2 mm-H2O
    At Duty Cycle 100%: 70.9 mm-H2O

    Recommend for Intel Xeon Platinum / Gold Family Processor ( Products formerly Skylake ), Socket FCLGA3647

    For Narrow ILM Only

    Active Cooler for 1U Server

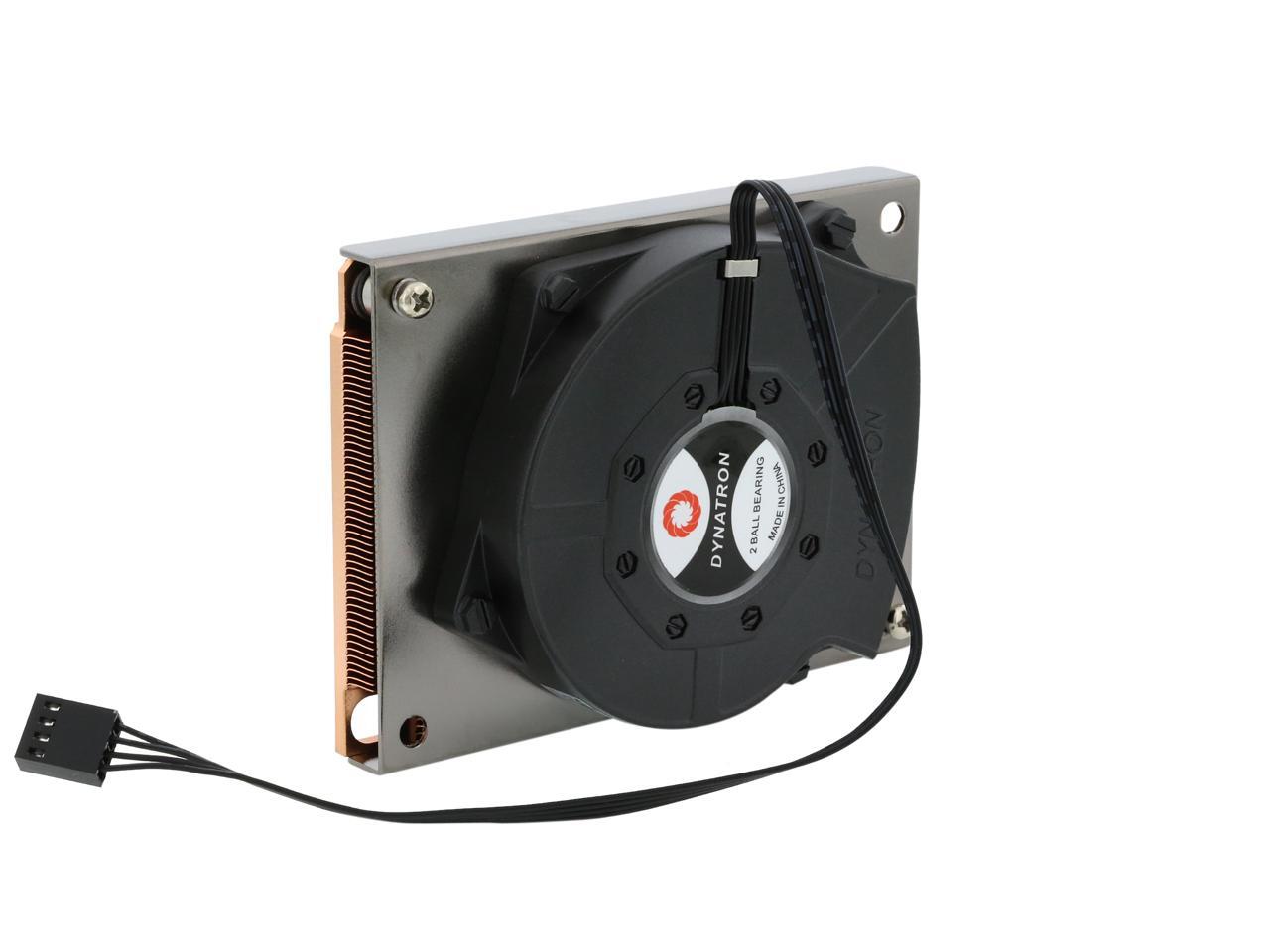

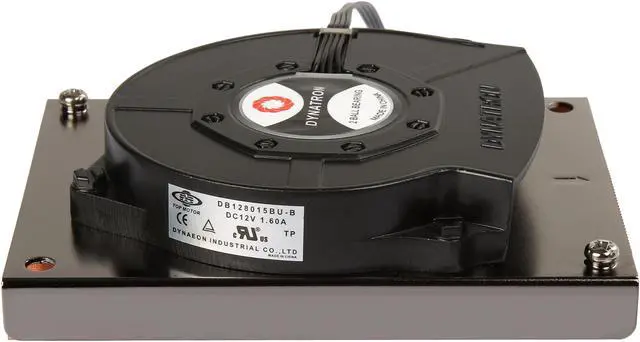

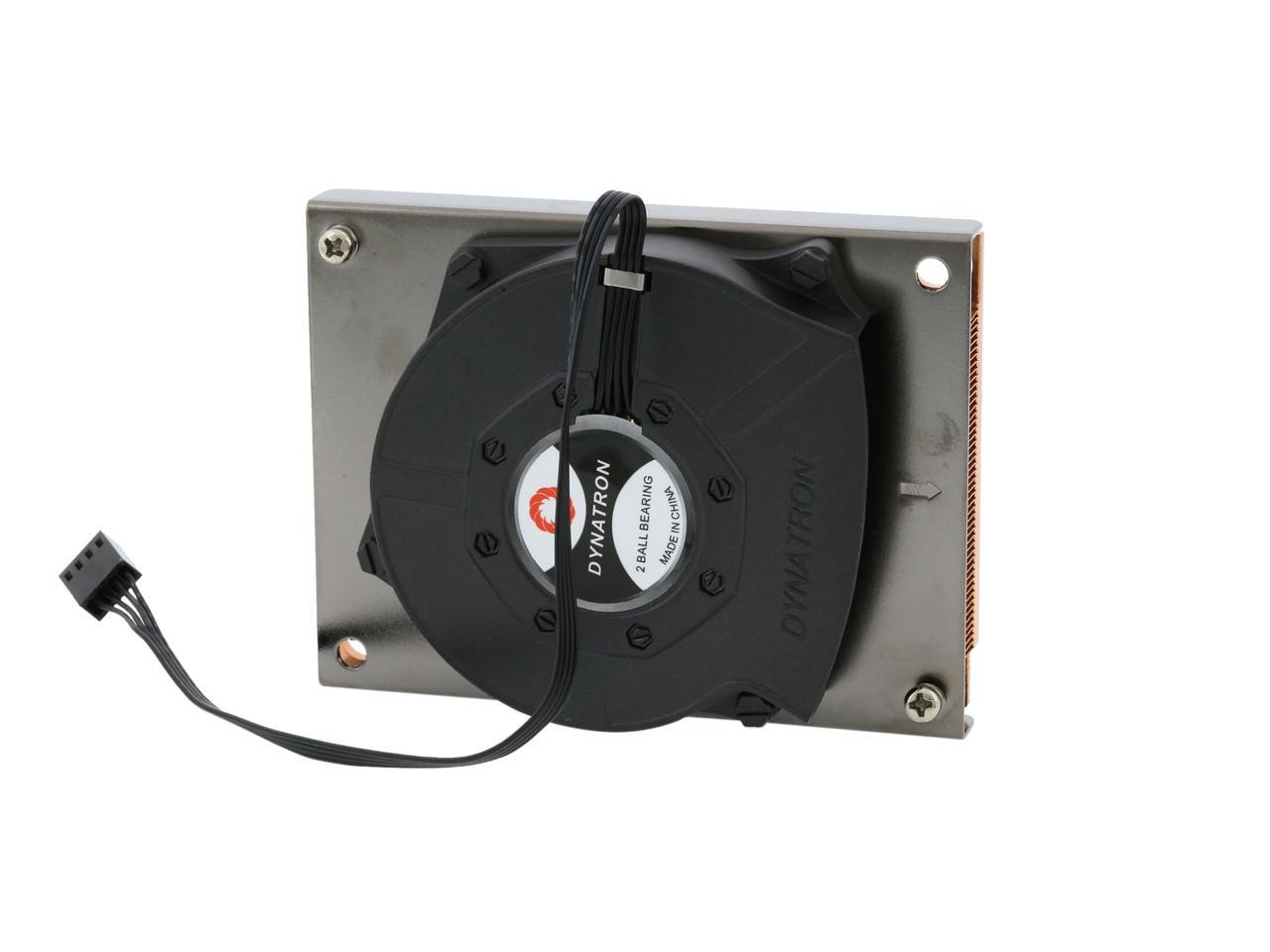

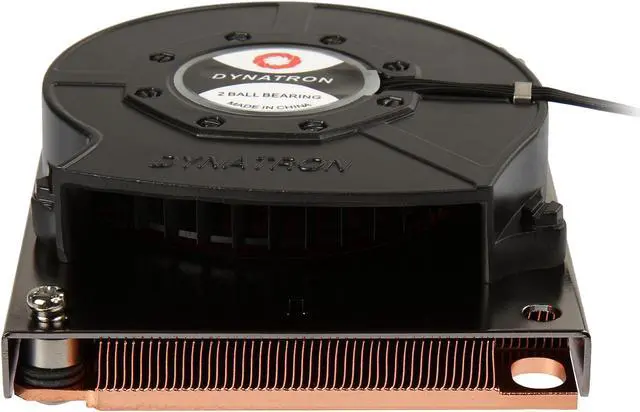

    8015 Aluminum PWM Blower for Heat Exhausting

    Convenient Heat Sink Screw captive mounting

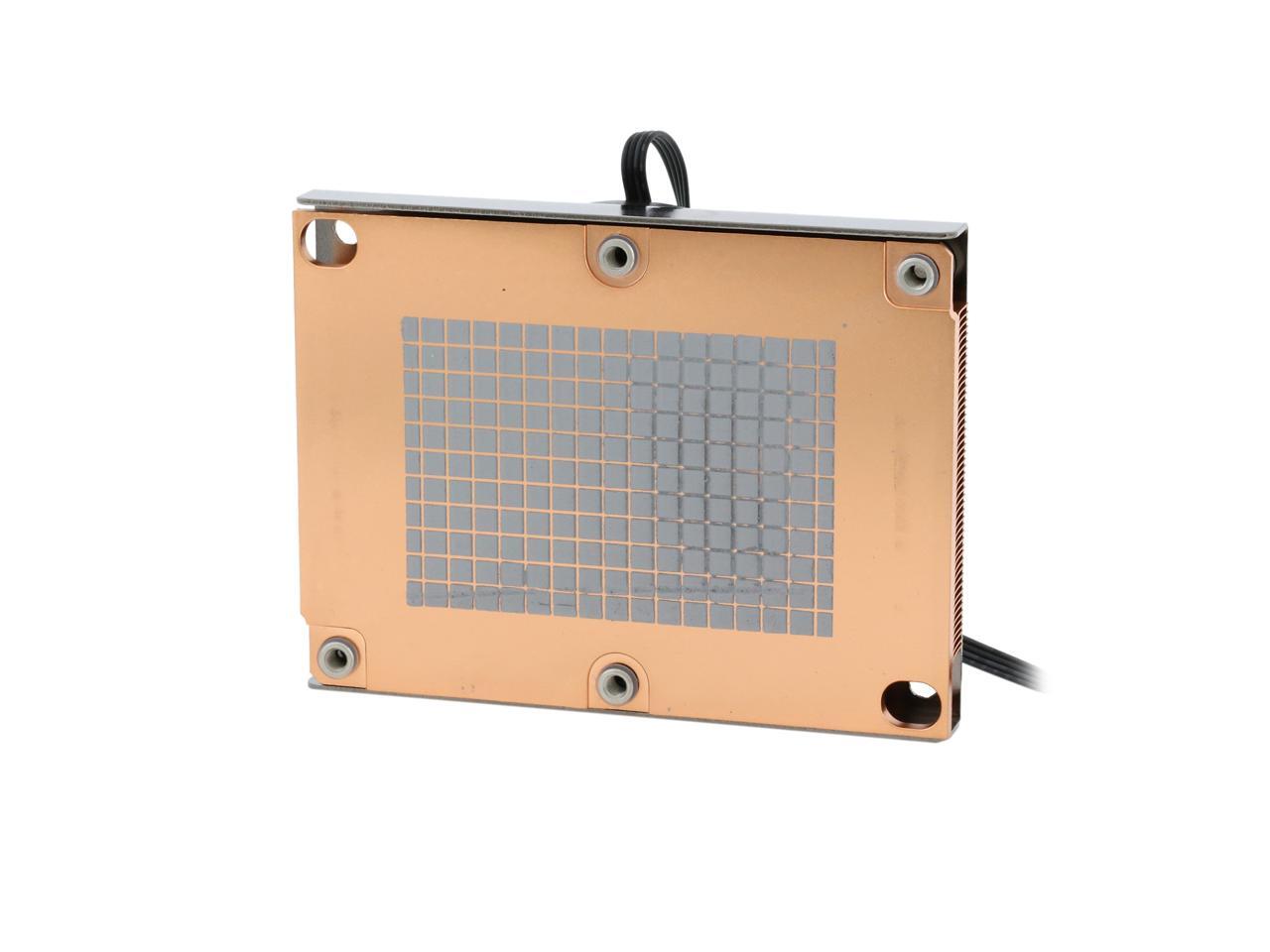

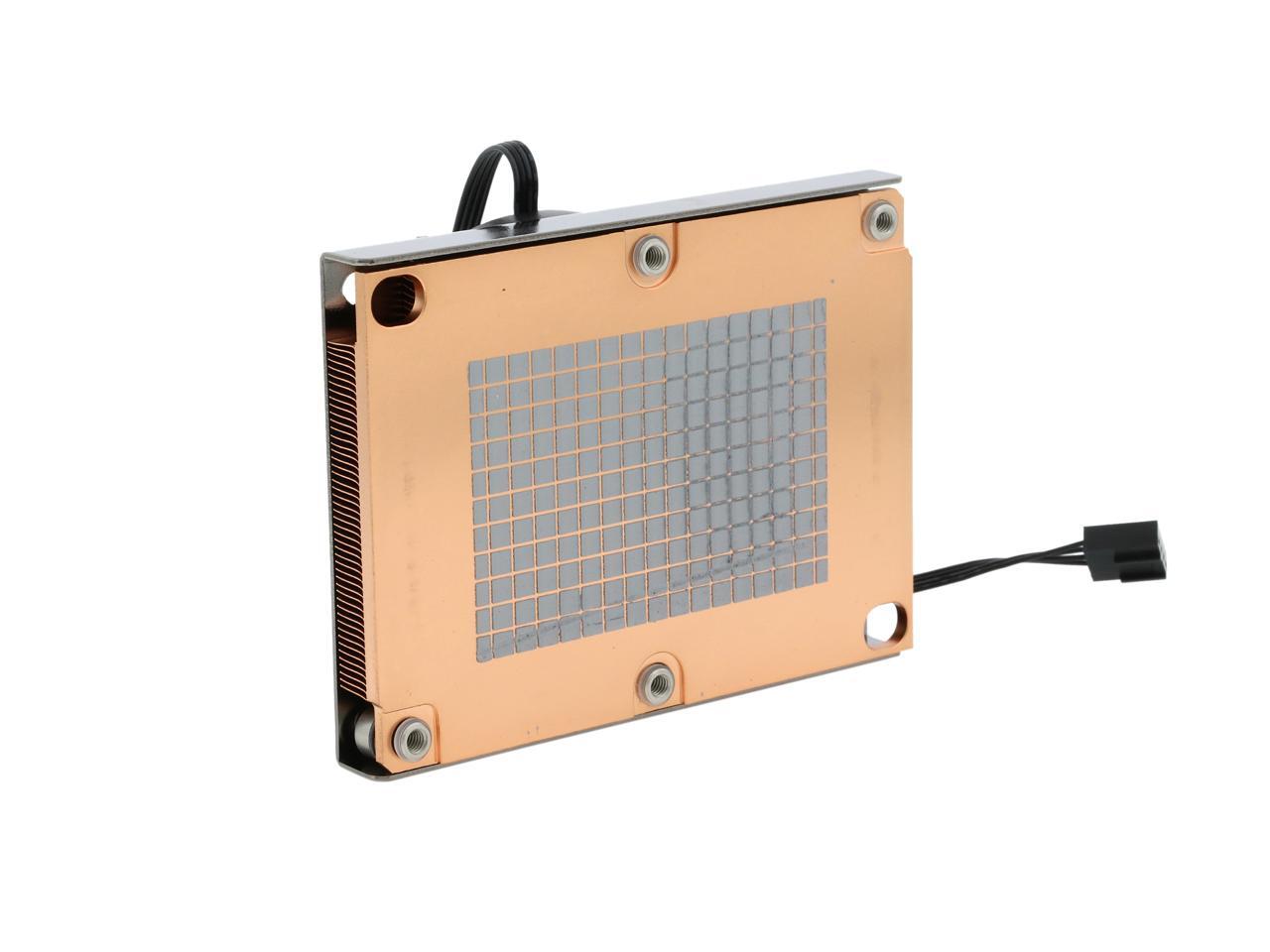

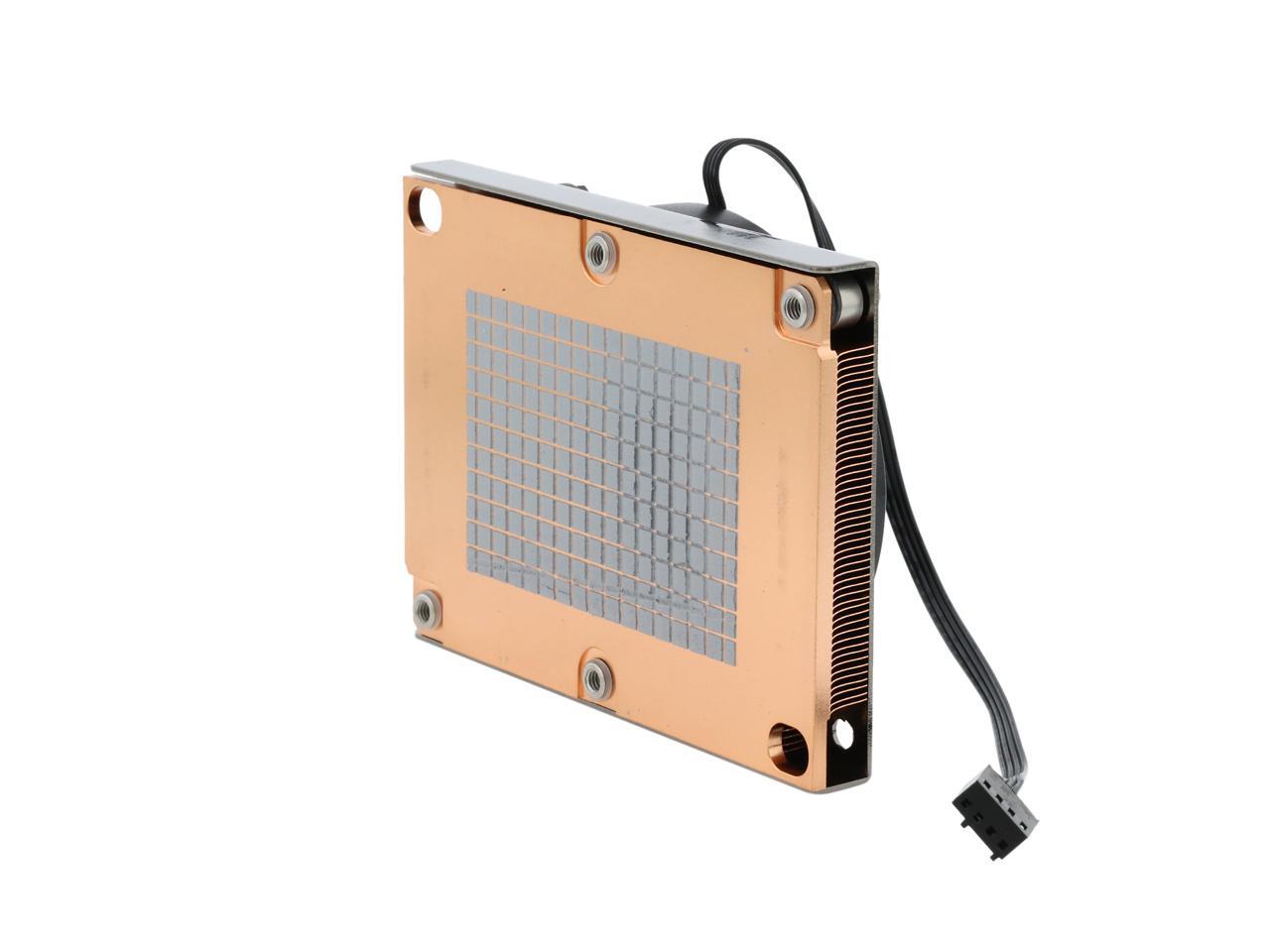

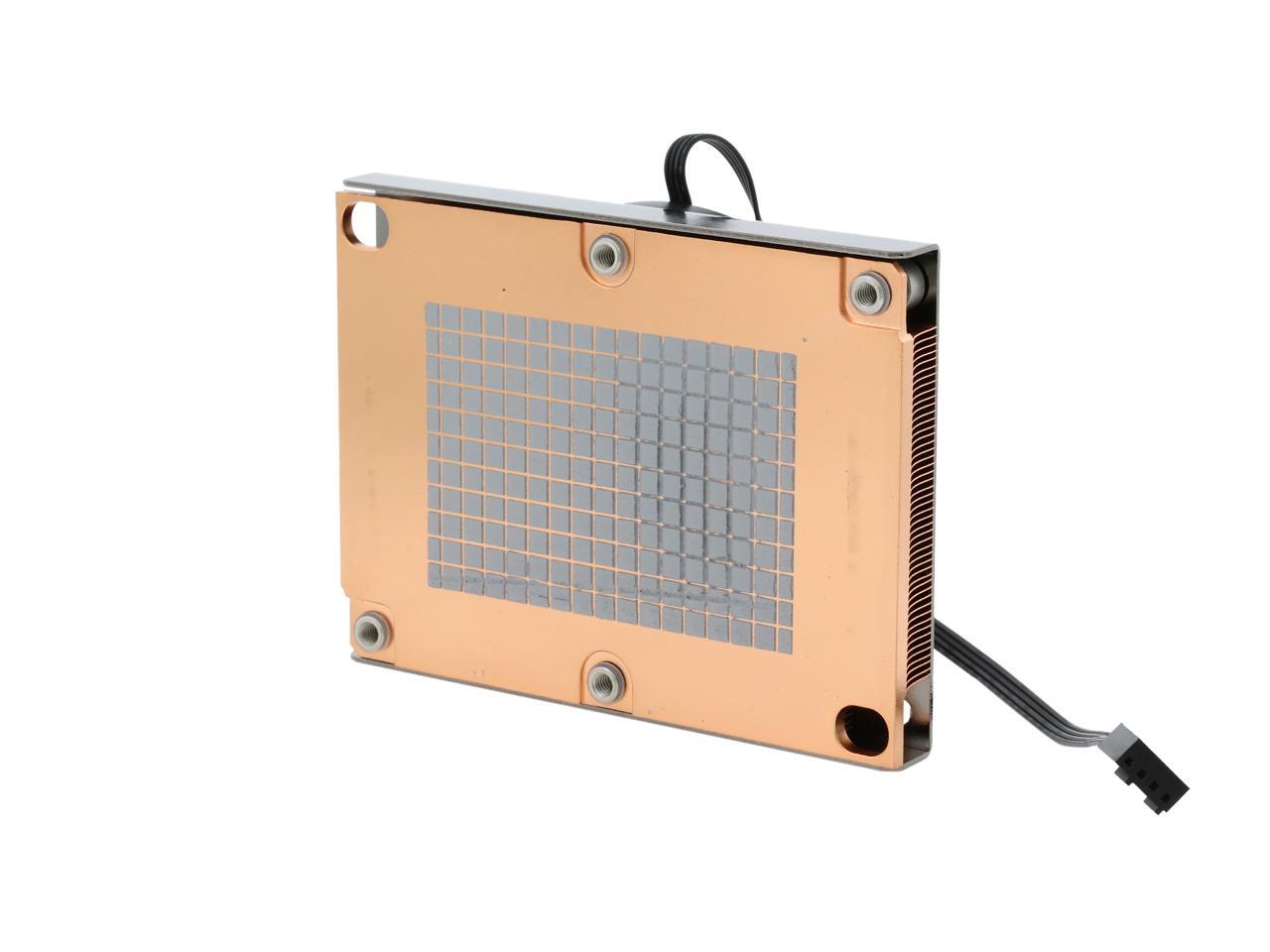

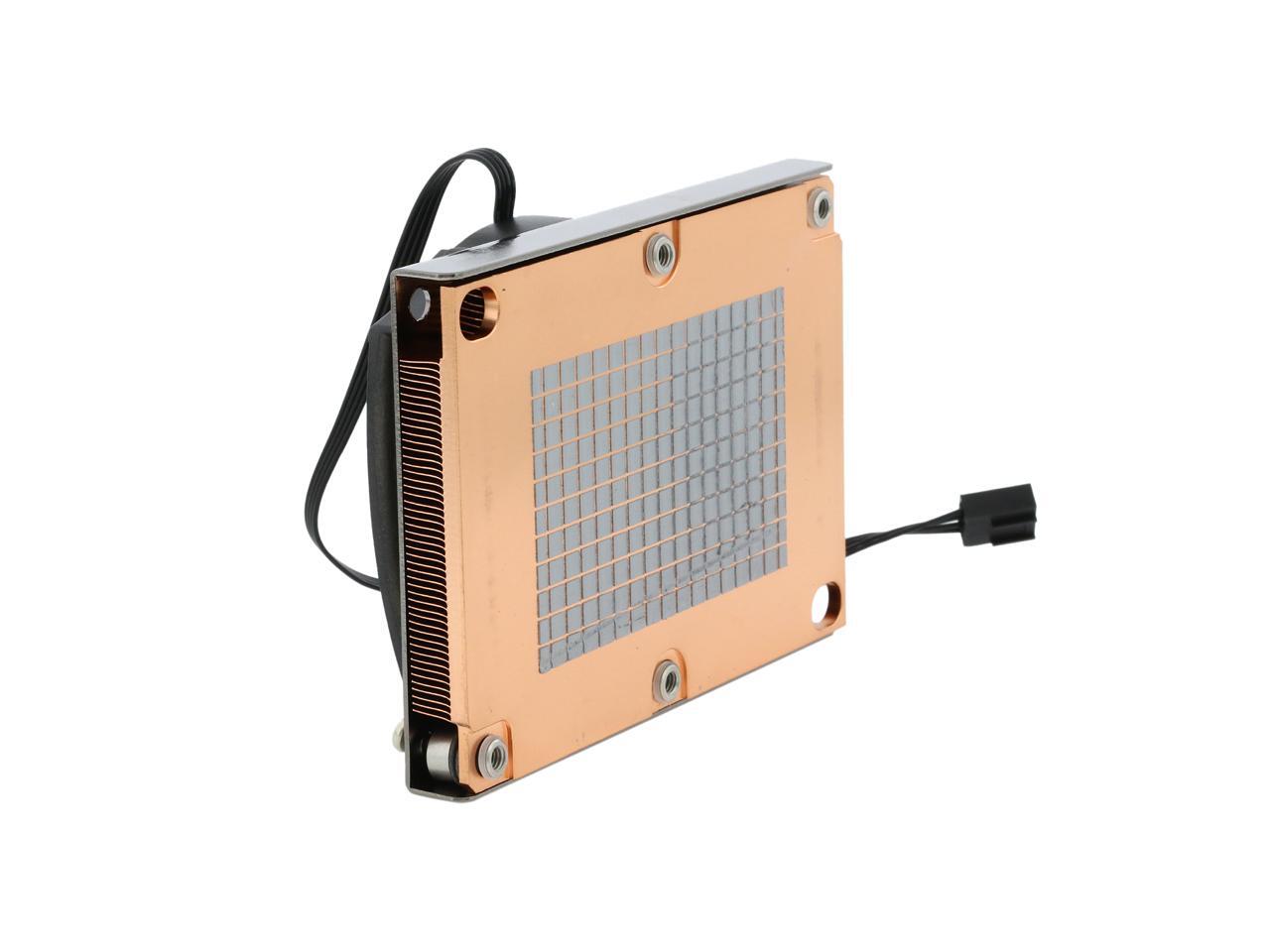

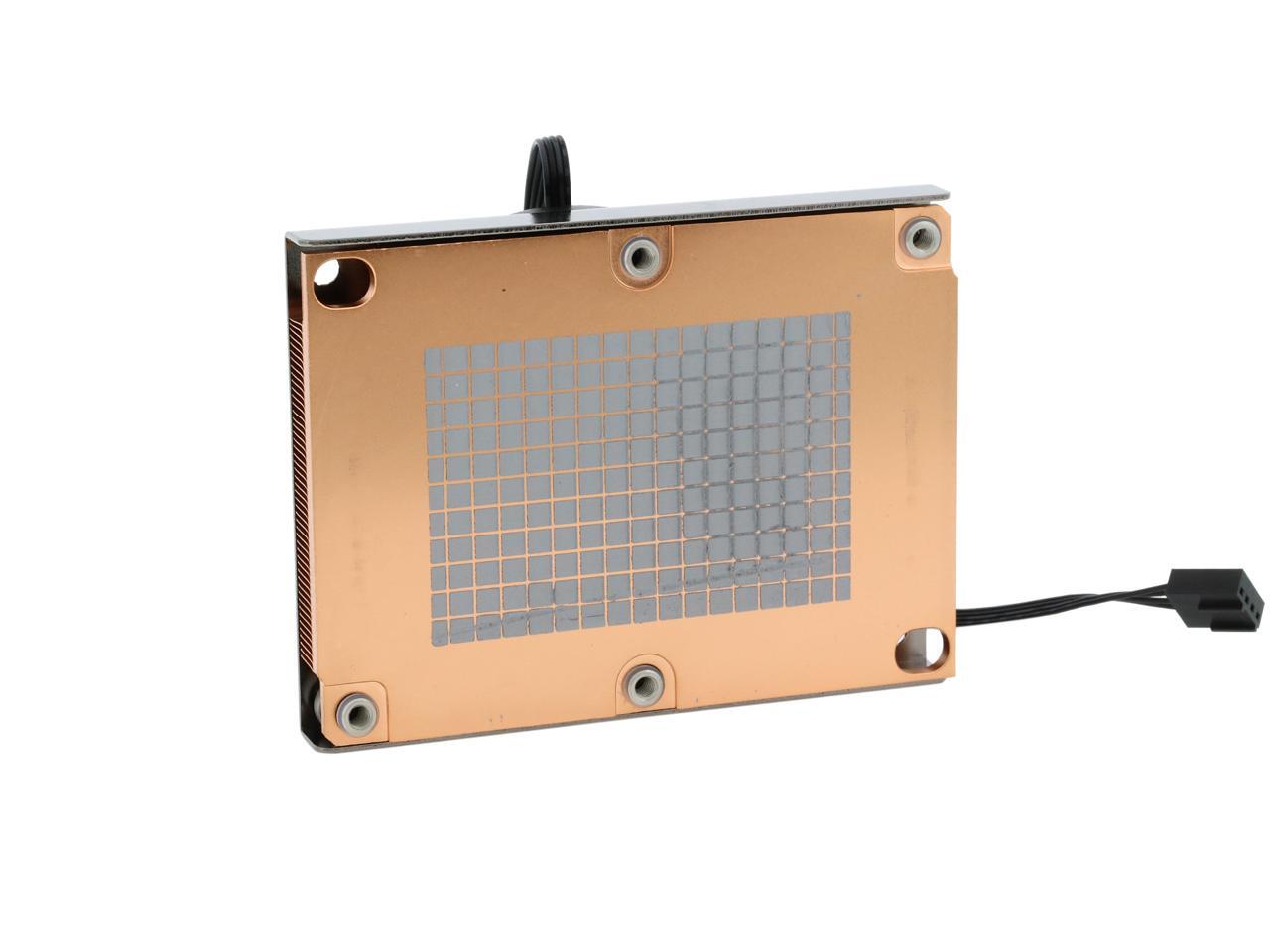

    Thermal Grease Shin-Etsu 7762 Pre-printed

    Support CPU power up to 165 Watts heat dissipation

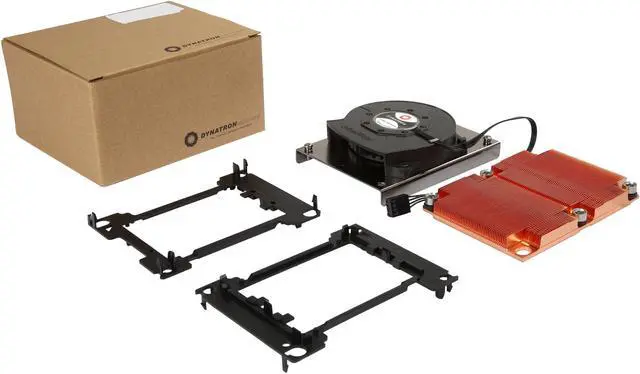

    Includes both Fabric and Non-Fabric Package Carriers
