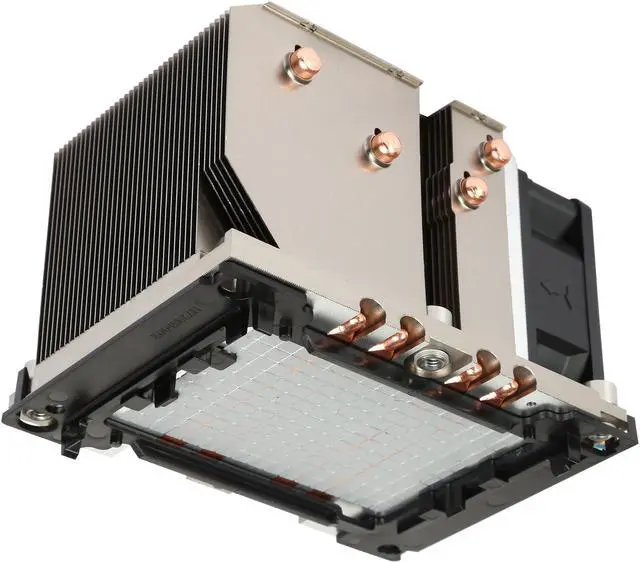

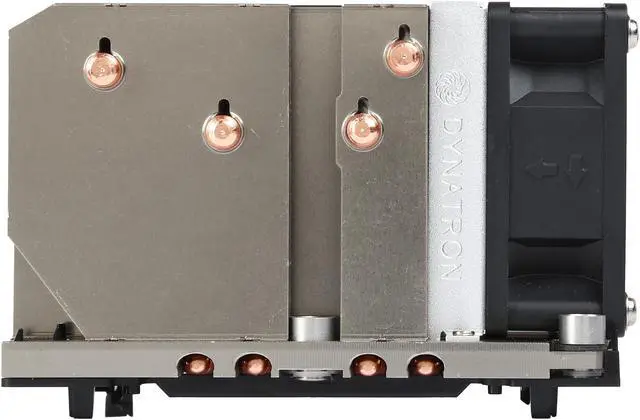

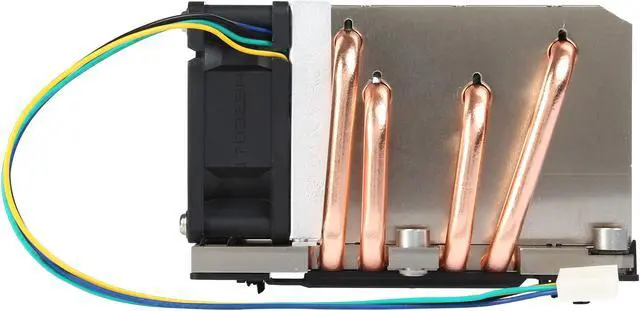

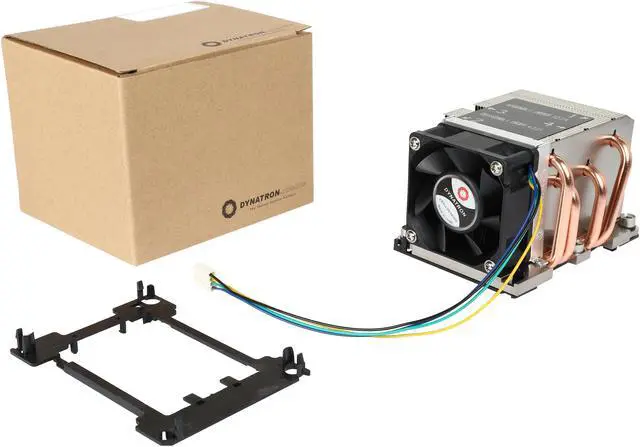

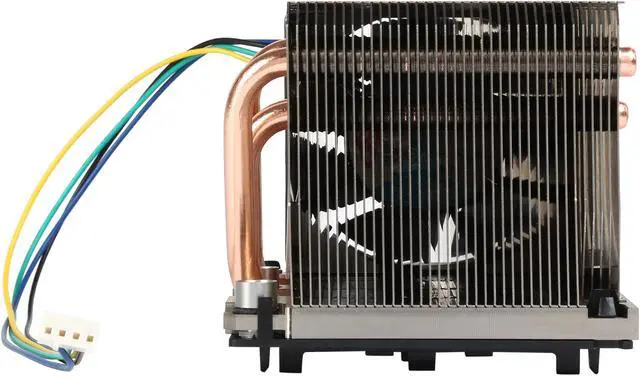

Dynatron B5 Intel Socket FCLGA3647 Narrow ILM 60x60x25mm PWM Fan, Aluminum Heatsink with Heatpipe embedded for 2U Server up to CPU power 205 Watts CPU Cooler
- Material : Aluminum Heatsink with Heatpipe Embedded
- 6025 Axial Fan for Heat Exhausting
- Convenient Heat Sink Screw captive mounting
- Thermal Grease Shin-Etsu 7762 Pre-printed
- Support CPU power up to 205 Watts heat dissipation
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Dynatron B5
| Brand | Dynatron |
|---|---|
| Model | B5 |
| Type | Fan & Heatsinks |
|---|---|
| Fan Size | 60mm |
| CPU Socket Compatibility | Intel FCLGA 3647 |
| Bearing Type | 2 Ball |
| RPM | At Duty Cycle 20%: 1400 +/- 200 RPM At Duty Cycle 3400 +/- 10% RPM At Duty Cycle 100%: 7000 +/- 10% RPM |
| Air Flow | At Duty Cycle 20%: 8.12 CFM At Duty Cycle 50%: 20.31 CFM At Duty Cycle 100%: 40.60 CFM |
| Noise Level | At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 35 dBA At Duty Cycle 100%: 50 dBA |
| Power Connector | 4 Pin |
| Heatsink Material | Aluminum Heatsink with Heatpipe Embedded |
| Fan Mounting Types to Heatsink | Vertical |
| Max CPU Cooler Height | 66 mm |
|---|---|
| Fan Dimensions | 60.00 x 60.00 x 25.00 mm |
| Heatsink Dimensions | 107.95 x 80.01 x 66.04 mm (4.25" x 3.15" x 2.60") |
| Weight | 1.03 lbs. |
| Features | Recommend for Intel Xeon Platinum / Gold Family Processor ( Products formerly Skylake ), Socket FCLGA3647 For Narrow ILM Only Active Cooler for 2U Server and up Rated Voltage: 12V Material : Aluminum Heatsink with Heatpipe Embedded 6025 Axial Fan for Heat Exhausting Convenient Heat Sink Screw captive mounting Thermal Grease Shin-Etsu 7762 Pre-printed Support CPU power up to 205 Watts heat dissipation |
|---|
| Date First Available | March 29, 2024 |
|---|
