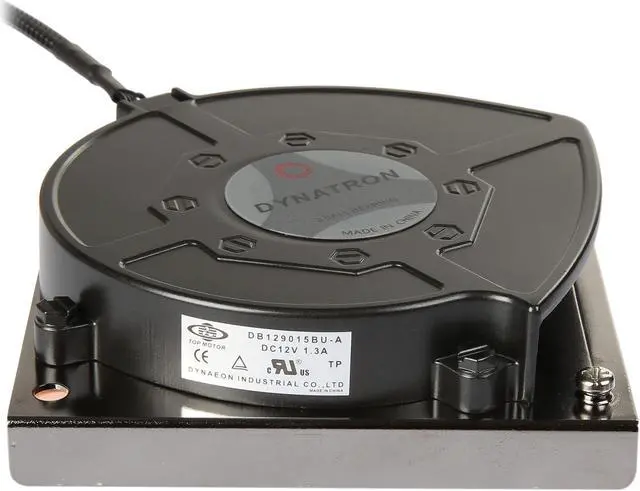

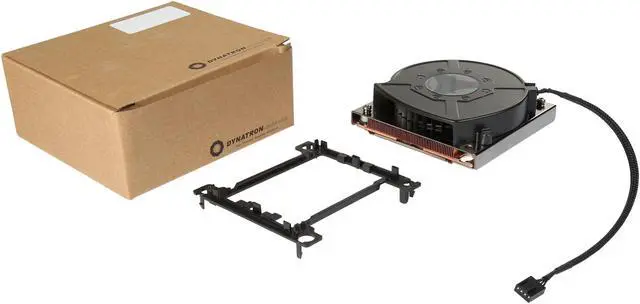

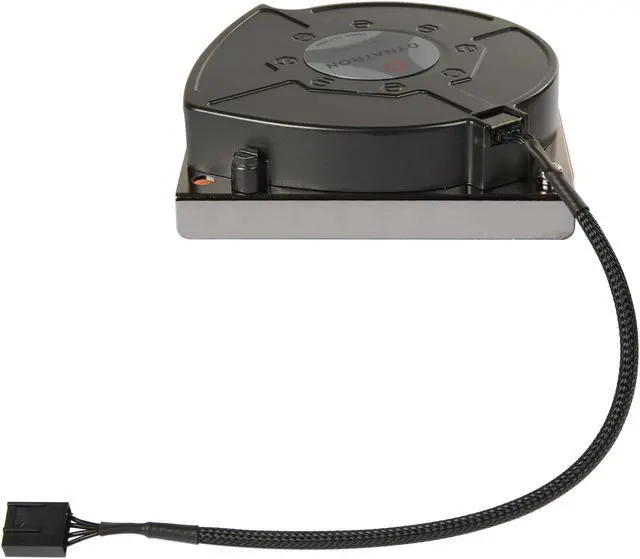

    Intel Xeon Platinum / Gold Family Processor, (Products formerly Skylake ), Socket FCLGA3647, Square ILM, Copper Heatsink with Vapor Chamber Base, 9015 Aluminum Frame PWM Blower for Heat Exhausting for 1U Server up to CPU power 205 Watts

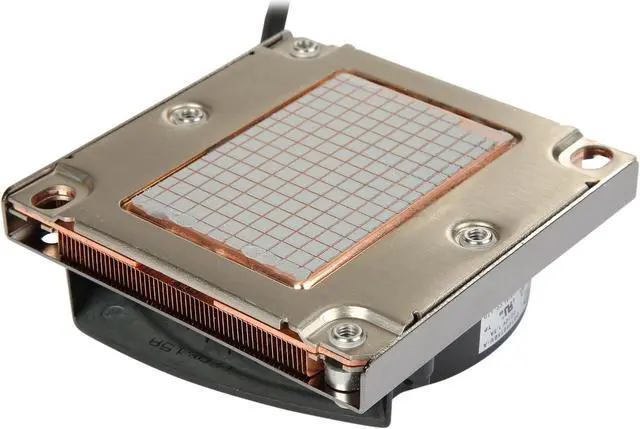

    • Copper1100 Heatsink with Vapor Chamber Base
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the Dynatron B9

    Model
    Brand Dynatron
    Model B9
    Details
    Type Fan & Heatsinks
    Fan Size 90mm
    Bearing Type Ball Type, Double
    RPM At Duty Cycle 20%: 1000 +/- 200 RPM
    At Duty Cycle 50%: 2500 +/- 10% RPM
    At Duty Cycle 100%: 5000 +/- 10% RPM
    Air Flow At Duty Cycle 20%: 6.8 CFM
    At Duty Cycle 50%: 11.0 CFM
    At Duty Cycle 100%: 19.0 CFM
    Noise Level At Duty Cycle 20%: 16 dBA
    At Duty Cycle 50%: 31.5 dBA
    At Duty Cycle 100%: 46.4 dBA
    Power Connector 4 Pin
    Heatsink Material Copper1100 Heatsink with Vapor Chamber Base
    Dimensions & Weight
    Max CPU Cooler Height 28 mm
    Fan Dimensions 90.00 x 90.00 x 15.00 mm
    Heatsink Dimensions 93.00 x 90.50 x 28.00 mm
    Weight 470g
    Features
    Features CPU Support: Intel Xeon Platinum / Gold Family Processor (Products formerly Skylake )

    Solution: 1U Server and Up

    Thermal Grease : Shin-Etsu 7762 Pre-printed
