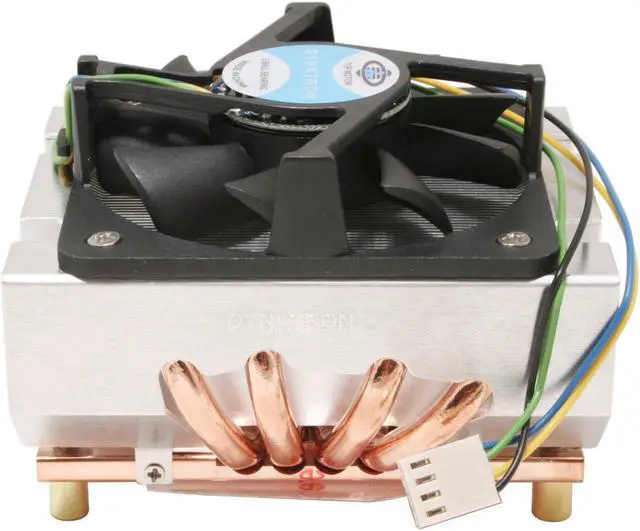

Brand | Dynatron |
---|---|
Model | H46G |
Type | Fan & Heatsinks |
---|---|
Fan Size | 77mm |
Bearing Type | 2 Ball |
RPM | At Duty Cycle 0%: 1000 RPM At Duty Cycle 20%: 1000 RPM At Duty Cycle 100%: 5500 RPM |
Air Flow | At Duty Cycle 0%: 8.36 CFM At Duty Cycle 20%: 8.36 CFM At Duty Cycle 100%: 53.899 CFM |
Noise Level | At Duty Cycle 0%: 20.6 dBA At Duty Cycle 20%: 20.6 dBA At Duty Cycle 100%: 51.4 dBA |
Power Connector | 4 Pin |
Color | Black |

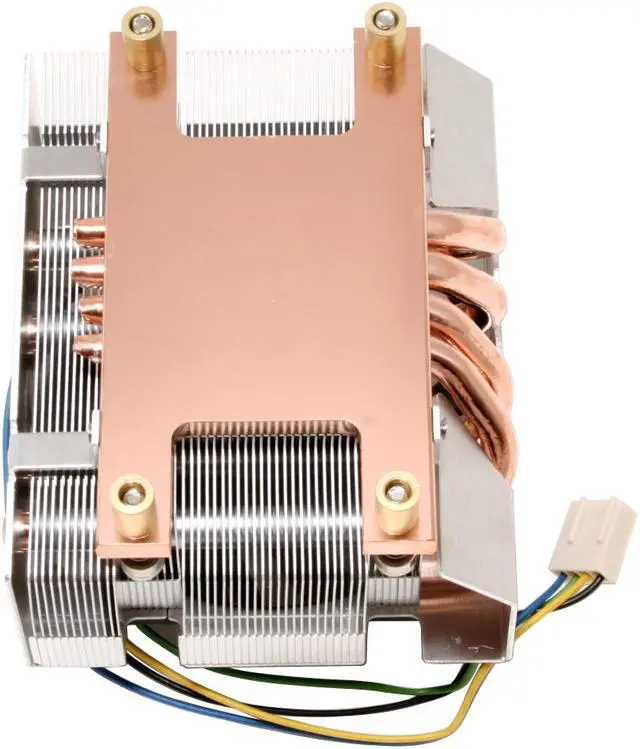

Heatsink Material | Copper Base & Aluminum Fins with Heatpipes embeded |
Fan Dimensions | 77 x 77 x 20mm |
---|---|
Heatsink Dimensions | 94.0 x 81.0 x 62.6mm |
Weight | 420g |

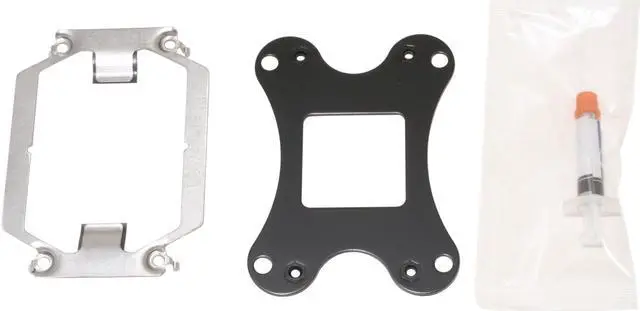

Package Contents | CPU Cooler Thermal Grease Clip |
---|
Date First Available | December 19, 2006 |
---|
Pros: This heatsink is definately much better than the Intel fan that ships with the xeon 5450 cpu. I tested this heatsink also against Dynatron's all copper H6EG heatsink also for socket 771. The H46G kept the cpu about 8 C cooler at full cpu load than the H6EG, which only uses two heat pipes.
Cons: Included heat sink compound is not very good, so you should order some extra if you buy this heatsink
Overall Review: Running dual Xeon e5450 chips on supermicro mb.
