How far can I overclock my 6th Gen i5 3.5GHz with this?

I wouldn't recommend trying to use this cooler fan when overclocking. I am using it because of the small case I purchased and space was a problem. I have a 3.0 Core 2 CPU and tried to overclock it to 3.5 and it locked up. If you are wanting to overclock the CPU, I would recommend a large tower and a vertical fan cooler using a pair of 120 or 140 fans and 6-8 cooling tubes. Another would be a liquid cooler.

Has anyone tried to install this on a Biostar TP-55 (LGA 1156) motherboard? I ordered this fan and got it today. I really wanted to use it, but there are some capacitors to the left of the cpu that prevent the bracket from on that side from making contact to the motherboard. Anyone have any advice for this or should i just return the fan?

return it and get one that fits. its hard to make adjustments. once the are permanently installed.

$52^.02

Free 30-day Returns

Limit 5 per customer.

Price alert

Add to wish list

Sold by PlatinumMicro

Top Rated

4.5 (7,111 seller ratings)

Shipped by PlatinumMicro

Meet Your Seller

PlatinumMicro

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

Dynatron;K987;Model Number: K987 - Dynatron Corp.

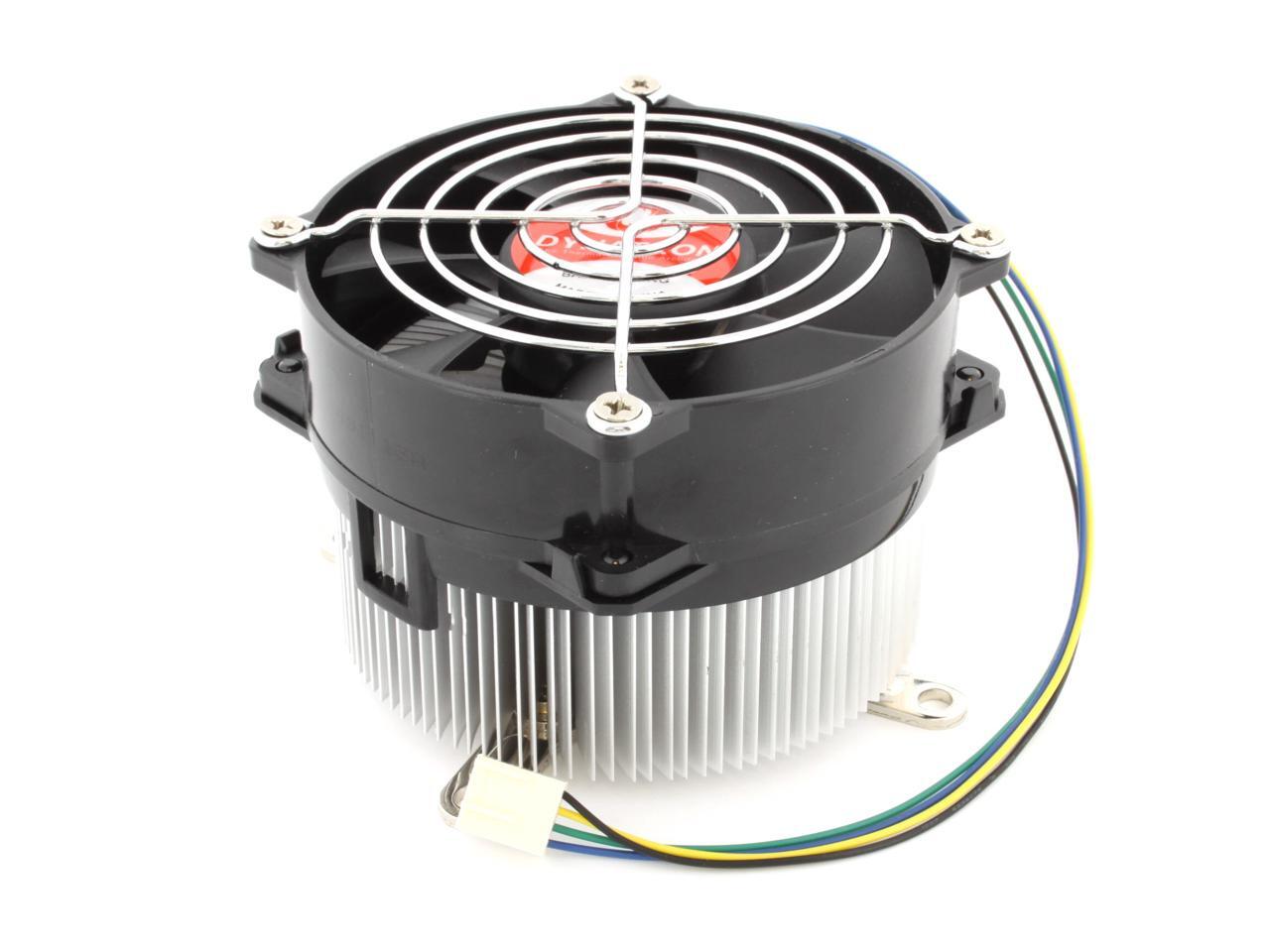

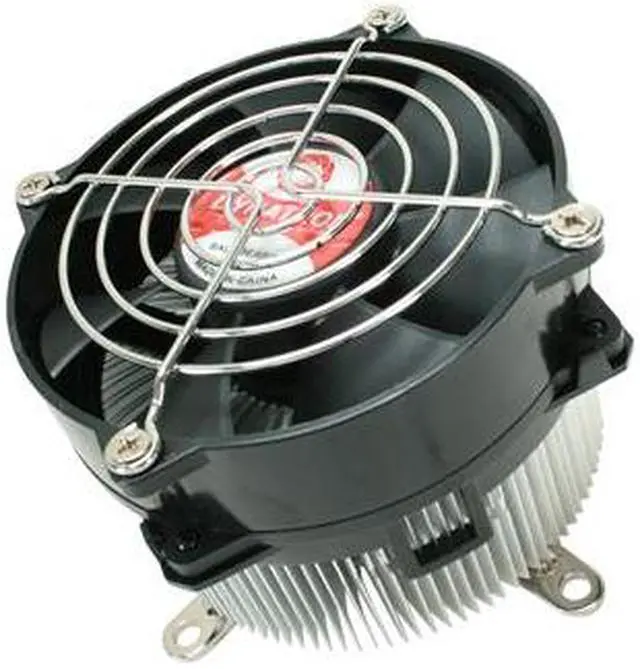

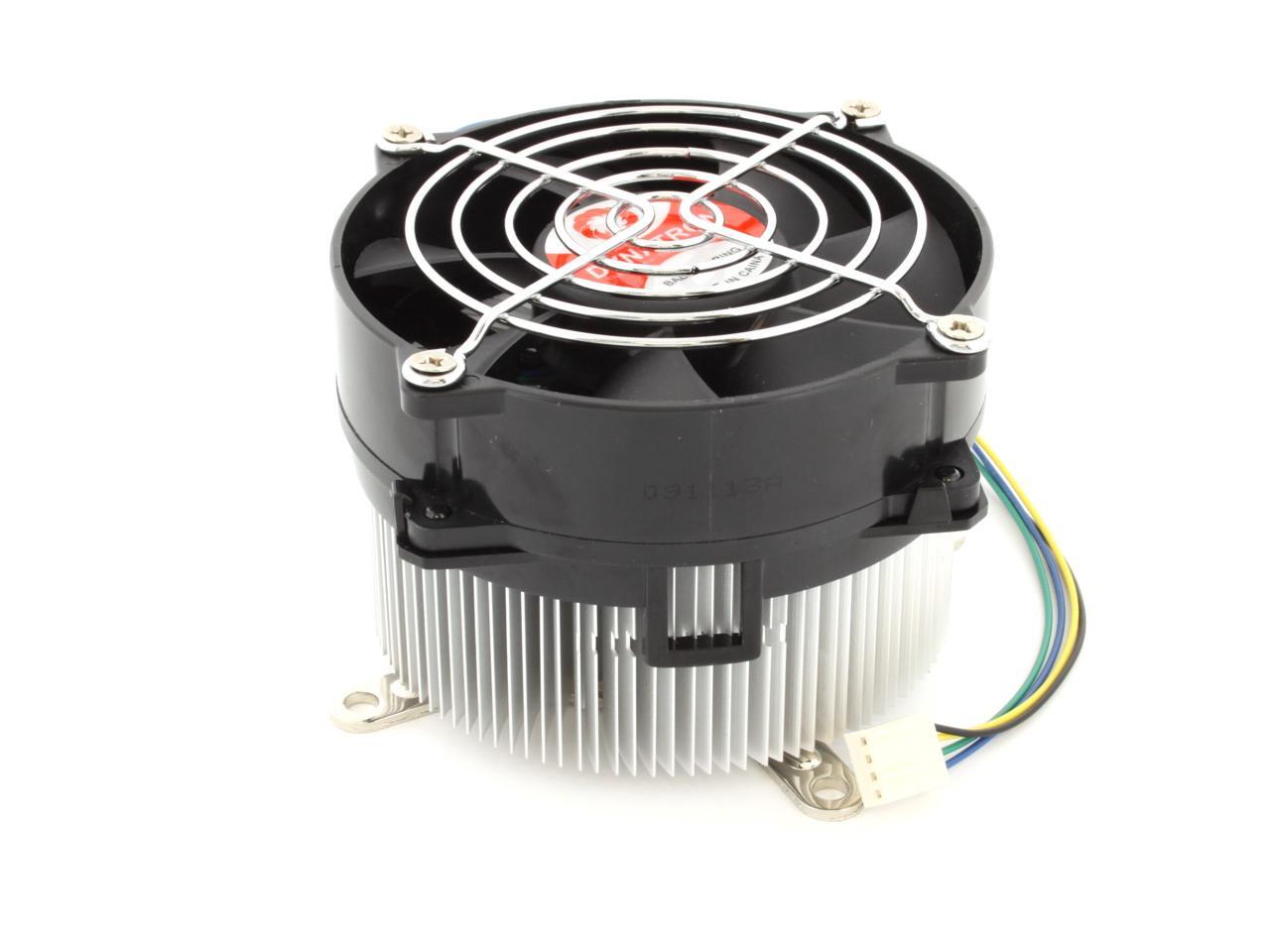

Main image of Dynatron K987 92mm Ball CPU Cooler for Intel LGA Socket 1151 / 1150 / 1155 / 1156

100%

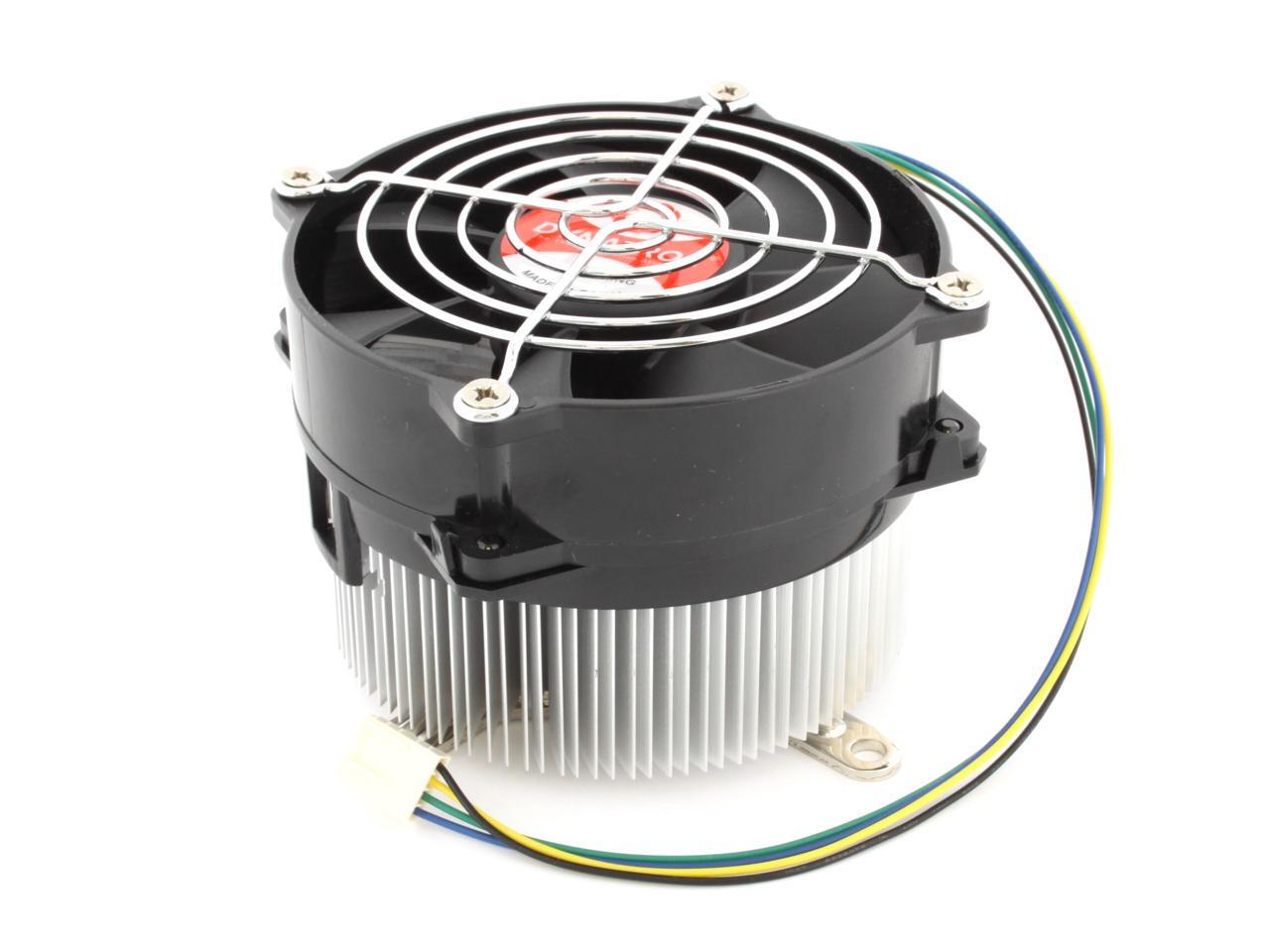

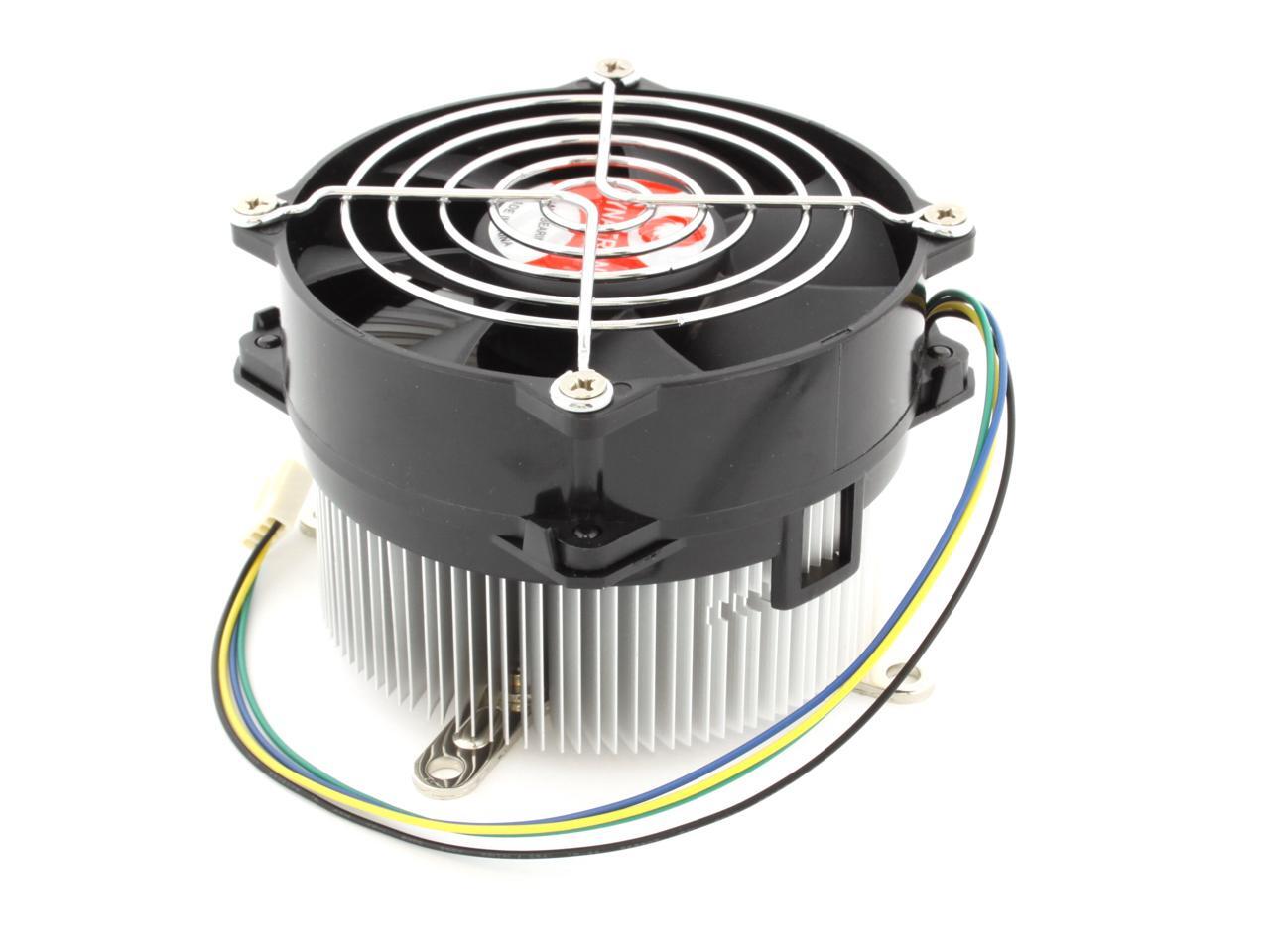

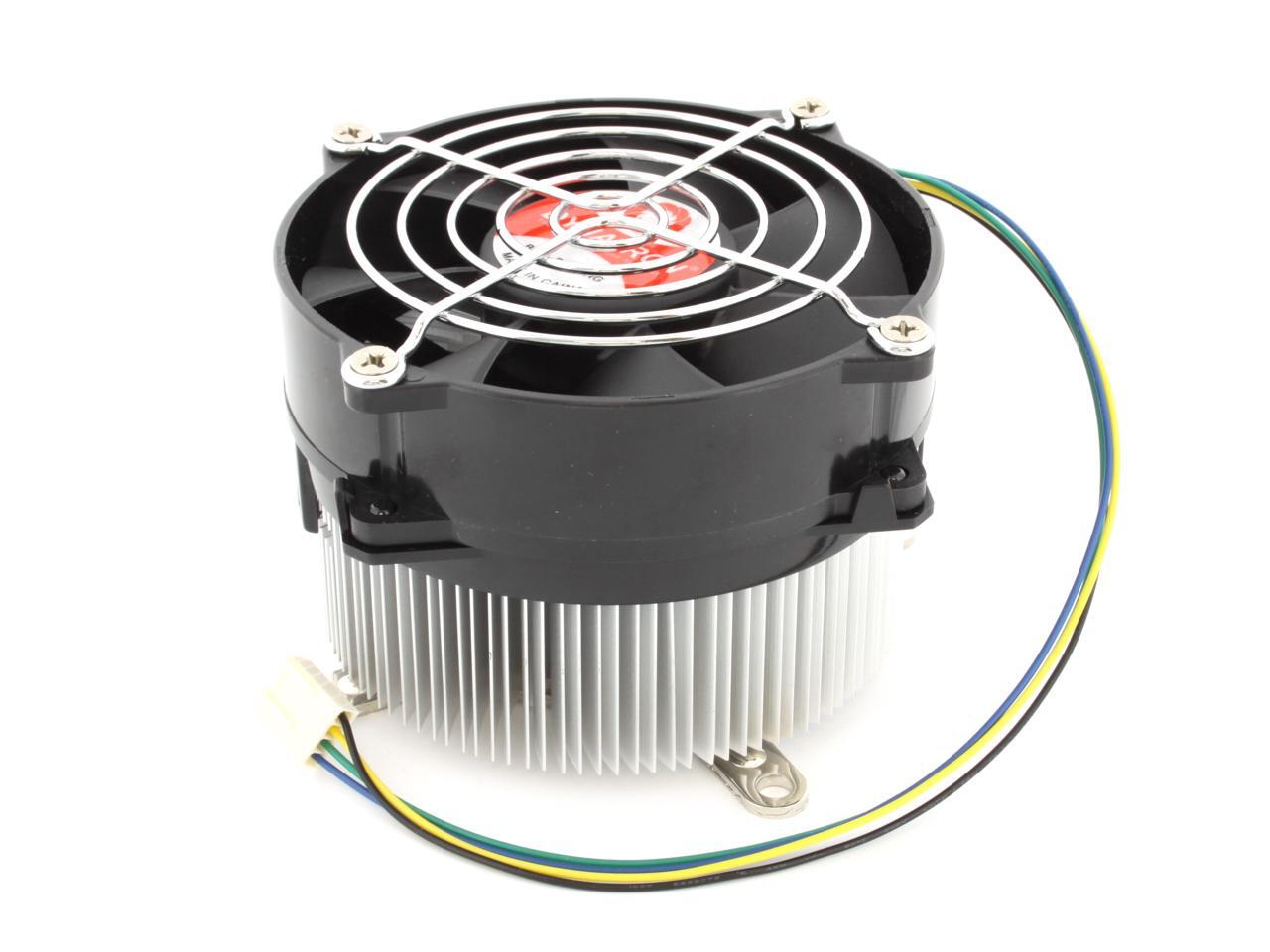

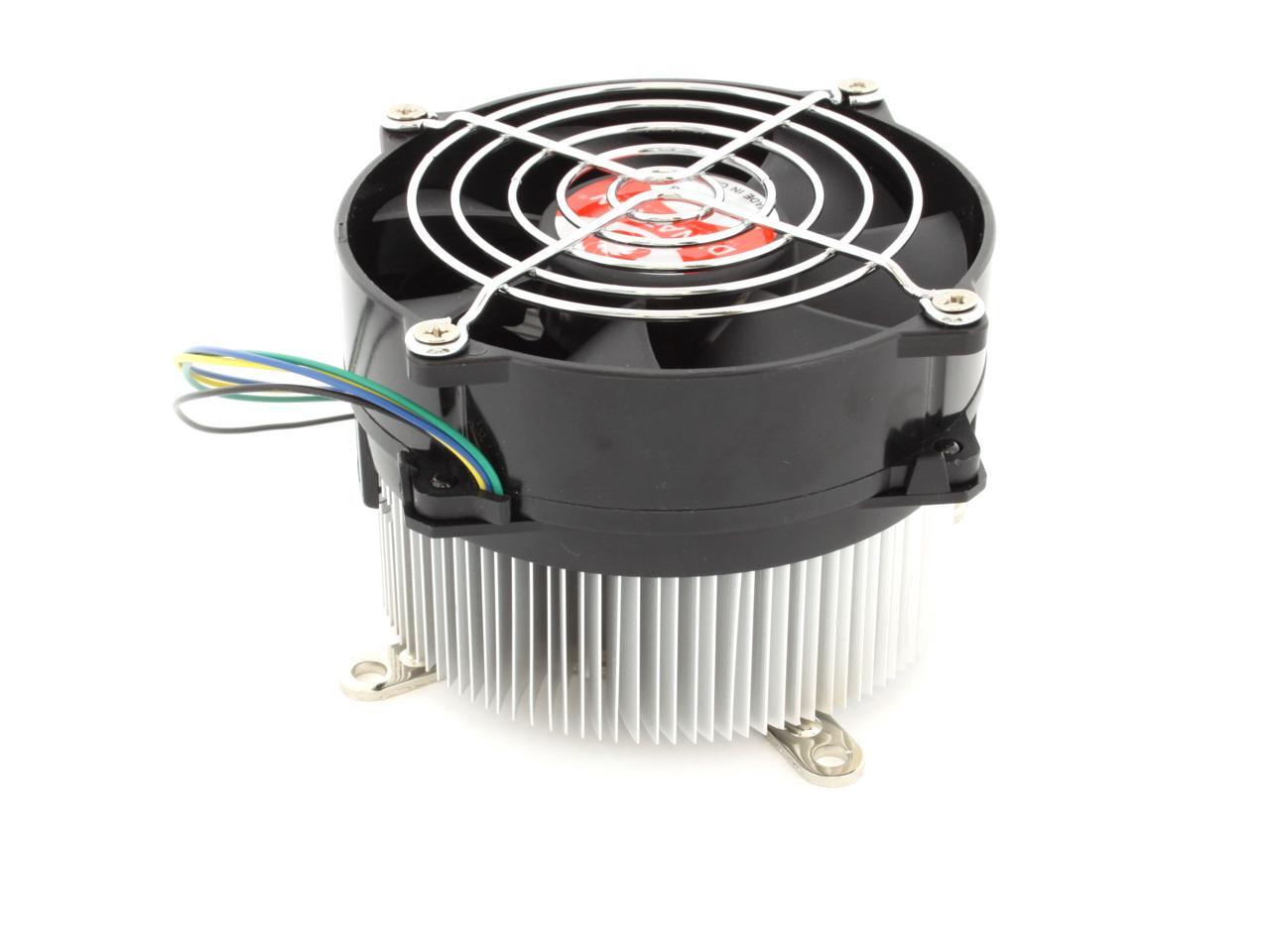

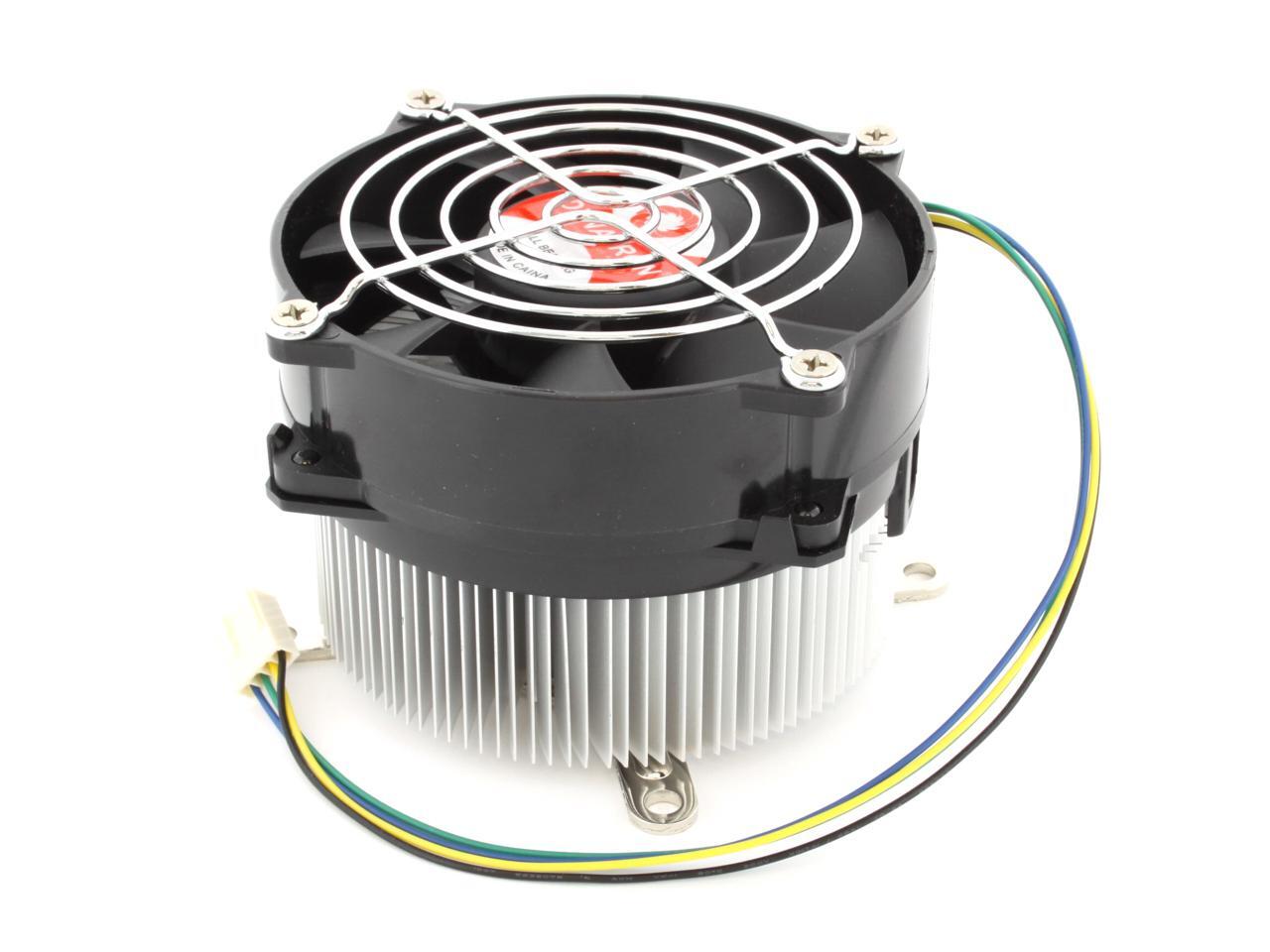

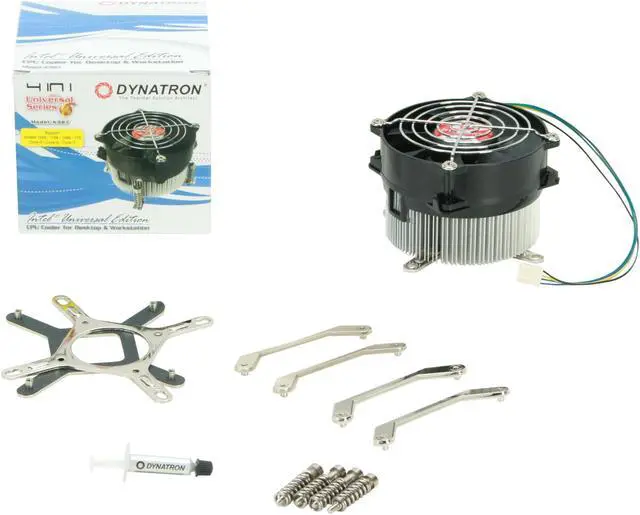

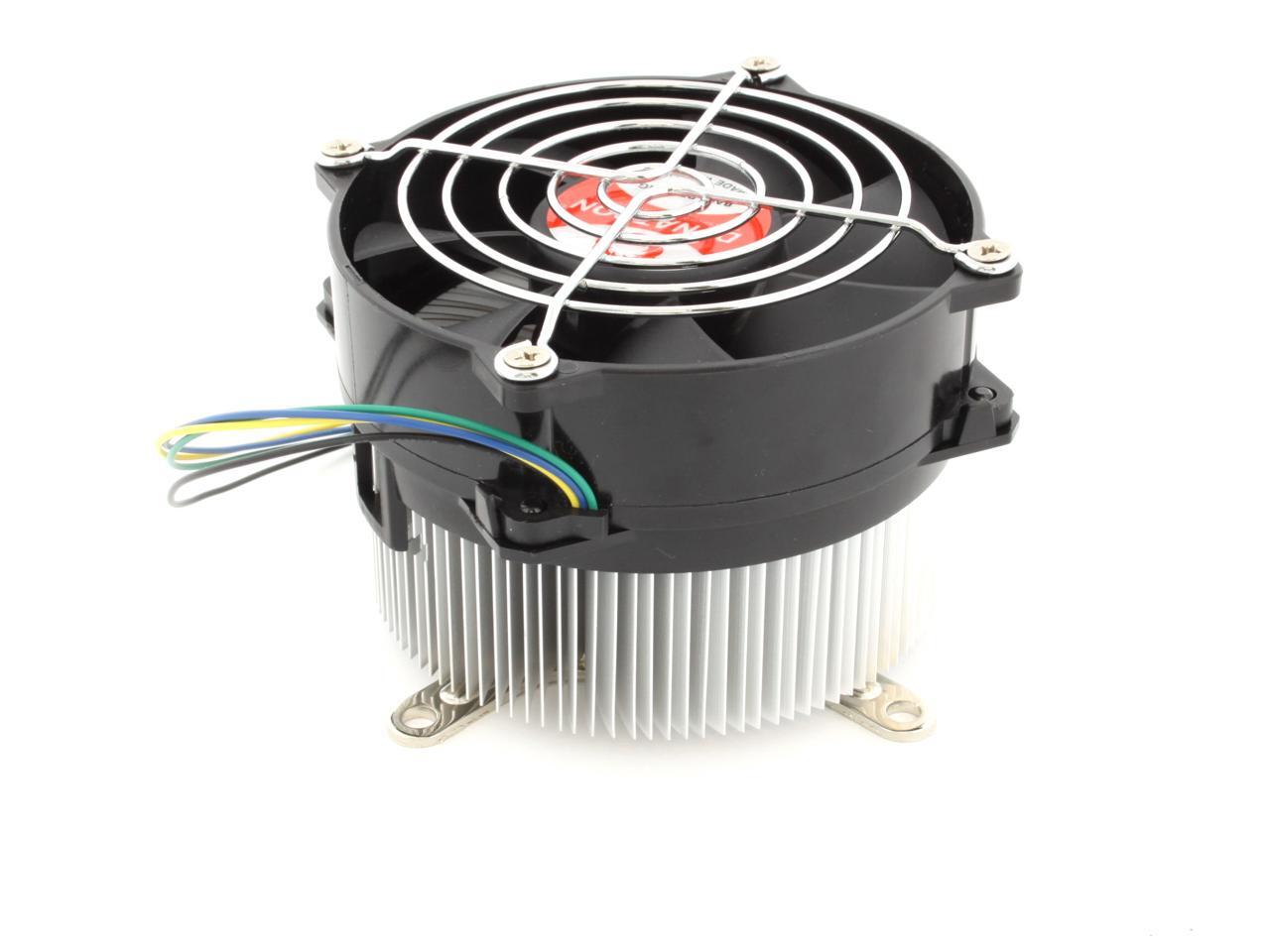

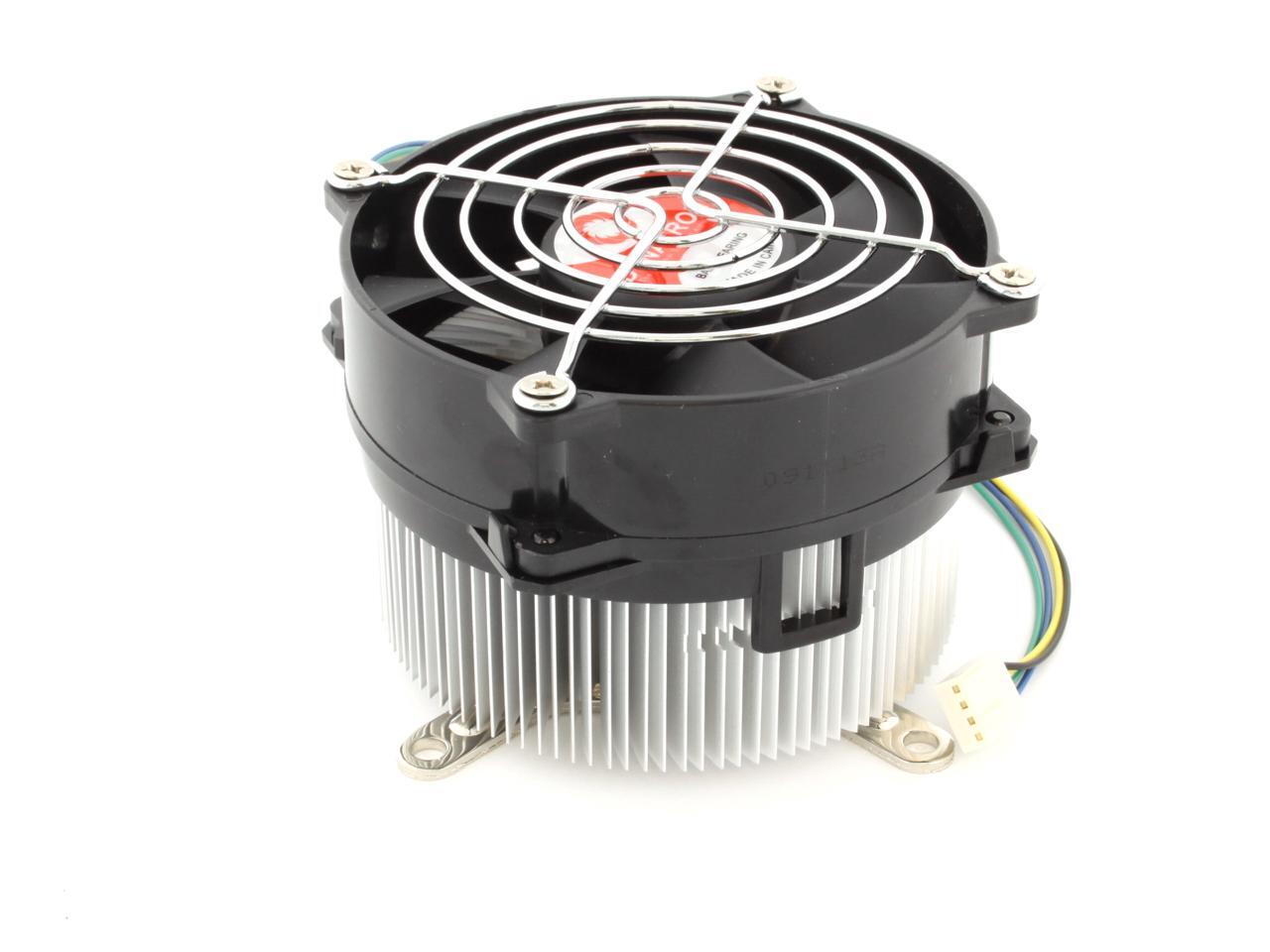

Alt view image 2 of 6 - Dynatron K987 92mm Ball CPU Cooler for Intel LGA Socket 1151 / 1150 / 1155 / 1156

Alt view image 3 of 6 - Dynatron K987 92mm Ball CPU Cooler for Intel LGA Socket 1151 / 1150 / 1155 / 1156

Alt view image 4 of 6 - Dynatron K987 92mm Ball CPU Cooler for Intel LGA Socket 1151 / 1150 / 1155 / 1156

Alt view image 5 of 6 - Dynatron K987 92mm Ball CPU Cooler for Intel LGA Socket 1151 / 1150 / 1155 / 1156

Alt view image 6 of 6 - Dynatron K987 92mm Ball CPU Cooler for Intel LGA Socket 1151 / 1150 / 1155 / 1156

360^°

Shop All Dynatron Products | Visit PlatinumMicro Store

Dynatron K987 92mm Ball CPU Cooler for Intel LGA Socket 1151 / 1150 / 1155 / 1156

(47) Write a Review

At Duty Cycle 0-20%: 900 RPM
At Duty Cycle 50%: 1700 RPM
At Duty Cycle 100%: 2800 RPM
At Duty Cycle 0-20%: 15.1 CFM
At Duty Cycle 50%: 30.9 CFM
At Duty Cycle 100%: 46.96 CFM

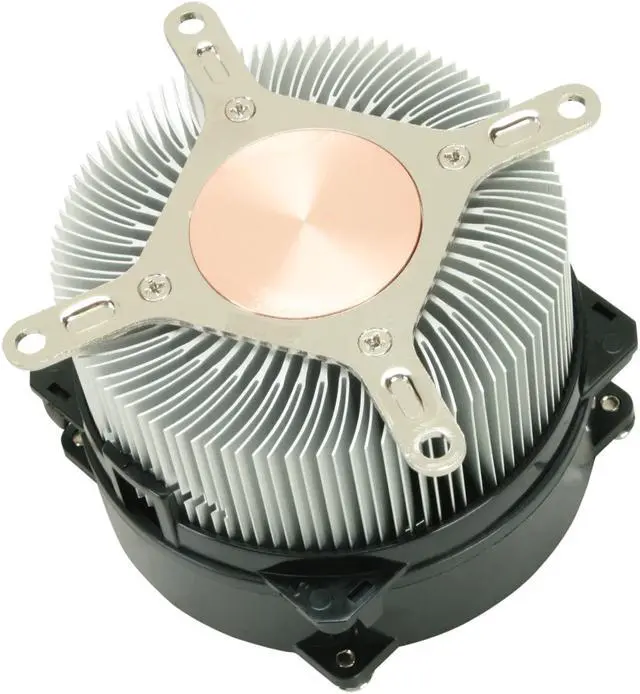

Aluminum Radial Fin Heatsink with Copper Inserted

Specs

Reviews (47)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Dynatron K987

Model
Brand	Dynatron
Model	K987

Details
Type	Fan & Heatsinks
Fan Size	92mm
Bearing Type	Ball
RPM	At Duty Cycle 0-20%: 900 RPM At Duty Cycle 50%: 1700 RPM At Duty Cycle 100%: 2800 RPM
Air Flow	At Duty Cycle 0-20%: 15.1 CFM At Duty Cycle 50%: 30.9 CFM At Duty Cycle 100%: 46.96 CFM
Noise Level	At Duty Cycle 0-20%: 14.0 dBA At Duty Cycle 50%: 19.0 dBA At Duty Cycle 100%: 29.30 dBA

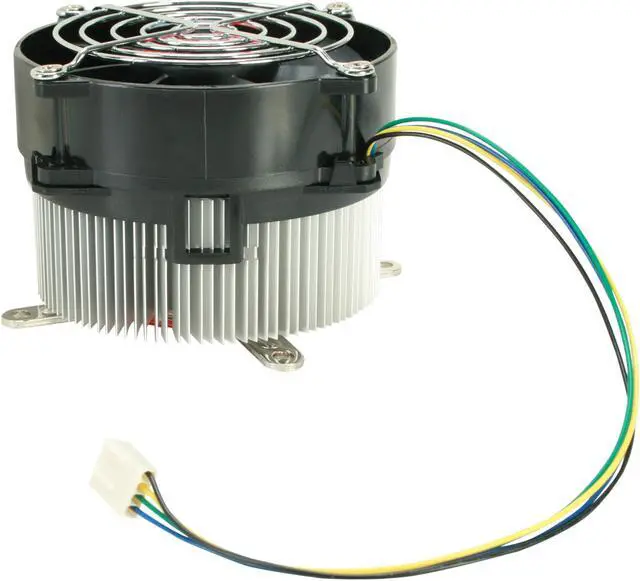

Power Connector	4 pin (PWM)
Heatsink Material	Aluminum Radial Fin Heatsink with Copper Inserted

Dimensions & Weight
Max CPU Cooler Height	73 mm
Fan Dimensions	92 x 92 x 25 mm
Heatsink Dimensions	106.0 x 106.0 x 72.6 mm
Weight	500g

Features
Features	CPU Support: Socket LGA1156, Core i3, Core i5 Processor I5-750 2.66GHz, Xeon Processor 3400 Series up to 2.93GHz ; Core i7 Processors I7-800 Series up to 2.93GHz Socket LGA1366, Core i7 Processors I7-900 Series 2.66GHz, Xeon Processor 5500 Series up to 3.06GHz Socket LGA775, Intel Core 2 Extreme Processor 2.93GHz, Core 2 Quad Processor up to 3.0GHz, Core 2 Duo Desktop Processor up to 3.33GHz, Pentium D Processor up to 3.6GHz, Pentium Processor for Desktop up to 2.93GHz, Pentium 4 Processors up to 3.80 GHz, Pentium 4 Processor Extreme Edition up to 3.73 GHz, Celeron Processor up to 3.6GHz
