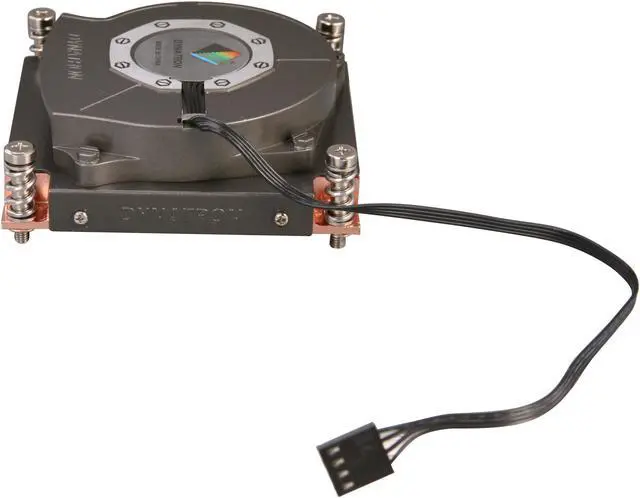

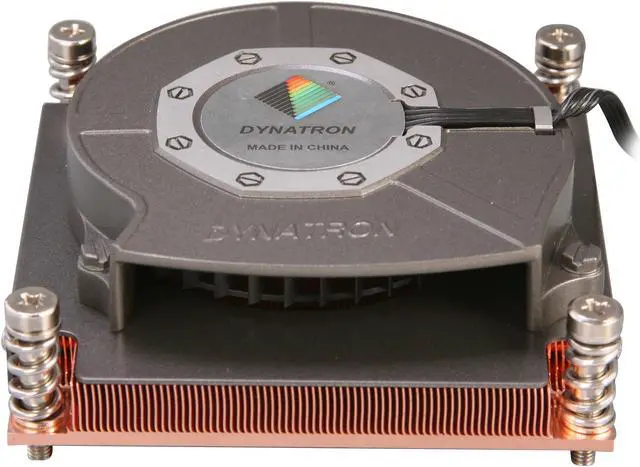

    Dynatron R18 80mm 2 Ball Intel Sandy Bridge EP/EX Processors for socket 2011 1U Server

    (5) Write a Review
    • At Duty Cycle 20%: 1000 RPM, At Duty Cycle 50%: 3500 RPM, At Duty Cycle 100%: 6000 RPM
    • At Duty Cycle 20%: 6.5 CFM, At Duty Cycle 50%: 11.2 CFM, At Duty Cycle 100%: 19.1 CFM
    • Copper Heatsink with Skiving Fins
    +
    +
    Specs
    Reviews (5)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Dynatron R18

    Model
    Brand Dynatron
    Model R18
    Details
    Color Black
    Type Fan & Heatsinks
    Fan Size 80mm
    Bearing Type 2 Ball
    RPM At Duty Cycle 20%: 1000 RPM, At Duty Cycle 50%: 3500 RPM, At Duty Cycle 100%: 6000 RPM
    Air Flow At Duty Cycle 20%: 6.5 CFM, At Duty Cycle 50%: 11.2 CFM, At Duty Cycle 100%: 19.1 CFM
    Noise Level At Duty Cycle 20%: 21.5 dBA, At Duty Cycle 50%: 43.0 dBA, At Duty Cycle 100%: 55.8 dBA
    Power Connector 4 Pin

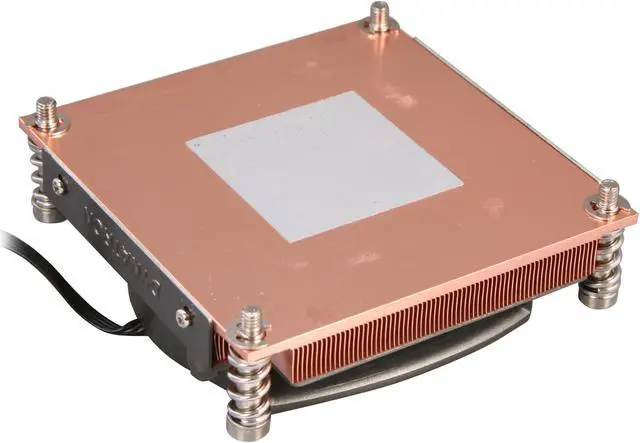

    Heatsink Material Copper Heatsink with Skiving Fins
    Fan Mounting Types to Heatsink Vertical
    Dimensions & Weight
    Fan Dimensions 80 x 80 x 15 mm
    Weight 480g
    Features
    Features Intel Sandy Bridge EP/EX Processors for socket 2011 1U Server

    Solution: 1U Solution

    Rated Voltage: 12 V

    Power:
    At Duty Cycle 20%: 0.6 W
    At Duty Cycle 50%: 3.84 W
    At Duty Cycle 100%: 14.4 W

    Air Pressure:
    At Duty Cycle 20%: 2.27 mm-H2O
    At Duty Cycle 50%: 18.56 mm-H2O
    At Duty Cycle 100%: 54.5 mm-H2O

    *Note:
    Support CPU Power up to 95 Watts
    Pre-print thermal compound Shin-Etsu G751
    Fin direction paralleled to system airflow
    RoHS Compliance
    Backplate is not included.
    Additional Information
    First Listed on Newegg August 26, 2016
