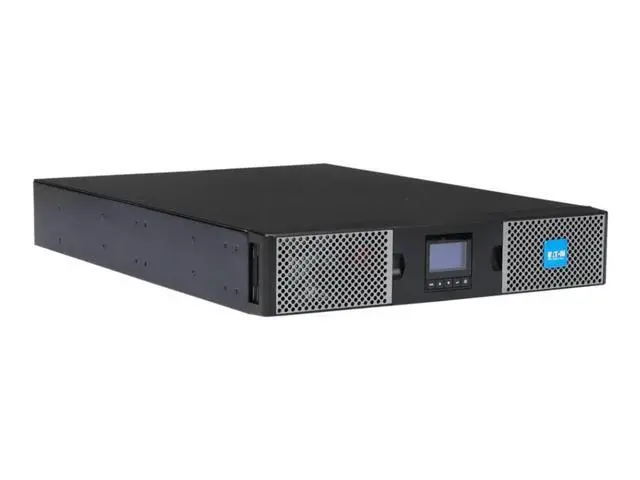

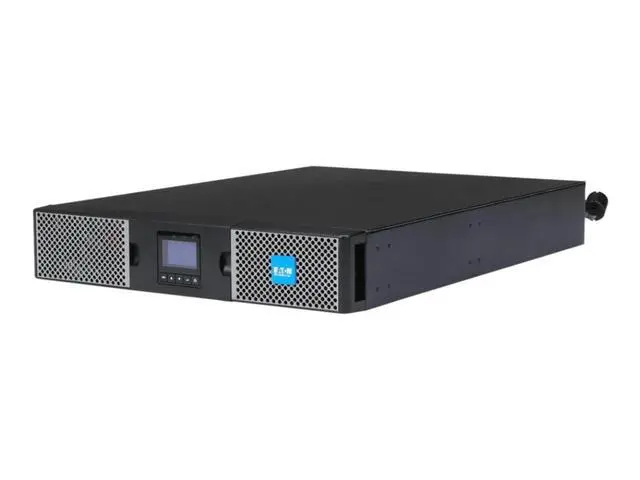

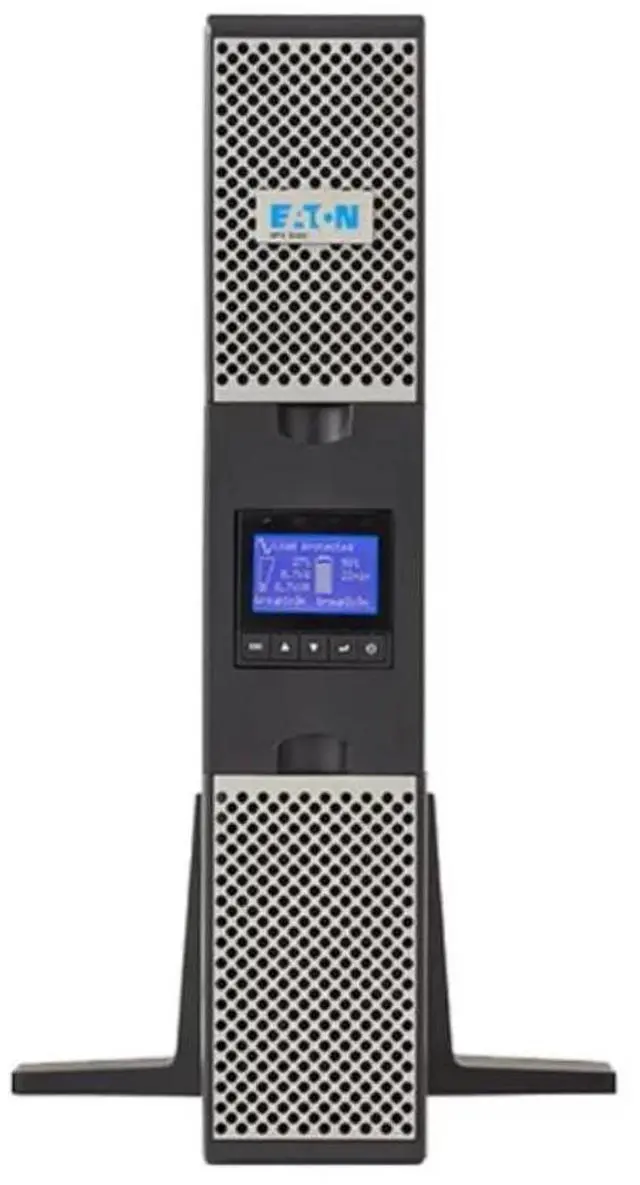

Eaton 9PX 2000VA 1800W 120V Online Double-Conversion UPS - 5-20P, 6x 5-20R, 1 L5-20R Outlets, Cybersecure Network Card

2kVA/ 1.8 kW/120V Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX2000RTN is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM72RT, sold separately) for hours of extended runtime.

Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you dont have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA Outlets Protect Your Connected Components

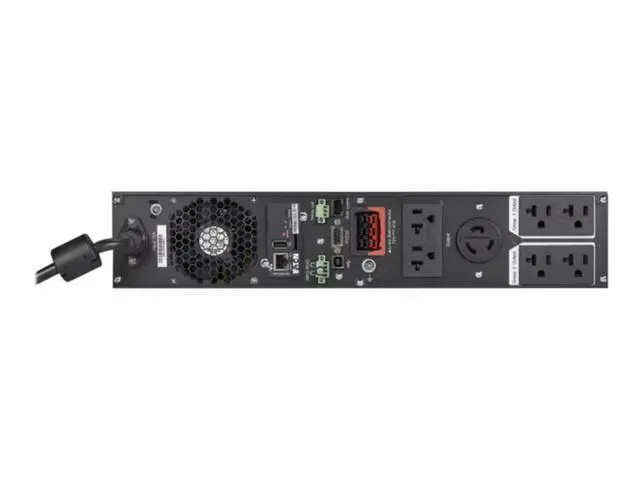

One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.


Keeps equipment running during outages to allow time for file saves and safe shutdown

Included NETWORK-M2 Gigabit network card enables full remote access and control

NEMA outlets split into separate switched banks for managed load shedding

Interactive LCD interface keeps you updated on critical load information in real time

Optional extended battery modules allow extended runtime to keep equipment powered









Miscellaneous





Package Contents




9PX2000RTN 2000VA Tower/Rack Mountable UPS

Network-M2 Web/SNMP Card

Safety Manual

User Manual

4-Post Rail Kit

Tower Pedestals

RS-232 Serial Cable

USB Cable

Intelligent Power Software Suite CD






Country of Origin



China





Environmentally Friendly



Yes





Energy Star



Yes





Environmental Compliance



Restriction of Hazardous Substances (RoHS)





Technical Information





Receptacle Type



NEMA L5-20R







NEMA 5-20R





Transfer Time



0 ns





Receptacle Detail



6 x NEMA 5-20R







1 x NEMA L5-20R





Physical Characteristics





Weight (Approximate)



61.51 lb





Form Factor



Rack/Tower





Rack Height



2U





Height



3.4





Width



17.3





Depth



23.8





General Information





Product Type



Double Conversion Online UPS





Manufacturer Part Number



9PX2000RTN





Manufacturer Website
