Eaton 5P000RC 1000/770 RM 89/151VAC

1000VA/770W/120V Battery Backup for Network Closets and Small Data Centers

This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1000RC protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

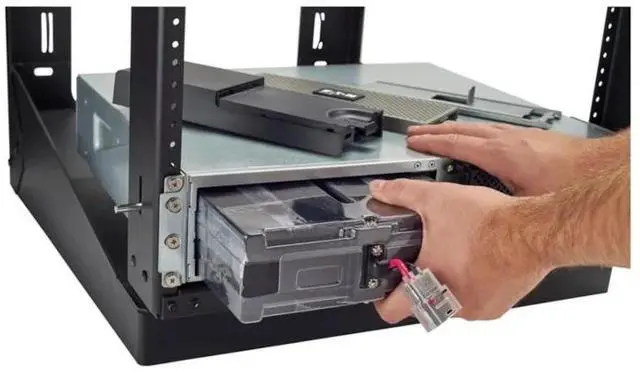

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you dont have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA 5-15R Outlets Protect Your Connected Components

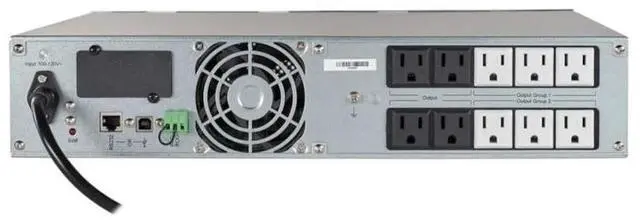

Ten managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Six outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.


Keeps equipment running during outages to allow time for file saves and safe shutdown

Provides 20% more wattage compared to traditional UPS systems to protect devices

Exclusive ABM technology with 3-stage charging increases internal battery life by 50%

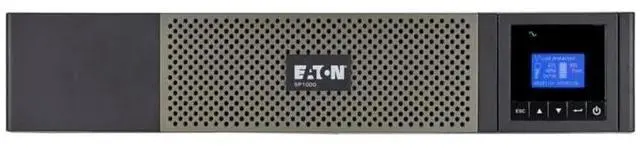

5-button graphical LCD offers critical UPS data and load status at a glance

Optional NETWORK-M2 Gigabit network card enables full remote access and control









Technical Information





Receptacle Type



NEMA 5-15R





Receptacle Detail



10 x NEMA 5-15R





Miscellaneous





Package Contents




1000VA Rack/Wall Mountable UPS

Quick Start Guide

USB Cable

RS-232 Serial Cable

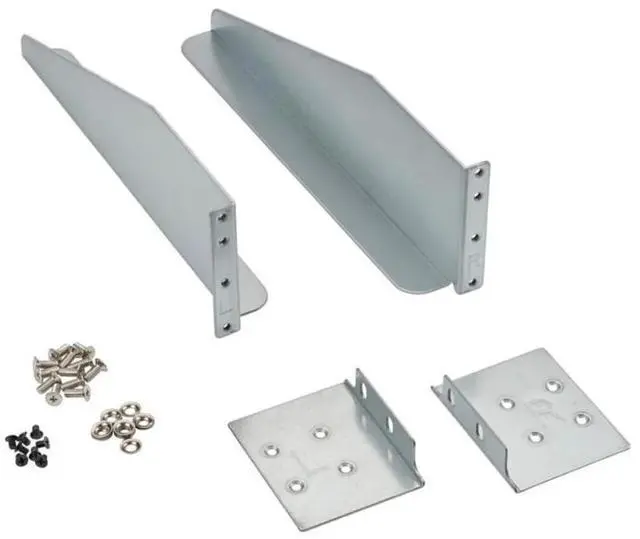

Multi-purpose Rail Kit






Country of Origin



Philippines





Environmentally Friendly



Yes





Environmental Compliance



Restriction of Hazardous Substances (RoHS)





Power Description





Input Voltage



120 V AC





Output Voltage



120 V AC





Load Capacity (VA)



1000 VA





Load Capacity (Watt)



770 W












General Information





Product Type



Line-interactive UPS





Manufacturer Part Number



5P1000RC





Manufacturer Website Address



http: //www. eaton. com





Manufacturer



Eaton Corporation





Product Name



1000VA Rack/Wall Mountable UPS





Brand Name



Eaton





Physical Characteristics





Weight (Approximate)



33.07 lb





Form Factor



Wall Mountable







Rack-mountable





Rack Height



2U





Height



3.4





Width



17.3





Depth



16
