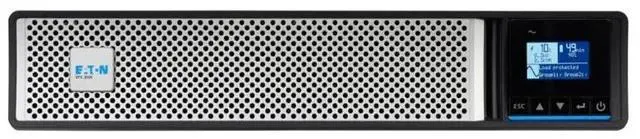

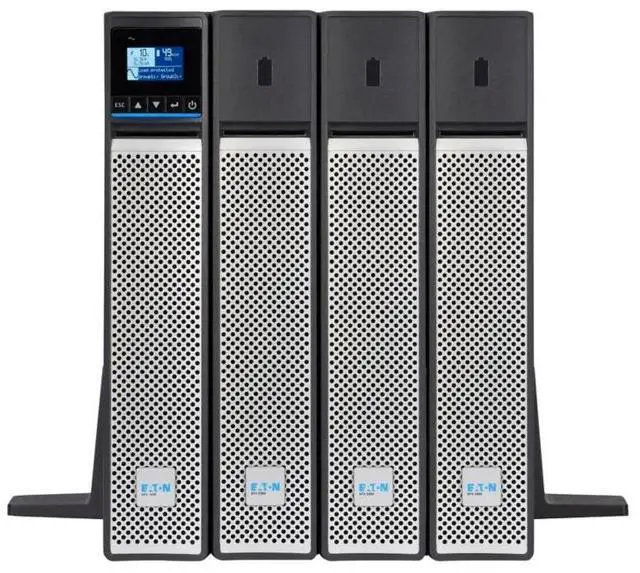

Eaton 5PX G2 3000VA 3000W 120V Line-Interactive UPS - 6 NEMA 5-20R, 1 L5-30R Outlets, Cybersecure Network Card Included,

3kVA/3kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

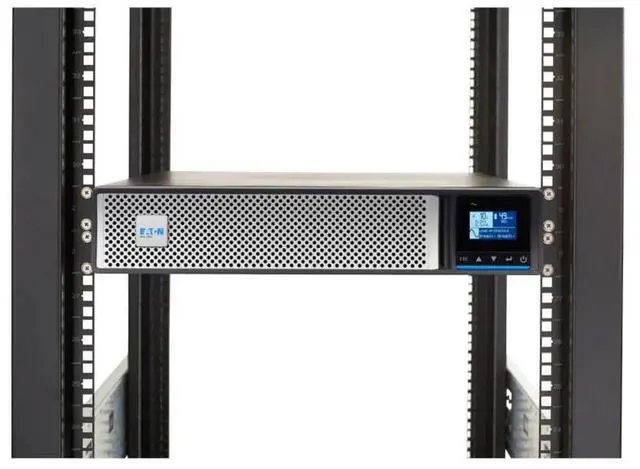

This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX3000RTNG2 is ideal power management for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (5PXEBM72RTG2, sold separately) for hours of extended runtime.

Included Gigabit Network Interface Offers 24/7 Remote Access

The Network-M3 network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the Network-M3 without dropping the load, so you dont have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA Outlets Protect Your Connected Components

One L5-30R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.



Protects equipment against blackouts, brownouts, transient surges and line noise

Keeps equipment running during outages to allow time for file saves and safe shutdown

Unity power factor ensures maximum power possible at each power rating

ENERGY STAR 2.0 -certified to save electricity, lower costs and protect the environment

Included Gigabit network card enables full remote access and management 24/7








Controls/Indicators





Status Indicators



LCD Graphical Display





Interfaces/Ports





USB (HID Compliant) Port



Yes





Management





Network Management



Network-M3 Card





Battery Information





Battery Chemistry



Lead Acid





Backup/Run Time (Full Load)



6 Minute





Battery Characteristics



Sealed





Replaceable Battery



Yes





Power Description





Input Voltage



120 V AC





Input Frequency



60 Hz





Load Capacity (VA)



3000 VA





Load Capacity (Watt)



3000 W





Miscellaneous





Package Contents




5PX G2 UPS

Tower Pedestal Feet

Four-post Rail Kit

Quick Start Guide

Safety Guide

USB Cable

RS-232 Cable

Gigabit Network Card (Network-M3)






Country of Origin



Philippines





Environmentally Friendly



Yes





Energy
