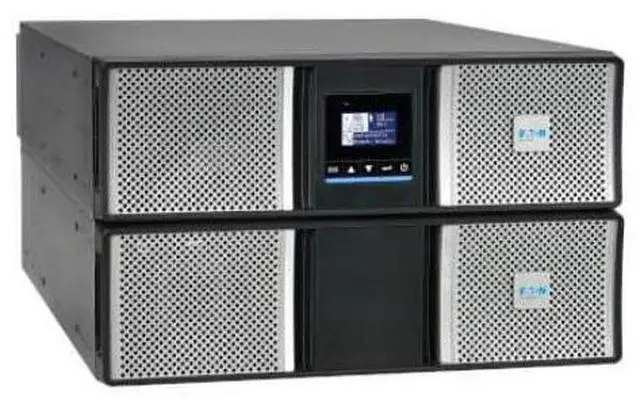

Eaton 9PX G2 6000VA 5400W 208/120V Online Double-Conversion UPS - L6-30P Input - 6x 5-20R - 1x L6-30R - 1x L14-30R - Cybersecure Network Card - Extended Run - 6U Rack/Tower - 9PX6KP1G2

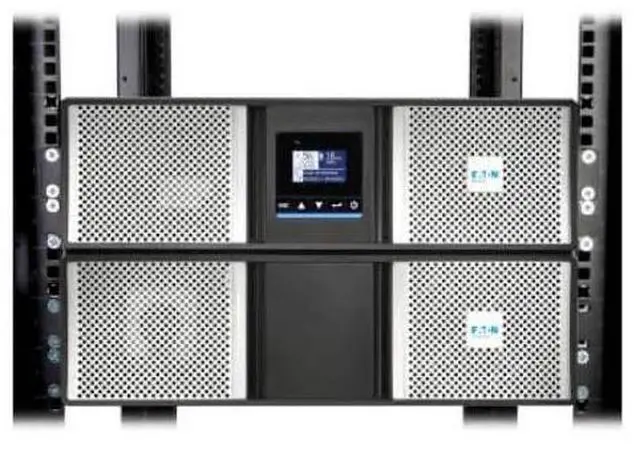

- 6U Rack/Tower
- 3 Hour Recharge - 3 Minute Stand-by
- 230 V AC Input - 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC, 100 V AC, 110 V AC, 120 V AC Output
- Single Phase - Pure Sine Wave
- Serial Port - USB
- LCD Display

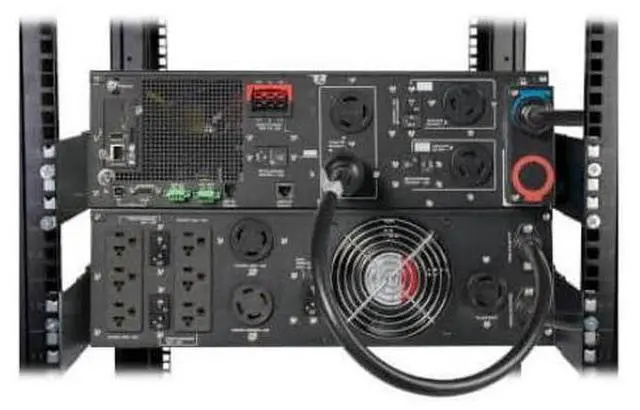

- 6 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R Receptacle(s)
- Network-M3 Card, INDGW-M2 Card, Relay-MS Card
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
| 6kVA/5.4kW/120V/208V Battery Backup for Distributed IT and Edge Networks; Delivers Maximum Power Reliability with Best-in-Class Efficiency; Expandable Internal Battery Backup Keeps You Operational Through Power Outages | |
| Humidity Range Operating: | 0-95% non-condensing |
| Max Operating Temperature: | 40 CELSIUS |
| Min Operating Temperature: | 0 CELSIUS |
| Voltage Output: | 120V; 208V; 240V; 200V; 220V; 230V |
| Power / Device Type: | UPS |
| Power / Voltage Required: | 200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
| Power Device / Form Factor: | Rack-Mountable; Tower |
| UPS Technology: | Online |
- Power
| Surge Suppression: | Yes |
| Power Provided (VA): | 6000 VA |
| Power / Provided (W): | 5.4 KW |
- Dimensions&Miscellaneous
| Depth: | 27.000 Inch |
| Height: | 10.200 Inch |
| Width: | 17.300 Inch |
| Model: | 9PX6KP1G2 |
| Weight: | 203 lbs. |
- Connection
| Output Connector(s): | (6) 5-20R; (1) L6-30R; (1) L14-30R |
| Input Connector(s): | NEMA L6-30P |
| Interfaces & Connections: | NEMA L6-30P;(6) 5-20R; (1) L6-30R; (1) L14-30R |
- Battery
| Battery Type: | Valve Regulated Lead Acid |
| Battery Technology: | VRLA |
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-773-869-1111
- Support Website
- View other products from Tripp Lite
LOADING...
The Eaton 9PX6KP1G2 is a 6,000VA/5,400W online double-conversion UPS for businesses and IT teams protecting server, network, and other critical equipment; it includes a cybersecure Gigabit network card, maintenance-bypass distribution module, and rack/tower mounting hardware.
Recommended For
- IT teams protecting rack servers, storage, and network equipment that need online double-conversion power conditioning and a safe-shutdown window during outages.
- MSPs and infrastructure teams that need remote UPS monitoring and control, plus a maintenance bypass for servicing connected equipment.
- Facilities with a suitable 200–240V supply that need to protect a substantial IT load and connect a mix of 120V and higher-voltage equipment.
- Operators who need longer backup time and can add compatible external battery modules as their runtime needs grow.
Real-World Use Scenarios
- A small server room or rack uses the UPS to ride through brief outages and give administrators time to save work or shut servers down cleanly; at heavier loads, the built-in battery is a short bridge, not long-duration backup.
- An IT team protects a rack of servers, storage, and network equipment from power interruptions; the 6 kVA unit can serve as a shared rack-level backup when the connected load and power connections are within its limits.
- A site with brief sags, surges, or line disturbances uses online double conversion to keep sensitive IT equipment supplied with conditioned power; the practical benefit is reducing exposure to incoming power fluctuations, not extending runtime during a prolonged outage.
- A remote IT team monitors a protected rack over the network and configures supported servers for orderly shutdown when an outage lasts longer than the battery can cover; the included network card supports remote access, while shutdown behavior depends on compatible software and setup.
- A rack containing both 120 V and 208 V equipment uses the included distribution module to connect compatible loads from one UPS; the maintenance-bypass feature can help keep loads supplied from utility power during UPS servicing when the installation is configured for bypass.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Short-term backup power for connected equipment, with a 6,000 VA / 5,400 W capacity and multiple outlet types |
| Capacity And Output | 6,000 VA / 5,400 W, with 50 Hz and 60 Hz output frequencies |
| Input And Output Voltage | 230 V AC input; selectable output voltages of 100, 110, 120, 200, 208, 220, 230, or 240 V AC |
| Outlets | Six NEMA 5-20R, one NEMA L6-30R, and one NEMA L14-30R receptacle |
| Battery And Runtime | 180 V DC valve-regulated lead-acid battery system; runtime is 3 minutes at full load and 8.3 minutes at half load |
| Battery Recharge | Typical recharge time is 3 hours |
| Dimensions And Weight | 10.2 in H × 17.3 in W × 27 in D; 203 lb |
| Included Accessories | PowerPass distribution module with maintenance bypass, NETWORK-M3 Gigabit Network Card, USB and RS-232 cables, rack-mounting hardware, tower support stands, and quick start guide |
| Model Identifiers | Eaton model 9PX6KP1G2; part number 9PX6KP1G2 |
