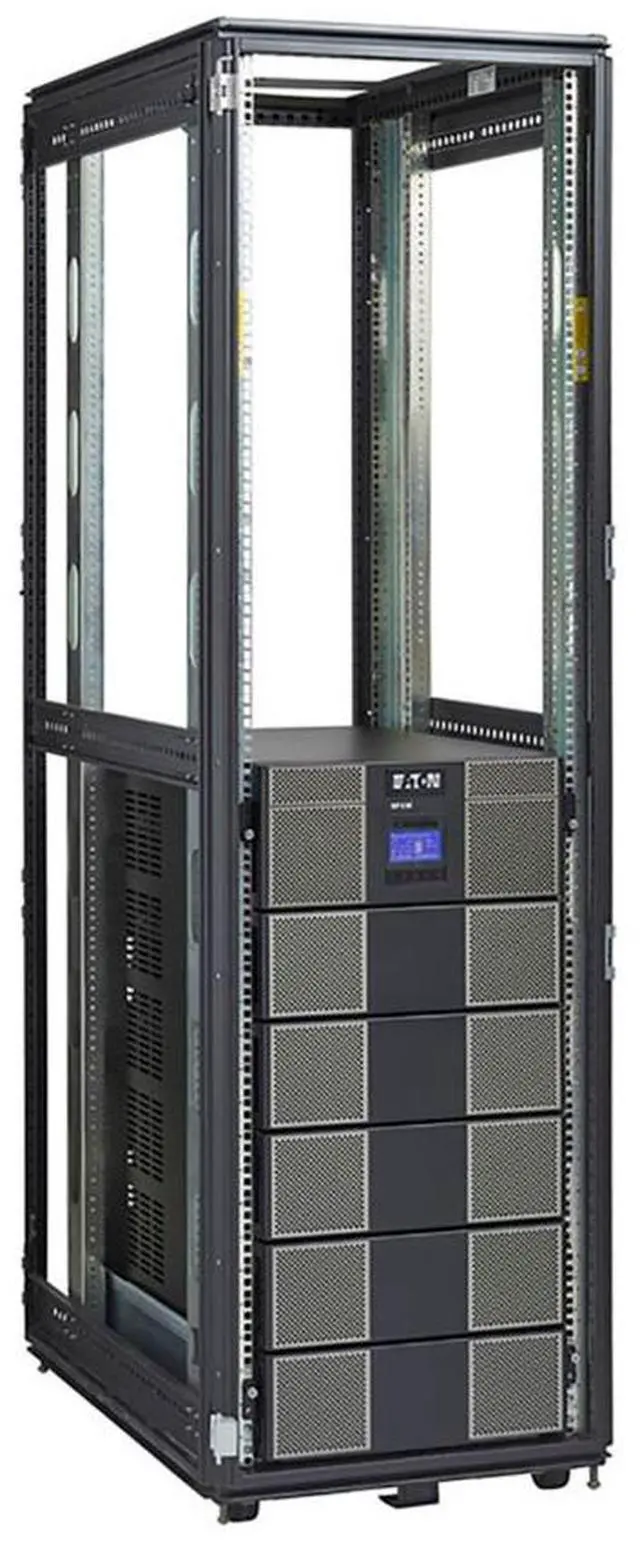

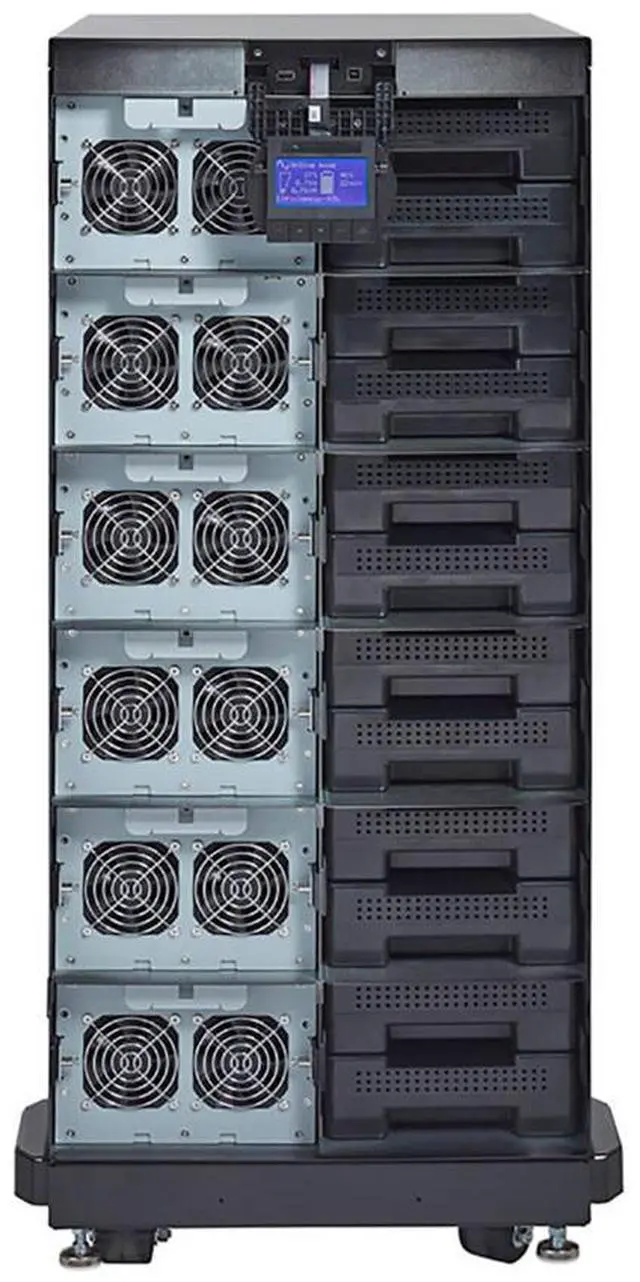

Eaton 9PXM12AAAAA UPS frame, 4-20 kVA (N+1), Hardwired input, Hardwired output, Rack/Tower, 21U, Online/Double-conversion, Free standing model, Black/silver, 110V/220V, 120V/208V, 120V/240V, 127V/220V

Product Name Eaton 9PXM UPS
Catalog Number 9PXM12AAAAA
UPC 743172091390
Product Length/Depth 34.5 in
Product Height 36.5 in
Product Width 17.5 in
Product Weight 170 lb
Compliances TAA Compliant, FCC Compliant
Certifications IEC Rated, cULus Listed
Product Type UPS
Input connection Hardwired
Input nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
Input power factor >0.99 typical
Input frequency range 60 Hz: 50–70 Hz
Receptacle Hardwired
Output frequency 60 Hz
Voltage 120/208V
Output nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
Output waveform True sine wave
Output power factor 0.9
Topology Online/Double-conversion
Expansion slots (2) Mini-Slot (MS) expansion ports. The following optional connectivity cards may be ordered separately.
Gigabit Network Card part number: NETWORK-M2
Modbus card part number: INDGW-M2
Relay card part number: RELAY-MS
Temperature range 0° to 40°C (32° to 104°F)
Relative humidity 5-95% non-condensing
Internal bypass Yes
Auto shutdown function Yes
Color Black/silver
Hot swap power Yes
