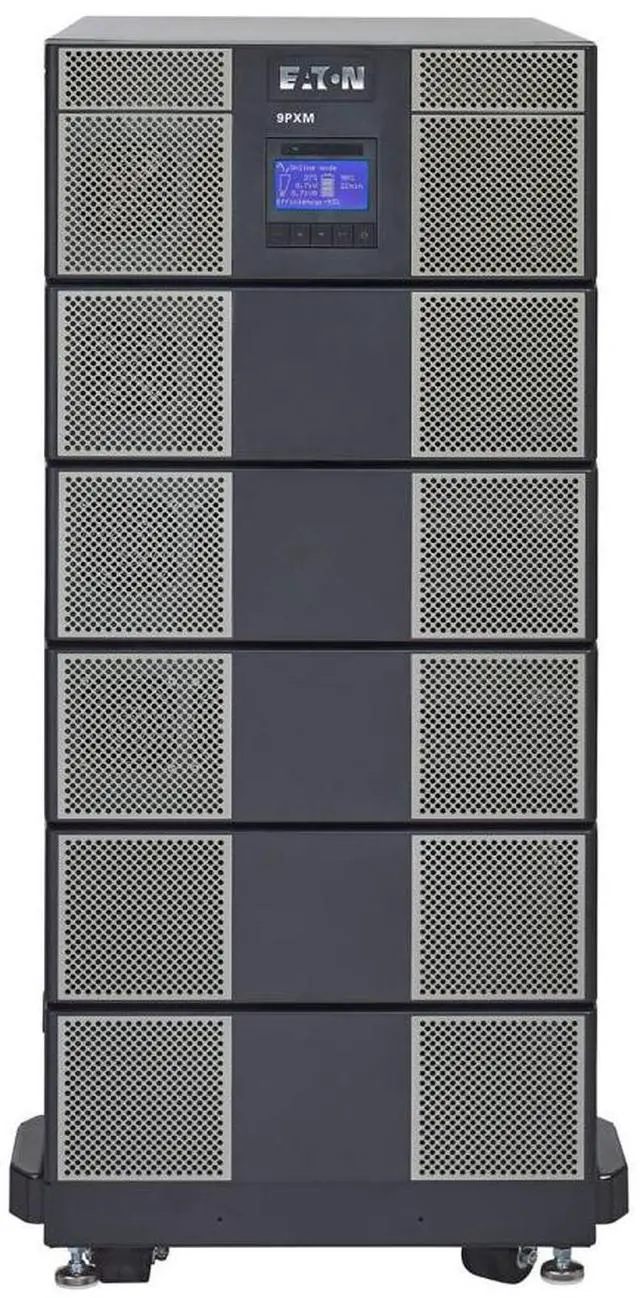

Eaton 9PXM12S12K 9PXM UPS, 12 kVA scalable to 20 kVA (N+1), Hardwired input, Hardwired output, 208-240V, Rack/Tower, 21U
- Product Name Eaton 9PXM UPS
- Catalog Number 9PXM12S12K
- UPC 743172091499
- Product Length/Depth 34.5 in
- Product Height 36.5 in
- Product Width 17.5 in
- Product Weight 482 lb
- Compliances TAA Compliant, FCC Compliant
- Certifications IEC Rated, cULus Listed
- Product Type UPS
- Input connection Hardwired
- Input nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
- Input power factor >0.99 typical
- Input frequency range 60 Hz: 50–70 Hz
- Receptacle Hardwired
- Output frequency 60 Hz
- Voltage 120/208V
- Output nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
- VA rating 12 kVA
- Wattage 10.8 kW
- Output waveform True sine wave
- Output power factor 0.9
- Topology Online/Double-conversion

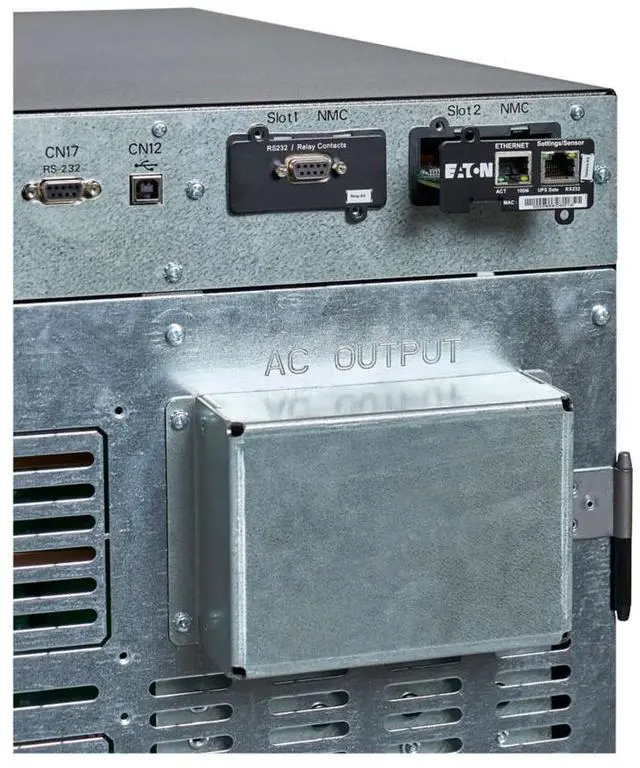

- Expansion slots (2) Mini-Slot (MS) expansion ports. The following optional connectivity cards may be ordered separately.
- Gigabit Network Card part number: NETWORK-M2
- Modbus card part number: INDGW-M2
- Relay card part number: RELAY-MS
- Temperature range 0° to 40°C (32° to 104°F)
- Relative humidity 5-95% non-condensing
- Internal bypass Yes
- Auto shutdown function Yes
- Color Black/silver
- Hot swap power Yes
+
+
Learn more about the Eaton 9PXM12S12K
| Brand | EATON |
|---|---|
| Model | 9PXM12S12K |
| Input Voltage Range | 208 V AC - 240 V AC |
|---|
| Outlets | Hardwired |
|---|
| First Listed on Newegg | September 22, 2018 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
The Eaton 9PXM12S12K is a 12 kVA, 10.8 kW online double-conversion UPS that can scale to 20 kVA with N+1 capability, suited to businesses protecting critical IT or other high-power equipment with compatible hardwired 208–240 V infrastructure.
Recommended For
- Data-center and IT teams protecting critical server or network loads that need online, double-conversion power protection and the option to add N+1 power-module redundancy.
- Organizations with growing or changing power needs that want to add capacity, redundancy, or battery runtime to a modular UPS instead of replacing the whole system.
- Retail, banking, call-center, or emergency-response sites that need centralized backup for business-critical equipment and plan to integrate the UPS with rack power and monitoring systems.
- IT operators who need to replace power or battery modules while the UPS remains in normal operation, reducing the need to take the system offline for routine module replacement.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack/tower UPS installations with 208–240 V AC input and hardwired outlets |
| Power Connections | 208–240 V AC input with hardwired outlets |
| Physical Dimensions | 35 × 18 × 37 in for both item and package dimensions |
| Color | Multicolor |
| Model Identifiers | Eaton 9PXM12S12K; manufacturer listed as Eaton Electrical |
