OUT OF STOCK

• Product Name Eaton 9PXM UPS
• Catalog Number 9PXM12S20K
• UPC 743172091512
• Product Length/Depth 34.5 in
• Product Height 36.5 in
• Product Width 17.5 in
• Product Weight 690 lb
• Compliances TAA Compliant, FCC Compliant
• Certifications IEC Rated, cULus Listed
• Product Type UPS
• Extended battery capability Yes
• Input connection Hardwired
• Input nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
• Input power factor >0.99 typical
• Input frequency range 60 Hz: 50–70 Hz
• Receptacle Hardwired
• Output frequency 60 Hz
• Voltage 120/208V
• Output nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
• VA rating 20 kVA
• Wattage 18 kW
• Output waveform True sine wave
• Output power factor 0.9
• Topology Online/Double-conversion

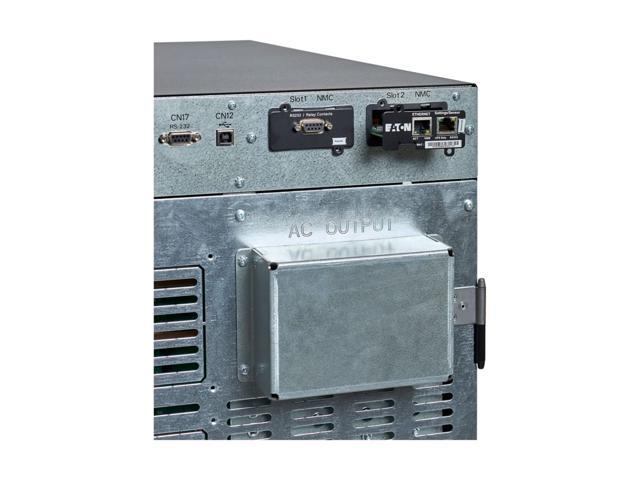

• Expansion slots (2) Mini-Slot (MS) expansion ports. The following optional connectivity cards may be ordered separately.
• Gigabit Network Card part number: NETWORK-M2
• Modbus card part number: INDGW-M2
• Relay card part number: RELAY-MS
• Temperature range 0° to 40°C (32° to 104°F)
• Relative humidity 5-95% non-condensing
• Internal bypass Yes
• Auto shutdown function Yes
• Color Black/silver
• Hot swap power Yes
