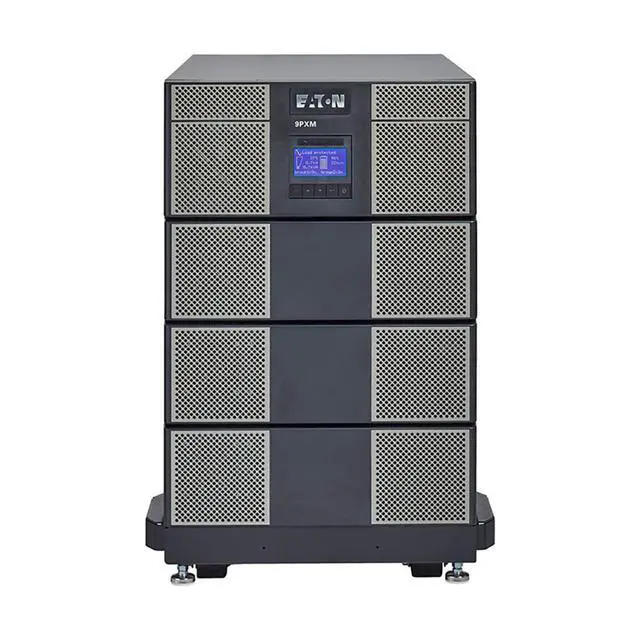

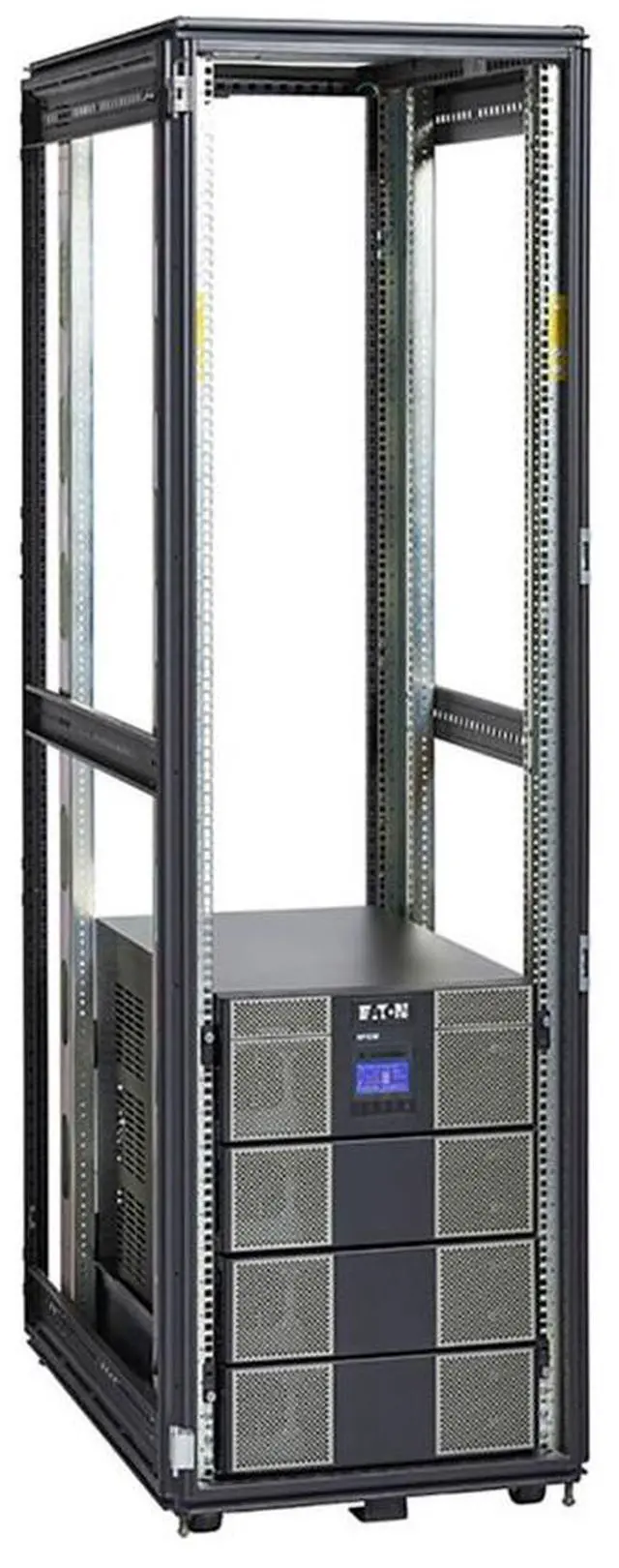

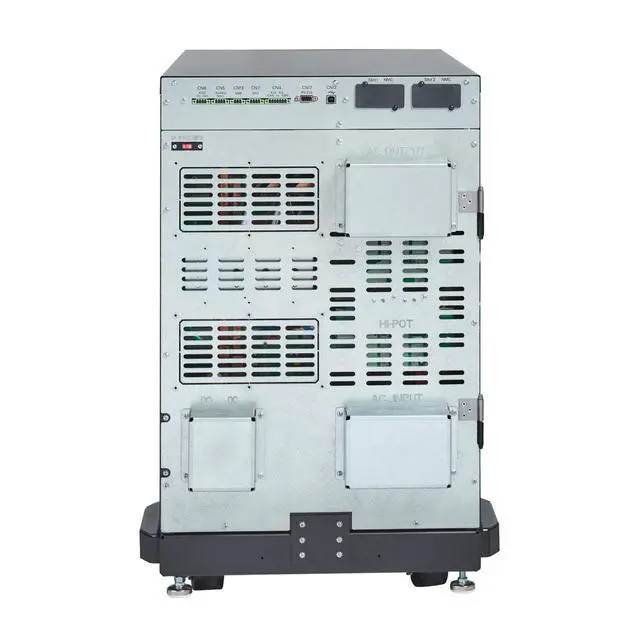

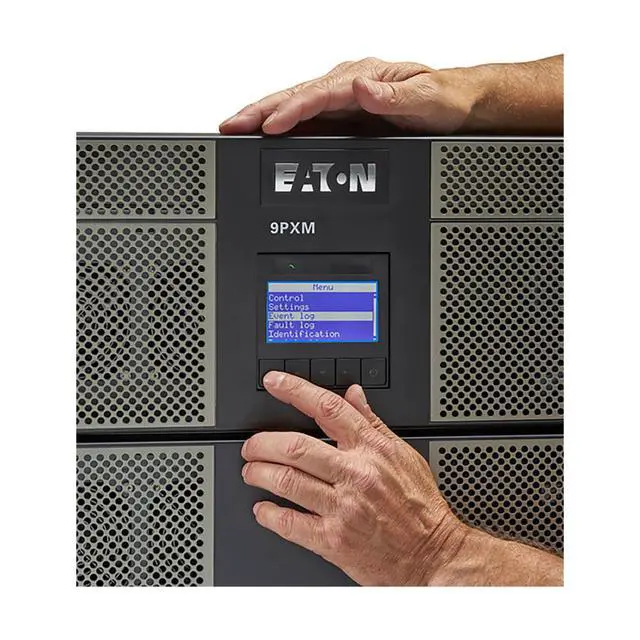

Eaton 9PXM8S8K 9PXM UPS, 8 kVA scalable to 16 kVA, Hardwired input, Hardwired output, 208-240V, Rack/Tower, 14U
- Product Name Eaton 9PXM UPS
- Catalog Number 9PXM8S8K
- UPC 743172091536
- Product Length/Depth 34.5 in
- Product Height 25 in
- Product Width 17.5 in
- Product Weight 333 lb
- Compliances TAA Compliant, FCC Compliant
- Certifications IEC Rated, cULus Listed
- Product Type UPS
- Extended battery capability Yes
- Input connection Hardwired
- Input nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
- Input power factor >0.99 typical
- Input frequency range 60 Hz: 50–70 Hz
- Receptacle Hardwired
- Output frequency 60 Hz
- Voltage 120/208V
- Output nominal voltage 110V/220V, 120V/208V, 120V/240V, 127V/220V
- VA rating 8 kVA
- Wattage 7.2 kW
- Output waveform True sine wave
- Output power factor 0.9
- Topology Online/Double-conversion

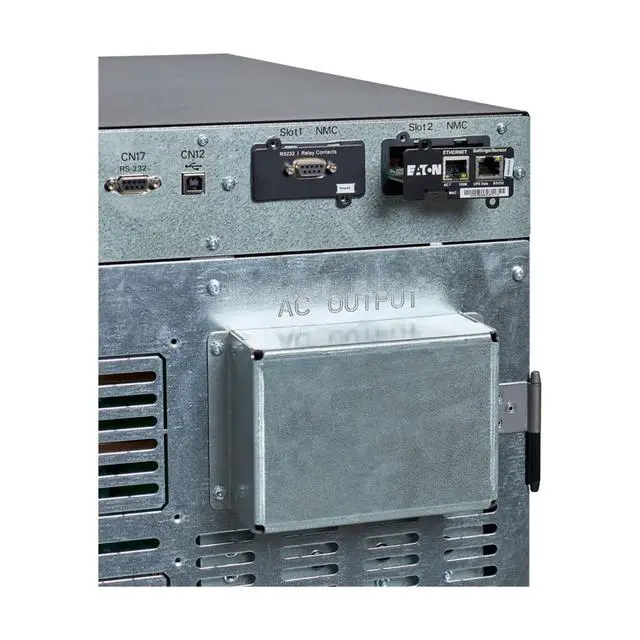

- Expansion slots (2) Mini-Slot (MS) expansion ports. The following optional connectivity cards may be ordered separately.
- Gigabit Network Card part number: NETWORK-M2
- Modbus card part number: INDGW-M2
- Relay card part number: RELAY-MS
- Temperature range 0° to 40°C (32° to 104°F)
- Relative humidity 5-95% non-condensing
- Internal bypass Yes
- Auto shutdown function Yes
- Color Black/silver
- Hot swap power Yes
+
+
Learn more about the Eaton 9PXM8S8K
| Brand | EATON |
|---|---|
| Model | 9PXM8S8K |
| Input Voltage Range | 208 V AC - 240 V AC |
|---|
| Outlets | Hardwired |
|---|
| First Listed on Newegg | September 22, 2018 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
The Eaton 9PXM8S8K is an online, double-conversion UPS rated at 8 kVA (7.2 kW) and scalable to 16 kVA, suited to data centers and facilities that need hardwired backup power for critical IT or infrastructure equipment.
Recommended For
- IT teams protecting server and network racks in small data centers or equipment rooms that need online, double-conversion backup and room to expand capacity.
- Organizations running critical retail or edge-IT equipment that want a rack-or-tower UPS with modular capacity and battery expansion as needs change.
- Facilities teams planning a hardwired 208–240V installation for substantial IT loads, with qualified electrical support for setup.
- IT operators who expect power requirements to grow and want to add UPS power modules or batteries instead of replacing the entire system.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | UPS backup for equipment with hardwired connections |
| Input And Output Connections | Hardwired connections |
| Input Voltage | 208–240 V AC |
| Weight | 333 lb |
| Color | Multicolor |
| Brand And Model | Eaton 9PXM8S8K; also listed as 9PXM8S8K 13228464 |
