Technical Information
Proprietary Slot Type: X-Slot
Management: Power Failure Monitoring
Protocols: NTP
Protocols: UDP/IP
Protocols: TCP/IP
Protocols: SMTP
Protocols: DHCP
Protocols: SNMP v1
Protocols: SNMPv3
Protocols: HTTP
Protocols: HTTPS
Interfaces/Ports
USB: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
Network & Communication
Ethernet Technology: Fast Ethernet
Physical Characteristics
Height: 1.5"
Width: 4.7"
Depth: 4.5"
Weight (Approximate): 7.10 oz
Miscellaneous
Compatibility:
Eaton Powerware UPS
Certifications & Standards:
CISPR 22 Class A
EN55022
FCC Part 15 A
Environmentally Friendly: Yes
Environmental Certification: RoHS

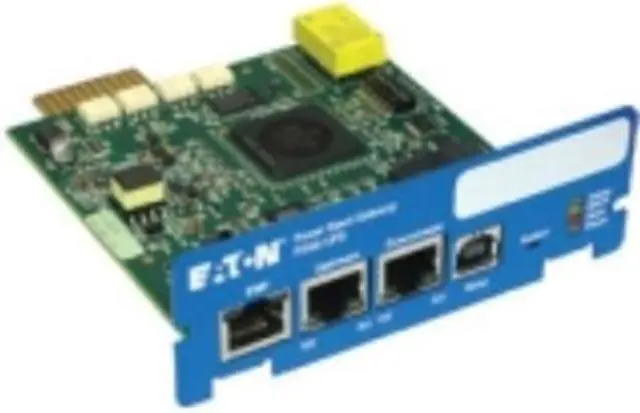

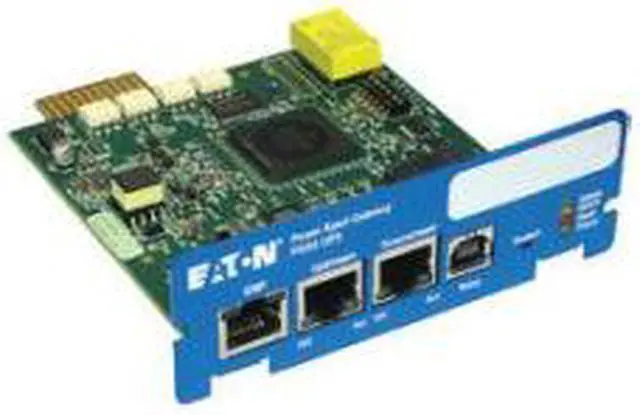

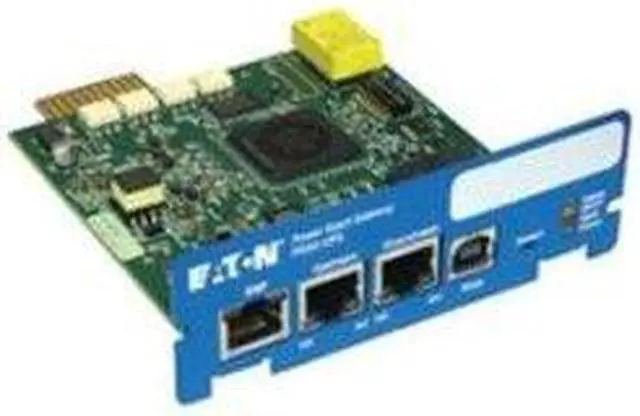

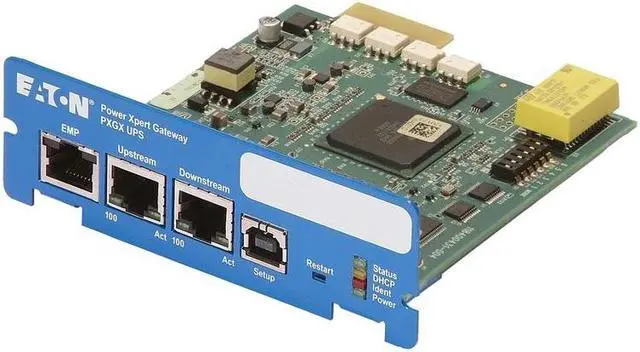

Learn more about the Eaton PXGXUPS
Model
Brand
EATON
Series
Power Xpert Gateway
Model
PXGXUPS
Details
Type
Expansion Card
Compatibility
Eaton 9155, 9315, 9355, 9390, 9390IT, 9395, and BladeUPS
Specifications

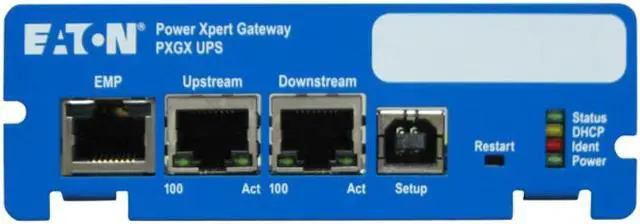

Ethernet ports: Two RJ45 ports: supports 10/100BaseT for daisy chaining via integrated Ethernet switch Serial ports: One USB port: supports local configuration and one RJ45 for optional connection to an Environmental Monitoring Probe (EMP)
Environmental:
Ambient operating: 0 to 40 Celcius degrees
Relative humidity: 10 to 80%, non-condensing
Altitude: 10000 Feet
Enclosure rating: Indoor use only
Certifications FCC Part 15, Class A CISPR 22, Class A ROHS compliant
Features
Features
Web-enabled monitoring of power quality data
Data, event and system logging with time stamp
Modbus TCP/IP and SNMP v3 Support
Intelligent email communications
Easy integration into existing Ethernet infrastructure
Netwatch shut-down client compatibility
Seamless integration of Eaton UPSs into Power Xpert Software
Dimensions & Weight
Dimensions
4.70" x 4.50" x 1.50"
Weight
200 g
Package Contents
Package Contents
Power Xpert Gateway UPS Card Local Configuration Cable Quick Start Guide
