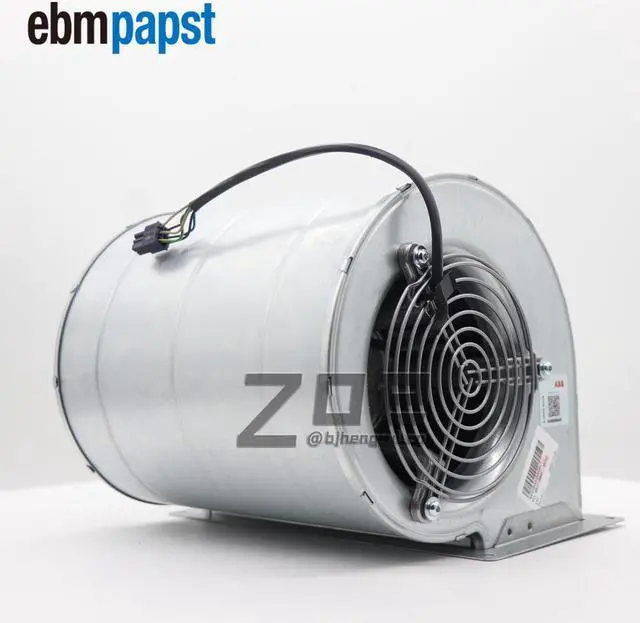

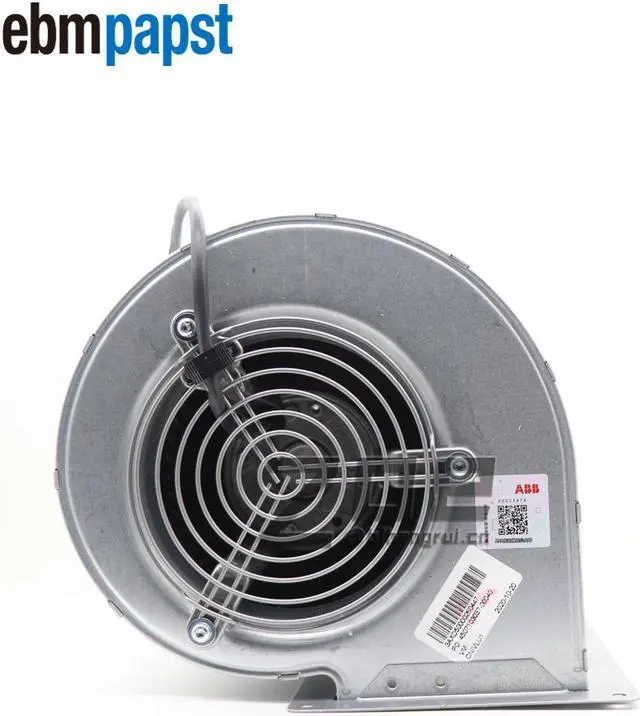

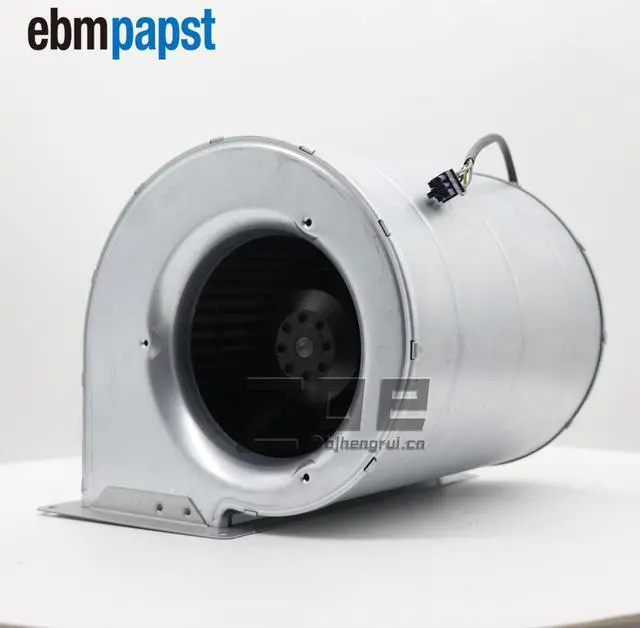

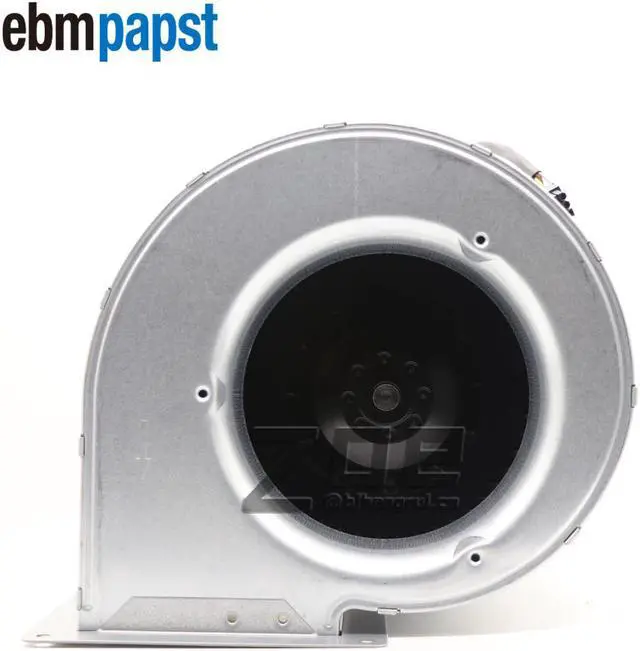

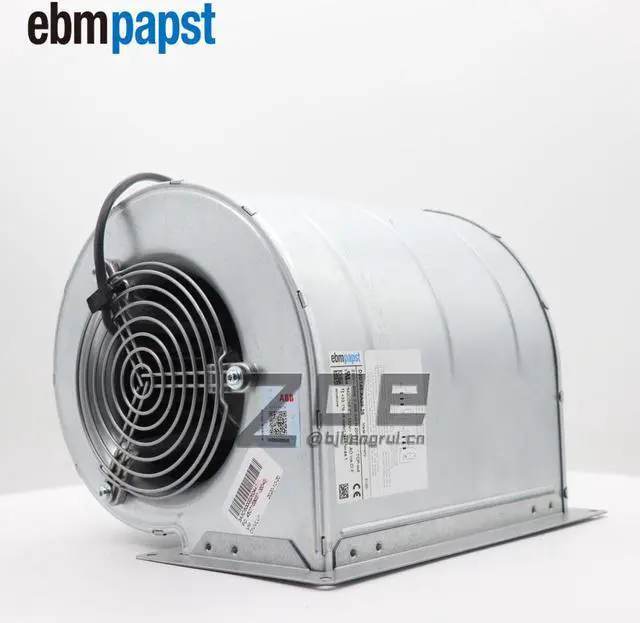

Ebmpapst D2D146-AA28-28 D2D146-AA02-22 Centrifugal Fan 230VAC 345W Inverter Fan
Limited time offer, ends 11/08 By Sunnystar Technology Co. Ltd
- Condition: 100% new and good quality;
- Brand:ebmpapst ;Model: D2D146-AA28-28;
- Motor:M2D068-EC; Nominal voltage / VAC:230;Frequency / Hz:50;
- Valid for approval/standard:CE;Speed (rpm) / min-1:2050;
- Power consumption / W :345;Current draw / A:0.88;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

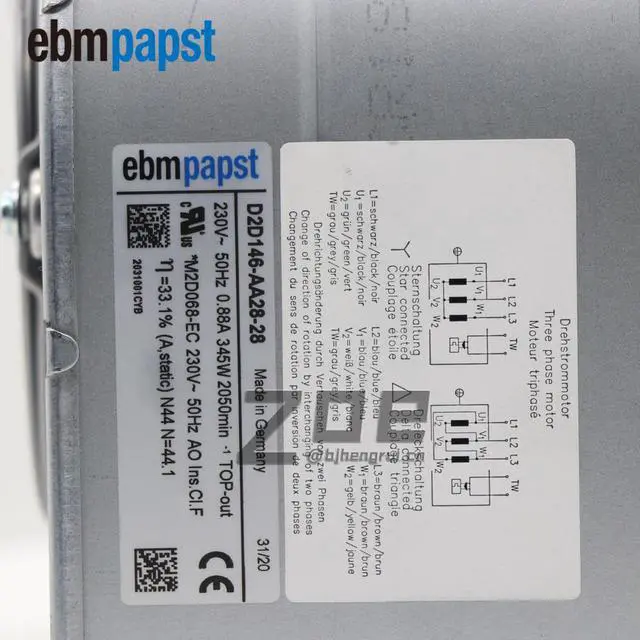

Nominal data:
Motor M2D068-EC
Phase 3~
Nominal voltage / VAC 230
Frequency / Hz 50
Valid for approval/standard CE
Speed (rpm) / min-1 2050
Power consumption / W 345
Current draw / A 0.88
Min. back pressure / Pa 200
Min. ambient temperature / °C -25
Max. ambient temperature / °C 40
Starting current / A 1
Technical description:
Weight 4.8 kg
Size 146 mm
Motor size 68
Rotor surface Painted black
Impeller material Sheet steel, painted black
Housing material Sheet steel, galvanized
Guard grille material Steel, coated with gray plastic (RAL 9006)
Motor suspension Motor mounted with brackets on one side
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent
Insulation class "F"
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Hybrid bearing
Touch current according to IEC 60990 < 0.75 mA

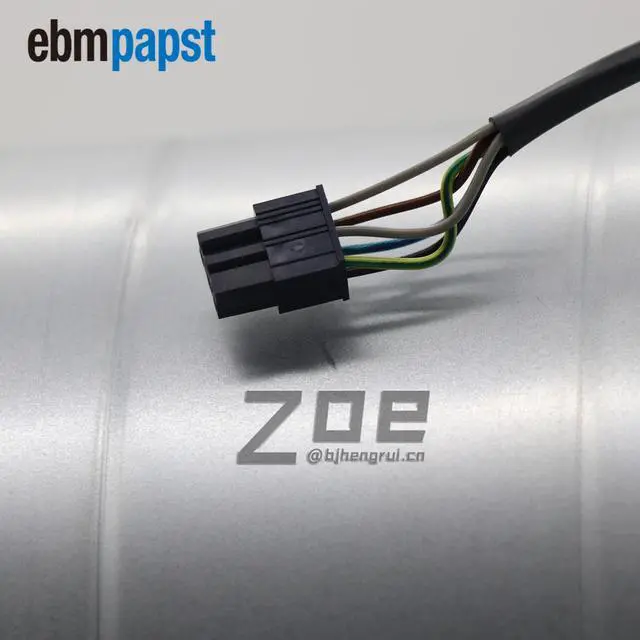

Electrical hookup Connector with cable
Motor protection Thermal overload protector (TOP) with basic insulation
with cable Variable
Protection class I
Conformity with standards EN 60335-1; CE
Approval CSA C 22.2 No. 100; UL 1004-1
PACKAGE: FAN * 1PCS
Motor M2D068-EC
Phase 3~
Nominal voltage / VAC 230
Frequency / Hz 50
Valid for approval/standard CE
Speed (rpm) / min-1 2050
Power consumption / W 345
Current draw / A 0.88
Min. back pressure / Pa 200
Min. ambient temperature / °C -25
Max. ambient temperature / °C 40
Starting current / A 1
Technical description:
Weight 4.8 kg
Size 146 mm
Motor size 68
Rotor surface Painted black
Impeller material Sheet steel, painted black
Housing material Sheet steel, galvanized
Guard grille material Steel, coated with gray plastic (RAL 9006)
Motor suspension Motor mounted with brackets on one side
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent
Insulation class "F"
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Hybrid bearing
Touch current according to IEC 60990 < 0.75 mA
Electrical hookup Connector with cable
Motor protection Thermal overload protector (TOP) with basic insulation
with cable Variable
Protection class I
Conformity with standards EN 60335-1; CE
Approval CSA C 22.2 No. 100; UL 1004-1
PACKAGE: FAN * 1PCS
