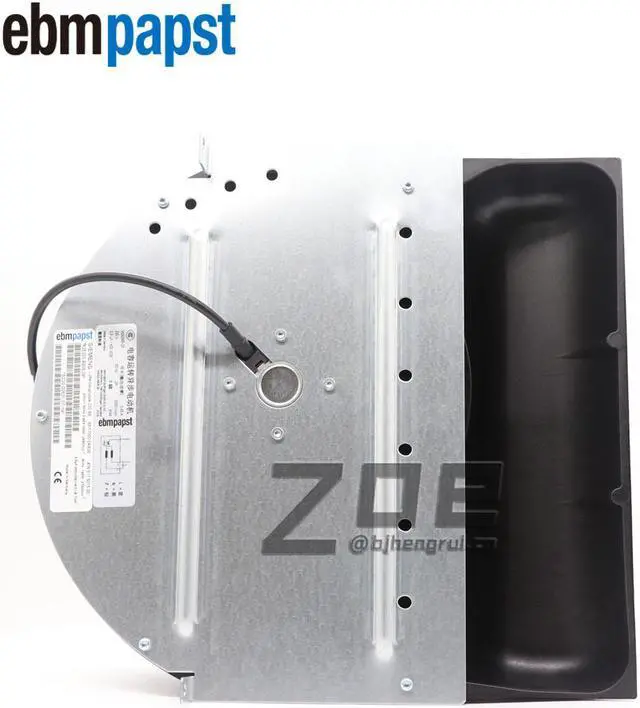

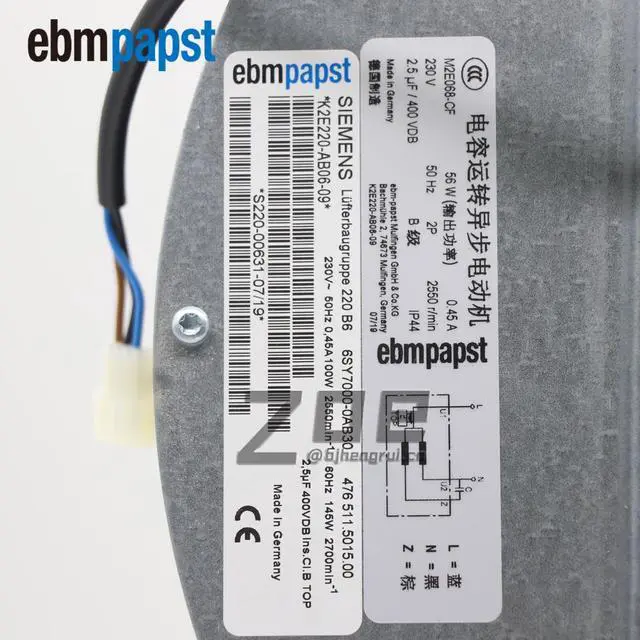

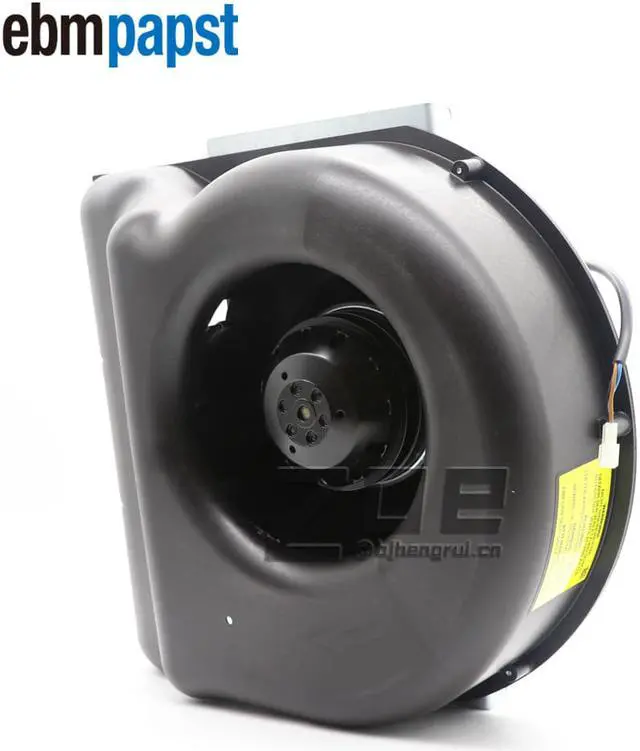

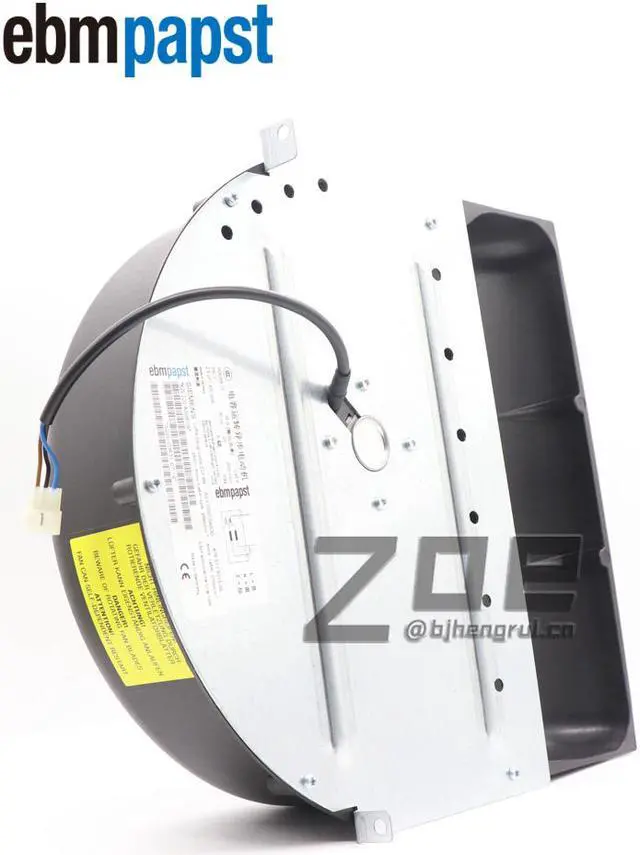

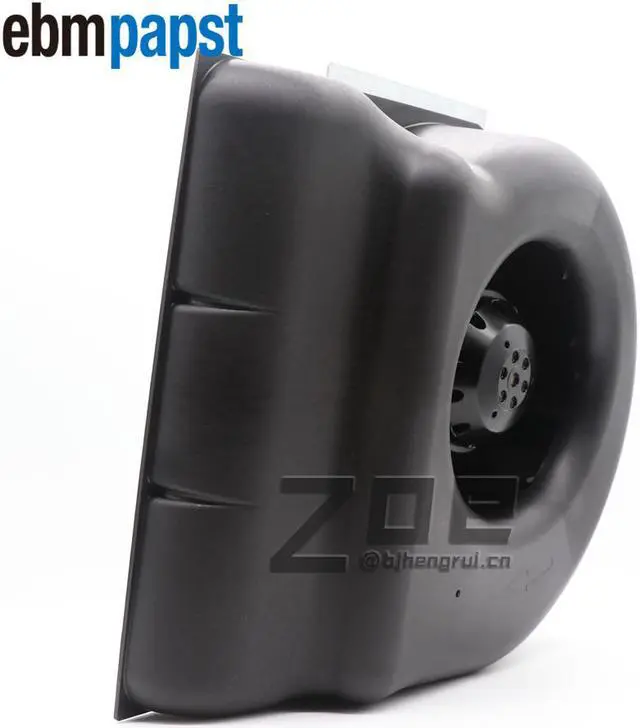

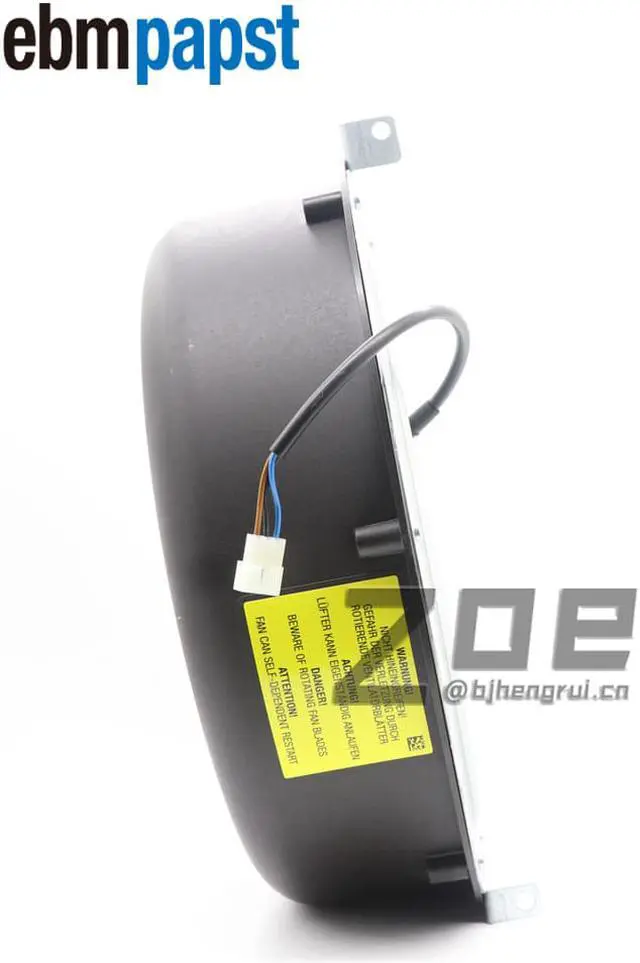

Ebmpapst K2E220-AB06-09 AC forward curved centrifugal fan with housing 6SY7000-0AB30 for Siemens
- Condition: 100% new and good quality.
- The impeller diameter Phi 220mm .
- [working voltage]: 230VAC ; [working frequency]: 50Hz~60Hz ;[working current]: 0.45A;[motor speed]: 2550min-1;[input power]: 100W ;[starting capacitor]: 2.5µF /400V ;
- For SIEMENS VVVF fan 6SY7000-0AB30(K2E220-AB06-09) 230VAC 0.45A IP44 cooling fan.
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Nominal data
Type K2E220-AB06-09
Motor M2E068-CF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Type of data definition cu cu
Valid for approval / standard CE CE
Speed min-1 2550 2700
Power input W 100 137
Current draw A 0.45 0.6
Motor capacitor µF 2.5 2.5
Capacitor voltage VDB 400 400
Capacitor standard P0 (CE)
Min. back pressure Pa 0 0
Max. ambient temperature °C 55 55
Starting current A 0.9 0.92
Technical features
Size 220 mm
Surface of rotor Coated in black
Material of impeller Plastic PA6, fibreglass-reinforced
Housing material Plastic PA6.6, fibreglass-reinforced
Number of blades 11
Direction of rotation Clockwise, seen on rotor
Type of protection IP 44; Depending on installation and position as per EN 60034-5
Insulation class "B"
Humidity class F1-2
Max. permissible ambient motor
temp. (transp./ storage)
+ 80 °C
Min. permissible ambient motor
temp. (transp./storage)
- 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
< 0.75 mA
Motor protection Thermal overload protector (TOP) wired internally
Cable exit Axial
Product conforming to standard EN 60335-1; CE
Approval CCC; UL 2111; CSA C22.2 Nr.77
Package: fan * 1pcs
Type K2E220-AB06-09
Motor M2E068-CF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Type of data definition cu cu
Valid for approval / standard CE CE
Speed min-1 2550 2700
Power input W 100 137
Current draw A 0.45 0.6
Motor capacitor µF 2.5 2.5
Capacitor voltage VDB 400 400
Capacitor standard P0 (CE)
Min. back pressure Pa 0 0
Max. ambient temperature °C 55 55
Starting current A 0.9 0.92
Technical features
Size 220 mm
Surface of rotor Coated in black
Material of impeller Plastic PA6, fibreglass-reinforced
Housing material Plastic PA6.6, fibreglass-reinforced
Number of blades 11
Direction of rotation Clockwise, seen on rotor
Type of protection IP 44; Depending on installation and position as per EN 60034-5
Insulation class "B"
Humidity class F1-2
Max. permissible ambient motor
temp. (transp./ storage)
+ 80 °C
Min. permissible ambient motor
temp. (transp./storage)
- 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
< 0.75 mA
Motor protection Thermal overload protector (TOP) wired internally
Cable exit Axial
Product conforming to standard EN 60335-1; CE
Approval CCC; UL 2111; CSA C22.2 Nr.77
Package: fan * 1pcs
