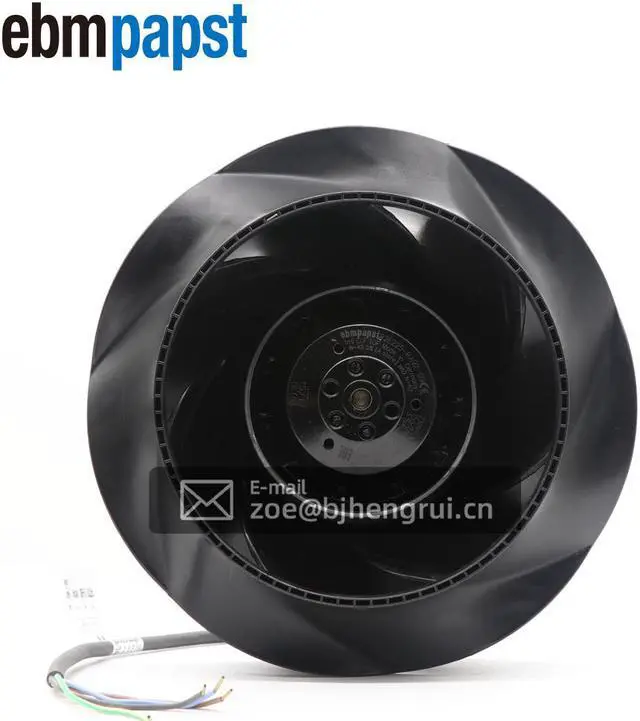

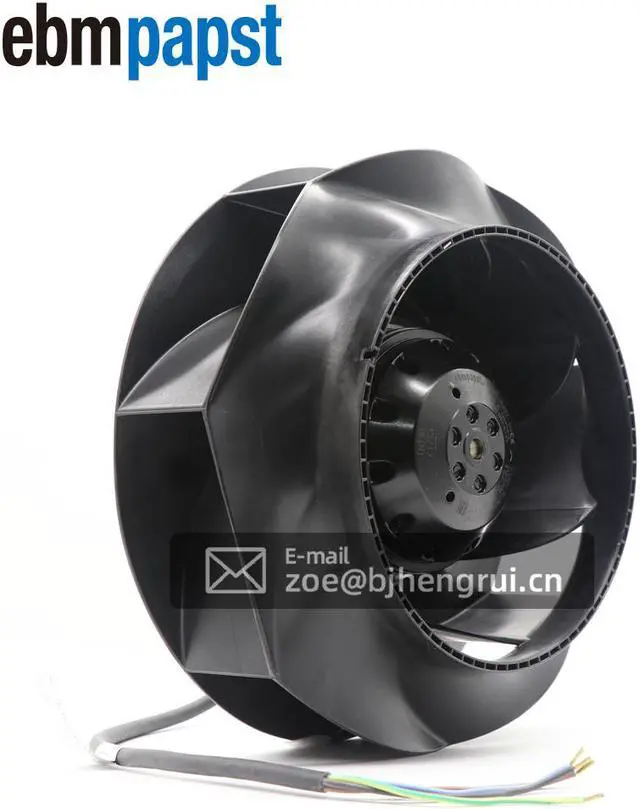

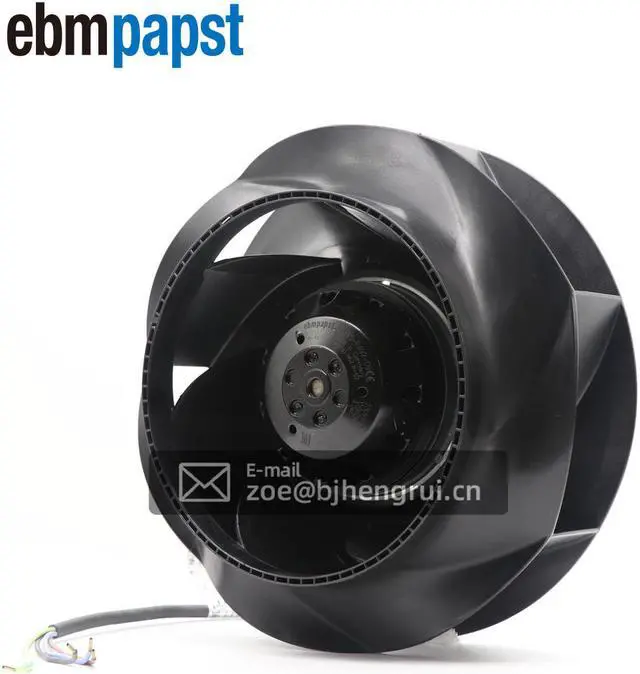

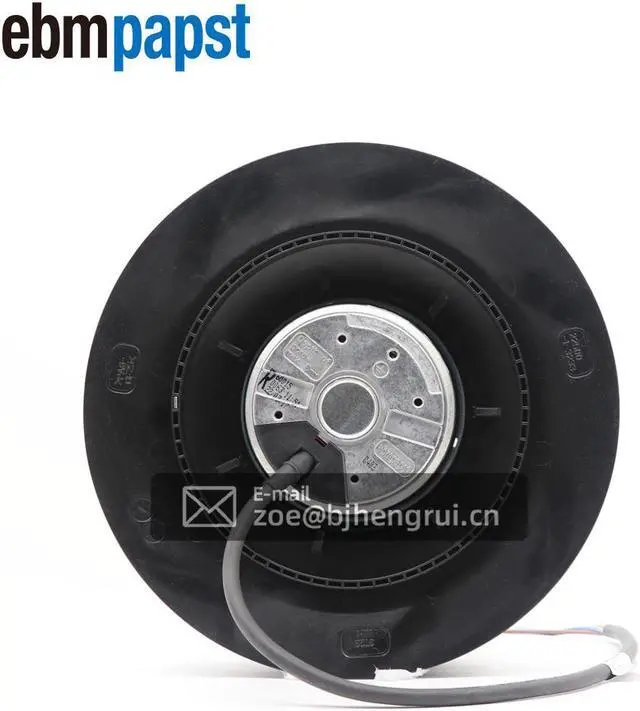

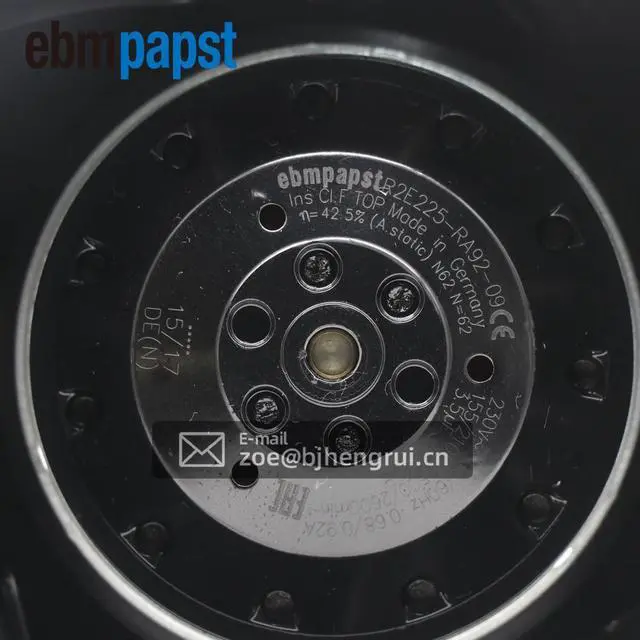

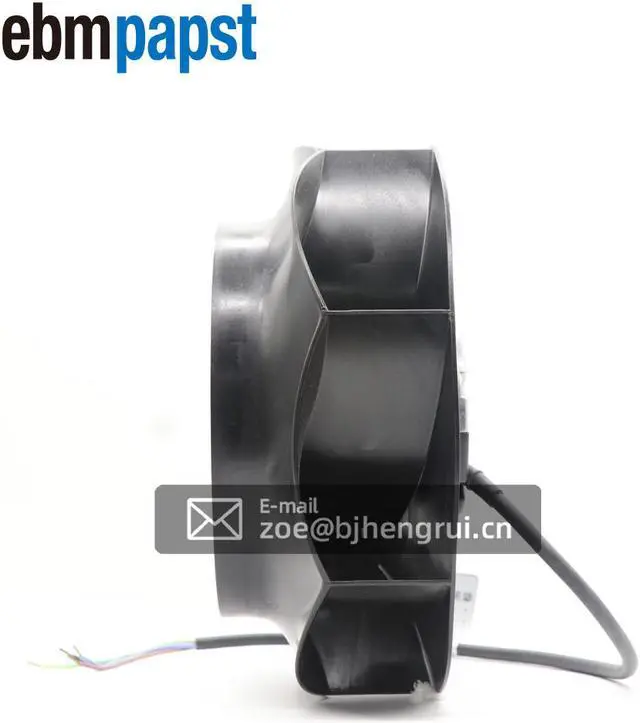

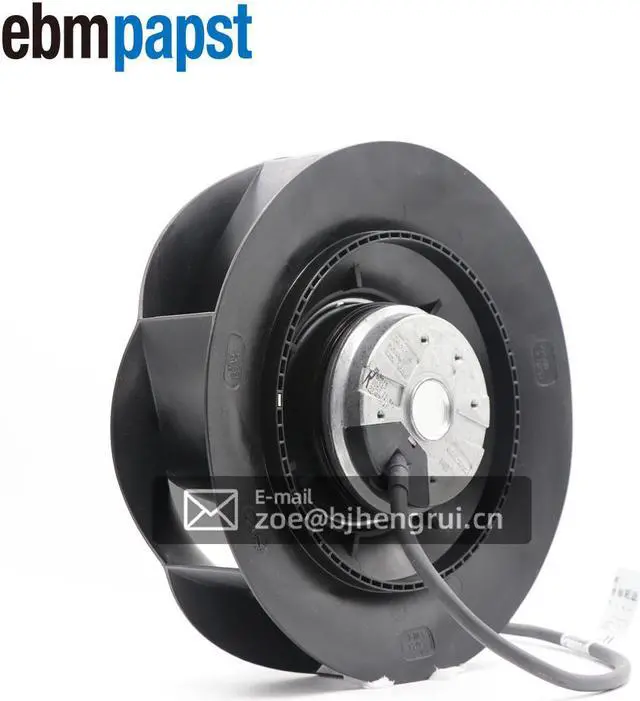

EBM-Papst R2E225-RA92-09 AC Fan Ball Bearing 230V 0.68A/0.92A 155W/210W 2560RPM 414.94CFM Flange Mount AC centrifugal fan - RadiCal
- Condition: 100% new and good quality;
- Brand:ebmpapst ;Model: R2E225-RA92-09;
- Nominal voltage:230VAC; Frequency :50/60HZ; Speed:2500/2600 min-1;
- Power input :155/210W; Current draw:0.68/0.92A; Size:225mm; Number of blades:7;
- Type of protection:IIP44;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Nominal data
Type R2E225-RA92-09
Motor M2E068-DF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Type of data definition ml ml
Valid for approval / standard CE CE
Speed min-1 2500 2600
Power input W 155 210
Current draw A 0.68 0.92
Motor capacitor µF 3.5 3.5
Capacitor voltage VDB 450 450
Min. back pressure Pa 0 0
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 70 65
Starting current A 1.25 1.2
Technical features
Size 225 mm
Surface of rotor Coated in black
Material of impeller Plastic PA6, fibreglass-reinforced
Number of blades 7
Direction of rotation Clockwise, seen on rotor
Type of protection IP 44; Depending on installation and position as per EN 60034-5
Insulation class "F"
Humidity class F1-2
Max. permissible ambient motor
temp. (transp./ storage)
+ 80 °C
Min. permissible ambient motor
temp. (transp./storage)
- 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
< 0.75 mA
Motor protection Thermal overload protector (TOP) wired internally
Cable exit Variable
Protection class I (if protective earth is connected by customer)
Product conforming to standard EN 60335-1; CE
Approval CCC; EAC
