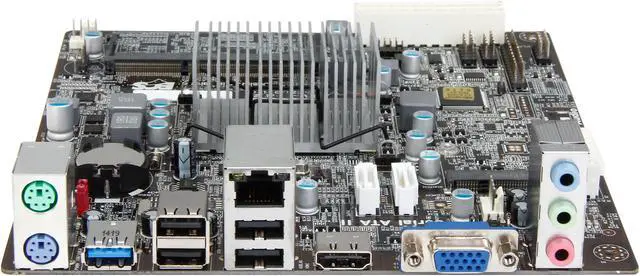

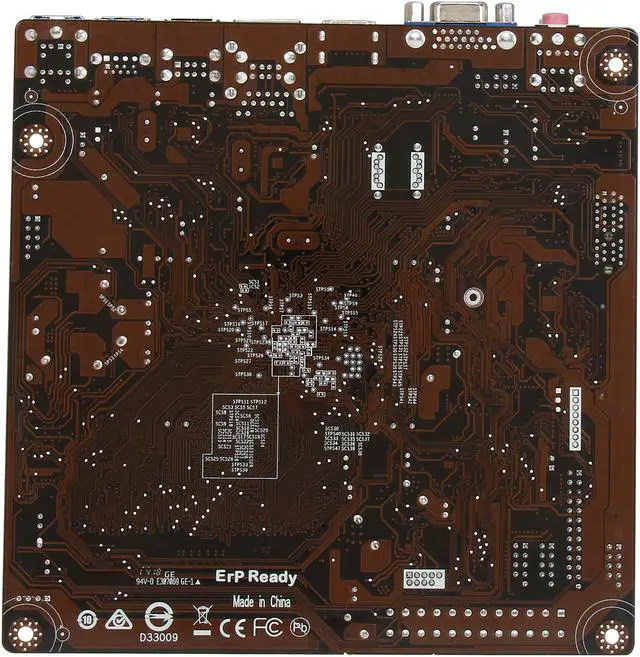

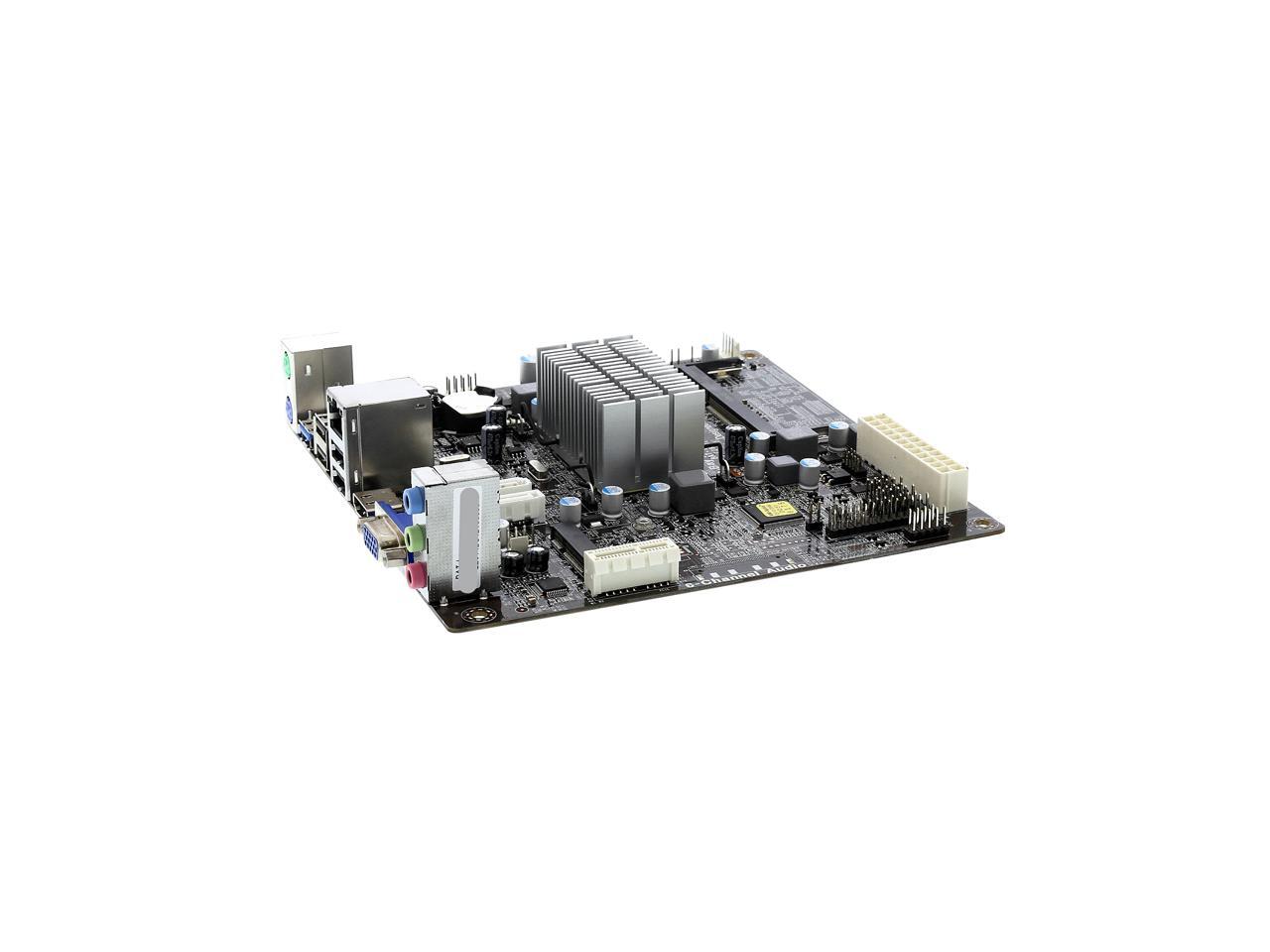

ECS BAT-I(1.2)/J1900 Intel Celeron J1900 2.0 GHz Mini ITX Motherboard / CPU / VGA Combo
- Celeron
- DDR3
- Integrated Graphics
Learn more about the ECS (EliteGroup) BAT-I(1.2)/J1900
| Brand | ECS |
|---|---|
| Model | BAT-I(1.2)/J1900 |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Celeron J1900 2.0 GHz |
|---|
| CPU Type | Celeron |
|---|
| Number of Memory Slots | 1x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 |
| Maximum Memory Supported | 8GB |
| PCI Express x1 | 1 x PCI Express x1 |
|---|---|
| Other Slots | 1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modules |
| SATA | 2 x SATA 3.0Gb/s |
|---|
| Onboard Video Chipset | Integrated Graphics |
|---|
| Audio Chipset | VIA VT1705 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek RTL8111G |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| USB 3.0 | 1 x USB 3.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 X USB 2.0 header Support additional 2 USB ports |
|---|---|
| Other Connectors | 1 X 4-pin CPU_FAN connector with smart fan 1 X 4-pin SYS_FAN connector with smart fan 1 X Front Panel MIC/Speaker out header 1 X Front Panel switch/LED header 1 X CLR_CMOS header 2 X Serial port header (COM) 1 X Parallel port header (LPT) |
| Features | Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system ECS Durathon Technology ensure the stability, reliability and performance of system.(Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs) Dual Display design for multiple output support Integrated Printer (LPT) port / header to expand functionality Microsoft Windows 8 Certified Intel VRD 12 Ready Supports DirectX 11 to enhance graphical performance Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.69" x 6.69" |
| First Listed on Newegg | October 10, 2014 |
|---|
